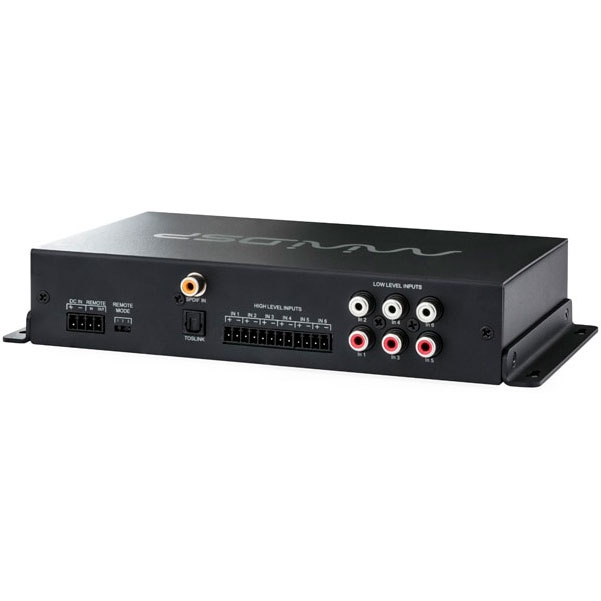

miniDSP C-DSP 8x12 V2.0 8 In 12 Out Automotive DSPPremium Digital Audio Processor for Mobile/Car audio installations, 32bit floating point SHARC ADSP21489 @ 400MHz, 8x12 I/O, 32bit converters, Remote for Preset/Master & Sub volume control
The C-DSP 8x12 is miniDSP’s next-generation processor for high-end mobile/car audio. The powerful 400 MHz SHARC floating-point processor provides pristine high-resolution audio at internal sample rates up to 192 kHz. With a wealth of inputs and outputs in a compact, rugged enclosure, the C-DSP 8x12 is suitable for installations from simple stereo, through surround systems with subwoofer integration, up to advanced multichannel active systems. New to this upgraded version are the onboard 32bit AKM converters that provide low noise and improved dynamic range to perfect your miniDSP experience.
The driverless USB interface is used to configure miniDSP’s powerful but easy-to-use audio processing: parametric EQ on all inputs and outputs, compressors and adjustable time delay on all outputs, crossovers up to 48 dB/octave, and an advanced matrix mixer. Four complete processing configurations are stored in flash memory for instant recall with a wired or infrared remote.

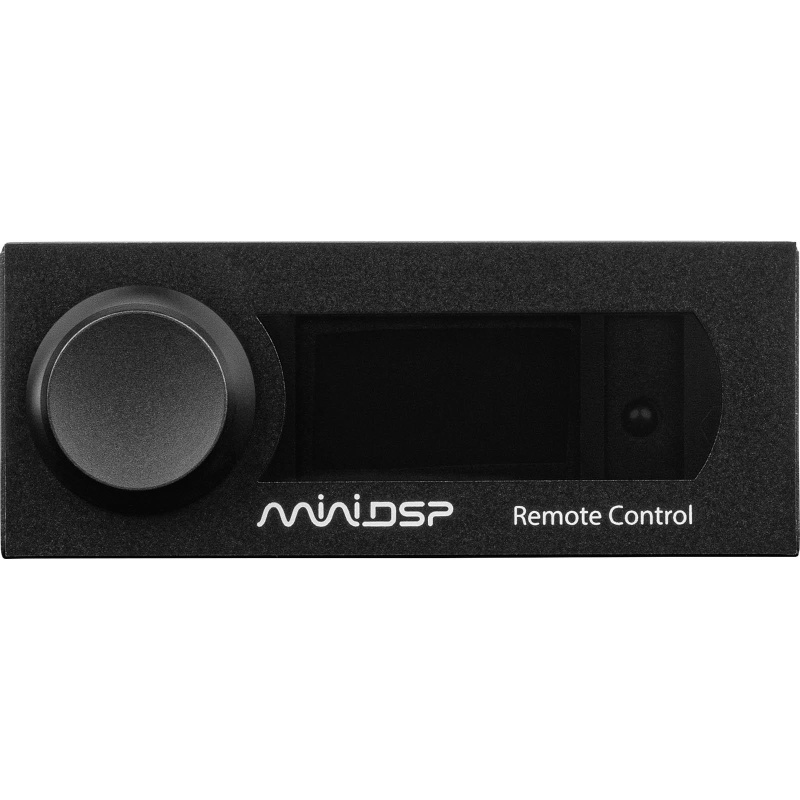

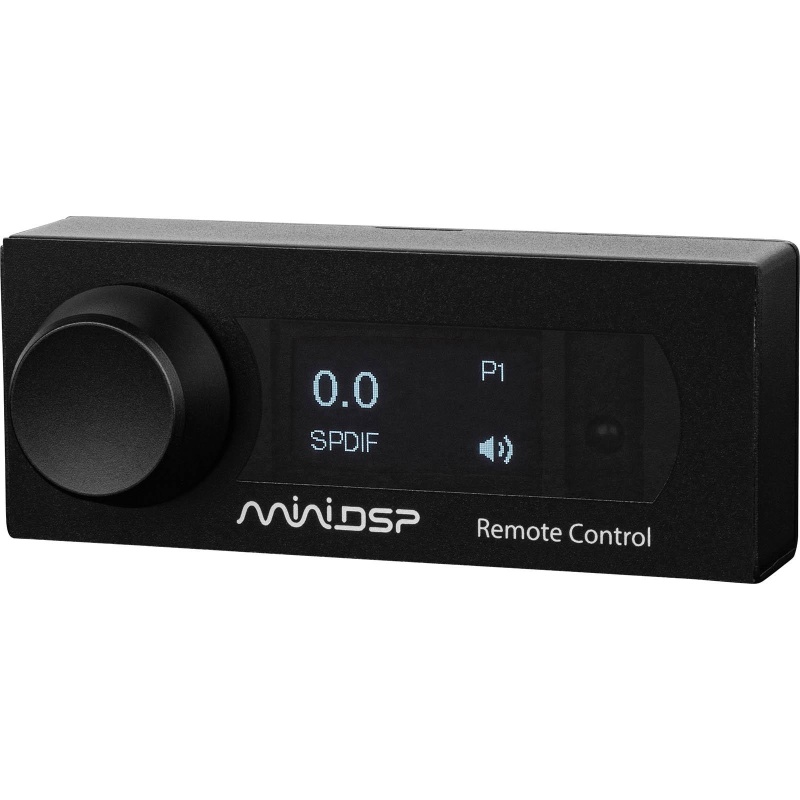

Hardware features dedicated to the vehicle environment include an on-board isolated power supply, remote trigger input/output, a wired remote for dash or console mounting, and a microSD card slot for offline configuration and firmware updates.
Features400MHz 32bit Sharc Floating point processor, Up to 192kHz processing 32bit DAC/ADC chipsets THD+N 0.0007%, 115dB SNR Digital and analog inputs (Low/High levels), 12 analog outputs Flexible DSP processing blocks, Rear Fill processing (L-R, L+R..) thanks to internal matrix Fully differential balanced inputs Optional Dirac live upgrade (Read for more info) Windows/Mac compatible GUI Remote control or preset/master & sub volume control
This product is sold brand new. A manufacturer warranty applies only when the manufacturer provides one for this item.
Return requests must be submitted within 14 days of delivery and approved by our RMA department before the item is shipped back. Non-defective returns may be subject to a minimum 25% restocking fee and return shipping charges. Unauthorized returns are not eligible for credit or refund. Read the full return policy.
What's in the box?1 x C-DSP 8x12 DSP processor1 x 1m USB cable 1 x 5m remote cable + OLED Remote control module 1 x C-DSP 8x12 plugin license
Specifications

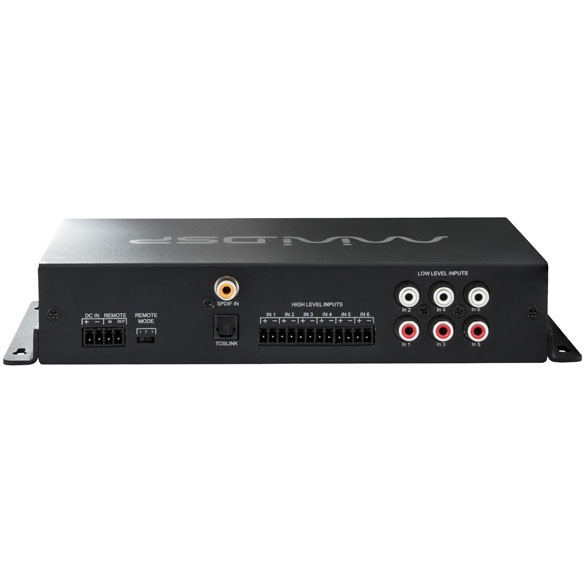

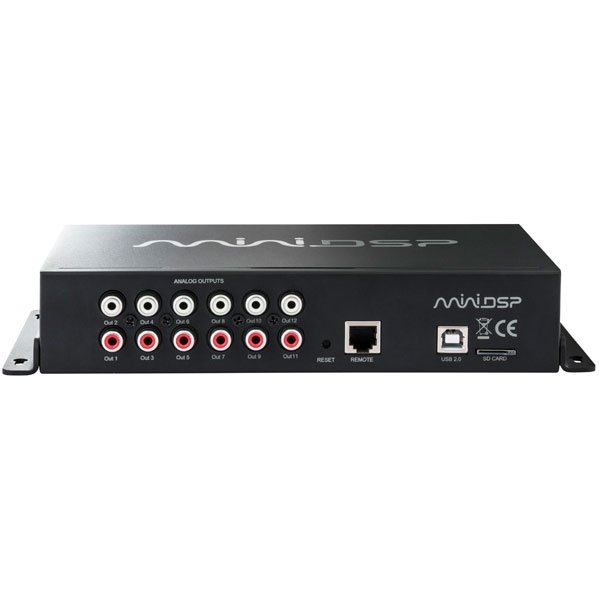

Digital Signal Processor Engine: Analog Devices ADSP21489 floating point DSP Converters: 32bit AK4456(DAC), 32bit AK5556(ADC)Internal Processing resolution& Sample rate: 32 bit / 192 kHz on CDSP 8x12 pluginInput/Ouput Configuration: 8 in / 12 out Audio Input Connectivity -High level (6 terminal block), Low level unbalanced (6 RCA) -Stereo Digital Inputs: SPDIF (RCA), Toslink (optical) -Supported ASRC: 44.1~192kHz Audio Output Connectivity -12 x RCA connector -115dB SNR, THD+N 0.0007% Input / Output Max Levels -IN: 8 or 12 Vrms on high level / 4 or 2Vrms on low level input -OUT: 4.5Vrms
Input Impedance -High level: 68Ω -Low level: 10 kΩ Output Impedance: 560 Ω Calibration Software: C-DSP 8x12 plug-in Filtering Technology: IIR/FIR depending on plugin DSP Presets: Up to 4 presets Dimensions: 41 x 205 x 122 mm Power: Isolated DC-DC conversion for Car Audio environment Impulse Response Correction ✔Infrared Remote Learning ✔ Win/Mac Compatible ✔ UMIK-1 Included ✘ Bass Management ✘ Room EQ Wizard Support ✔
