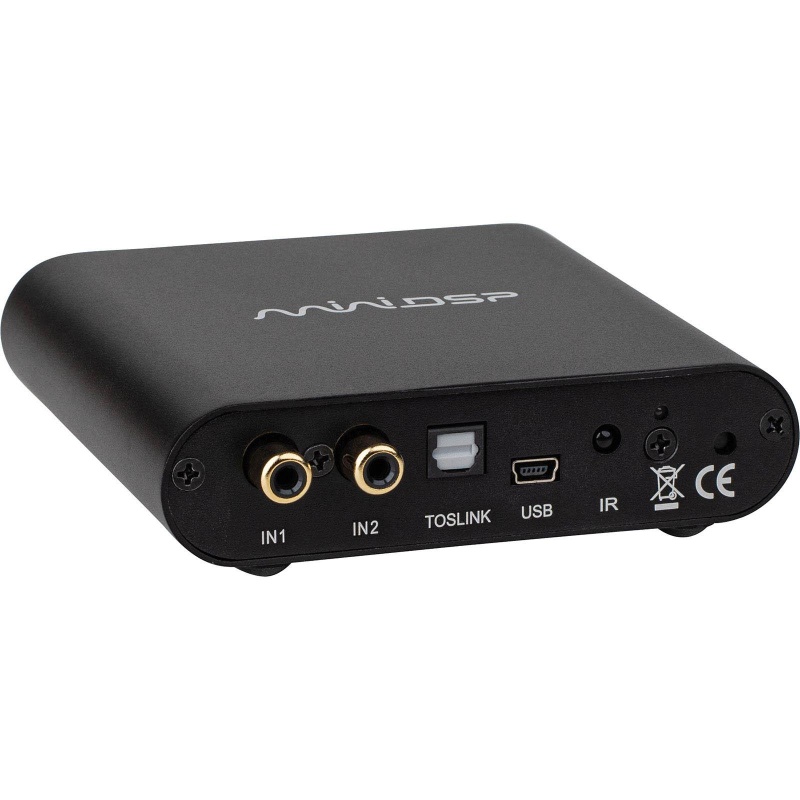

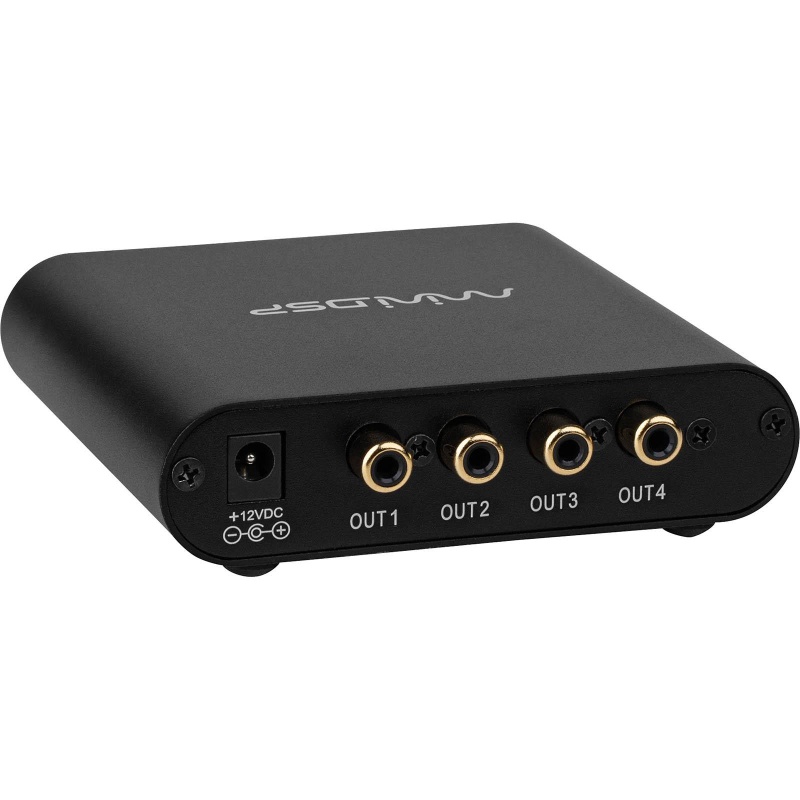

miniDSP DDRC-24 2x4 Dirac Live Stereo ProcessorDDRC-24, a USB DAC+DSP Digital Room Correction processor powered by Dirac Live in a tiny form factor
miniDSP introduces the DDRC-24, the world’s smallest Dirac Live® hardware processor. Dirac Live®, the world’s premier room correction solution, is now available in an unbelievably compact hardware unit. Powered by a 400 MHz Analog Devices SHARC processor, the DDRC-24 retains the 4-channel output of its sister unit, the miniDSP 2x4 Hd, in order to allow applications like subwoofer integration or even 2-way loudspeakers together with Dirac Live® room correction in a single tiny hardware platform. The matrix mixer and crossover functionality is accessed and programmed with miniDSP’s easy-to-use interface software. An all in one unit with USB DAC + Dirac Live Room Correction + Speaker processing.
I/O capabilities get an upgrade too, with the addition of USB audio streaming up to 192 kHz and a TOSLINK digital input. The miniDSP DDRC-24 will find application in full-sized hifi and home theater systems, on desktops, in cars, in recording studios anywhere a compact, powerful room correction processor is needed.
FeaturesADSP21489 400MHz Sharc DSP floating point engineXMOS Xcore200 for USB control and bidirectional audio streaming 24 bit ADC/DAC resolution Dirac Live 3.x for miniDSP with 4 presets, fully configurable target curve Unbalanced inputs switchable with a jumper between 4Vrms and 2Vrms Toslink digital input Unbalanced outputs: Max 2Vrms USB Audio Class 2 Audio streaming with ASIO drivers, driverless under MAC OSx 4 preset configuration, recallable via IR, Software Wifi/Alexa voice control via WI-DG accessory
What's in the box?1 x DDRC-24 including Dirac Live license for miniDSP and DDRC-24 plugin 1 x 12V power supply with UK/EU/US/AU plugs1 x shielded USB cable 1 x IR remote 1 x Dirac live license 3.x for miniDSP, full range correction 1 x UMIK-1, USB microphone with unique calibration file for accurate acoustic measurements
This product is sold brand new. A manufacturer warranty applies only when the manufacturer provides one for this item.
Return requests must be submitted within 14 days of delivery and approved by our RMA department before the item is shipped back. Non-defective returns may be subject to a minimum 25% restocking fee and return shipping charges. Unauthorized returns are not eligible for credit or refund. Read the full return policy.
Powered by Device ConsoleSpecifications
Digital Signal Processor Engine: Analog Devices Floating point DSP SHARC ADSP21489 Internal Processing resolution& Sample rate: 32 bit / 48kHz Input/Output Configuration: 2 in / 4 outAudio Input Connectivity -Unbalanced analog input, RCA terminated -Stereo Digital Inputs: TOSLINK (optical) -Stereo USB audio input: USB Audio -Supported ASCR: 20~216kHz Audio Output Connectivity: Unbalanced output, RCA terminated
Input / Output Max Levels -IN: 2Vrms / 4Vrms (jumper-selectable) -OUT: 2Vrms Input Impendence: 10 kΩ Output Impedance: 560 Ω Calibration Software: DDRC-24 plugin Filtering Technology: Dirac Live 3.x DSP Presets: Up to 4 presets Dimensions: 27 x 119 x 107 mm Power: 12 VDC single supply 2.1 mm round plug / 2.5W
