miniDSP EARS Calibrated USB Measurement Test Jig for HeadphonesCalibrated headphone test fixture, low noise capsules, USB audio plug and play setup, Configurable jumpers
Introducing "EARS", the Earphone Audio Response System. miniDSP EARS brings headphone measurement capability to "the masses" - it's just an extremely affordable measurement rig for headphones and IEMs that miniDSP has built using the same technology as their popular UMIK-1 calibrated measurement microphone. Alternatively one could use EARS as a binaural microphone with USB audio streaming.

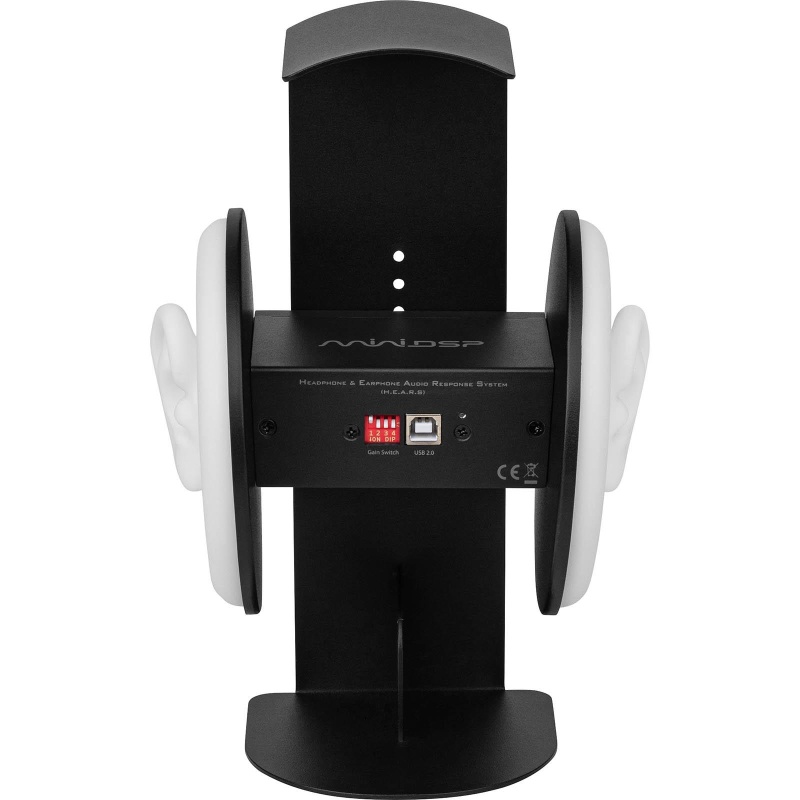

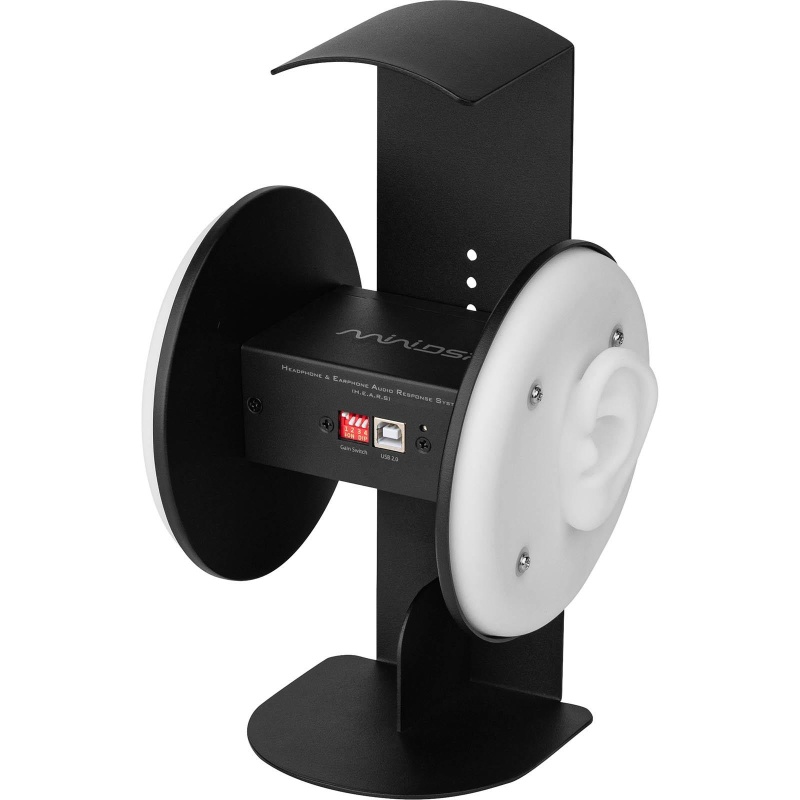

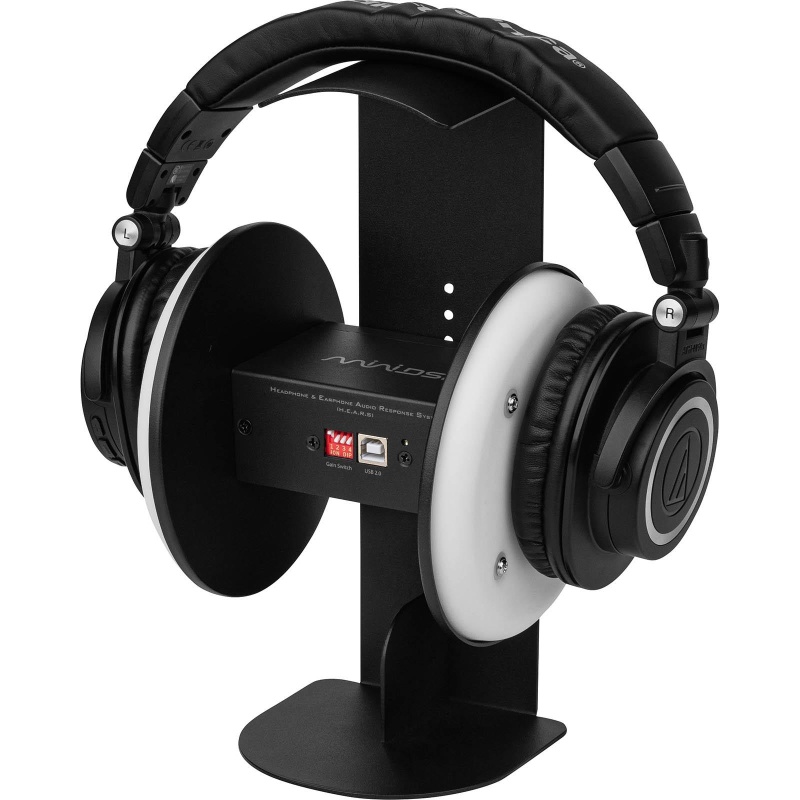

Each pair of EARS has two microphone capsules mounted in a minimal "dummy head". Measurement output is via the driverless USB connection. The EARS are powered from the USB so there is no need for an external power supply. To measure headphones, just mount your headphones on the rig and run a measurement sweep using your headphone amp and favorite measurement program (e.g. Room EQ Wizard). The supplied calibration file corrects for the response of the microphone capsule and the ear. The miniDSP EARS is the perfect tool for creating EQ filters for the miniDSP HA-DSP headphone amplifier or for any other headphone system with EQ capability.
NOTE: Please note that EARS is not an industry-standard measurement head. Even expensive test jigs can produce measurements that are different to each other depending on the type of ear simulator. miniDSP's goal with the EARS is to produce something that is affordable and fun to use.
FeaturesAffordable Headphone test jig Plug and play USB audio streaming for Win/Mac/Linux Step by step on how to Equalize your headphone using EARS
What's in the box?1 x EARS test jig 1 x shielded USB cable (1.5m)
This product is sold brand new. A manufacturer warranty applies only when the manufacturer provides one for this item.
Return requests must be submitted within 14 days of delivery and approved by our RMA department before the item is shipped back. Non-defective returns may be subject to a minimum 25% restocking fee and return shipping charges. Unauthorized returns are not eligible for credit or refund. Read the full return policy.
Unique Calibration File DownloadAll EARS are calibrated with unique left and right calibration files. To download the calibration files, and scroll down to "Unique Calibration File Download."
Specifications
Capsule Type & Polar pattern: 6mm electret, Omni-Directional Frequency response: 20 Hz - 20kHz USB Audio class: 1.0 Driverless interface for Windows, Mac & Linux Connector: USB Connector Calibration File: Unique microphone calibration .txt file referenced to the Serial Number. Includes on frequency / Amplitude / Sensitivity drift
Resolution & Sample rate: 24bit ADC @ 48kHz Max SPL for 1 % TDH @ 1kHz: 133 dB SPL @OdB gain setting Weight: 1.3kG Power: USB Powered (5V) - Blue LED indicates unit under power Win/Mac/Linux Compatible: ✔
