miniDSP UMIK-2 Omni-directional USB Measurement Calibrated MicrophoneminiDSP Flex, 400MHz Sharc DSP audio processor, toolbox for subwoofer or multiway speaker tuning, Optional Dirac Live license for room correction, Bluetooth LDAC/APTX/AAC streaming
The miniDSP Flex is the 3rd generation of our popular line of compact 2-in, 4-out audio processors. It retains the powerful floating point processor but rethinks the I/O architecture so we can provide our customers with different input-output versions in this compact chassis. This version has a analog I/O (RCA) with superb audiophile specification for your enjoyment.

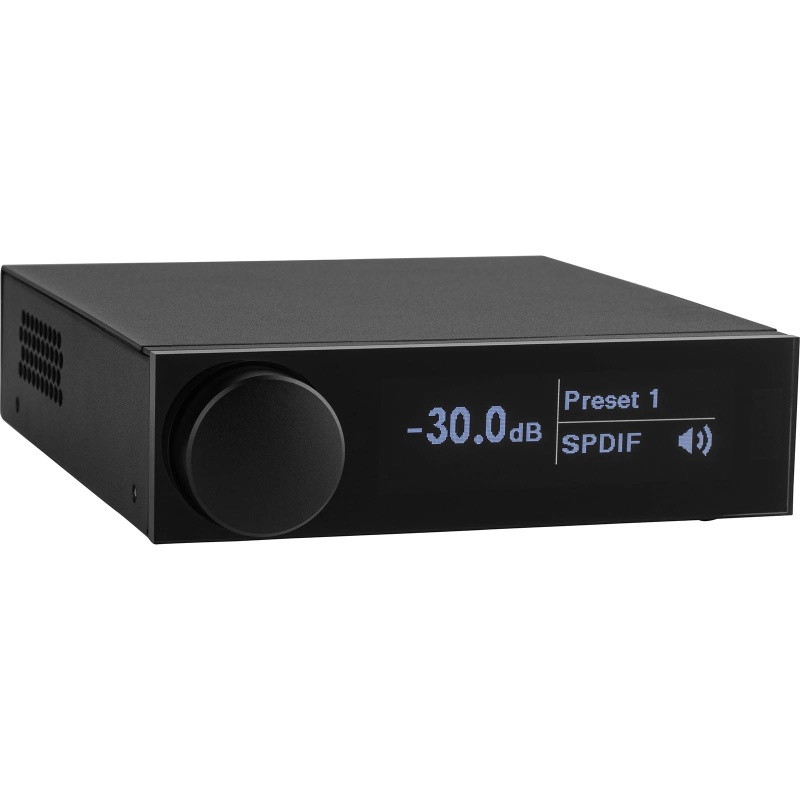

This unit includes USB audio, S/PDIF (RCA/optical) and Bluetooth (LDAC/aptX). An OLED front panel display and volume control/encoder knob provides easy control. As always, the Flex series is jam-packed with miniDSP’s tried and proven audio processing functionality: flexible parametric EQ, IIR & FIR filters, crossovers, advanced biquad programming and delay on each output channel. Last but not least, all platforms are easily software-upgradable with Dirac Live®, the world’s premiere room correction system for full range (20~20kHz) tuning.
The miniDSP Flex will find a myriad uses in applications ranging from a compact digital stereo preamp through subwoofer integration and optimization to active speakers, home theater and recording studios. You just need to let your creativity do the rest!
Hardware Features
Processor: 32-bit floating-point 400MHz Analog Devices SHARC DSP Multi-Core USB Audio processor (XMOS) Bluetooth streaming: LDAC™/aptX™ HD/aptX™/AAC/SBC Optional upgrade to Dirac Live® 3.x Digital Room Correction, Full Range Room Correction (20~20kHz) Audiophile performance: SNR@120dB(A), THD+N @ -110dB (0.0003%)
This product is sold brand new. A manufacturer warranty applies only when the manufacturer provides one for this item.
Return requests must be submitted within 14 days of delivery and approved by our RMA department before the item is shipped back. Non-defective returns may be subject to a minimum 25% restocking fee and return shipping charges. Unauthorized returns are not eligible for credit or refund. Read the full return policy.
Inputs: Stereo digital (USB Audio/SPDIF/Optical/Bluetooth), stereo analog (Unbalanced RCA) Outputs: Unbalanced (RCA)USB audio recording feature (4xCH processed output via USB audio to record inputs, e.g. Vinyl) White/Black OLED front panel controller with IR control Compatible with miniDSP's Device Console
Understanding LDAC Wireless AudioLDAC™ is Sony's High Quality wireless audio streaming and we at miniDSP thought it would be great to showcase its benefits. By nature, Bluetooth audio streaming is very convenient but it's not without its limitations and until recently has not been an audiophile experience. LDAC is a new CODEC enabling 3 x the data to improve your enjoyment. You can read more on the .
Specifications
Digital Signal Processor Engine: Analog Devices Floating point DSP SHARC ADSP21489 @ 400MHZ Processing resolution / Sample rate: 32 bit/96 kHz (32bit/48 kHz with Dirac Live® license) USB Audio support: UAC2 Bidirectional Audio - ASIO driver support (Windows) - Plug&Play (Mac/Linux)Input/Output Configuration: 2 channels in / 4 channels out Digital Stereo Audio Input Connectivity: -1 x SPDIF on RCA connector -1 x OPTICAL on Toslink connector -1 x USB audio (stereo) -1 x Bluetooth with support for: LDAC™/aptX™ HD/aptX™/AAC/SBC -Supported Sample Rate: 20 ~ 216 kHzDigital Audio Output Connectivity: 4 x Output channels(Post DSP) on USB AudioDigital Audio Output Connectivity: 4 x Output channels (Post DSP) on USB Audio Analog Audio Input Connectivity: 2 x Unbalanced RCAAnalog Audio Output Connectivity: 4 x Unbalanced RCA

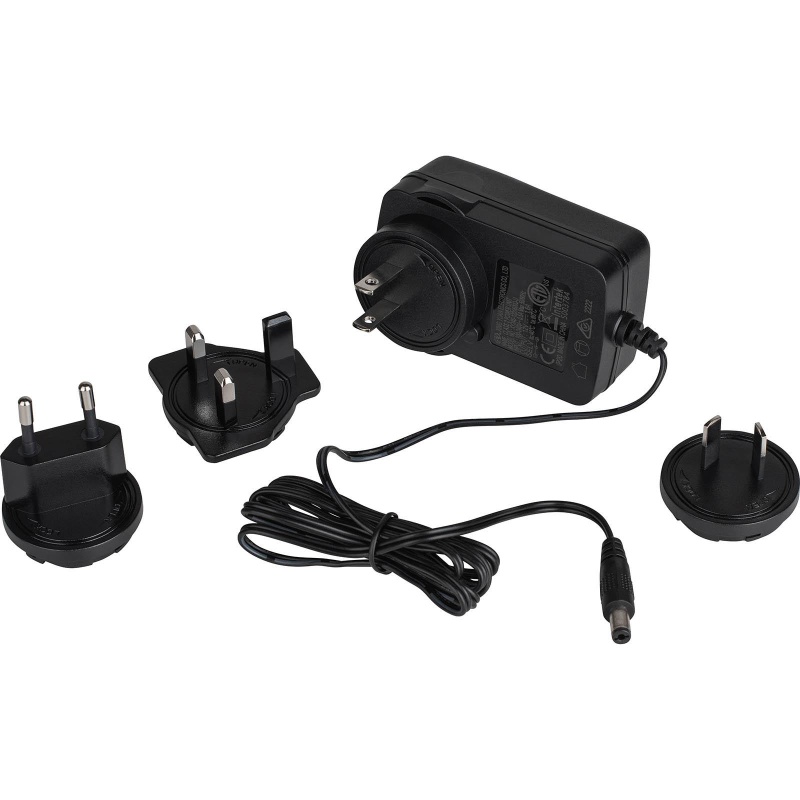

Analog Audio Input Impedance: 100 kΩ Analog Audio Output Impedance: 200 ΩAnalog Audio Input / Output Max Levels: 2 V RMS / 2 V RMSFrequency Response: 20 Hz – 20 kHz ± 0.1 dBSNR (Digital to Analog): 120 dB(A)THD+N (Digital to Analog): -110 dB (0.0003 %) ± 3 dBCrosstalk (Digital to Analog): -120 dBSNR (Analog to Analog): 112 dB(A)THD+N (Analog to Analog): -103 dB (0.0005 %) ± 3 dBCrosstalk (Analog to Analog): -115 dBFiltering Technology: FIR + IIR / Optional Dirac Live® 3.x Full Range correction (20~20kHz) DSP Presets: Up to 4 presetsDimensions: 150x180x41 mmAccessories: IR RemotePower Supply: Included external switching PSU 12V/1.6A (US/UK/EU/AU plugs)Power Consumption: -9.0 W (idle) -2.5 W (standby)
