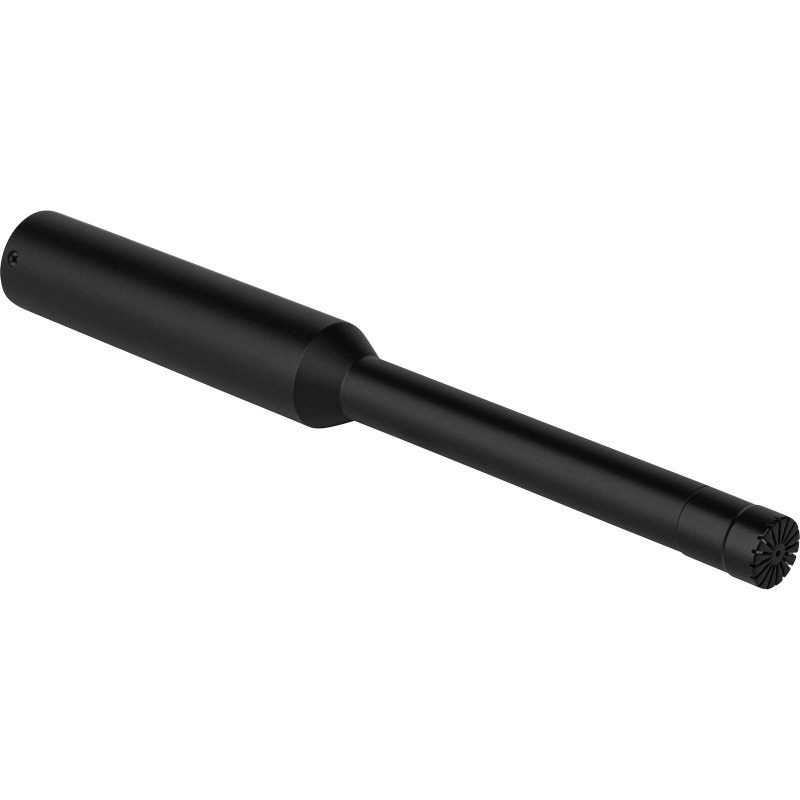

miniDSP UMIK-2 Omni-directional USB Measurement Calibrated MicrophoneUSB Reference Measurement Microphone, 32bit/44.1~192kHz, ASIO drivers, 1/2" capsule, Low noise floor, Unique Calibration file, REW integration
MiniDSP is pleased to introduce the UMIK-2, its second-generation omni-directional acoustic measurement microphone. The UMIK-2 has everything that made the first-generation UMIK-1 one of their best selling products, including a convenient plug-and-play USB connection and a unique calibration file for each microphone to ensure accuracy.
However, the UMIK-2 is also a significant upgrade in performance and functionality. A larger 1/2-inch microphone capsule provides lower noise and lower distortion, which is preserved by the 32-bit ADC (analog-to-digital convertor) built into the microphone shell. Furthermore, sample rates are selectable from 44.1 to 192 kHz for compatibility with the widest possible range of measurement and recording software.
The UMIK-2 is of course fully compatible with REW (Room EQ Wizard) and Dirac Live (version 3 and later). Driverless operation with macOS, Linux, Android and iOS, and a supplied ASIO driver for Windows ensure simple integration into many other measurement and recording applications. With the UMIK-2, miniDSP once again stretches the limits of affordable acoustic measurement gear. Let the measurement fun begin!
Features
USB Audio Reference Measurement MicrophoneUnique calibration file for each microphone 1/2" capsule on 60 UNS thread 32bit 44.1~192kHz recording, Custom Windows ASIO drivers and Plug and Play on Linux/Mac OSx Low noise floor preamps, 120DR ADC Plug and Play compatible with wide range of software, including REW & Dirac Live platforms
What's in the box?

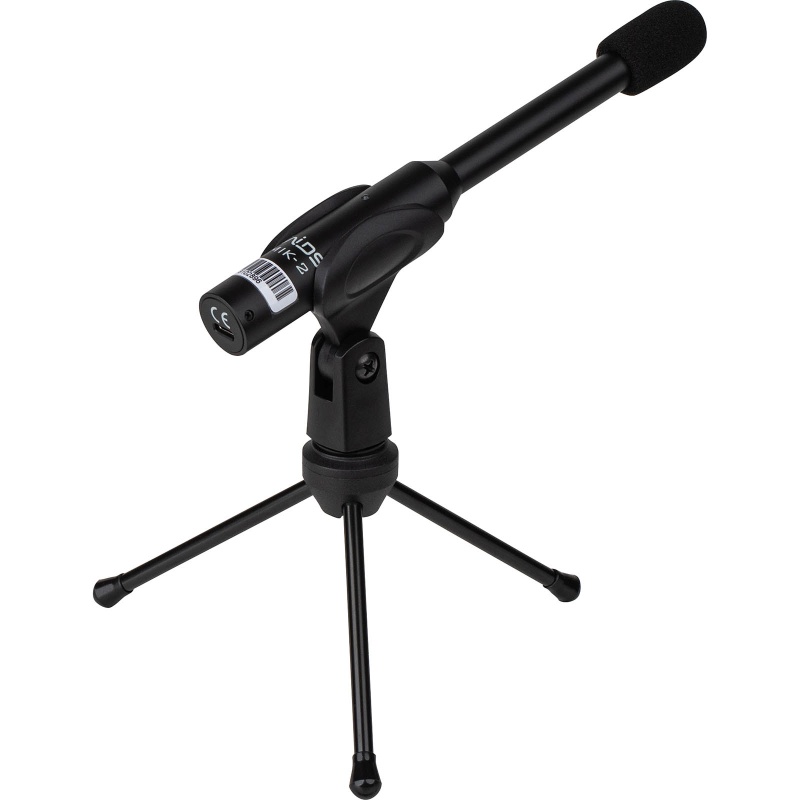

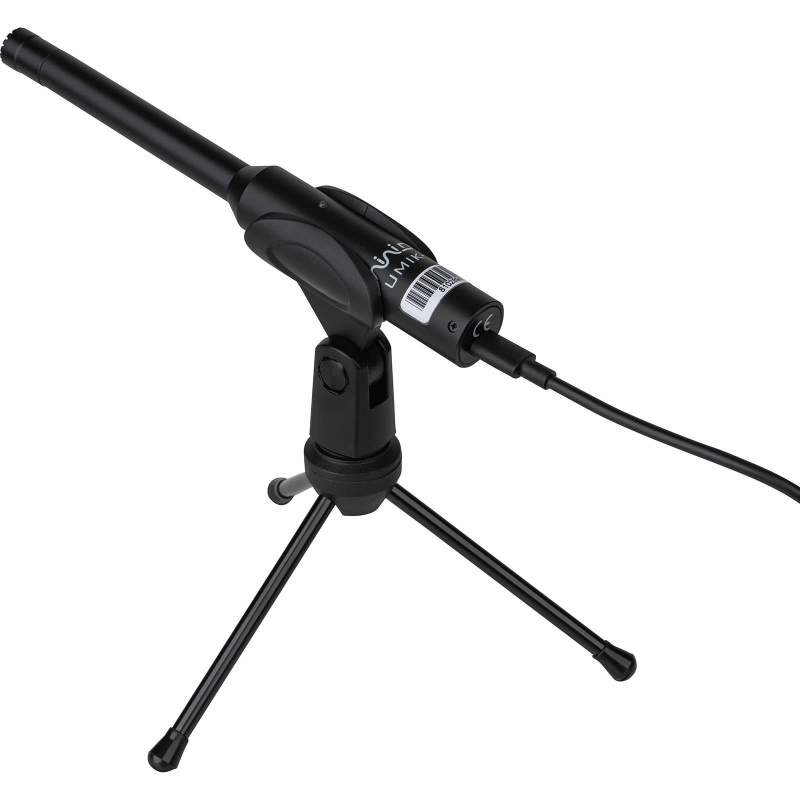

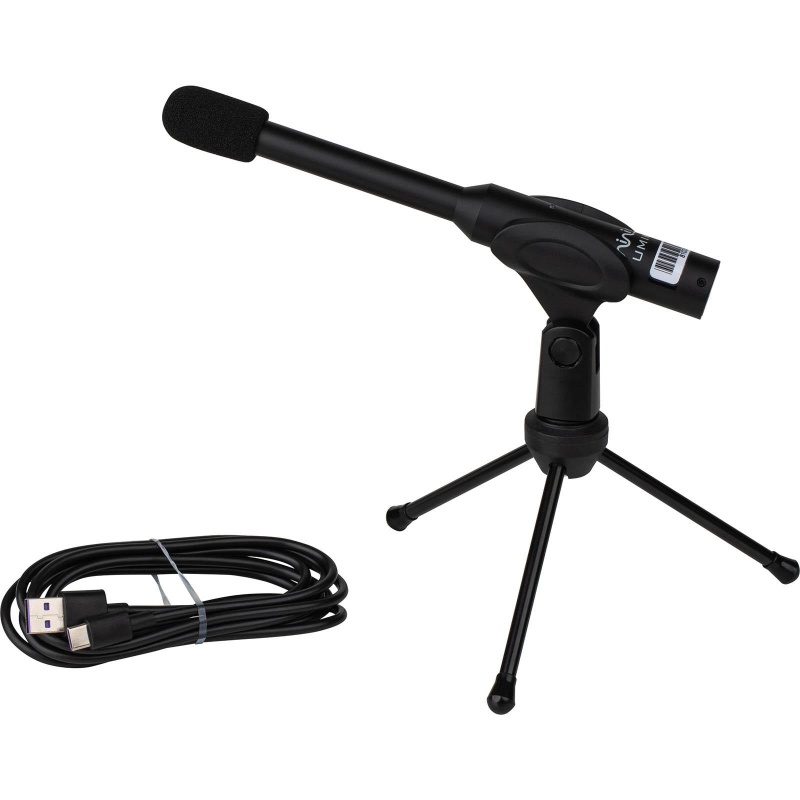

1 x UMIK-2 microphone 1 x shielded USB C cable (2m) 1 x mini tripod + mic clamp1 x wind screen
This product is sold brand new. A manufacturer warranty applies only when the manufacturer provides one for this item.
Return requests must be submitted within 14 days of delivery and approved by our RMA department before the item is shipped back. Non-defective returns may be subject to a minimum 25% restocking fee and return shipping charges. Unauthorized returns are not eligible for credit or refund. Read the full return policy.
Each UMIK-1 microphone is individually calibrated and comes with a unique calibration file. Additionally, an auto-generated 90-degree calibration file is provided for use in surround sound system setups. To access your calibration files, and scroll to "Calibration File Download."
miniDSP provides two calibration files to be used depending on your application. -For stereo system (e.g. 2ch Dirac live, single speaker measurement), use the 0deg file and point the UMIK-2 at the speakers -For multichannel system (E.g. 5.1/7.1) or a surround application where multiple speakers are spread out around the room, use the 90deg file and point the UMIK-2 at the ceiling.
Recommended by FriendsThe miniDSP team built long term relationships with the following leading software applications and is proud to showcase them as their recommended software solutions:
: miniDSP once again partners with John Mulcahy to develop even greater compatibility for the UMIK-2 inside REW! With the latest REW version (Beta , the UMIK-2 is automatically recognized by the software and prompted for use when REW is started with the microphone plugged in.
: Dirac Live (3.x and up) also supports plug and play integration with the UMIK-2 for best measurement accuracy.
Specifications
USB Audio Controller: -XMOS 500MHz multicore processor, USB Audio Class 2 (UAC2) -32bit 44.1~192kHz sample rate ADC: -32bit ADC with embedded PGA for up to 60dB analog gain -120dB SNR, Gain control via Mac/Win applicationCapsules: -1/2” Low noise Pre-polarized condenser on 60UNS thread -Sensitivity: -34 dBfs @ 0dB Gain (94 dB SPL. 1 kHz) -Noise level: -105.3dBfs (A) @ 0 dB gain -MAX SPL(0dBfs): 125dB SPL -Equivalent Input Noise (EIN): 20dB SPL @ 0dB gain Connectivity: USB 2.0 streaming, USB Type C connector Software: As a standard USB audio microphone, UMIK-2 is compatible with any software. The following proven platforms with plug and play integration. -Room EQ Wizard freeware for acoustic measurements -Dirac Live Room Correction software USB Audio: -Mac OSx/Linux/Android Driverless -ASIO compatible driver for Windows via miniDSP's UAC2 drivers -iOS support with USB camera adaptorAccessories: -1 x miniTRIPOD with microphone clamp -1 x windscreen -1 x USB 2m long USB cable Dimensions (W x D); 21 x 185 mmWeight: 150gConstruction: Aluminum body
