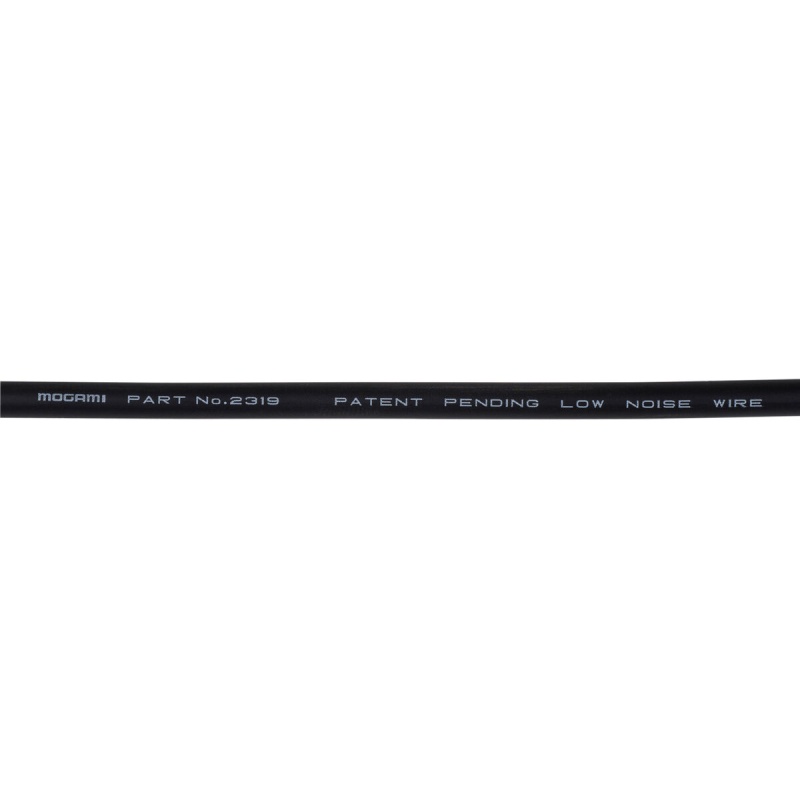

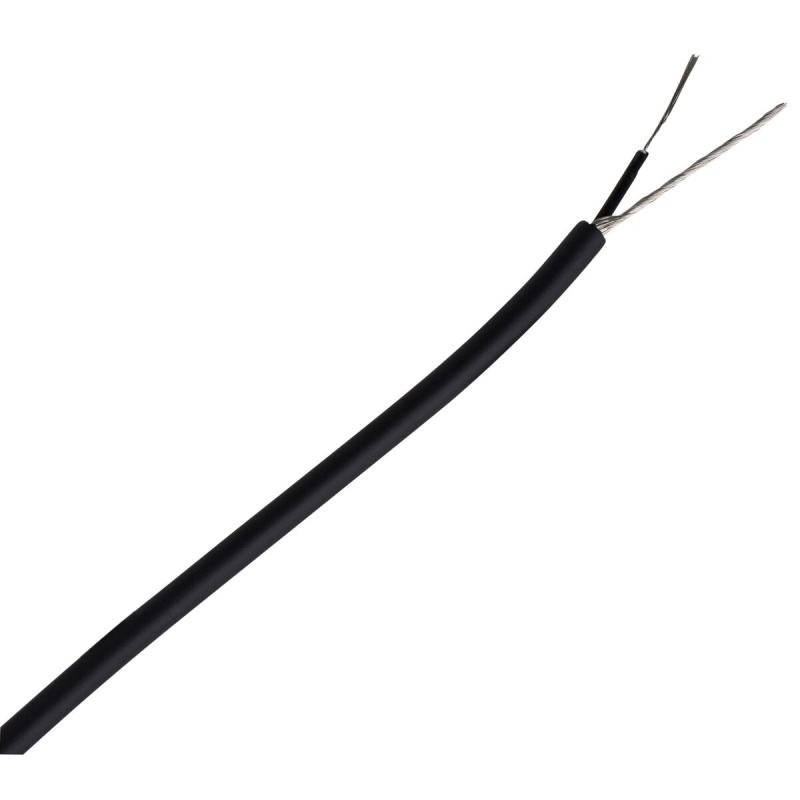

Mogami W2319 High Impedance 23 AWG Guitar Instrument Signal CableMost musical instrument sound pick-ups, for example those in electric guitars, are comprised of high impedance circuits driven mainly by voltage, with very little electrical current flow. That is why handling noise (microphonics) can be a problem for guitar cables. Microphonic noise is caused by the minute voltage generated when a cable is flexed, stepped on, etc. Guitar cables must be designed to prevent this, so a conductive PVC layer is placed under the shield conductor to drain away this voltage. Note: This conductive layer must be stripped back when wiring, or a partial short will result.
Specifications
ConfigurationConductor -Details: 12/0.18TA -Size(mm²): 0.305mm² (#23AWG)Insulation -Ov. Dia.(mm): 1.6Ø (0.063") -Material: PE -Color: ClearSub Shield -Ov. Dia.(mm): 1.8Ø (0.071") -Material: Conductive PVC (Carbon PVC) -Color: BlackMain Shield -Served Shield: Approx. 38/0.16TAJacket-Ov. Dia.(mm): 5.0Ø (0.197") -Material: PVC -Color: Black
Electrical & Mechanical Characteristics
DC Resistance at 20°C -Inner Conductor: 0.064Ω/m(0.020W/Ft) -Shield Conductor: 0.026Ω/m(0.0079Ω/Ft)Capacitance at 1kHz, 20°C: 155pF/m (47.3pF/Ft) Inductance: 0.3µH/m (0.092µH/Ft)Electrostatic Noise*: 0.13mV Max.Electromagnetic Noise At 10kHz*: 0.07mV Max.Microphonic: 0.3mV MaxVoltage Breakdown: Must withstand at DC 500V/15sec.Insulation Resistance: 100000 MΩ × m Min. at DC 500V , 20°CFlex Life: 11,000 cycles Tensile Strength: 303 N Emigration: Non-emigrant to ABS resinApplicable Temperature: --20°C‾ +60°C(-4°F‾ +140°F)*Using standard testing methods of Mogami Wire & Cable Corp.
