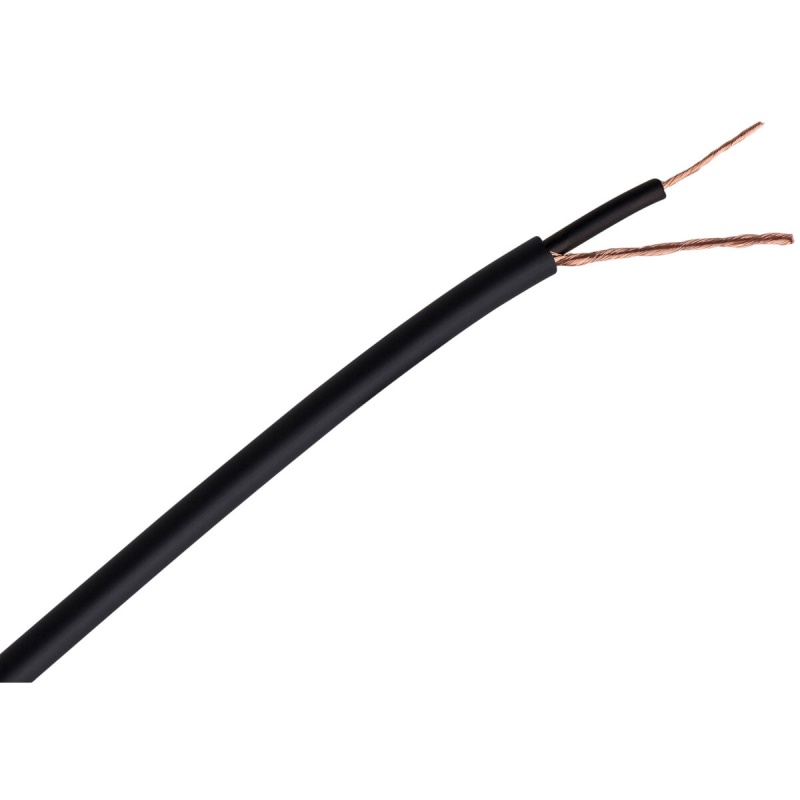

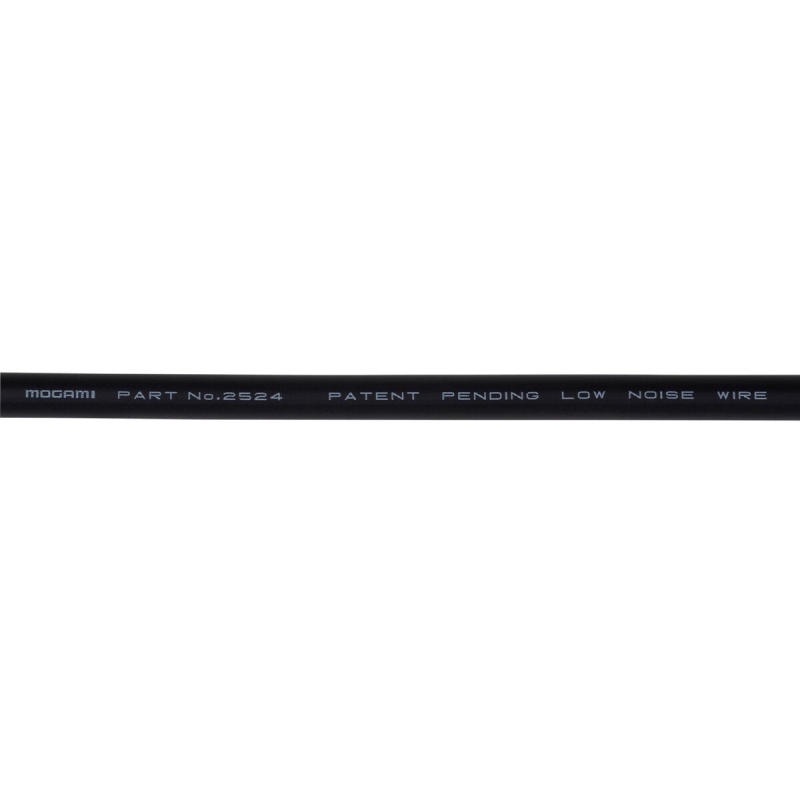

Mogami W2524 High Impedance 20 AWG Guitar Instrument Signal CableMost musical instrument pickups, such as those used in electric guitars, rely on high-impedance circuits that are primarily voltage driven, with very little current flow. Because of this, handling noise, also known as microphonics, can be an issue with guitar cables. Microphonic noise occurs when small voltages are generated as the cable is bent, stepped on, or moved. To reduce this effect, guitar cables are designed with a conductive PVC layer beneath the shield to dissipate these unwanted voltages. Note: This conductive layer must be trimmed back during termination, as leaving it in place can cause a partial short.
Specifications
ConfigurationConductor -Details: 50/0.12A -Size(mm²): 0.565mm² (#20AWG) Insulation -Ov. Dia.(mm): 2.7Ø (0.106") -Material: PE -Color: Clear Sub-Shield -Ov. Dia.(mm): 3.3Ø (0.130") -Material: Conductive PVC (Carbon PVC) -Color: Black Main-Shield -Served-Shield: Approx. 55/0.18A Jacket -Ov. Dia.(mm): 6.0Ø (0.236") -Material: PVC -Color: Black
Electrical & Mechanical Characteristics
DC Resistance at 20°C -Inner Conductor: 0.033Ω/m(0.010Ω/Ft) -Shield Conductor: 0.014Ω/m(0.0043Ω/Ft) Capacitance at 1kHz, 20°C: 130pF/m (39.7pF/Ft) Inductance: 0.2µH/m (0.061µH/Ft) Electrostatic Noise*: 0.15mV Max. Electromagnetic Noise: At 10kHz* 0.07mV Max. Microphonics*: 0.3mV Max Voltage Breakdown: Must withstand at DC 500V/15sec. Insulation Resistance: 100000 MΩ × m Min. at DC 500V , 20°C Flex Life: 15,000 cycles Tensile Strength: (26°C, 65%RH) 578 N Emigration: Non-emigrant to ABS resin Applicable Temperature: -20°C‾ +60°C(-4°F‾ +140°F)
