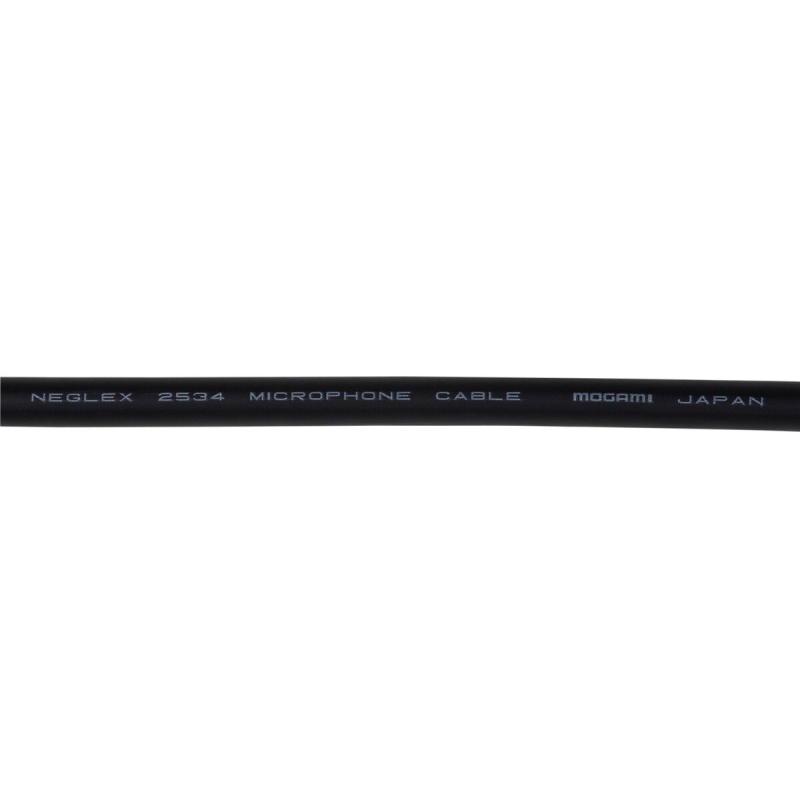

Mogami W2534 Neglex Quad High Definition Microphone Signal CableMogami Neglex quad cable is an ideal choice for home studios that struggle with wiring and grounding issues. Mogami 2534 is also well suited for environments with severe RFI interference, offering a 10 to 20 dB improvement in signal to noise performance compared to comparable twisted pair cables. Its quad conductor design is especially effective at canceling noise that can pass through even high quality shielding, making it a critical solution in areas with strong RF and electromagnetic interference.

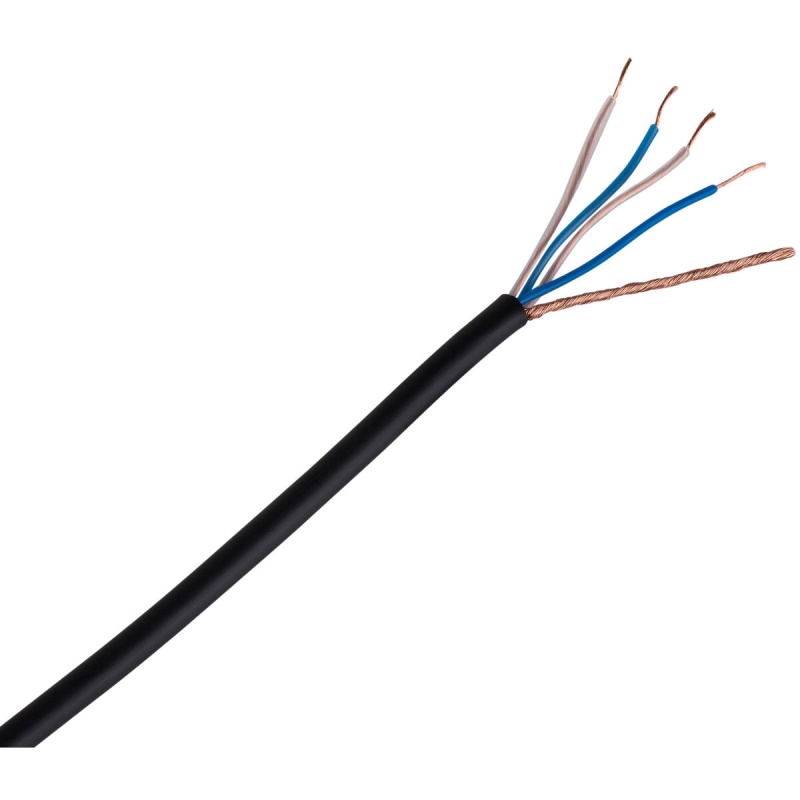

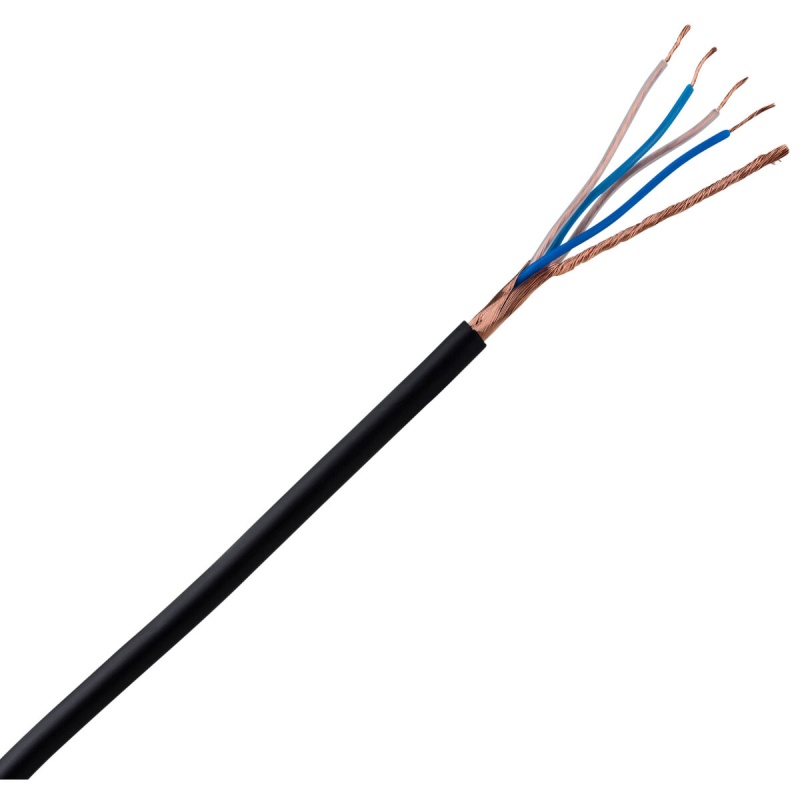

The conductor insulation is XLPE, or cross linked polyethylene, which provides excellent electrical performance and prevents insulation shrink back during soldering. The served spiral bare copper shield offers superior sound quality compared to foil or braided shields while also simplifying termination.
NEGLEX No. W2534 has become a global standard for high quality digital and analog recording applications. It is also widely used with unbalanced equipment such as high quality preamps, amplifier inputs, and tape decks. Originally developed as a miniature quad superflexible microphone cable for BANTAM patch cords, it has since gained popularity wherever a small diameter quad microphone cable is required.
Specifications
ConfigurationConductor -Details: 20/0.12 OFC -Size(mm²): 0.226mm² (#24 AWG)Insulation -Ov. Dia.(mm): 1.6Ø (0.063") -Material: XLCPE (Cross-Linked Polyethylene) -Color: Blue / Clear (Quad)Served Shield: Approx. 64/0.18AJacket -Ov. Dia.(mm): 6.0Ø (0.236") -Material: Flexible PVC
Electrical & Mechanical Characteristics
DC Resistance at 20°C -Inner Conductor: 0.083Ω/m(0.025Ω/Ft) -Shield Conductor: 0.012Ω/m(0.0037Ω/Ft)Capacitance at 1kHz, 20°C (Partial C. Value) See below figure* -K₀: 65pF/m(20pF/Ft) -K₁: 13pF/m(4pF/Ft) -K₂: 4pF/m(1.2pF/Ft) -Balanced Quad Connection -Cond.-Cond.:97pF/m(29.6pF/Ft) -Cond-Shield.: 110pF/m(33.6pF/Ft)Inductance between conductors at 1kHz. 20°C: 0.4µH/m(0.12µH/Ft)Electrostatic Noise**: 50mV Max.Electromagnetic Noise**: 0.15mV Max.Microphonics at 50KΩ/ Load**: 430m V Max.Voltage Breakdown: Must withstand at DC 500V/15sec. Insulation Resistance: 100000 M Ω/ × m Min. at DC 125V, 20°CFlex Life: 11,000 cycles Tensile Strength: 686 N Emigration: Non-emigrant to ABS Applicable Temperature: -20°C‾ +70°C(-4°F‾ +158°F)** Using standard testing methods of Mogami Wire & Cable Corp.
