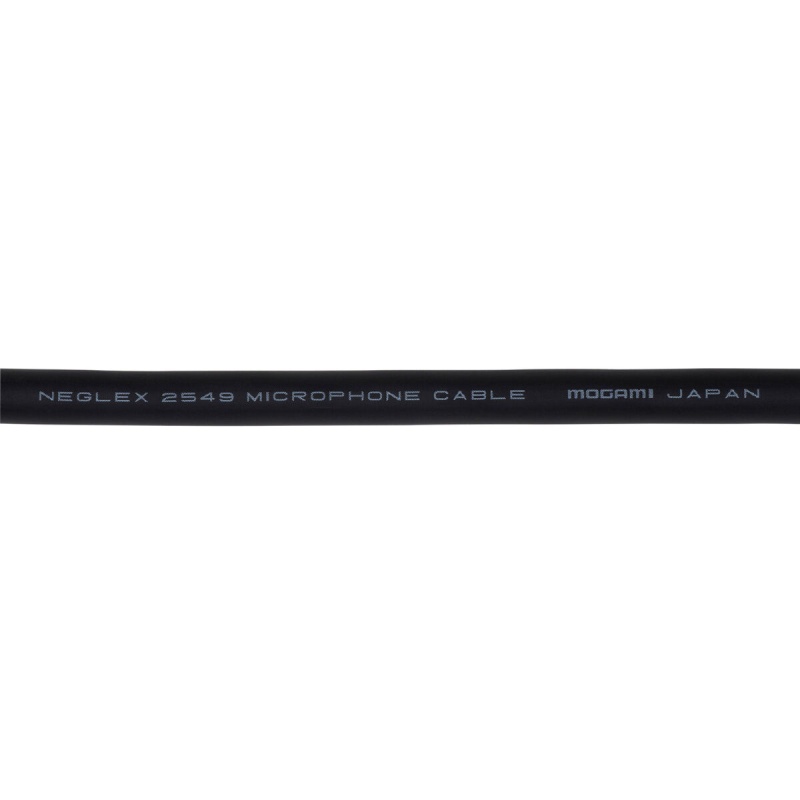

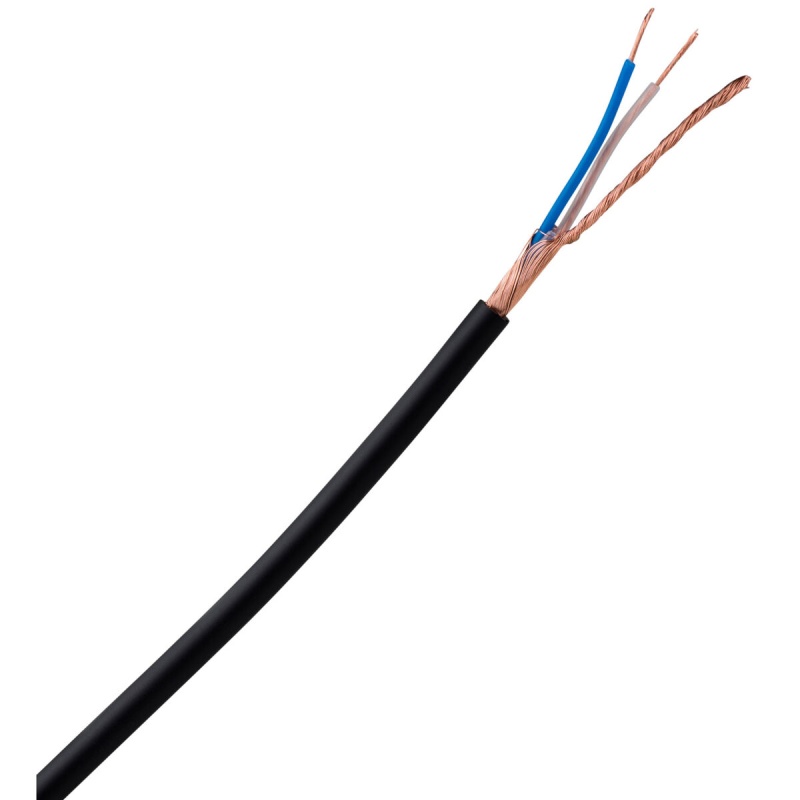

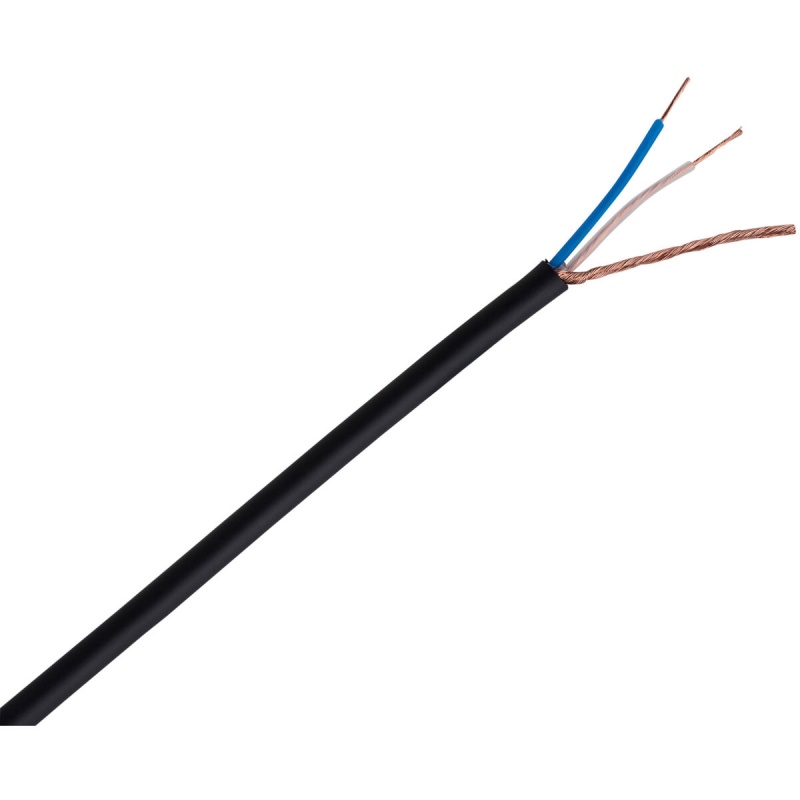

Mogami W2549 Neglex Long Run Microphone Signal CableThe W2549 is engineered using Mogami's well-known Neglex OFC to deliver the highest level of audio fidelity for recording applications. It uses #22AWG conductors and offers extremely low capacitance. A twisted pair design with 100% coverage served shielding provides excellent rejection of electromagnetic interference. This cable is recommended for applications where extended high-frequency response is critical or where longer cable runs are required.
Part No. W2549
Conductor Size (mm²): 0.339mm² (#22AWG) O.D. (mm): 6.0ø (0.236") Flex Life: 14,500 cycles Tensile Strength: 657 N
Specifications
Configuration: No. of Conductors: 2Conductor -Details: 30/0.12 OFC -Size(mm²): 0.339mm² (#22 AWG)Insulation -Ov. Dia.(mm): 1.9Ø (0.075") -Material: XLPE (Cross-Linked Polyethylene) -Colors: Blue / ClearShield: Served Approx. 64/0.18AJacket -Ov. Dia.(mm): 6.0Ø (0.236") -Material: Flexible -Color: Black
Electrical and Mechanical Characteristics
DC Resistance at 20°C -Inner Cond.: 0.058Ω/m(0.018Ω/Ft) -Shield: 0.013Ω/m(0.004Ω/Ft)Capacitance at 1kHz, 20°C (Partial C. Value) See below figure* K₀: 76pF/m(23pF/Ft) K₁: 11pF/m(3.4pF/Ft)Inductance between conductors at 1kHz. 20°C: 0.8µH/m(0.24µH/Ft) Electrostatic Noise**: 50mV Max.Electromagnetic Noise**: 0.15mV Max.Microphonics at 50kΩ Load**: 30m V Max.Voltage Breakdown: Must withstand at DC 125V/15sec.Insulation Resistance: 100000 M Ω × m Min. at DC 125V, 20°CFlex Life**: 14,500 cyclesTensile Strength: 657NEmigration: Non-emigrant to ABSApplicable Temperature: -20°C‾ +70°C(-4°F‾ +158°F)** Using standard testing methods of Mogami Wire & Cable Corp.
