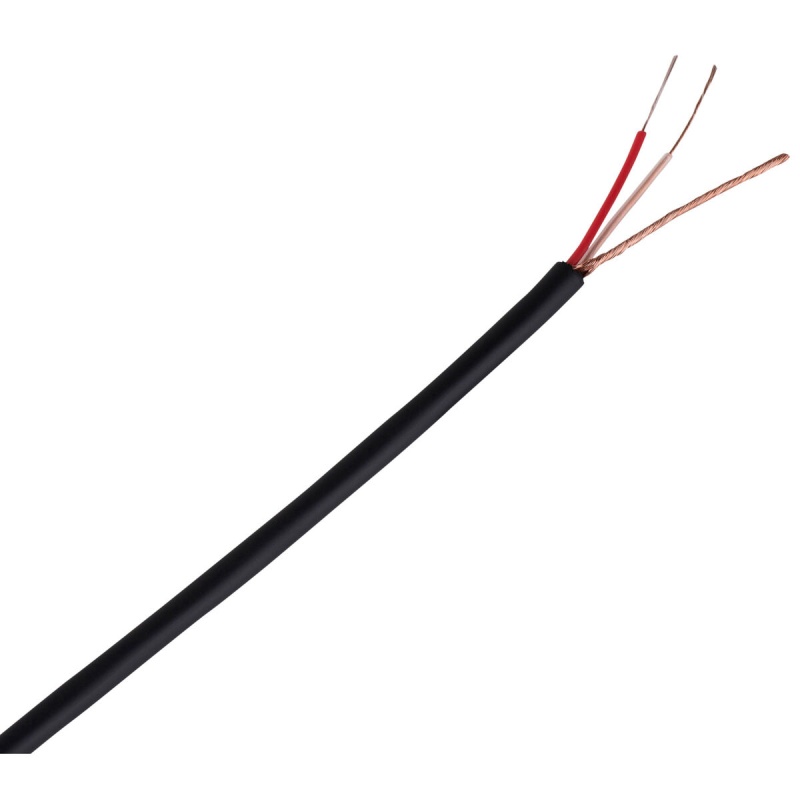

Mogami W2552 Superflexible Microphone Signal CableA specially engineered series of high-performance yet cost-effective low-impedance balanced microphone cables. Compact in size, these cables use a rubber-like PVC jacket that is highly flexible and offers strong resistance to abrasion and rough handling. The high-grade insulation is designed to reduce heat shrinkage during soldering, allowing for easy termination to XLR-style connectors.
This cable is exceptionally soft and flexible, making it suitable for a wide range of audio, visual, and industrial audio applications. XLPE insulation combined with a durable rubber-like outer jacket makes it an ideal choice when a tough, economical cable is required.

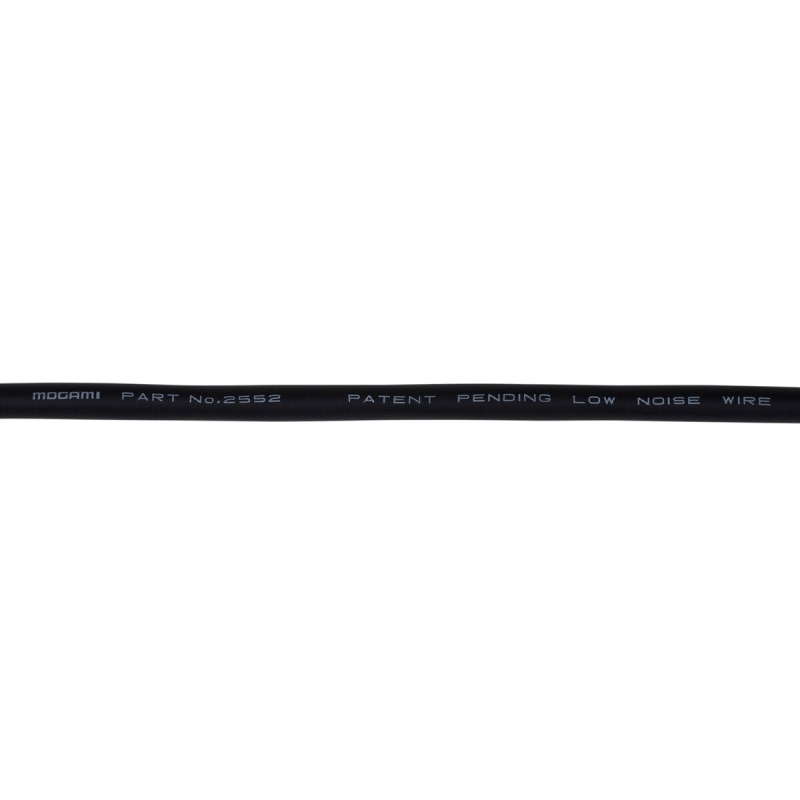

Part No. W2552
O.D. (mm): 5.0ø (0.197")Flex Life: 11,000 cycles Tensile Strength: 421 N
Specifications
Configuration: No. of Conductors: 2Conductor -Details: 12/0.12 A -Size(mm²): 0.135mm² (#26 AWG)Insulation -Ov. Dia.(mm): 1.5Ø (0.059") -Material: LNXLPE (Low Noise Cross-Linked Polyethylene) -Colors: Red / ClearShield: Served: Approx. 67/0.12AJacket -Ov. Dia.(mm): 5.0Ø (0.197") -Material: Flexible PVC -Color: Black
Electrical and Mechanical Characteristics
DC Resistance at 20°C -Inner Cond.: 0.14W/m(0.043W/Ft) -Shield: 0.024Ω/m(0.007Ω/Ft)Capacitance at 1kHz, 20°C (Partial C. Value) See below figure* K₀: 90pF/m(27pF/Ft) K₁: 10pF/m(3pF/Ft)Inductance between conductors at 1kHz. 20°C: 0.8µH/m(0.24µH/Ft) Electrostatic Noise**: 50mV Max.Electromagnetic Noise**: 0.15mV Max.Microphonics at 50kΩ Load**: 30m V Max.Voltage Breakdown: Must withstand at DC 500V/15sec.Insulation Resistance: 100000 MW × m Min. at DC 125V, 20°CFlex Life**: 11,000 cyclesTensile Strength: 421NEmigration: Non-emigrant to ABSApplicable Temperature: -20°C‾ +70°C(-4°F‾ +158°F)** Using standard testing methods of Mogami Wire & Cable Corp.
