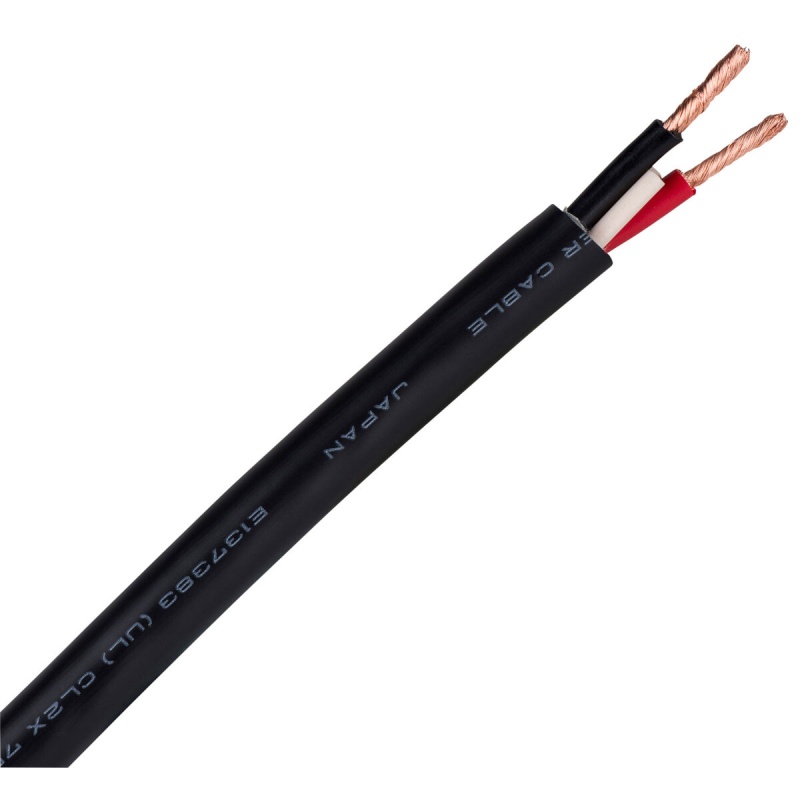

Mogami W3103 Superflexible High Definition 2 x 12 AWG Speaker CableThese specialized professional speaker cables were originally developed to achieve maximum performance in advanced Tri Amp systems. They deliver true audiophile-grade signal transmission with clear, transparent sound while maintaining the rugged flexibility required for demanding professional use.
Each conductor is made up of multiple fine strands arranged in a rope-lay using Mogami's well-known NEGLEX oxygen-free copper, housed within color-coded PVC insulation. A durable, low-profile matte black super-flexible PVC jacket surrounds the cable to provide protection and long-lasting reliability.
Specifications and Characteristics
Configuration:No. of Conductors: 2Conductor -Details: 7/50/0.12 OFC (bare) -Size(mm²): 3.96mm² (#12AWG)Insulation Ov. Dia.(mm): 4.5Ø (0.177"Ø) PVCJacket -Ov. Dia.(mm): 12.0Ø (0.472"Ø) -Material: Flexible PVC -Color: BlackDC Resistance (20°C): 0.005Ω/m(0.0015Ω/Ft) Inductance (1kHz, 20°C): (Refer to the figures shown in the capacitance data.) -1-2: 0.6µH/m(0.18µH/Ft) -3-4: N/A
Common Specs
Voltage Breakdown: Must withstand at DC 500V/15sec.Insulation Resistance: 10000 MΩ × m Min. at DC 125V, 20°CEmigration of Jacket Material: Non-Emigrant to ABS resinApplicable Temperature: -20°C‾+70°C (-4°F‾+158°F)Standard: UL13 CL2 75°CRemarks: Connecting the conductors as diagonal pairs greatly reduces mutual inductance, even though cross-talk interference is negligible.
