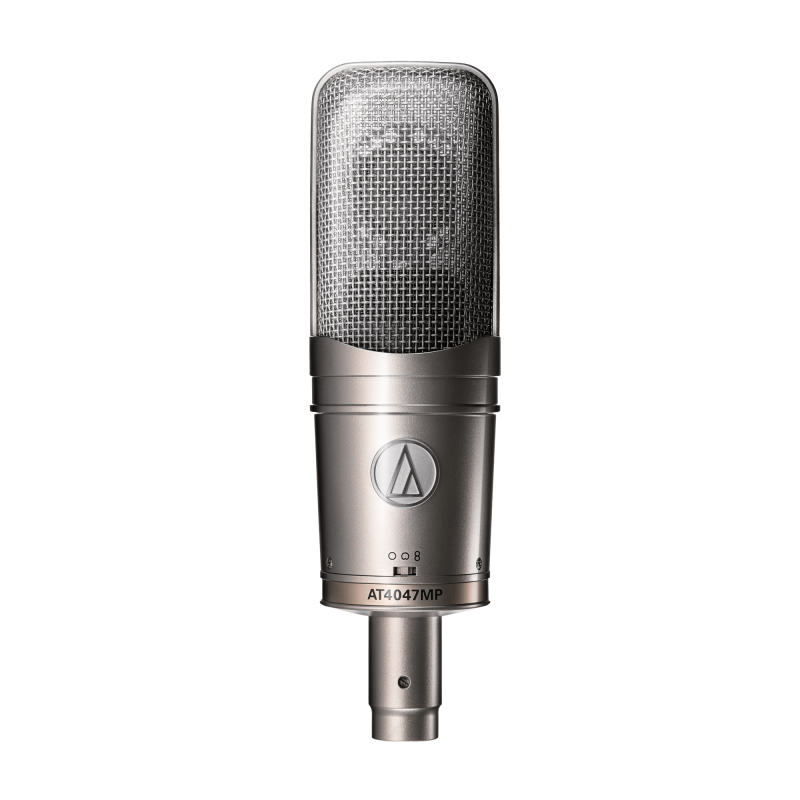

Audio-Technica’s AT4047MP delivers vintage sound in multi-pattern design with selectable omnidirectional, cardioid, and figure-of-eight polar patterns. The microphones transformer-coupled output and specially tuned element provide sonic characteristics reminiscent of early F.E.T. studio microphone designs. With wide dynamic range, incredibly low self-noise and high SPL capability, this versatile microphone excels on vocals, strings, acoustic guitar, instrument ensembles, small vocal groups and voiceovers.
– Three switchable polar patterns: cardioid, omnidirectional, figure-of-eight
– Engineered to meet the critical acoustic requirements of professional recording, broadcast and sound reinforcement
– Transformer-coupled output and specially tuned element provide sonic characteristics reminiscent of early F.E.T. studio microphone designs
– Exceptionally low self-noise, wide dynamic range and high SPL capability
– Dual-diaphragm capsule design maintains precise polar pattern definition across the full frequency range of the microphone
– Precision-machined, nickel-plated brass, acoustic element baffle provides enhanced element stability and optimal sensitivity
– Vintage silver-matte finish on microphone and shock mount
– Open acoustical environment of the symmetrical housing assembly minimizes unwanted internal reflections

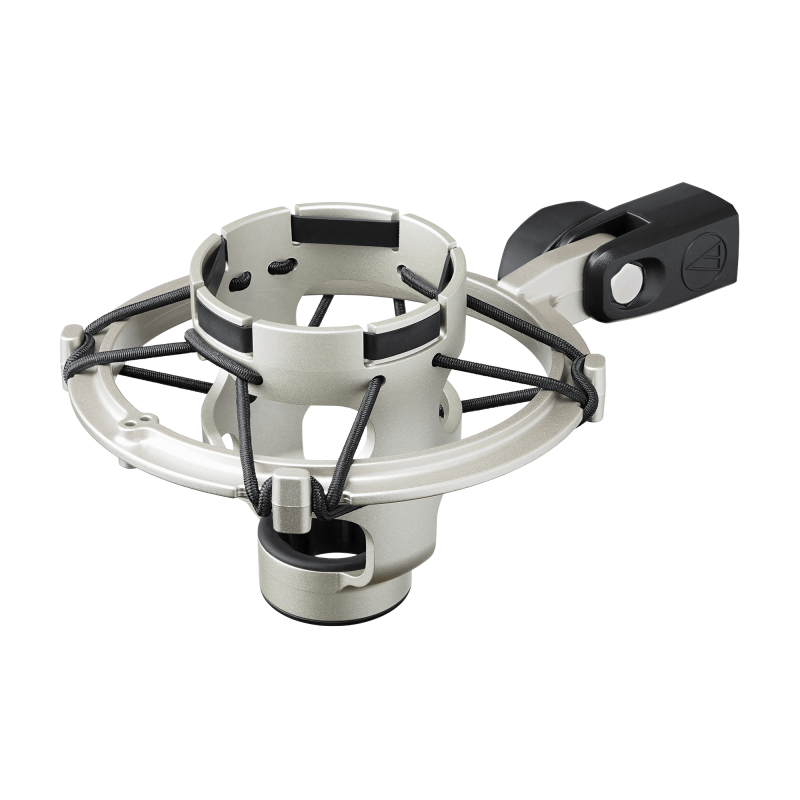

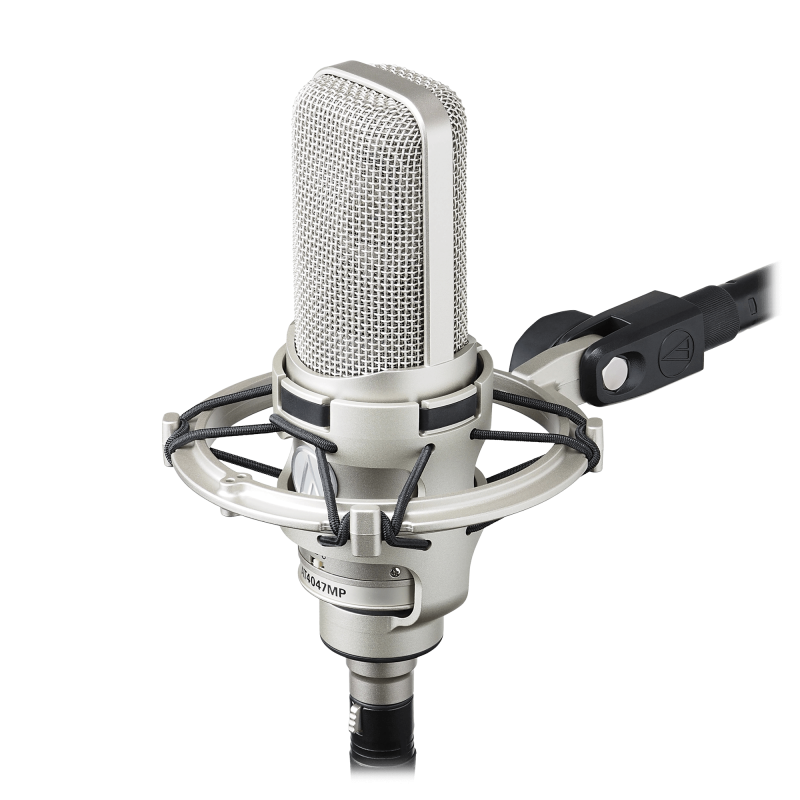

– Custom shock mount provides superior isolation
– Integral 80 Hz high-pass filter switch and 10 dB pad switch
SPECIFICATIONS ELEMENT Externally-polarized (DC bias) condenser POLAR PATTERNS Cardioid,
Omnidirectional, Figure-of-eight FREQUENCY RESPONSE 20-18,000 Hz LOW FREQUENCY ROLL-OFF 80 Hz, 12 dB/octave OPEN CIRCUIT SENSITIVITY -42 dB (7.9 mV), re 1V at Pa IMPEDANCE 100 ohms MAXIMUM INPUT SOUND LEVEL 155 dB SPL, kHz at 1% T.H.D.; 165 dB SPL, with 10 dB pad (nominal) NOISE 14 dB DYNAMIC RANGE (typical) 141 dB, kHz at Max SPL SIGNAL-TO-NOISE RATIO 80 dB, kHz at Pa PHANTOM POWER REQUIREMENTS 48V DC, 3.4 mA typical SWITCHES Polar selection; Flat, roll-off; 10 dB pad (nominal) WEIGHT 524 (18.5 oz) DIMENSIONS 188.0 mm (7.40″) long, 53.4 mm (2.10″) maximum body diameter OUTPUT CONNECTORS Integral 3-pin XLRM-type ACCESSORIES FURNISHED AT8449/SV shock mount for 5/8″-27 threaded stands; microphone dust cover; protective carrying case AUDIO-TECHNICA CASE STYLE R1
SPECIFICATION GRAPHS Click on the chart to view the larger image POLAR PATTERN
CARDIOID POLAR PATTERN OMNIDIRECTIONAL POLAR PATTERN FIGURE-OF-EIGHT FREQUENCY RESPONSE CARDIOID FREQUENCY RESPONSE OMNIDIRECTIONAL FREQUENCY RESPONSE FIGURE-OF-EIGHT
