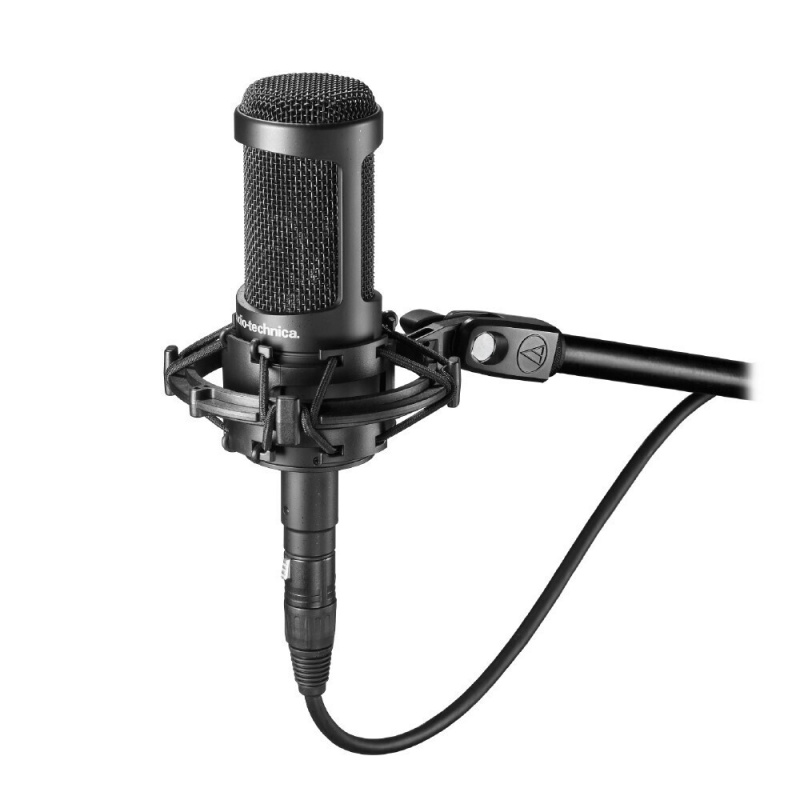

The versatile AT2050 provides consistent, superior performance in switchable cardioid, omnidirectional and figure-of-eight polar pattern settings. Its dual large diaphragms are gold-vaporized and aged to achieve optimum characteristics over years of use. Equipped with switchable 80 Hz high-pass filter and 10 dB pad, the microphone is ideal for studio and live sound use on vocals, piano, strings, drum overheads, guitar amps, and more.
– Three switchable polar patterns: omni, cardioid, figure-of-eight – Switchable 80 Hz high-pass filter and 10 dB pad – Large diaphragm for smooth, natural sound and low noise – State-of-the-art surface-mount electronics ensure compliance with A-Ts stringent consistency and reliability standards – Includes shock mount protective pouch SPECIFICATIONS ELEMENT Externally-polarized (DC bias) condenser POLAR PATTERNS Cardioid, Omnidirectional, Figure-of-Eight FREQUENCY RESPONSE 20-20,000 Hz LOW FREQUENCY ROLL-OFF 80 Hz, 12 dB/octave OPEN CIRCUIT SENSITIVITY 42 dB (7.9 mV) re 1V at Pa IMPEDANCE 120 ohms MAXIMUM INPUT SOUND LEVEL 149 dB SPL, kHz at 1% T.H.D.; 159 dB SPL, with 10 dB pad (nominal) NOISE 17 dB SPL DYNAMIC RANGE (typical) 132 dB, kHz at Max SPL SIGNAL-TO-NOISE RATIO 77 dB, kHz at Pa PHANTOM POWER REQUIREMENTS 11-52V DC, 4.7 mA typical SWITCHES Polar selection; Flat, roll-off; 10 dB pad (nominal) WEIGHT 412 (14.5 oz) DIMENSIONS 170.0 mm (6.69″) long, 52.0 mm (2.05″) maximum body diameter OUTPUT CONNECTORS Integral 3-pin XLRM-type ACCESSORIES FURNISHED AT8458 shock mount for 5/8″-27 threaded stands; 5/8″-27 to 3/8″-16 threaded adapter; soft protective pouch AUDIO-TECHNICA CASE STYLE R5
SPECIFICATION GRAPHS Click on the chart to view the larger image POLAR PATTERN
CARDIOID POLAR PATTERN OMNIDIRECTIONAL POLAR PATTERN FIGURE-OF-EIGHT FREQUENCY RESPONSE CARDIOID FREQUENCY RESPONSE OMNIDIRECTIONAL FREQUENCY RESPONSE FIGURE-OF-EIGHT AT2050, AT-2050, AT 2050, AT2050
