The Neutrik powerCON XX SeriesThe powerCON is a locking 3 conductor equipment AC connector with contacts for line, neutral and pre-mating ground contact. It replaces appliance couplers wherever a very rugged solution in combination with a locking device is needed in order to guarantee a safe power connection.
Attention: The powerCON is a connector without breaking capacity, i.e. the powerCON should not be connected or disconnected under load or live!
This connector is suitable to be used as part of fire enclosures according to IEC 62368-1.
This appliance coupler fulfils the requirements of the IEC 60320-1 and of the UL 60320-1 with breaking capacity (CBC).
Appliance coupler have superior electrical endurance due to its CBC design according to the IEC 60320-1.
Appliance couplers NAC3MPXXA and NAC3MPXXB are designed to be engaged or disengaged in normal use when live or under load when using with connectors and plug connectors of the FXX Serie(s).

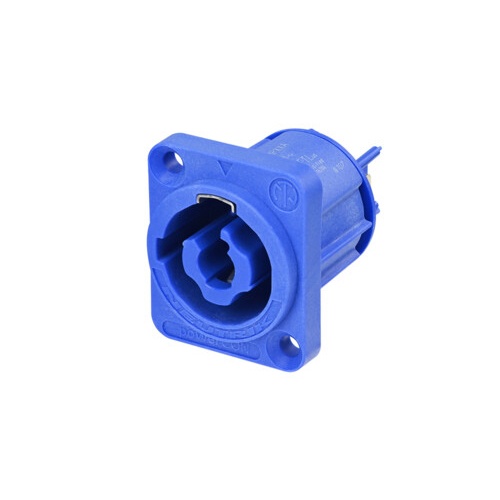

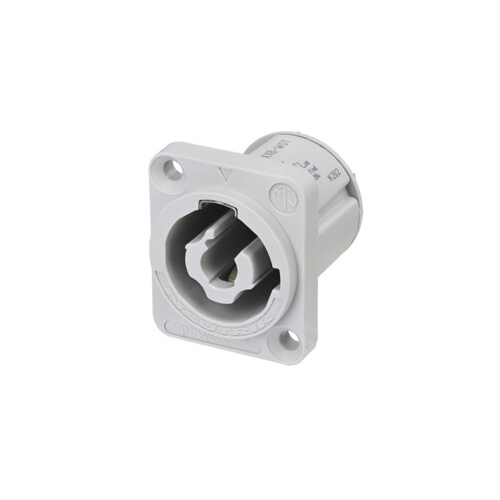

Lockable single phase connector Certified according to IEC 60320-1 & UL 60320-1 / UL US 498 / UL CA 498 Certified according to UL-1977, & CAN/CSA-C22.2 No. 182.3 Extremely robust and reliable UL94 V-0 materials Drop-in replacement for NAC3MXXA; mates to NAC3FXXA cable connectors 3 contacts for line, neutral and premating safety ground Fast and easy twist lock latching system Power-in (blue) and power-out (grey) versions with different keying to avoid the possibility of intermating Suitable for fire enclosures according. to IEC 62368-1ETL Certified
