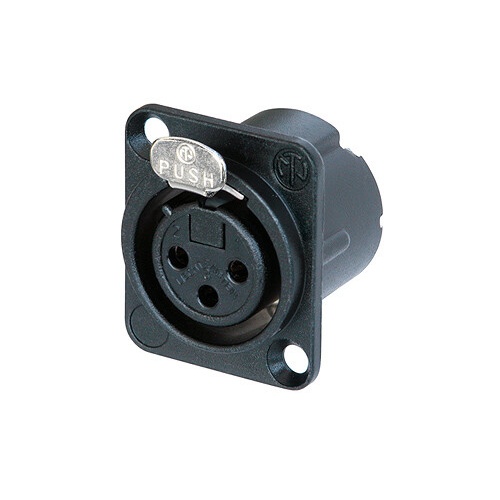

The Neutrik DLX SeriesNeutrik's DLX series - the next generation of the popular DL XLR chassis connectors - provides unequalled performance through quality design. The new DLX series features a compact all metal housing with an ingenious duplex ground contact, which offers excellent RF protection and shielding. Reliability, robustness and dependability derive from incorporating latest components from the well proven and reliable XX and A series connectors.
Termination: Solder cups
Locking mechanism: latch lock
Grounding: Separate duplex ground contact to mating connector shell and front panel with the option of solder connection to pin1.
Panel mount: Front and rear
Panel fastening: Countersunk mounting holes to accept M3 bolts or rivets
All metal housing offers best overall RF protection and electromagnetic shielding Duplex ground contact for excellent contact integrity between chassis and cable connectorUnique cage type female contact on 3 pole version increases conductivity and reduces wear on the mated male contact Female contact incorporates a solder barrier to prevent solder running into the contact mating area Larger solder contacts for easier termination Optional connection to easily join pin1 to chassis ground D-style housing provides installation compatibility with industry standard D mounting dimensions
