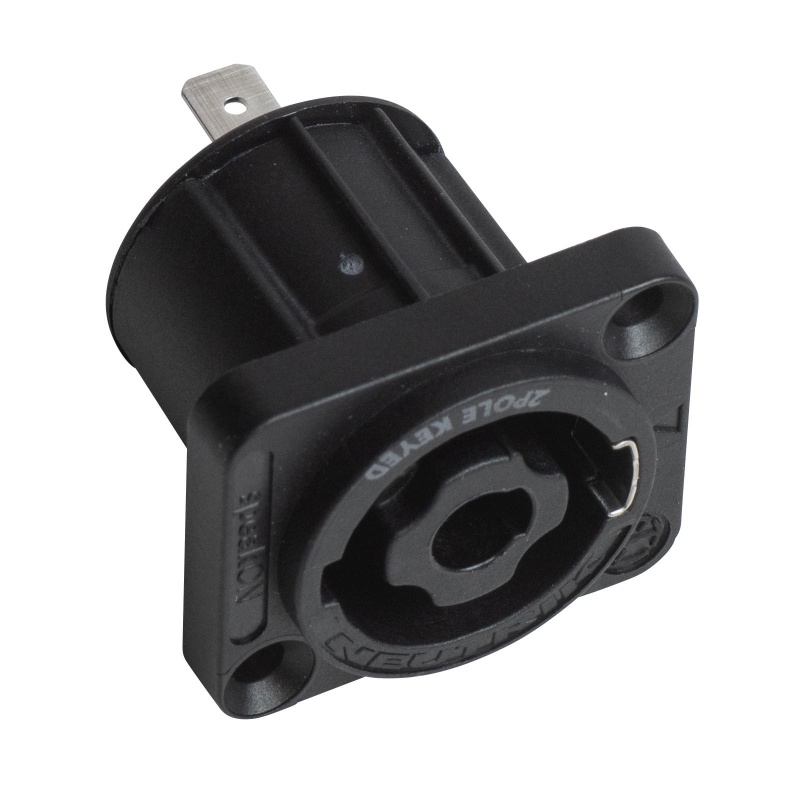

Neutrik NL2MPXX Speakon 2 Pole Panel MountThis connector meets IEC 62368-1 device standards through its IEC 61984 component certification.

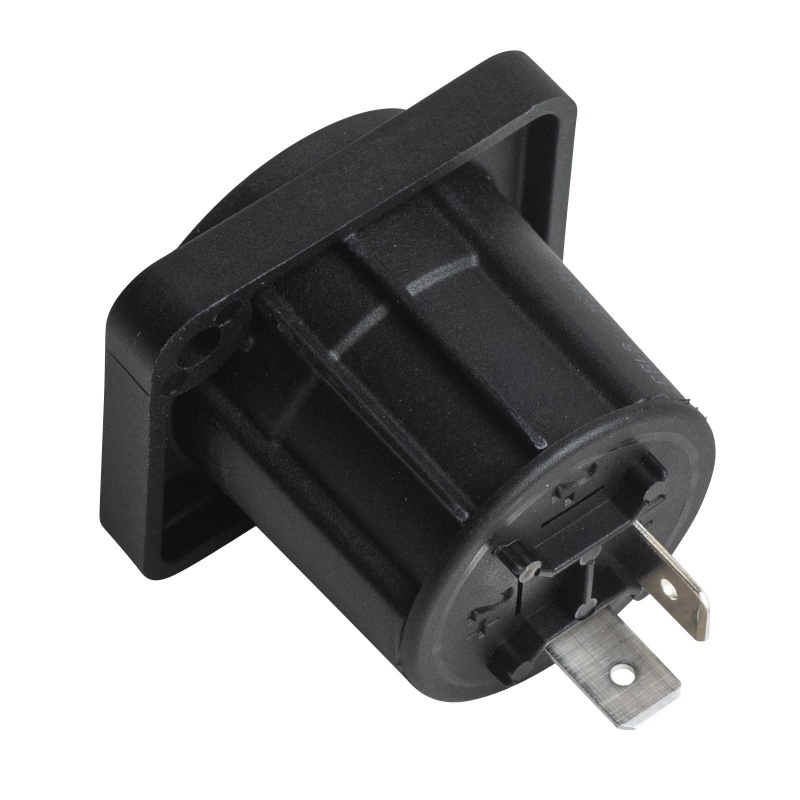

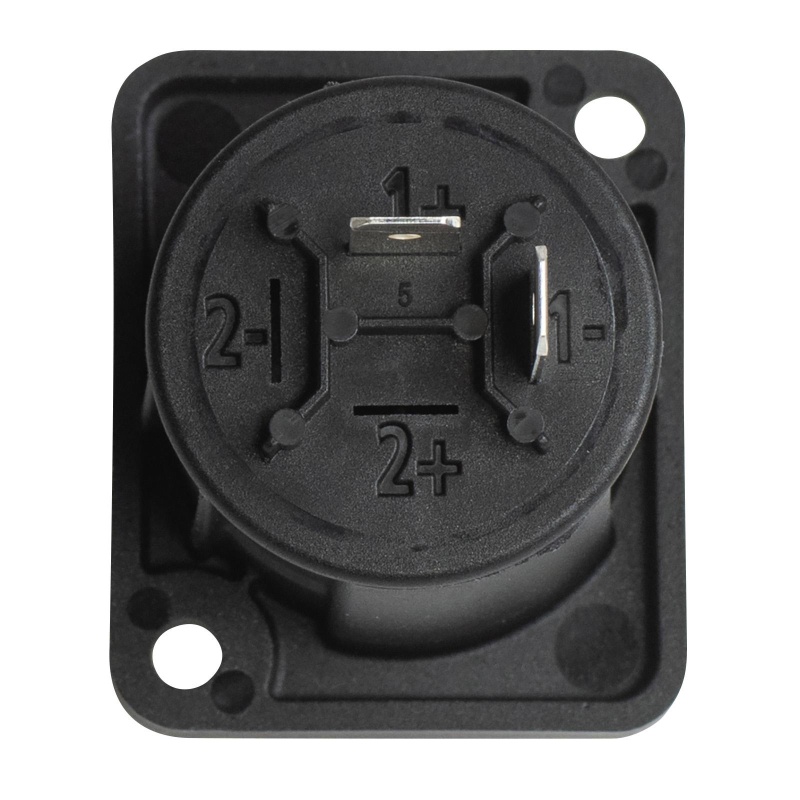

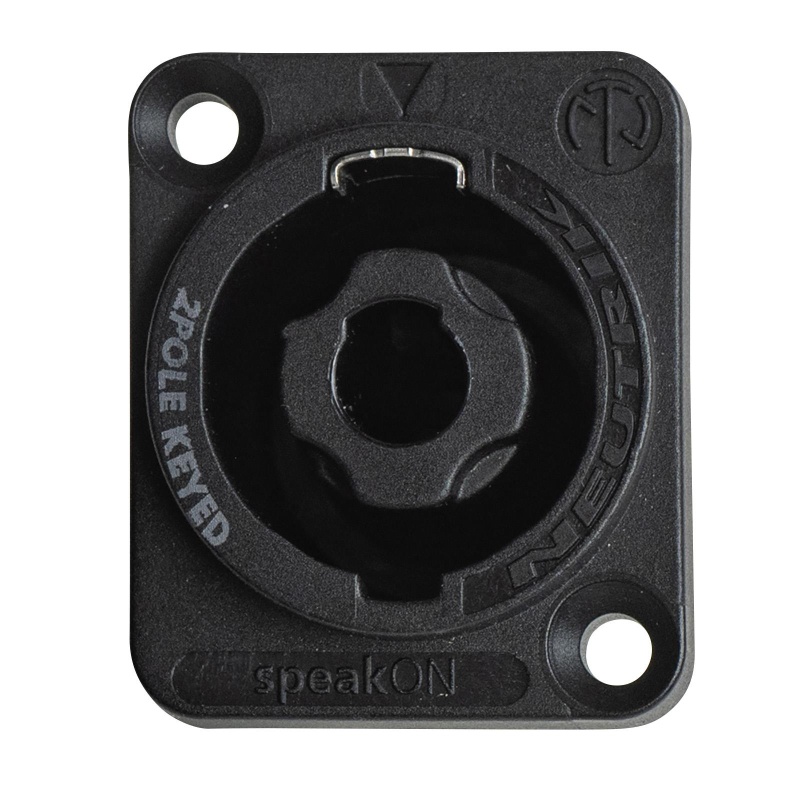

It is a 2-pole chassis connector with a black D-size flange, countersunk thru holes, and 3/16" flat tabs. It does not intermate with 4-pole cable connectors.
speakON panel mount connectors are the industry standard for loudspeaker and amplifier connections. They use a durable metal locking system that makes contact only when fully engaged. These receptacles are strong, adaptable, and simple to wire.
Note: Does not intermate with the 4-pole (NL4) cable connectors.
Technical InformationProduct
Title: NL2MPXX Gender: male
Electrical
Contact resistance: ≤ 2 mΩ Dielectric strength: 2.8 kVac Insulation resistance: >0.1 GΩ (after dampheat) Rated current per contact: 24 A rms continuous (audio rating significantly higher, depending on signal) Rated voltage: 250 V ac Attention: speakON is NOT to be used as an AC mains or power supply connector!
Mechanical
Lifetime: > 5000 mating cycles \Termination: 3/16" flat tabs (e.g. NLFASTON)Locking device: Quick Lock Chassis shape: D Layout: standard hole position, thru holes
Material
Contact plating: Ag Locking element: Stainless SteelShell: Polyamide (PA 6.6) Contacts: Copper Alloy
Environmental
Flammability: UL94 V-0 Temperature range: -30 °C to +80 °C
