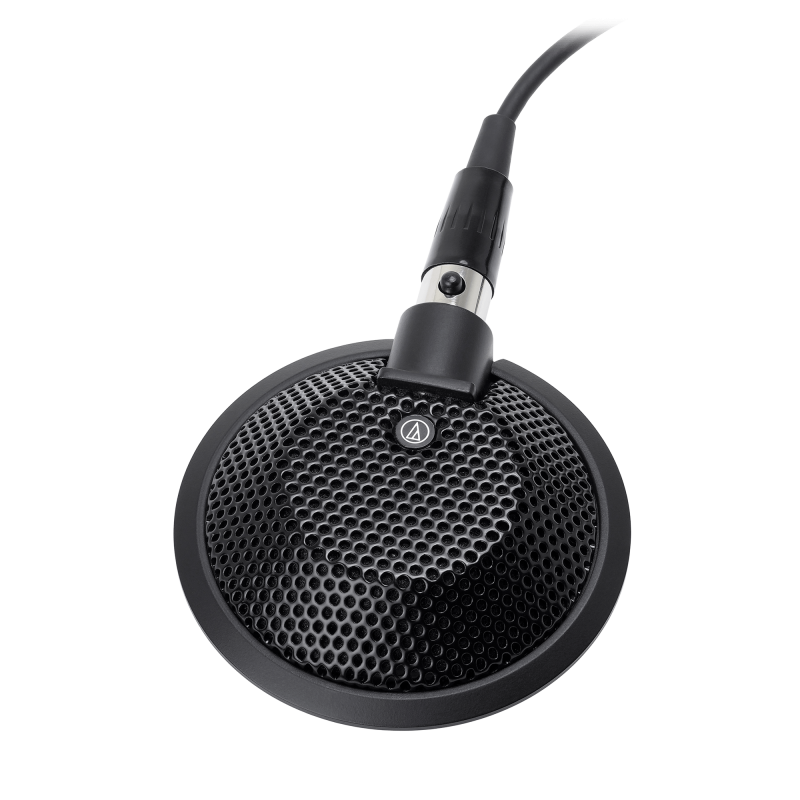

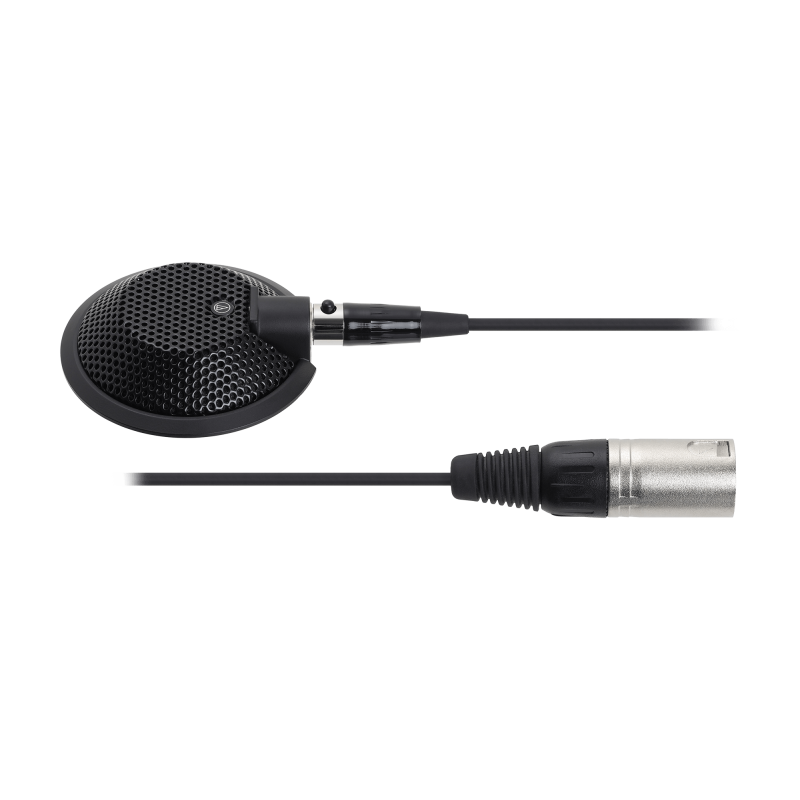

The U841R delivers exceptionally intelligible audio reproduction in a super-compact, low-profile design. Equipped with UniGuard RFI-shielding technology, this omnidirectional condenser boundary microphone is designed for clear, highly intelligible sound quality in surface-mount applications. The phantom-powered U841R is equipped with self-contained electronics, eliminating the need for an external power module.
Features
Designed for surface-mount applications where highly intelligible sound quality is required Small-diameter omnidirectional capsule near boundary eliminates phase distortion and delivers clear, high-output performance Superior off-axis rejection for maximum gain before feedback UniGuard RFI-shielding technology offers outstanding rejection of radio frequency interference (RFI) Self-contained electronics eliminate need for external power module Heavy die-cast case and non-slip silicon foam bottom pads minimize coupling of surface vibration to the microphone Low-profile design with low-reflectance finish for minimum visibility ELEMENT- Fixed-charge back plate, permanently polarized condenser POLAR PATTERN- Omnidirectional in hemisphere above mounting surface FREQUENCY RESPONSE- 40-20,000 Hz LOW FREQUENCY ROLL-OFF- 80 Hz, 18 dB/octave OPEN CIRCUIT SENSITIVITY -35 dB (17.7 mV) re 1V at 1 Pa IMPEDANCE- 200 ohms MAXIMUM INPUT SOUND LEVEL- 130 dB, 1 kHz at 1% T.H.D. DYNAMIC RANGE- (typical) 105 dB, 1 kHz at Max SPL SIGNAL-TO-NOISE RATIO- 69 dB, 1 kHz at 1 Pa PHANTOM POWER REQUIREMENTS- 11-52V DC, 2 mA typical WEIGHT (MICROPHONE)- 84 g (3.0 oz) DIMENSIONS (MICROPHONE)- 65.0 mm (2.56″) diameter, 15.1 mm (0.59″) maximum height OUTPUT CONNECTOR- TB3M-type CABLE- 7.6 m (25.0′) long, 3.2 mm (0.13″) diameter, 2-conductor, shielded cable with TA3F-type and XLRM-type connectors ACCESSORY FURNISHED- Soft protective pouch
