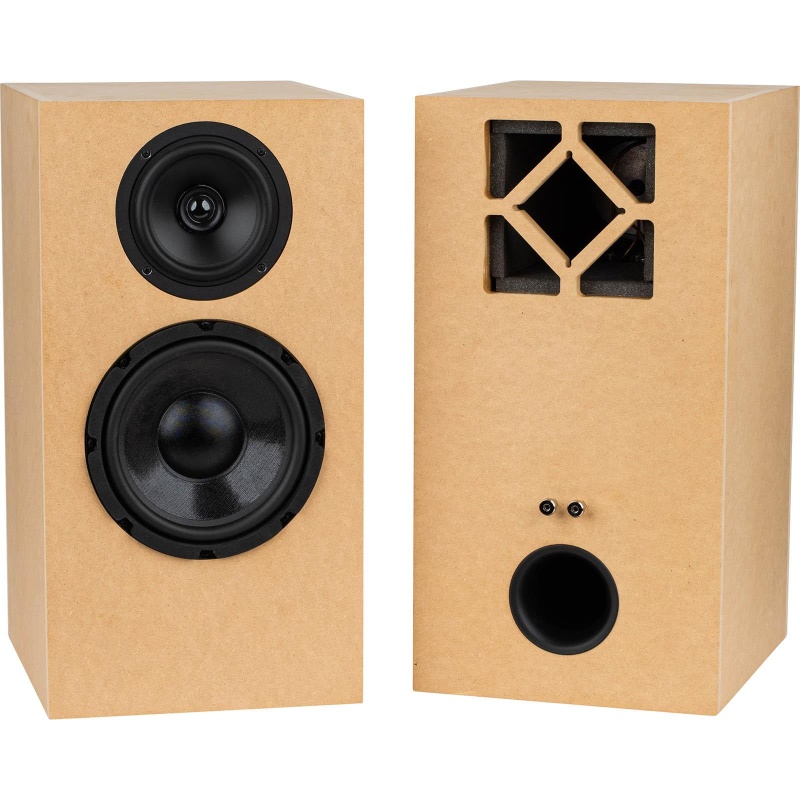

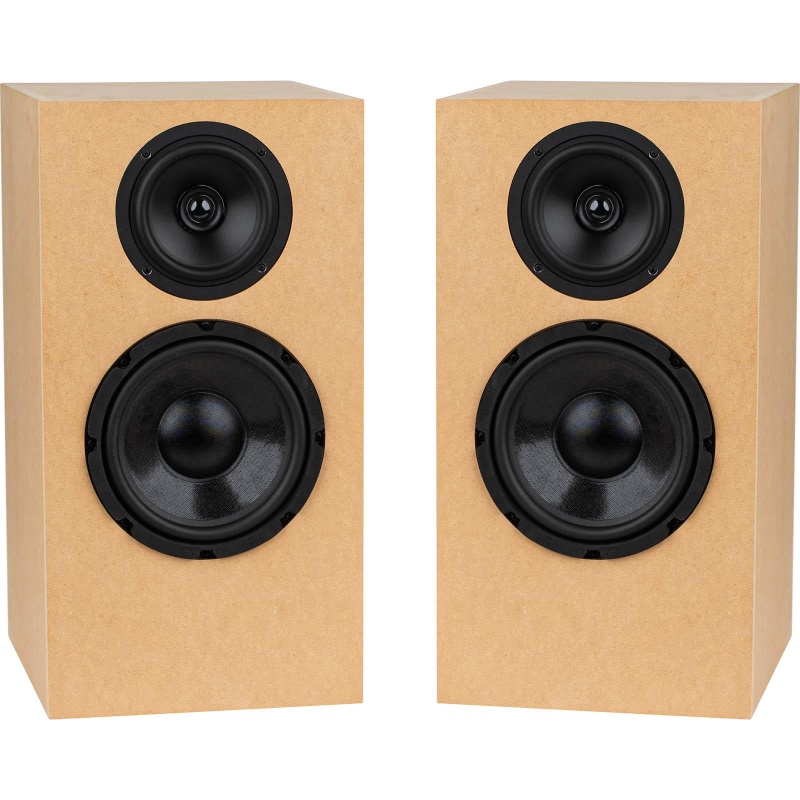

Orian 3-Way High-Output Bookshelf Speaker Kit Pair With Knock Down EnclosuresThe Orian High Output Bookshelf Speaker Kit’s unique design delivers SPL levels you would normally only expect from larger tower speakers, while creating a spacious soundstage that will put you in the center of the performance. Utilizing an open back midrange enclosure, the Orian takes advantage of reflected sound to produce room filling output.

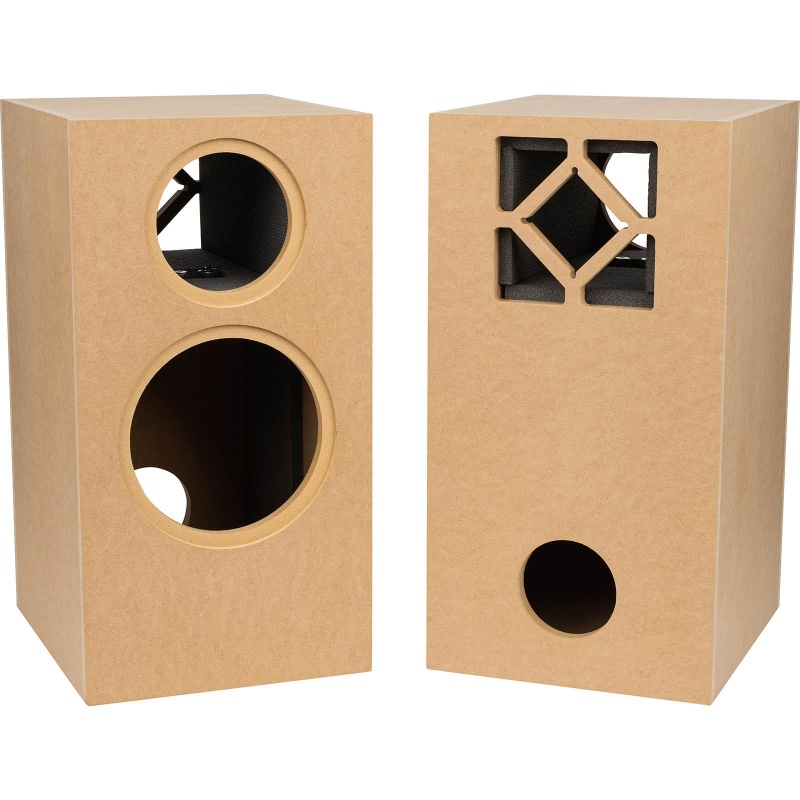

Features:Unique open back midrange eliminates “boxy” coloration and uses reflected sound for wider soundstage Coaxial midrange/tweeter drivers minimize interaction for more consistent on and off -axis response8" high excursion woofers produce powerful low frequency response even when driven to high SPLIncluded printed circuit board makes crossover assembly easier than ever ±3 dB from 35 - 20,000 Hz for natural full-range response without the need for a subwooferPrecision CNC cut MDF cabinet panels make the enclosures easy to assemble with minimal tools Includes everything required for open back or damped rear chamber configurations Customer Projects:
Read Audioholic's review of the Parts Express Orian Kit here:

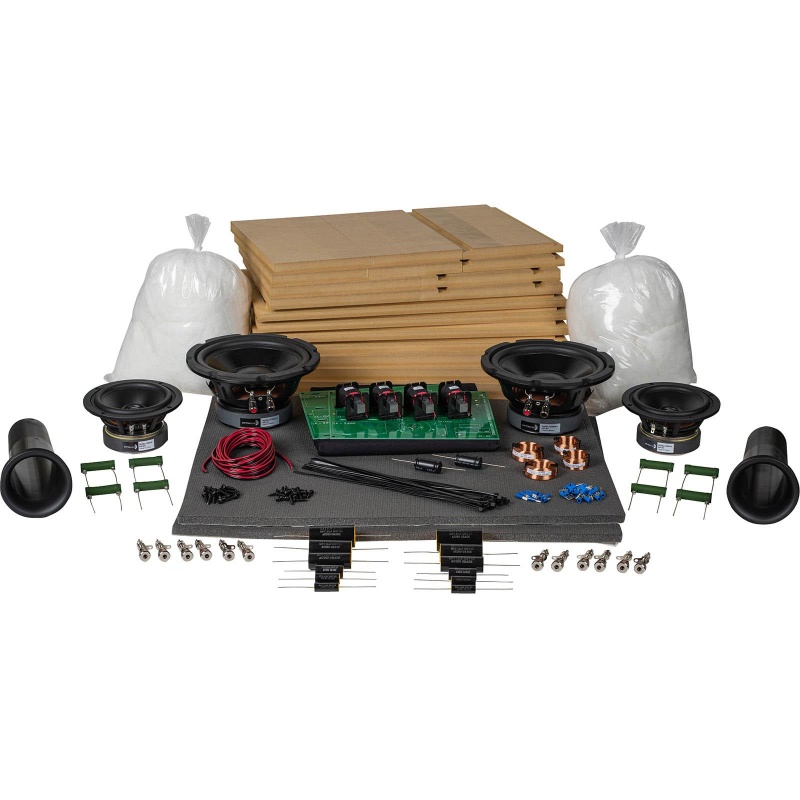

Kit Components:Part #QtyDescription -2Dayton Audio CX150-8 5-1/4” Coaxial Driver with 1" Silk Dome Tweeter2Dayton Audio DCS205-4 8” Classic Subwoofer 4 Ohm2Dayton Audio DMPC-1.5 1.5uF 250V Polypropylene Capacitor2Dayton Audio DMPC-12 12uF 250V Polypropylene Capacitor2Dayton Audio DMPC-18 18uF 250V Polypropylene Capacitor2Dayton Audio DMPC-27 27uF 250V Polypropylene Capacitor2Dayton Audio DFFC-0.47 0.47uF 400V By-Pass Capacitor2Dayton Audio DMPC-2.7 2.7uF 250V Polypropylene Capacitor2125uF 100V Electrolytic Non-Polarized Crossover Capacitor2Dayton Audio 0.50mH 20 AWG Air Core Inductor Crossover Coil4 Dayton Audio IC183 3.0mH 18 AWG Laminated Iron Core Inductor2 Dayton Audio 1.5mH 20 AWG Air Core Inductor Crossover Coil6 DPR20-30.0 30 Ohm 20 Watt Precision Bifilar Resistor2 DPR20-40.0 40 Ohm 20 Watt Precision Bifilar Resistor2Sonic Barrier 1/2" Acoustic Foam w/PSA 18" x 24"6Dayton Audio BPA-38NI HD Binding Post Pair Nickel125-Pack #6 x 3/4" Pan Head Deep Thread Black Screws125-Pack #8 x 3/4" Pan Head Deep Thread Black Screws20 ft.16 AWG Stranded OFC Twisted Pair Speaker Cabinet Hookup Wire Red/Black2Port Tube 2-1/2" ID x 8-1/2" L Flared1Speaker Grille Cloth Black Yard 70" Wide -2Orian 3-Way Crossover Printed Circuit Board -50.205" (16-14) Female Disconnect2Acousta-Fill Nylon Polyfill 1 lb. Bag Speaker Cabinet Damping Material -20Cable Ties 12" Black -50.110" (16-14) Female Disconnect -1Orian 3-Way Speaker Kit Knock-Down Enclosure PairNote: Crossover components may be substituted with parts of equal or higher quality depending on available inventory.Specifications:Power handling: 150 Watts RMS/300 Watts maxFrequency response: ±3 dB from 37 - 20,000 Hz (±6 dB from 30 - 20,000 Hz) Impedance: 4 OhmSensitivity: 83 dB 1W/1mDimensions: 21” H x 11” W x 13” D
