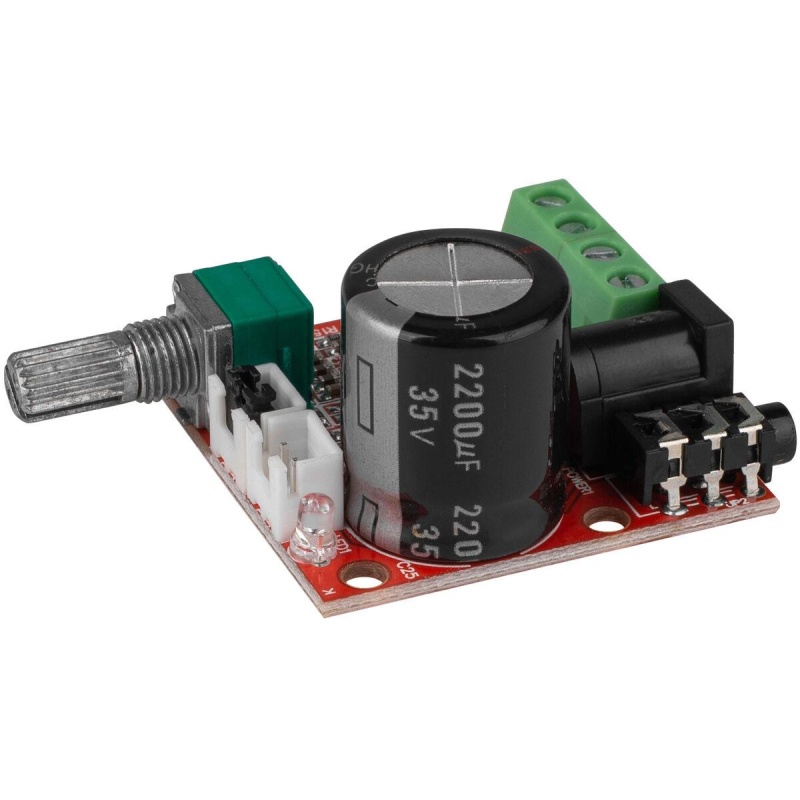

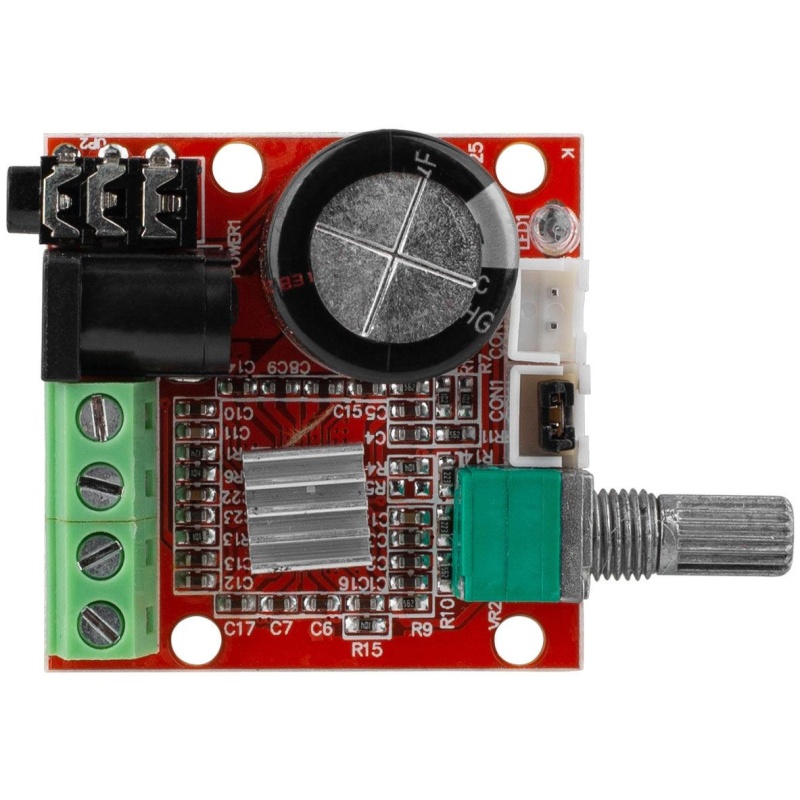

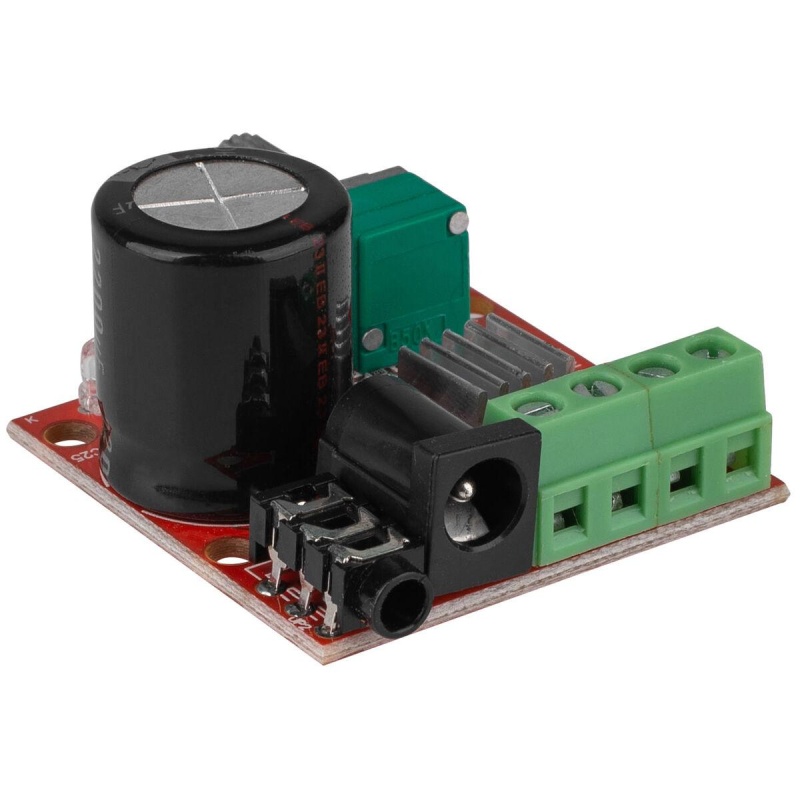

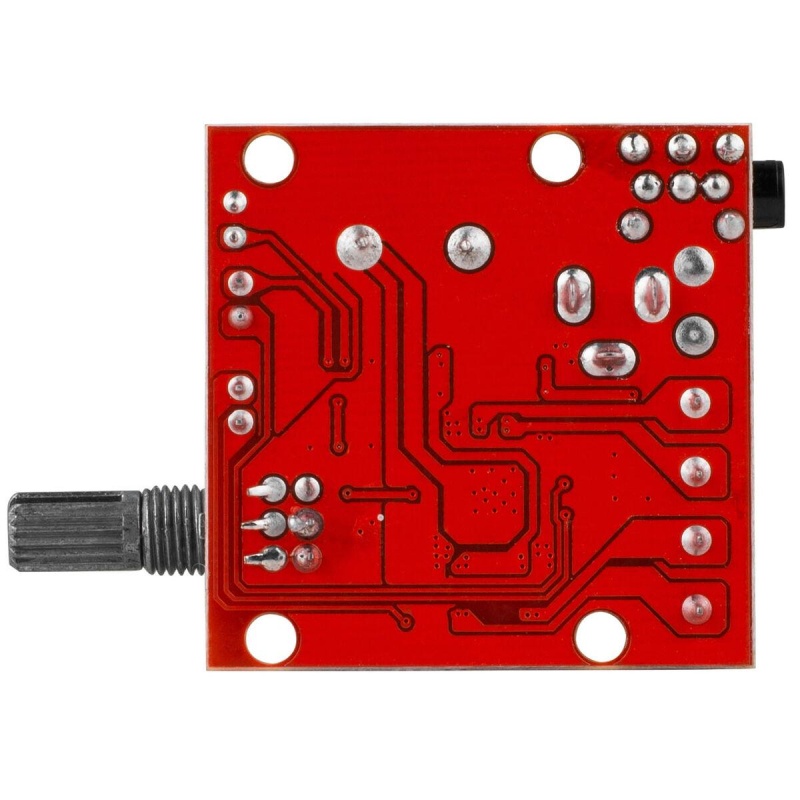

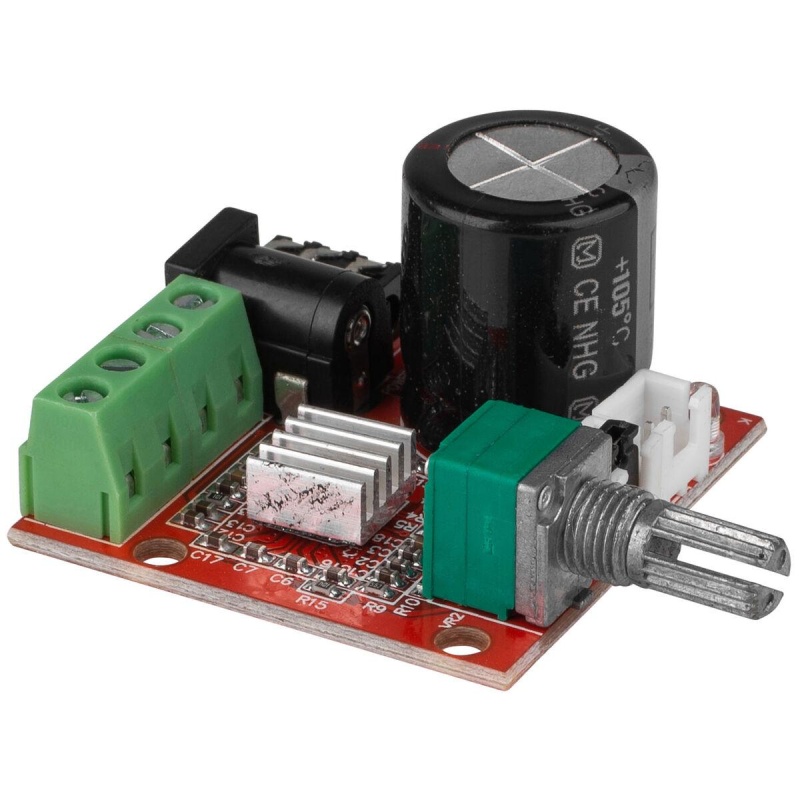

This board is designed around the PAM8610 integrated circuit, a 10W per channel Class D digital audio power amplifier. Class D amplification offers high power output in a miniature size. 90% efficiency ensures a high quality sound reproduction. Built-in potentiometer for volume control makes for quick and easy set up. Includes speaker wire leads that plug into board.
Perfect for projects, this board features over-current, thermal, and short circuit protection. It can be built into powered speakers or used as a standalone amplifier. The board's compact design is ideal for inclusion in OEM products or store displays.
Specifications: • Power output: 2 x 10 watts @ 8 ohms, 2 x 20 watts @ 4 ohms • Efficiency: 90% • Signal-to-noise ratio: 90 dB • Frequency response: 20 to 50,000 Hz • Signal input: 3.5 mm stereo jack • Signal output: 4 wires • Power requirements: 7-15 VDC • Quiescent current: 20 mA • Power input: 2.1 mm x 5.5 mm DC center positive jack • Dimensions: 1.57" x 1.26".
