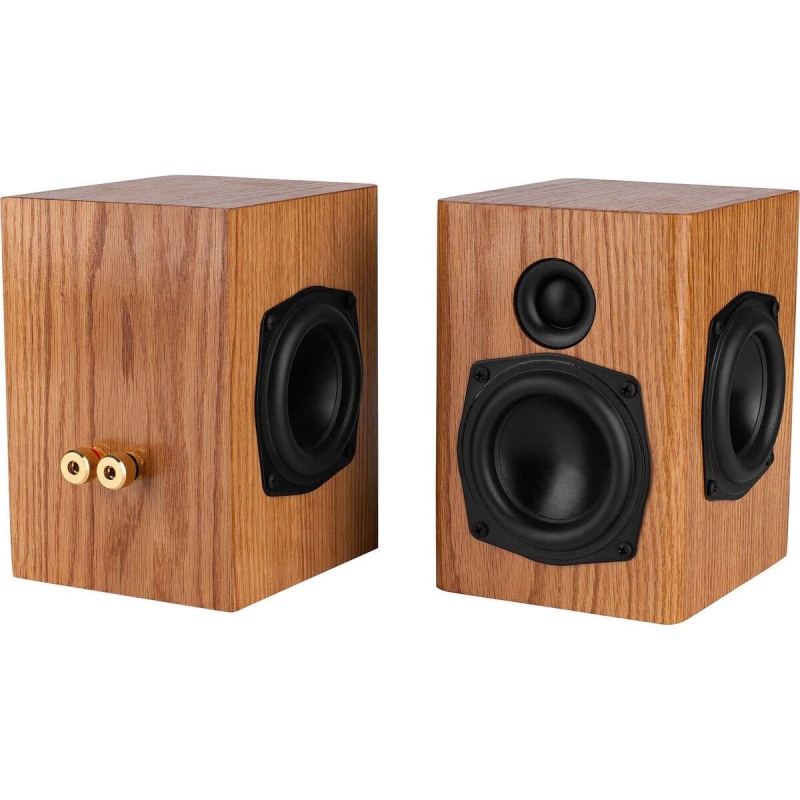

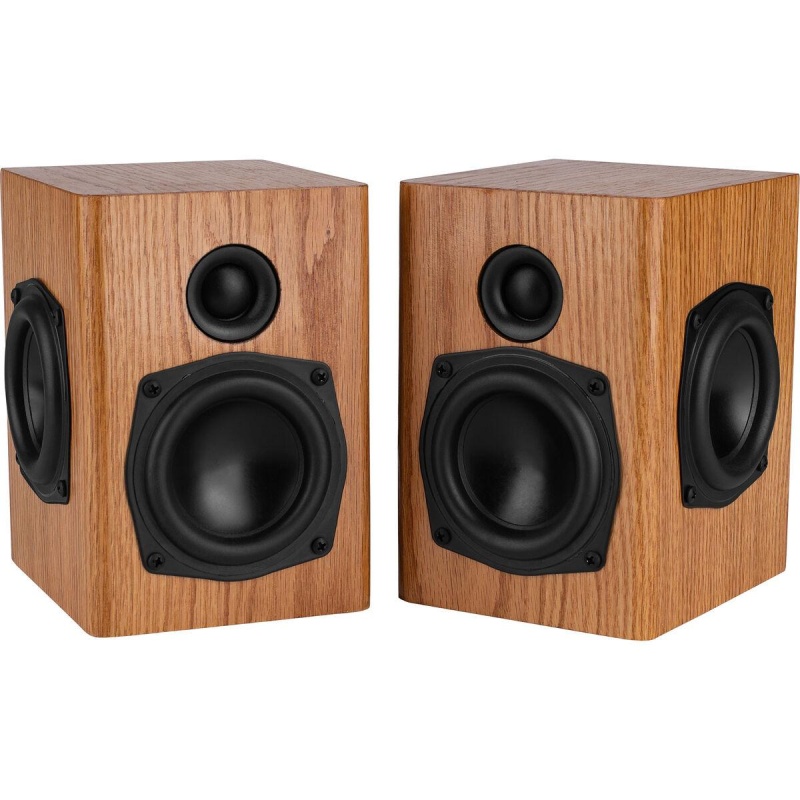

Passive Aggressive Mini Speaker Kit PairDo you want BIG sound in a tiny space? Look no further than the Passive Aggressive speaker kit. This kit is the ultimate definition of “big things coming in small packages”. Designed in-house by Dayton Audio engineers, this tiny kit will amaze you with is clarity, output and bass extension. A single Dayton Audio ND91-4 high excursion woofer handles bass and midrange frequencies. With a self-shielding Neo-Balanced motor structure and copper alloy shorting rings, this small woofer provides very low distortion and incredible excursion capabilities. Mated to a pair of ND90-PR passive radiators, this kit reaches lower than anyone would expect in an enclosure this size. The compact but accurate Dayton Audio ND20FB-4 tweeter fills out the top end with crystal clear highs that do not fatigue, even at higher volumes. These are all brought together with a custom designed second-order crossover for a nice smooth woofer-tweeter transition. The locally sourced 1/2" MDF enclosure panels are all CNC milled for tight tolerances ensuring easy enclosure assembly.
This kit includes parts to build a pair of speakers.
Features:High excursion Dayton Audio ND91-4 driver delivers surprising output and extension Dual passive radiators allow for a lower tuning frequency than possible with a portA Dayton Audio ND20FB-4 tweeter provides crisp, clear highs and loads of detailA tiny footprint means these will fit just about anywhere A perfect match with any of our small Dayton desktop amplifiersCustomer Comments:"The website talks about how you'll be surprised at how much bass you'll get from such a small driver in such a small enclosure. And it is surprising and impressive... I'm very impressed with the Dayton Audio ND20FB-4 tweeter. Balanced, neutral, without any glare, it's really nice.." -Salt L ⋆⋆⋆⋆⋆
"They truly sound a lot bigger than they are, that’s a lot of bass output for a tiny woofer so the passive radiators really work. Nice top end, too, and the combination really puts a shine on vocals." -Edward T ⋆⋆⋆⋆⋆
" These are absolutely outstanding little desktop speakers and a real joy to build. They have a warm, rich sound." -Brian B ⋆⋆⋆⋆⋆
Meet the Designer: Matt Phillips
Customer Projects:

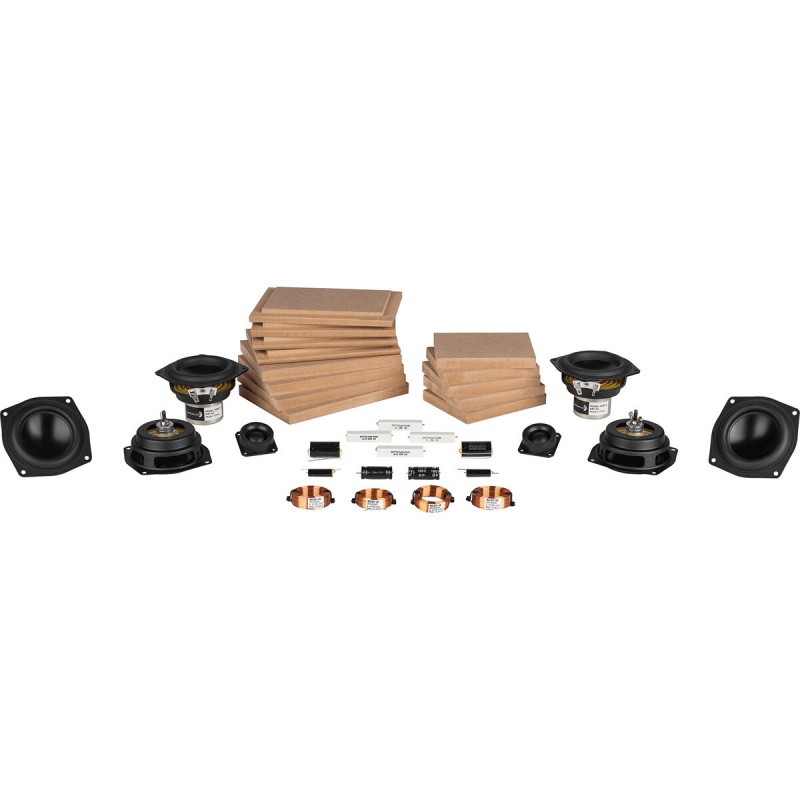

Kit Components:Part #QtyDescription2Dayton Audio DMPC-3.3 3.3uF 250V Polypropylene Capacitor2Dayton Audio DMPC-0.47 0.47uF 250V Polypropylene Capacitor250uF 100V Non-Polarized Capacitor2Dayton Audio DNR-3.0 3 Ohm 10W Precision Audio Grade Resistor2Dayton Audio DNR-9.1 9.1 Ohm 10W Precision Audio Grade Resistor2Dayton Audio AC20-15 0.15mH 20 AWG Air Core Inductor Coil2Dayton Audio AC20-50 0.50mH 20 AWG Air Core Inductor Coil2Dayton Audio ND91-4 3-1/2" Aluminum Cone Full-Range Driver 42Dayton Audio ND20FB-4 Rear-Mount 3/4" Soft Dome Neodymium Tweeter4Dayton Audio ND90-PR 3-1/2" Aluminum Cone Passive Radiator2Dayton Audio BPA-38G HD Binding Post Pair Gold125-Pack #6 x 3/4" Pan Head Deep Thread Black Screws4 ft.16 AWG 2-conductor Power Speaker Wire 1 ft. (Red/Black) 1Passive Aggressive Speaker Kit Knock-Down Enclosure PairNote: Screws, terminals, and speaker wire are included with this kit. Crossover components may be substituted with parts of equal or higher quality depending on available inventory.
Specifications:Power: 40 Watts RMS/80 Watts maxFrequency response: ±4 dB from 75 - 20,000 HzImpedance: 4 OhmSensitivity: 82 dB 1W/1mDimensions: 6.5" H x 4.5" W x 5" D
