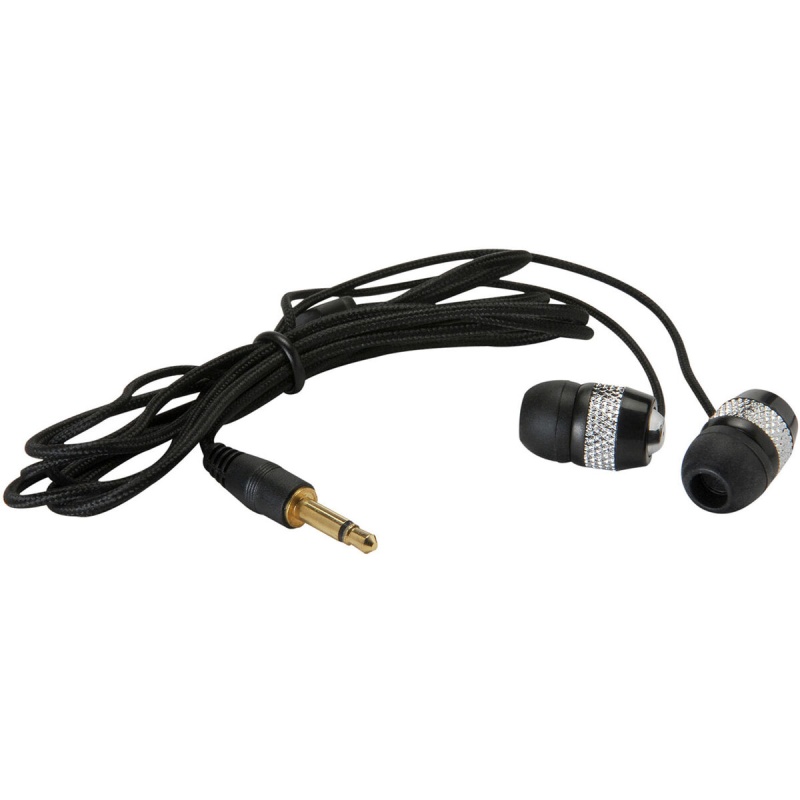

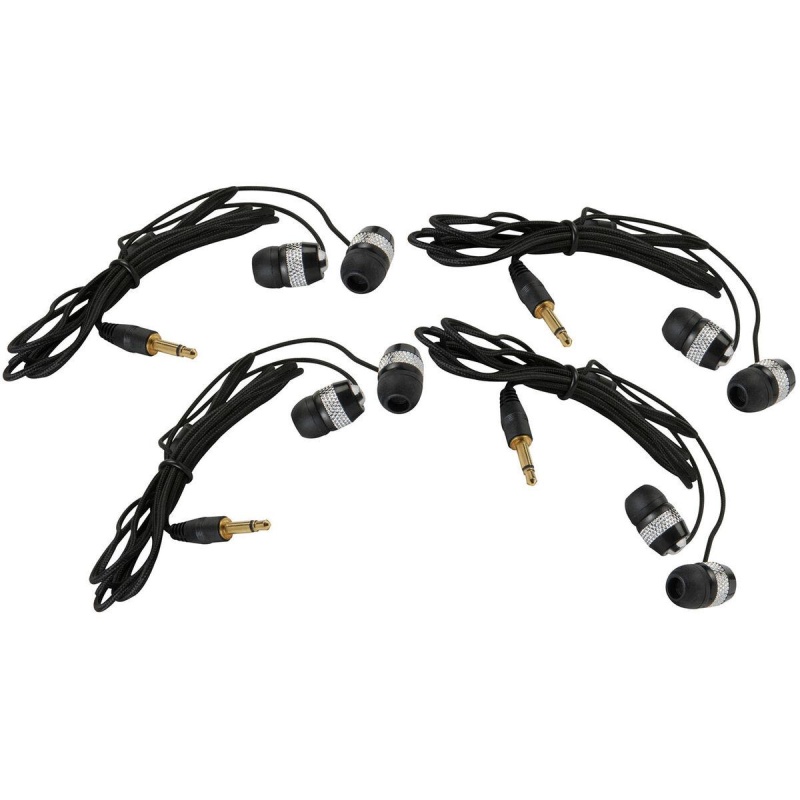

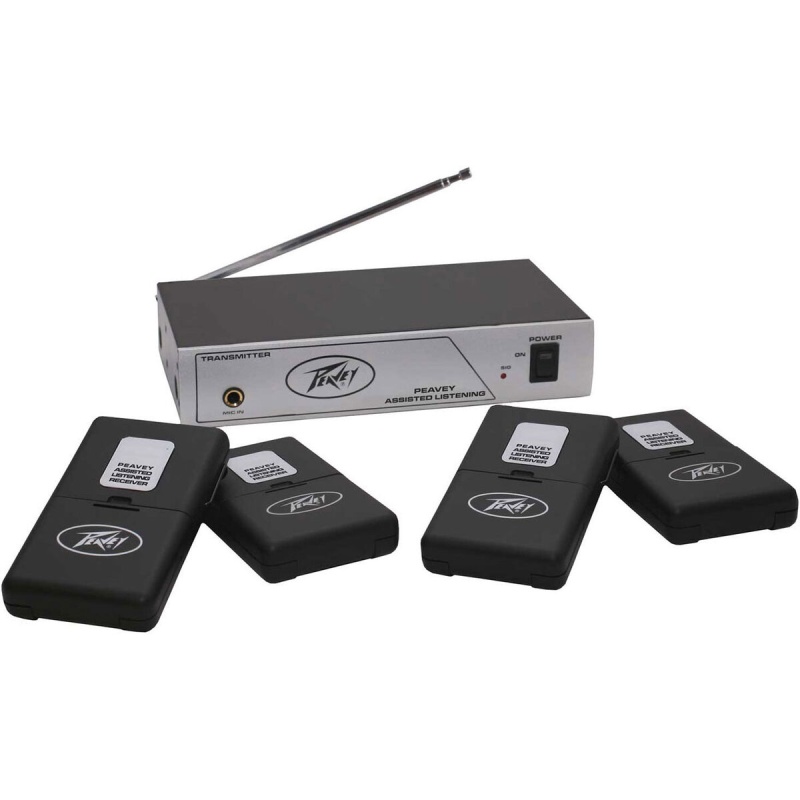

Peavey's 75.9 Assisted Listening system includes a transmitter, four bodypack receivers, four standard ear buds, AC/DC adapter, and a 1/4" audio cable. Additional receivers can be added to expand the system to a limitless number of users. Unlike infrared listening systems, this Assisted Listening System can be used indoors or outdoors in bright light without affecting the performance.
System has a wireless operating range up to 300 ft. (in line of sight), providing high quality hearing assistance to any number of audience members without seating restrictions. The transmitter connects to the line out or tape out from a venue's existing system and broadcasts the audio as an FM radio signal. Provides up to 130 dB SPL for hearing assistance. Peavey item 03010650.

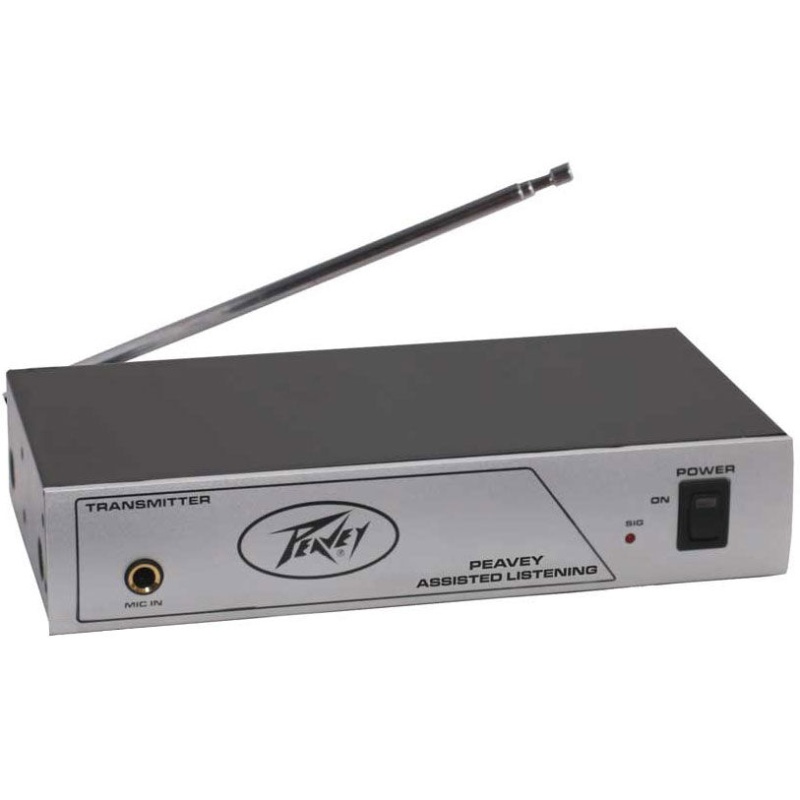

Overall System Specifications • Operating frequency: 75.9 MHz • Frequency response: 100 Hz - 15 kHz, ±3 dB • Total harmonic distortion: Transmitter Specifications • Mic input connector: 1/4" phone jack • Mic input impedance: Low, unbalanced with 9 VDC at 1 mA for condenser mic • Line input connector: 1/4" phone jack • Line input impedance: 100k unbalanced • Power output: 80,000 uV @ 3 meters • Controls: Power, ON/OFF, audio input gain adjust • Indicators: Power ON LED, audio modulation LED • Antenna: Permanently mounted telescoping whip • Power requirement: 9 VDC, regulated @ 200 mA • Dimensions: 220 x 121 x 43 mm • Weight: 19.5 oz. (600 g)

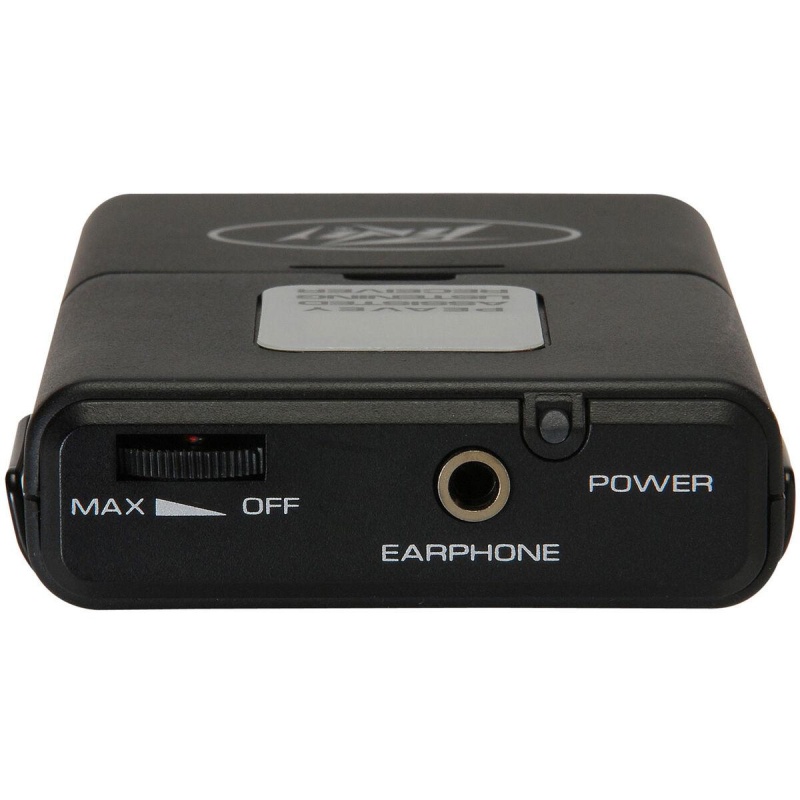

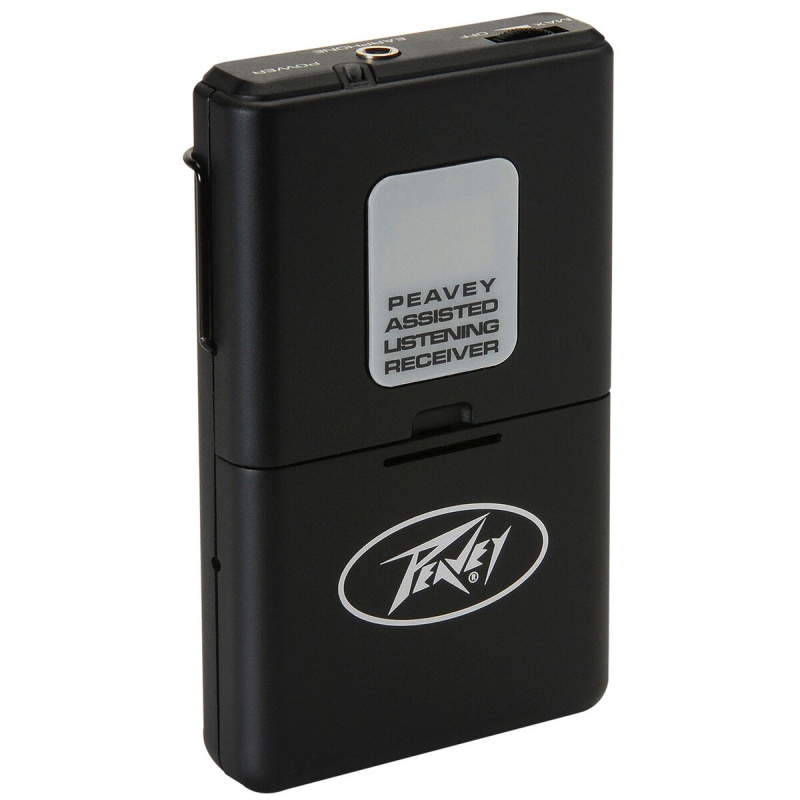

Receiver Specifications • Controls: Combination VOLUME/ON-OFF wheel • Audio output: 250 mW max into 16 ohms • Connectors: 3.5 mm mini jack for earphone output • Indicators: LED power on indicator • Sensitivity: 2 uV for 12 dB Sinad with squelch defeated • Power requirement: Two 1.5V AA batteries, not included • Battery life: 17-20 hrs with alkaline battery • Dimensions: 110 x 60 x 20 mm • Weight: 2.75 oz. without battery
