Enter your ZIP during checkout to see the estimated shipping rate before payment.

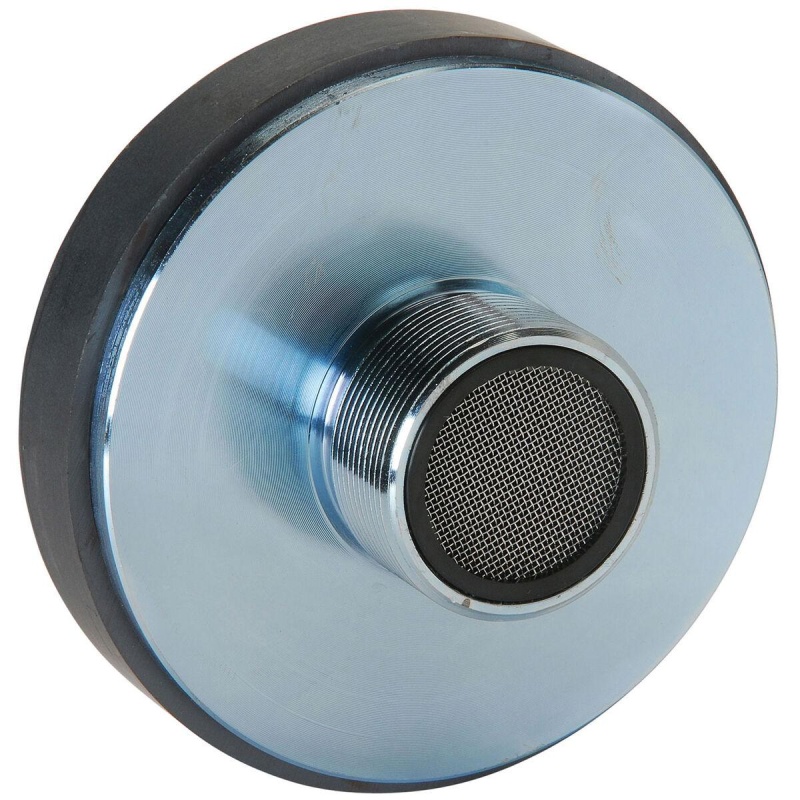

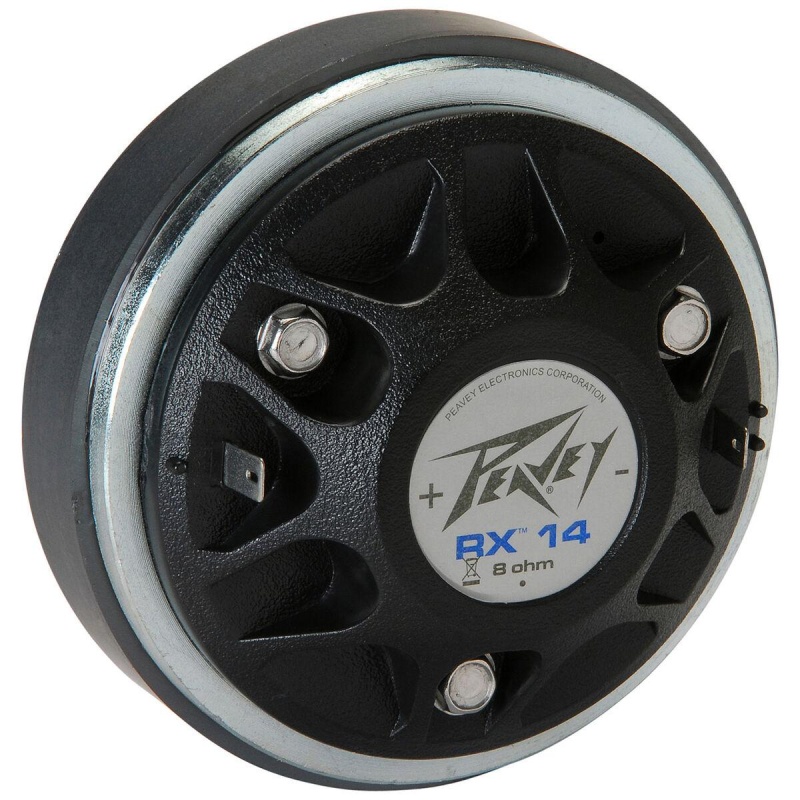

The RX14 1" compression driver is known for excellent driver performance, reliability, and power handling. The voice coil is a copper clad aluminum wire wound on a Kapton high temperature coil former. The one-piece titanium diaphragm reduces the amount of moving mass, extending the high frequency response of the driver. Ferrofluid cooling is used for improved reliability and smoother frequency response. Peavey item 03495480.
Specifications: • Throat parameter: 0.938" (23.8 mm) • Nominal impedance: 8 ohms • Minimum impedance: 7.1 ohms • DC Resistance: 6.8 ohms • Power capacity 1,000 Hz to 20,000 Hz: 30 watts continuous, 60 watts program, 120 watts peak • Sensitivity: 104 dB SPL 1W/1m, On-axis on 90º H x 45º V horn • Nominal efficiency: 30% • Frequency response: 1.5 kHz to 20 kHz • Recommended crossover: 1,800 Hz at 12 dB /octave • Lowest recommended crossover: 2,000 Hz at 12 dB /octave • Diaphragm: Commercially pure titanium • VCdia: 1.4" (34.4 mm) • Voice coil material: Edge-wound ribbon with high temp Kapton bobbin • Flux density: 11,500 gauss (1.15T) • Dimensions: 3.54" (90 mm) diameter, 2.40" (61 mm) depth • Horn coupling diameter: 0.938" (23.8 mm) • Horn coupling threads: Standard 1-3/8" / 18" • Voice coil cooling: Ferrofluid • Weight: 2.26 lbs. (1.024 kg).
This product is sold brand new. A manufacturer warranty applies only when the manufacturer provides one for this item.
Return requests must be submitted within 14 days of delivery and approved by our RMA department before the item is shipped back. Non-defective returns may be subject to a minimum 25% restocking fee and return shipping charges. Unauthorized returns are not eligible for credit or refund. Read the full return policy.
This product is sold brand new. A manufacturer warranty applies only when the manufacturer provides one for this item.
Return requests must be submitted within 14 days of delivery and approved by our RMA department before the item is shipped back. Non-defective returns may be subject to a minimum 25% restocking fee and return shipping charges. Unauthorized returns are not eligible for credit or refund. Read the full return policy.
