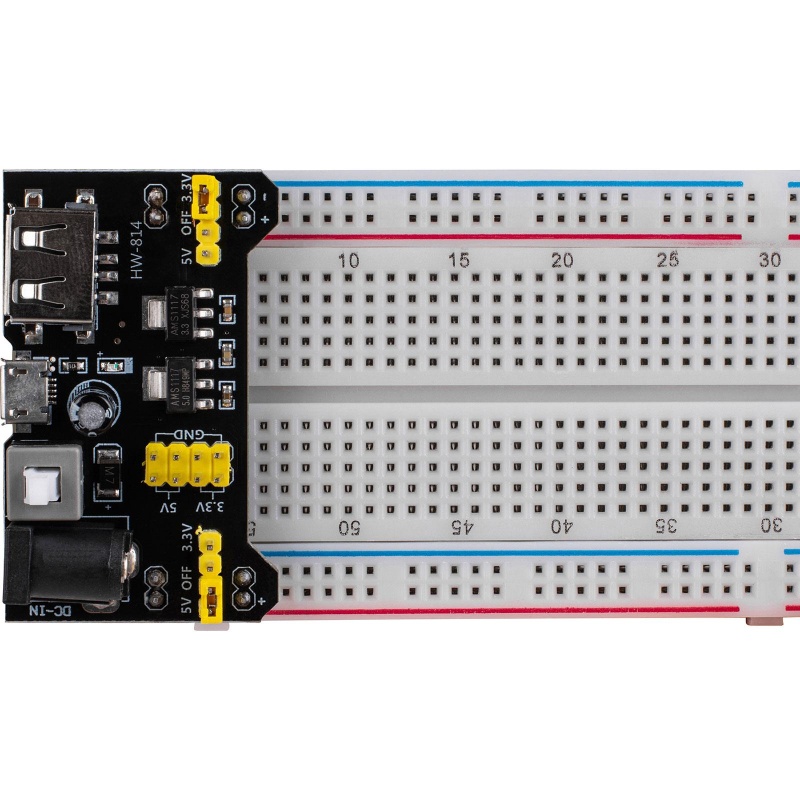

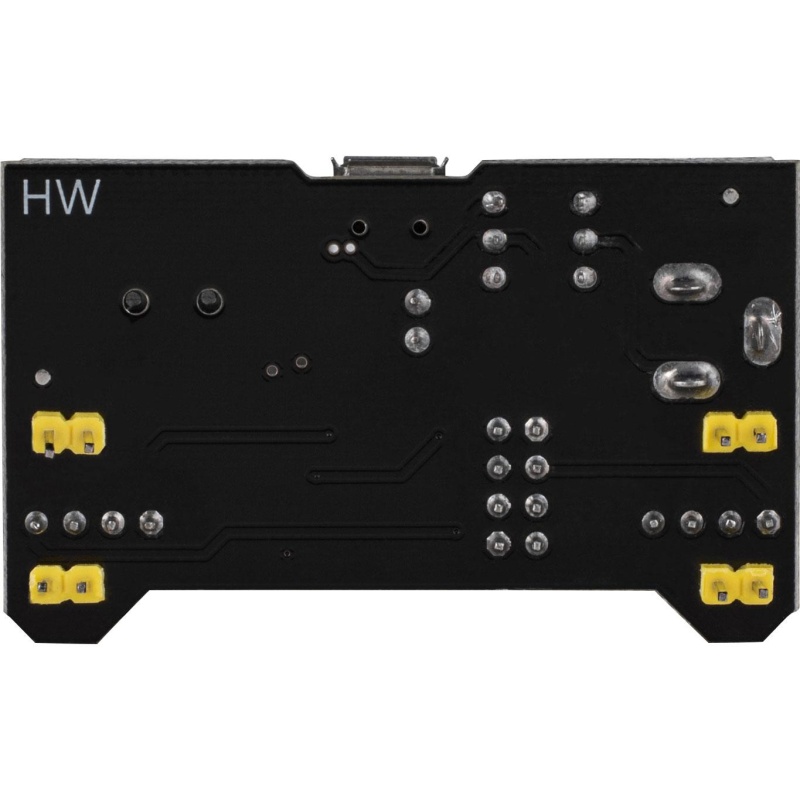

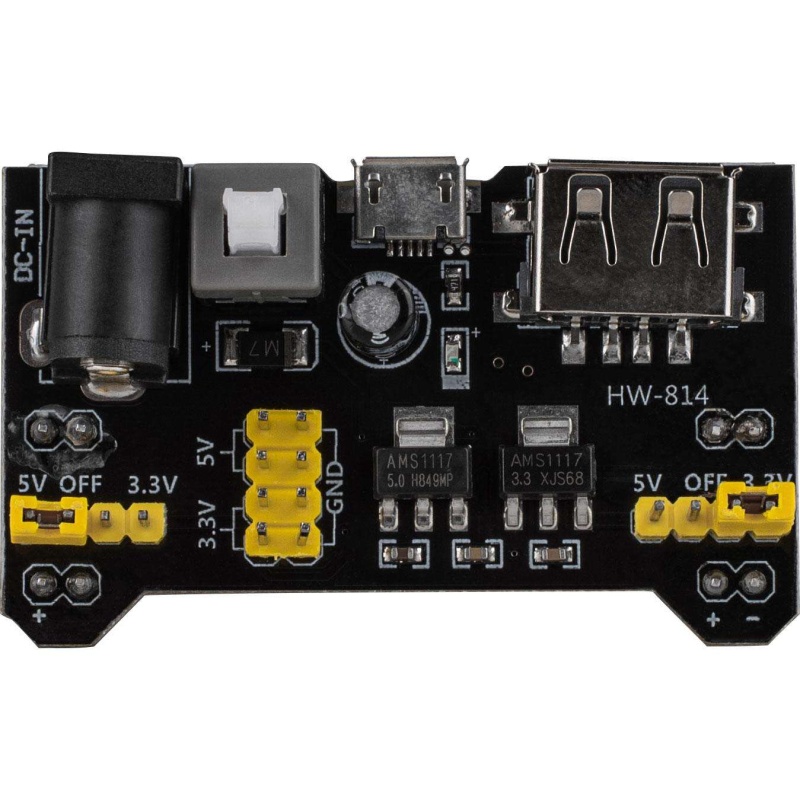

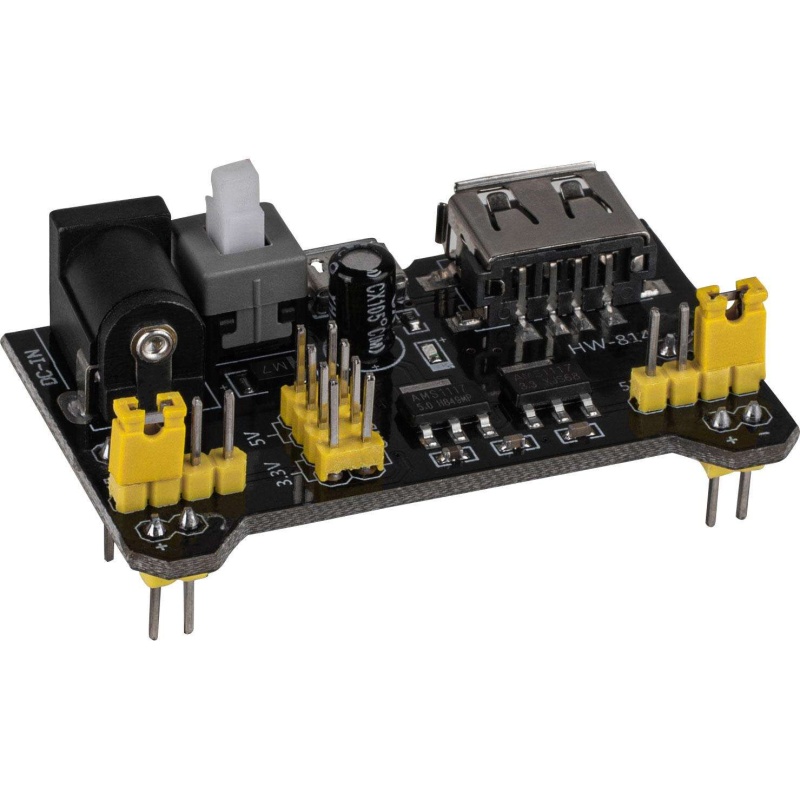

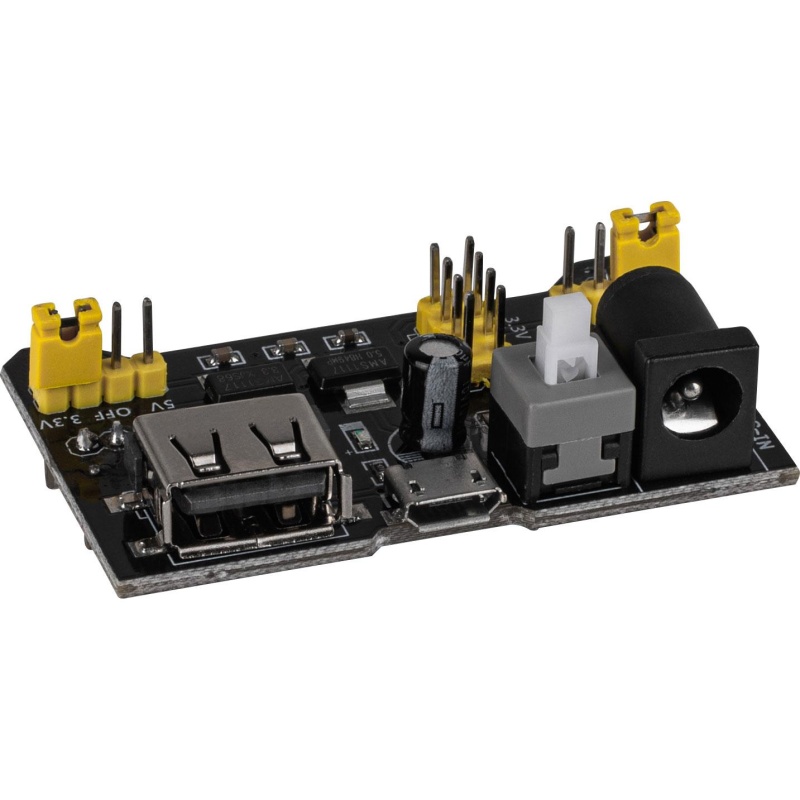

Use this power supply module to securely add power to your MB-102 bread boards. You don't have to worry about running separate positive and negative wires between power supplies and your bread board. These wires easily pop out and are always suppling power with no easy way to switch the bread board off. This power supply module has a built-in on/off switch and an LED light to notify when power is present. The dual voltage output supplies power to both sides of the MB-102 bread board with one power supply. You have the ability to use standard micro or USB-A power, or an AC adapter that has a 2.1 x 5.5mm tip positive plug with power output between 6.5 to 12 VDC for power input. Both DC outputs on the power supply module change voltage by choosing either 3.3 or 5 VDC by moving the included jumpers. Put the jumper over the 5V for 5 VDC and over the 3.3V for 3.3 VDC.
Specifications: • Voltage input: 6.5 to 12 VDC into 5.5 x 2.1mm tip + socket, or USB power (5 VDC) into micro or A socket • Dual output voltage: 3.3 or 5 VDC via jumper • Maximum output current: 700mA • Pin spacing: 2.5 mm pitch • Board dimensions: 2.08" W x 1.26" D x 0.69" H with switch.
