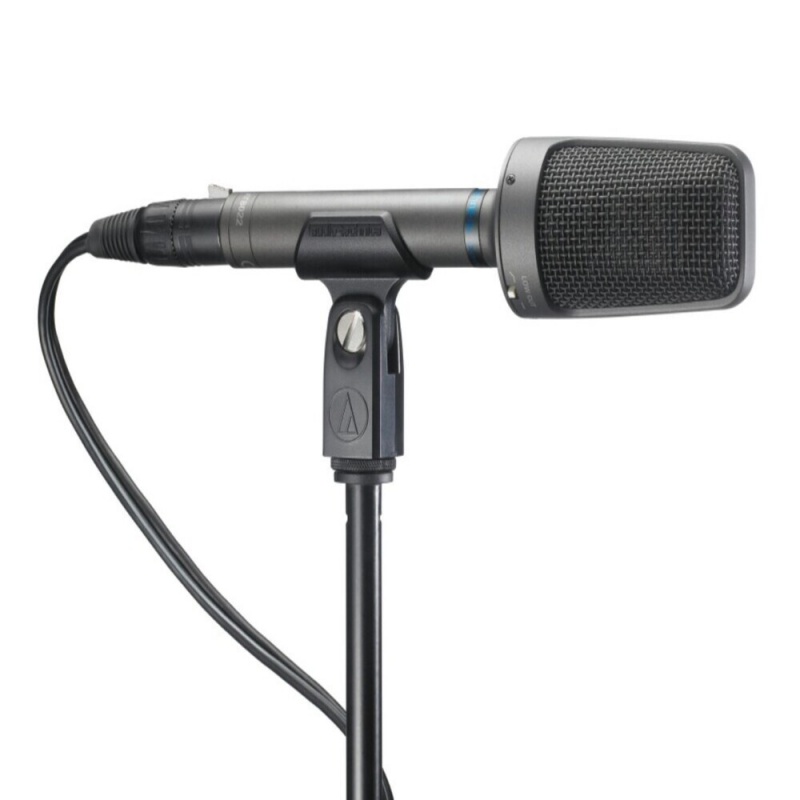

Ideal for video camera-mount use, stereo field recording, interviews and home recording, Audio-Technicas versatile AT8022 stereo condenser offers compact housing and the pristine sound quality of live sound field. Its coincident capsule configuration produces an X/Y stereo image in small housing. The microphone is supplied with two cables for use with either pro or consumer gear. It offers switchable low-frequency roll-off and the convenience of battery or phantom power. The microphone is fully RoHS-compliant free from all substances specified in the EU directive on the reduction of hazardous substances (RoHS).
– Innovative capsule configuration produces accurate stereo image in smaller housing Compact, lightweight design is perfect for video camera-mount use as well as for stereo field recording, interviews and home recording Ideal for use with handheld digital recording devices Operates on battery or phantom power?for use with pro or consumer equipment Switchable low-frequency roll-off Includes two cables: one balanced (two 3-pin XLRM-type connectors at output); one unbalanced (3.5 mm TRS at output) RoHS-compliant free from all substances specified in the EU directive on the reduction of hazardous substances (RoHS)
SPECIFICATIONS ELEMENT Fixed-charge back plate permanently polarized condenser POLAR PATTERN X/Y Stereo FREQUENCY RESPONSE 20-15,000 Hz LOW FREQUENCY ROLL-OFF 80 Hz, 12 dB/octave OPEN CIRCUIT SENSITIVITY Phantom: 38 dB (12.5 mV) re 1V at Pa
Battery: 38 dB (12.5 mV) re 1V at Pa CHANNEL BALANCE IMPEDANCE Phantom: 250 ohms Battery: 300 ohms MAXIMUM INPUT SOUND LEVEL Phantom: 128 dB SPL, kHz at 1% T.H.D. Battery: 120 dB SPL, kHz at 1% T.H.D. DYNAMIC RANGE (typical) Phantom: 109 dB, kHz at Max SPL Battery: 101 dB, kHz at Max SPL SIGNAL-TO-NOISE RATIO 75 dB, kHz at Pa PHANTOM POWER REQUIREMENTS 11-52V DC, mA typical (each channel) BATTERY TYPE 1.5V AA/UM3 BATTERY CURRENT LIFE 0.7 mA 700 hours typical (alkaline) SWITCH Battery On/Off; Flat, roll-off WEIGHT 247 (8.7 oz) DIMENSIONS 186.0 mm (7.32″) long, 47.6 mm (1.87″) head diameter 21.0 mm (0.83″) maximum body diameter OUTPUT CONNECTOR Integral 5-pin XLRM-type CABLES Balanced: 2.0 (6.5′) long, conductor, shielded, vinyl-jacketed stereo cable with 5-pin XLRF-type connector at microphone end and two 3-pin XLRM-type connectors at output end; Unbalanced: 0.6 (2.0′) long stereo cable with 5-pin XLRF-type connector at microphone end and 3.5 mm TRS connector at output end ACCESSORIES FURNISHED AT8405a stand clamp for 5/8″-27 threaded stands; windscreen; battery; soft protective pouch AUDIO-TECHNICA CASE STYLE S12
SPECIFICATION GRAPHS Click on the chart to view the larger image POLAR PATTERN FREQUENCY RESPONSE
