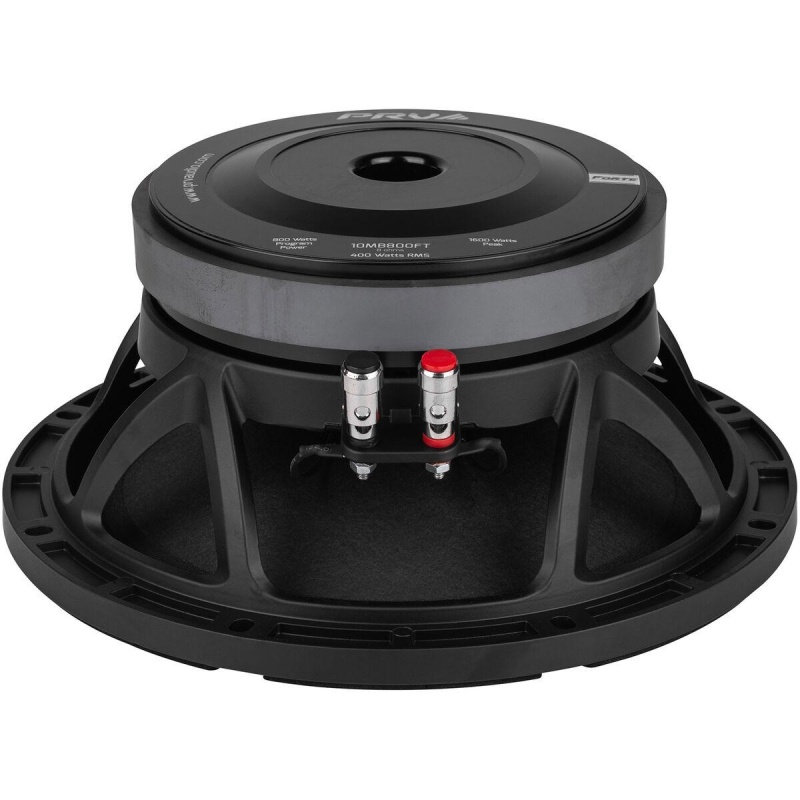

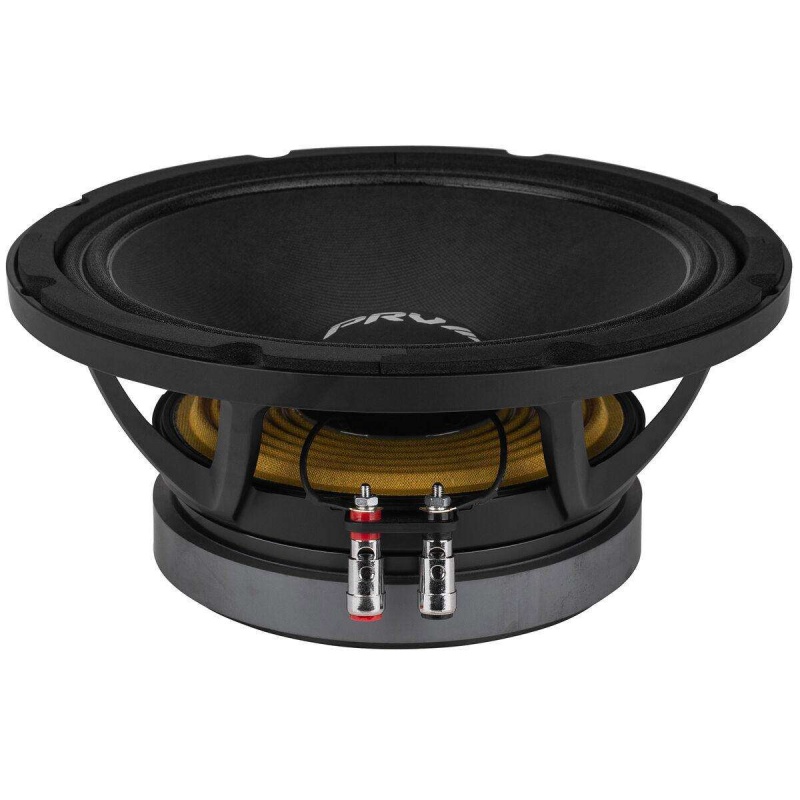

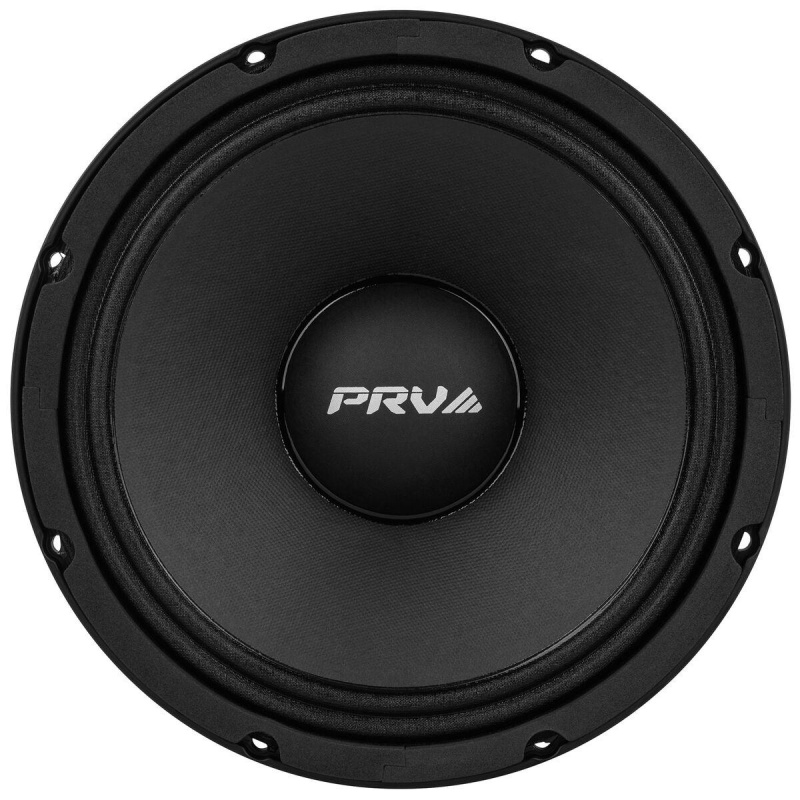

PRV Audio 10MB800FT Forte Series 10" Midbass Speaker 8 Ohm For high output speaker systems, PRV Audio’s 10MB800FT midbass is a powerful choice capable of outstanding performance. It’s a standout addition to the Forte Series, focused on delivering greater power handling and reduced distortion in the mid to low midbass range.
The 10MB800FT is a durable 10″ midbass driver that blends strong midbass impact with vocal clarity at high SPL levels, offering low distortion and extended midbass response. Designed for use in compact enclosures, it delivers smooth vocals with strong output from 500 Hz to 1500 Hz and maintains useful response up to 6,500 Hz, making it ideal for larger 2-way and 3-way systems.
2.5″ inside/out aluminum voice coil wound on a fiberglass former for high temperature performance Ventilated voice coil gap helps reduce power compression High Xmax delivers increased midbass output 800 watts continuous program power rating enables strong acoustic output Performs exceptionally in both 2-way and 3-way systems
To achieve superior fidelity, a special composite cone made from non-pressed paper is used to minimize break-up, resulting in a smooth frequency response and low moving mass that boosts speaker efficiency.
With a high sensitivity rating of 99 dB 1W/1M, it’s capable of producing impressive output. This 10″ driver is an excellent midbass choice for professional audio systems or high SPL car audio setups where extremely high output is needed.
The voice coil is wound on a 2.5″ glass fiber former with aluminum wire, keeping weight low for exceptionally fast transient response. With 11 mm of winding depth, this inside/outside coil design ensures outstanding thermal and mechanical durability.
This product is sold brand new. A manufacturer warranty applies only when the manufacturer provides one for this item.
Return requests must be submitted within 14 days of delivery and approved by our RMA department before the item is shipped back. Non-defective returns may be subject to a minimum 25% restocking fee and return shipping charges. Unauthorized returns are not eligible for credit or refund. Read the full return policy.
A popular pairing with the 10MB800FT is the Titanium Compression Driver. Using our , the PRO Audio On Wheels systems can easily tune both components to blend in together with the following settings:
10MB800FT – High Pass Filter (HPF) at 95 Hz using a BT18 filter, Low Pass Filter (LPF) at 1800 Hz using a BT12 filter
Compression Driver – Covers from 1200 Hz to 17,000 Hz
Recommended system package: 8x 10MB800FT + 4x
lSpecifications
Nominal Diameter: 10″ (254 mm) Nominal impedance: 8 Ohm Nominal Power Handling:* 400 Watts Continuous Program Power (RMS):** 800 Watts Sensitivity 2.83V at 1m: 99 dB Recommended Hi Pass Crossover: 120 Hz For Full Power Handling — 12db Per Octave Crossover Frequency Response: 65 – 6,500 Hz Voice Coil Diameter: 2.5″ (65 mm) Voice Coil Wire: CCAW Voice Coil Winding Depth: 11.0 mm Former Material: Fiberglass Magnetic Gap Depth: 8.0 mm Frame Material: Die Cast Aluminum Overall Diameter: 10.25” (260.5 mm) Front Mount Baffle Cutout: 9.01” (229 mm) Mounting Depth: 4.09” (104 mm) Overall Depth: 4.68” (119 mm) Net Weight: 11.01 Lbs (5.0 kg) *Nominal power handling is defined as the maximum RMS power that the speaker can handle in a 2-hour test with a pink noise with 6dB of crest factor and a bandpass filter with 12db/oct tuned in its usable frequency range. **Continuous Program Power (RMS) is the maximum power that the speaker can handle considering a regular musical program using our recommended filters, this power can be used to define the optimum amplifier power to provide a clean signal without clipping or saturation. ***Max Peak Power is the maximum power operation for the speaker, this power is allowed just for a few fractions of a second, usually found just on the peaks of the music. Keeping this power for a little longer timer will damage the speaker.
