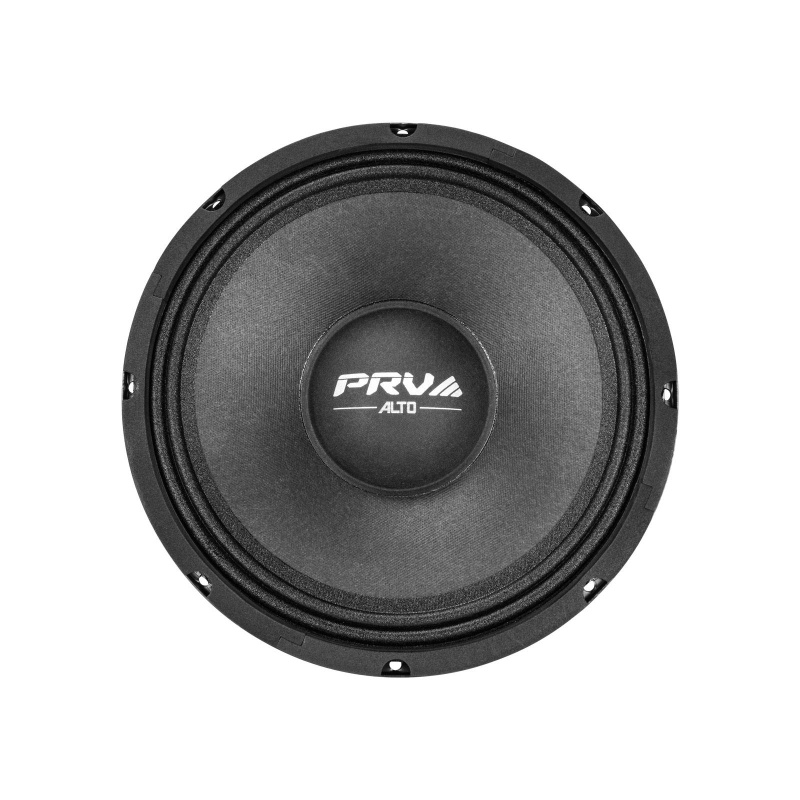

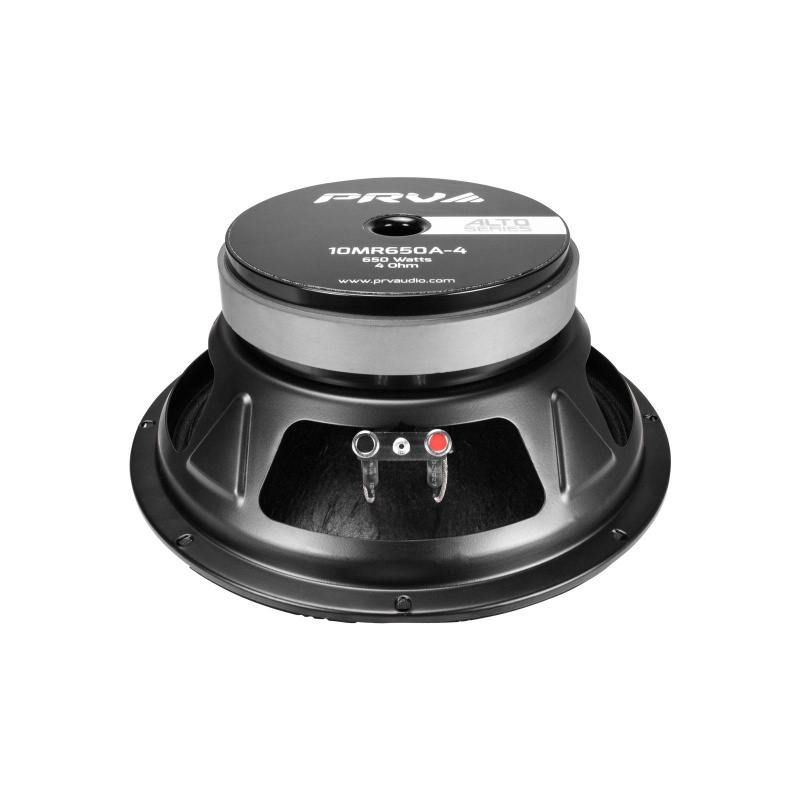

PRV Audio 10MR650A-4 Alto Series 10" Midrange Driver 4 OhmPRV Audio’s is carefully engineered and voiced to deliver natural, smooth sound while staying dynamic. To achieve superior fidelity, a specially designed composite cone smooths frequency response and reduces moving mass, boosting overall efficiency. Introducing the updated version of the —now improved as the 10MR650A-4.
New basket design decreases mounting depth from 4.33″ to 3.90″+1dB gain in low frequency output responseImproved vocal performance between 350 Hz and 4000 HzExtended voice coil winding enhances power handling and increases Xmax to 5.72 mmSpecifically developed to boost vocal output where the lacked, without compromising midbass
All these upgrades make the 10MR650A-4 capable of delivering high output with low distortion—an ideal choice for reproducing essential midrange frequencies in high-output sound systems. A standout addition to the !
2.5″ layer CCAW voice coil wound on a glass fiber former, 4 OhmVented pole piece releases heat effectively to reduce power compression650 Watts program RMS power delivers high acoustic output80 to 6,500 Hz frequency range offers strong midrange with extended low midbassCovers most of the vocal range, allowing simple integration with a tweeter

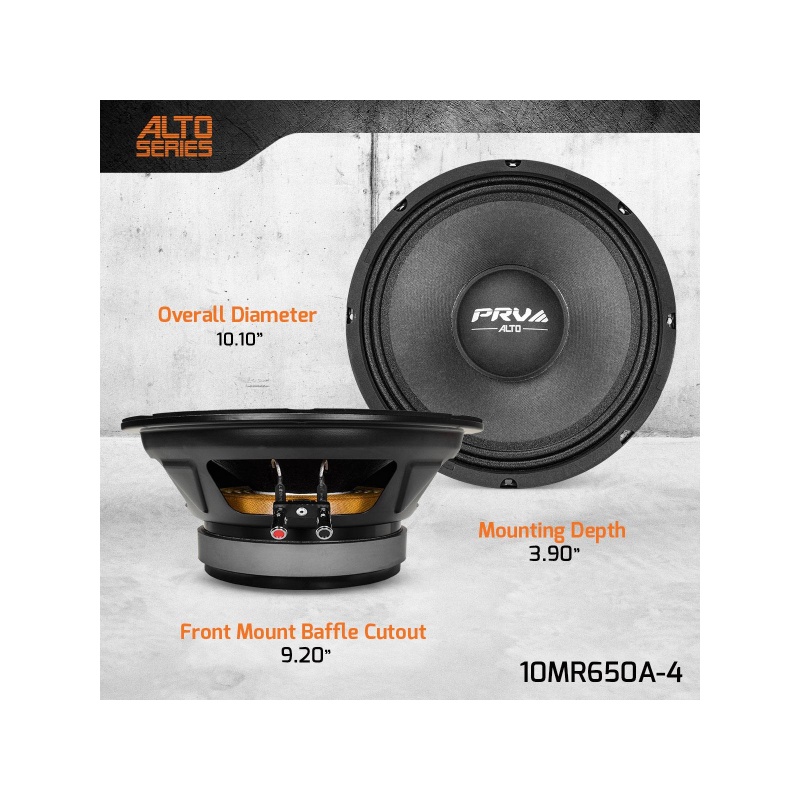

The new 10MR650A-4 from the Alto Series offers everything you expect from a midrange pro audio loudspeaker, featuring a compact and flexible design with just 3.90” of mounting depth without compromising performance.
This midrange speaker is specifically optimized for custom car audio use, delivering top performance in very small enclosures. It performs exceptionally as a door speaker in car setups or as a low frequency midrange in 2-way stuntwall systems.
A popular pairing with the 10MR650A-4 in custom door installs is the Mini Mids and Highs compression horn driver—used in a 1:1 ratio, with one horn driver matched to one speaker. All components are tuned using PRV's for smooth integration with the following settings:
10MR650A-4 – High Pass Filter HPF 120 Hz at BT18 Filter to Low Pass Filter LPF 2200 Hz at BT12, following the compression driver from 1600Hz all way to 20,000Hz
Recommended system package 4x 10MR650A-4 + 4x WG175Py-Nd-4 Recommended Amplifier for 4x 10MR650A wired in parallel –
General Specifications
Nominal Diameter: 10″ (254 mm)Nominal impedance: 4 OhmsRated AES Power Handling (RMS): 325 WattsProgram Power: 650 WattsMax Peak Power: 1300 Watts Sensitivity 2.83V at 1m: 97.5 dBRecommended Hi Pass Crossover:** 140 Hz****For Full Power Handling **12db Per Octave CrossoverFrequency Response at -10dB: 80 – 6,500 HzVoice Coil Diameter: 2.5″ (65.5 mm)Voice Coil Wire: CCAWVoice Coil Winding Depth: 16.2 mmFormer Material: PolymideMagnetic Gap Depth: 9.5 mmFrame Material: Stamped SteelOverall Diameter: 10.10” (256.5 mm)Front Mount Baffle Cutout: 9.20” (233.5 mm)Mounting Depth: 3.90”(99 mm)Overall Depth: 4.23”(107.5 mm)Net Weight: 10.4 Lbs (4.7 kg)*Nominal power handling is defined as the maximum RMS power that the speaker can handle in a 2-hour test with a pink noise with 6dB of crest factor and a bandpass filter with 12db/oct tuned in its usable frequency range. **Continuous Program Power (RMS) is the maximum power that the speaker can handle considering a regular musical program using our recommended filters, this power can be used to define the optimum amplifier power to provide a clean signal without clipping or saturation. ***Max Peak Power is the maximum power operation for the speaker, this power is allowed just for a few fractions of a second, usually found just on the peaks of the music. Keeping this power for a little longer timer will damage the speaker.
