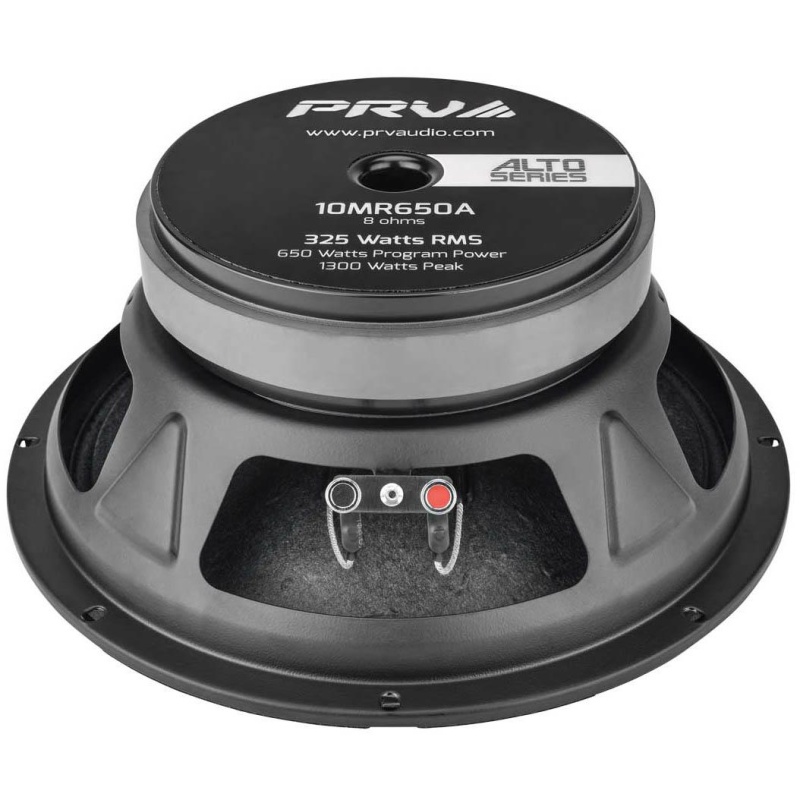

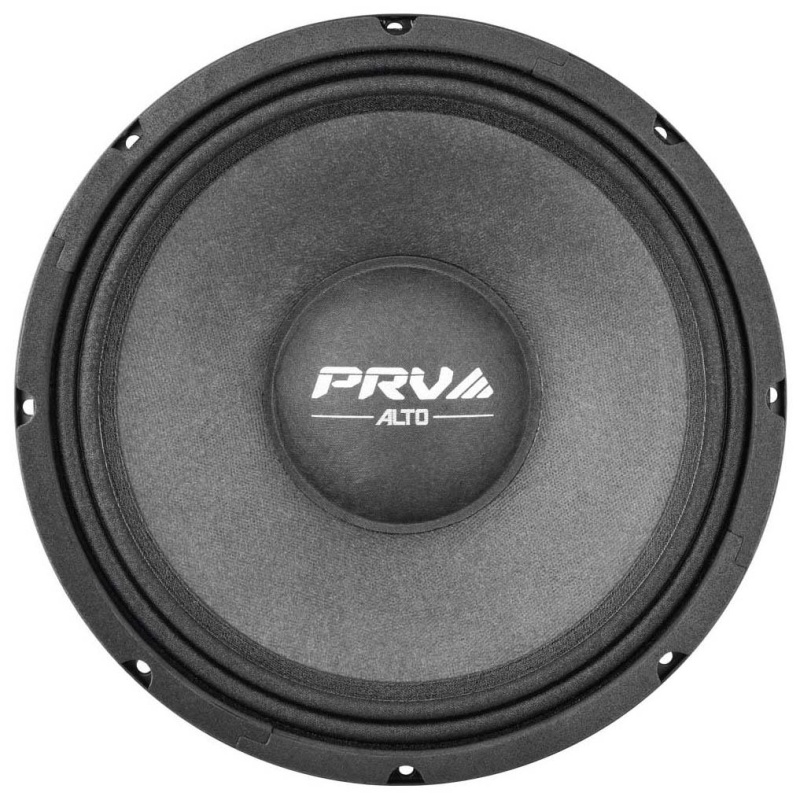

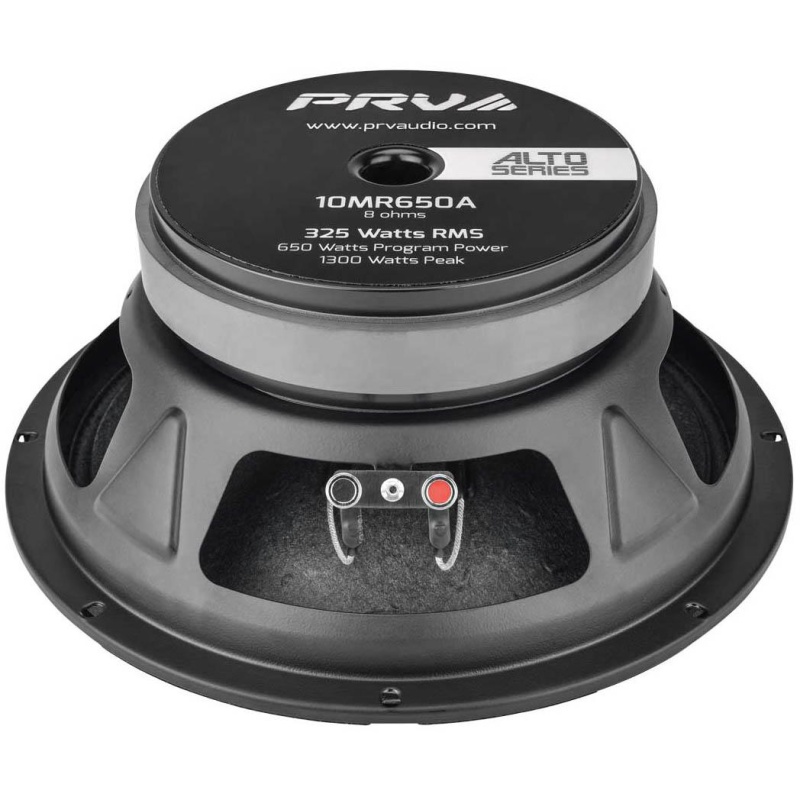

PRV Audio 10MR650A Alto Series 10" Midrange Driver 8 OhmPRV Audio’s is carefully engineered and voiced to deliver natural, smooth sound while staying dynamic. To achieve superior fidelity, a specially designed composite cone smooths frequency response and reduces moving mass, boosting overall efficiency. Introducing the updated version of the —now improved as the 10MR650A.
New basket design decreases mounting depth from 4.33″ to 3.90″ +1dB gain in low frequency output response Improved vocal performance between 350 Hz and 4000 Hz Extended voice coil winding enhances power handling and increases Xmax to 5.72 mm Specifically developed to boost vocal output where the lacked, without compromising midbass
All these upgrades make the 10MR650A capable of delivering high output with low distortion—an ideal choice for reproducing essential midrange frequencies in high-output sound systems. A standout addition to the !
650 Watts program RMS power delivers strong acoustical output 4 Ohm impedance makes this a great option for car audioHandles extreme output levels with 97 dB sensitivity Voice Coil Diameter: 2.5″
The new 10MR650A from the offers everything you need in a midrange pro audio loudspeaker, featuring a compact and versatile design with just 3.90” of mounting depth without compromising performance.
This midrange performs well as a door speaker in car audio systems or as a low frequency driver in a two-way satellite speaker setup.
A popular combination with the 10MR650A in large systems is the Mids and Highs compression horn driver—using one horn driver for every two speakers, all tuned via our for seamless integration with the following settings:
10MR650A – High Pass Filter HPF 120 Hz at BT18 Filter to Low Pass Filter LPF 2200 Hz at BT12, following the compression driver from 1000Hz all way to 17,000Hz
Recommended system package 8x 10MR650A + 4x WG2000Py SLIM
General Specifications
Nominal Diameter: 10″ (254 mm) Nominal impedance: 4 Ohms Rated AES Power Handling (RMS): 325 Watts Program Power: 650 Watts Max Peak Power: 1300 Watts Sensitivity 2.83V at 1m: 97.5 dB Recommended Hi Pass Crossover:** 140 Hz****For Full Power Handling **12db Per Octave Crossover Frequency Response at -10dB: 80 – 6,500 HzVoice Coil Diameter: 2.5″ (65.5 mm) Voice Coil Wire: CCAW Voice Coil Winding Depth: 16.2 mm Former Material: PolymideMagnetic Gap Depth: 9.5 mm Frame Material: Stamped SteelOverall Diameter: 10.10” (256.5 mm) Front Mount Baffle Cutout: 9.20” (233.5 mm)Mounting Depth: 3.90”(99 mm)Overall Depth: 4.23”(107.5 mm)Net Weight: 10.4 Lbs (4.7 kg)*Nominal power handling is defined as the maximum RMS power that the speaker can handle in a 2-hour test with a pink noise with 6dB of crest factor and a bandpass filter with 12db/oct tuned in its usable frequency range. **Continuous Program Power (RMS) is the maximum power that the speaker can handle considering a regular musical program using our recommended filters, this power can be used to define the optimum amplifier power to provide a clean signal without clipping or saturation. ***Max Peak Power is the maximum power operation for the speaker, this power is allowed just for a few fractions of a second, usually found just on the peaks of the music. Keeping this power for a little longer timer will damage the speaker.
