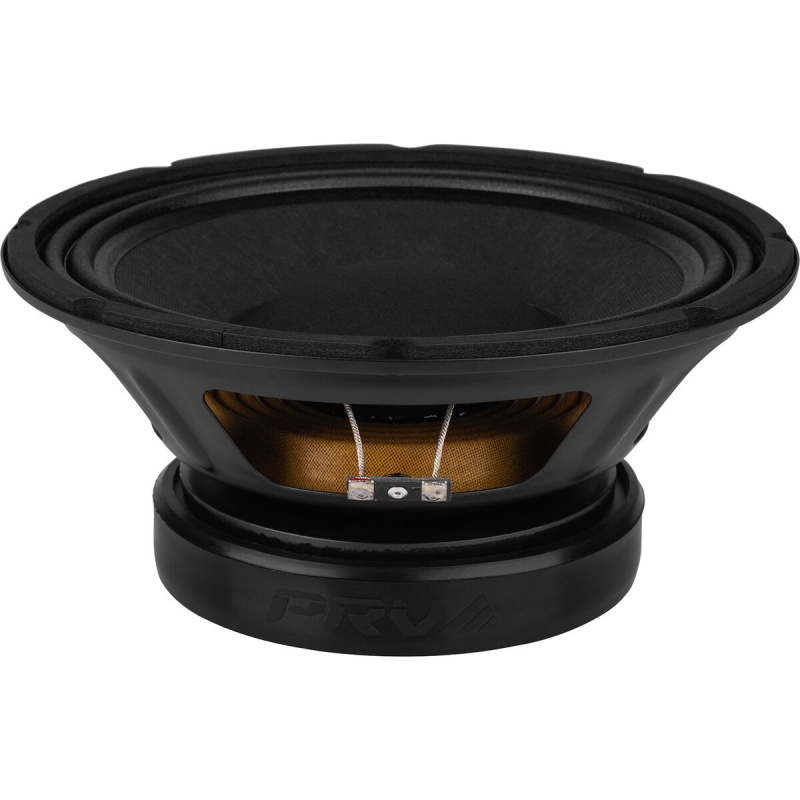

PRV Audio 10W650A-4 Alto Series 10" Pro Woofer 4 OhmHigh fidelity meets high output in PRV Audio's Woofers. Audio professionals and seasoned musicians know that tone is essential to a great performance, whether on stage or in the studio. That’s why PRV Audio’s Alto Series woofers are meticulously engineered and voiced to deliver smooth, natural sound with dynamic character.

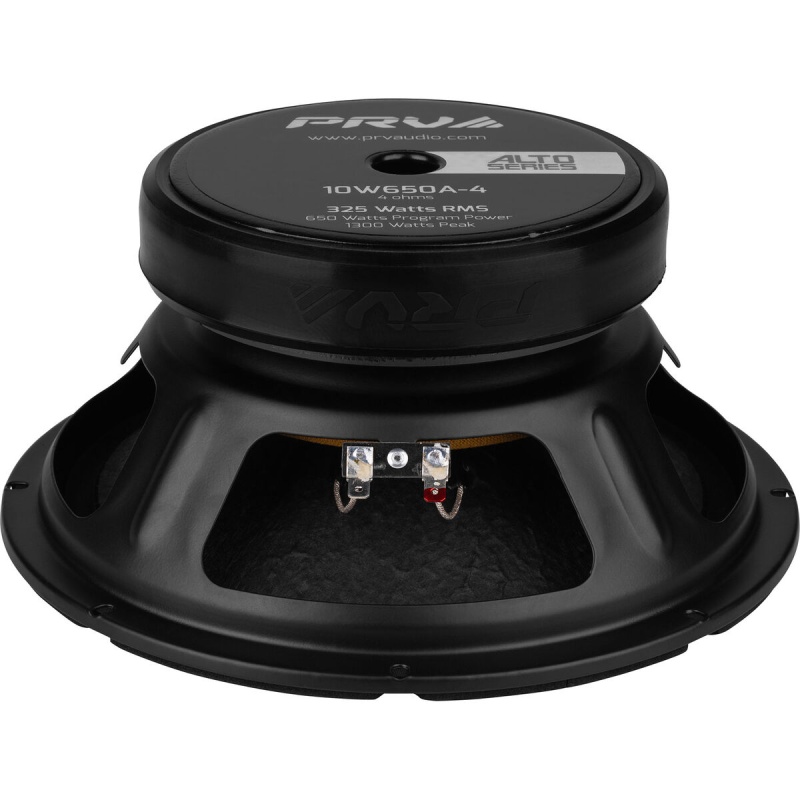

To achieve the desired tone, a specialized composite cone made from non-pressed paper (visible from the rear) is used to minimize break-up and provide a smooth response. A distinctive woven-cloth dustcap enhances sensitivity by lowering moving mass and also aids in cooling the voice coil.
Alto Series woofers perform exceptionally in both sealed and vented enclosures, whether used as woofers in two-way systems, midrange drivers in three-way setups, or even in bass guitar and guitar speaker applications. Step up to the PRV Audio ALTO Series… You’ll be glad you did!
650 Watts program RMS power delivers strong acoustical output4 Ohm impedance makes this a great option for car audioHandles extreme output levels with 97 dB sensitivityVoice Coil Diameter: 2.5″
General Specifications
Nominal Diameter: 10″ (254 mm)Nominal impedance: 4 OhmsRated AES Power Handling (RMS): 325 WattsProgram Power: 650 WattsSensitivity 2.83V at 1m: 97 dBRecommended Hi Pass Crossover:** 150 Hz****For Full Power Handling **12db Per Octave CrossoverFrequency Response at -10dB: 75 – 5,500 HzVoice Coil Diameter: 2.5″ (65.5 mm)Voice Coil Wire: CCAWVoice Coil Winding Depth: 13.0 mmFormer Material: KaptonMagnetic Gap Depth: 10.0 mmFrame Material: Stamped SteelOverall Diameter: 10.10” (257 mm)Front Mount Baffle Cutout: 9.25” ( 235 mm)Mounting Depth: 4.3” (110 mm)Overall Depth: 4.72” (120 mm)Net Weight: 10.49 Lbs (4.75 kg)*Nominal power handling is defined as the maximum RMS power that the speaker can handle in a 2-hour test with a pink noise with 6dB of crest factor and a bandpass filter with 12db/oct tuned in its usable frequency range. **Continuous Program Power (RMS) is the maximum power that the speaker can handle considering a regular musical program using our recommended filters, this power can be used to define the optimum amplifier power to provide a clean signal without clipping or saturation. ***Max Peak Power is the maximum power operation for the speaker, this power is allowed just for a few fractions of a second, usually found just on the peaks of the music. Keeping this power for a little longer timer will damage the speaker.
