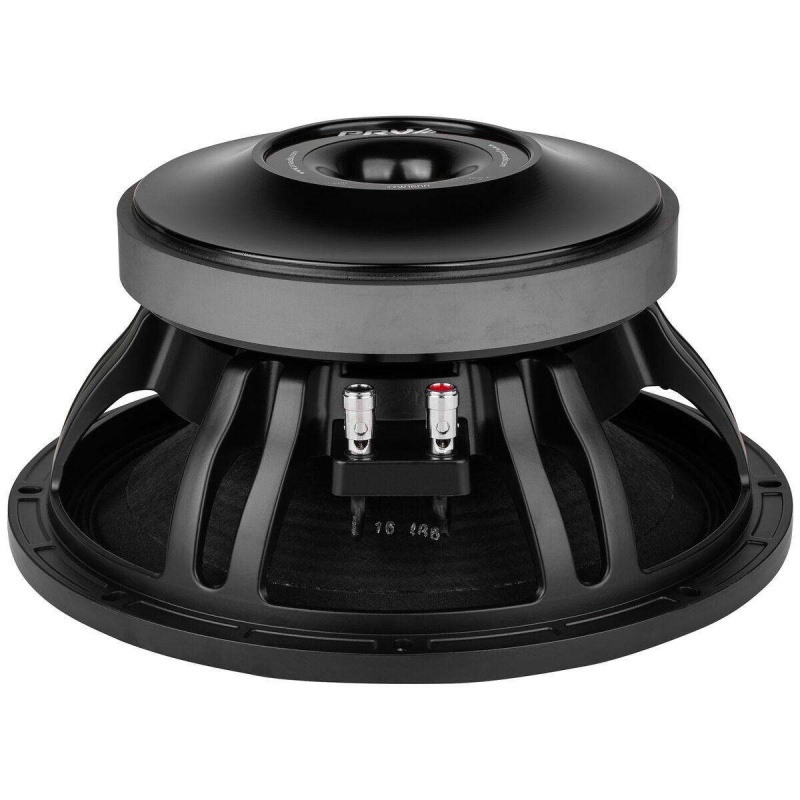

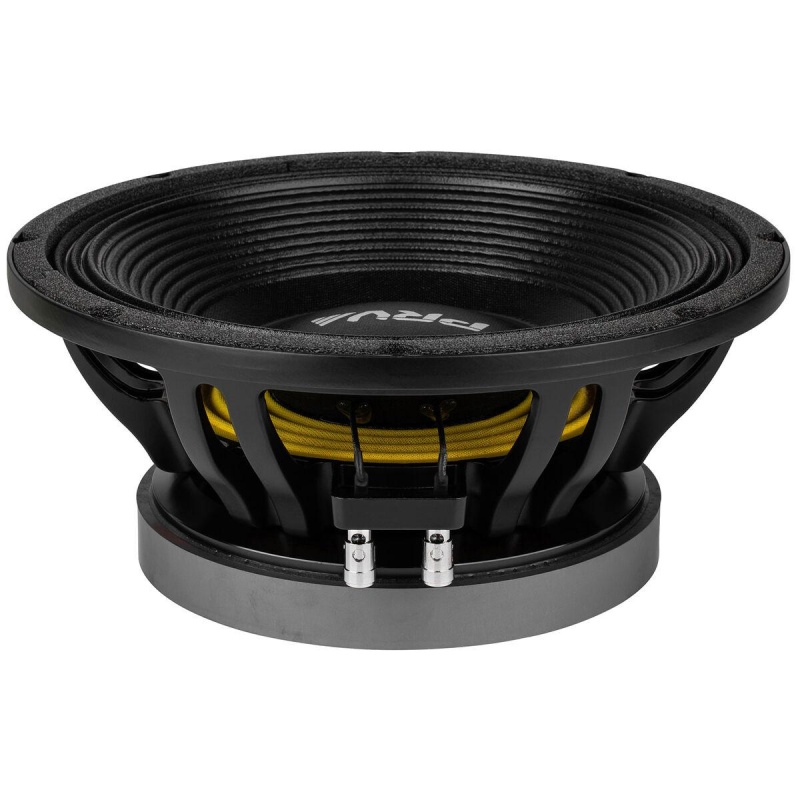

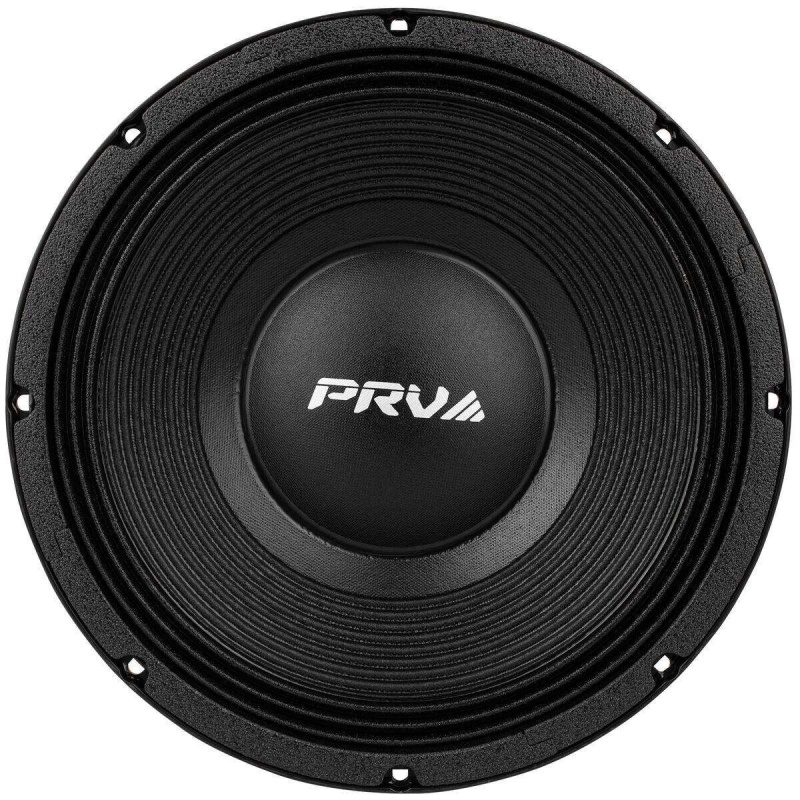

PRV Audio 12W1600 12" Professional Woofer 8 OhmThe 12W1600 woofer features a 4″ split copper wire voice coil wound on a fiberglass former using proprietary high-temperature adhesives. Its optimized ceramic ferrite magnet assembly provides excellent low-frequency dynamics with very low distortion.
This professional low-frequency driver is ideal for compact vented enclosures, delivering powerful and deep bass performance.
4″ split copper voice coil on fiberglass former for high-temperature performance, 8 ohms Ventilated voice coil gap minimizes power compression 10.5 mm Xmax with 36 mm peak-to-peak excursion before damage 1600 watts continuous program power rating for high acoustic output High BL factor and Xmax deliver powerful low-frequency performance Weather-resistant paper cone and dust cap
Engineered to deliver massive bass output, the 12W1600 12″ woofer performs exceptionally well in small vented or sealed cabinets. Its shallow 5.51″ mounting depth and high EBP make it a great choice for compact folded horn enclosures.
The rigid cast aluminum frame is specially designed with side-forced cooling openings that direct airflow across the voice coil, enabling it to handle up to 1600 watts RMS with ease. Spring-loaded push terminals allow quick installation while providing a secure and reliable speaker wire connection.
To withstand the demands of professional sound applications, we designed a 4″ split copper voice coil wound inside and outside on a fiberglass former, featuring a generous 27.5 mm winding length for increased Xmax and reduced distortion.
The cone is made from thick paper for a natural response and reinforced with glass fiber, featuring a ribbed design for added structural strength.
This product is sold brand new. A manufacturer warranty applies only when the manufacturer provides one for this item.
Return requests must be submitted within 14 days of delivery and approved by our RMA department before the item is shipped back. Non-defective returns may be subject to a minimum 25% restocking fee and return shipping charges. Unauthorized returns are not eligible for credit or refund. Read the full return policy.
A double heavy spider and triple roll treated cloth surround support the cone, both engineered for high-excursion performance to withstand short bursts of excessive power without damage.
Specifications
Nominal Diameter: 12″ (305 mm) Nominal impedance: 8 Ohm Nominal Power Handling: 800 Watts Continuous Program Power (RMS): 1600 Watts Max Peak Power: 3200 Watts Sensitivity 2.83V at 1m: 94 dB Recommended Hi Pass Crossover**: 60 Hz** **For Full Power Handling **12db Per Octave Crossover Frequency Response: 55 – 2,500 Hz Voice Coil Diameter: 4″ (100 mm) Voice Coil Wire: Copper Voice Coil Winding Depth: 27.0 mm Former Material: Glass Fiber Magnetic Gap Depth: 12.0 mm Frame Material: Die Cast AluminumOverall Diameter: 12.40” (315 mm) Front Mount Baffle Cutout: 11.16” (283.4 mm) Mounting Depth: 5.51” ( 140 mm) Overall Depth: 6.04” (153.5 mm) Net Weight: 24.22 lbs. (11.0 kg) *Nominal power handling is defined as the maximum RMS power that the speaker can handle in a 2-hour test with a pink noise with 6dB of crest factor and a bandpass filter with 12db/oct tuned in its usable frequency range. **Continuous Program Power (RMS) is the maximum power that the speaker can handle considering a regular musical program using our recommended filters, this power can be used to define the optimum amplifier power to provide a clean signal without clipping or saturation. ***Max Peak Power is the maximum power operation for the speaker, this power is allowed just for a few fractions of a second, usually found just on the peaks of the music. Keeping this power for a little longer timer will damage the speaker.
