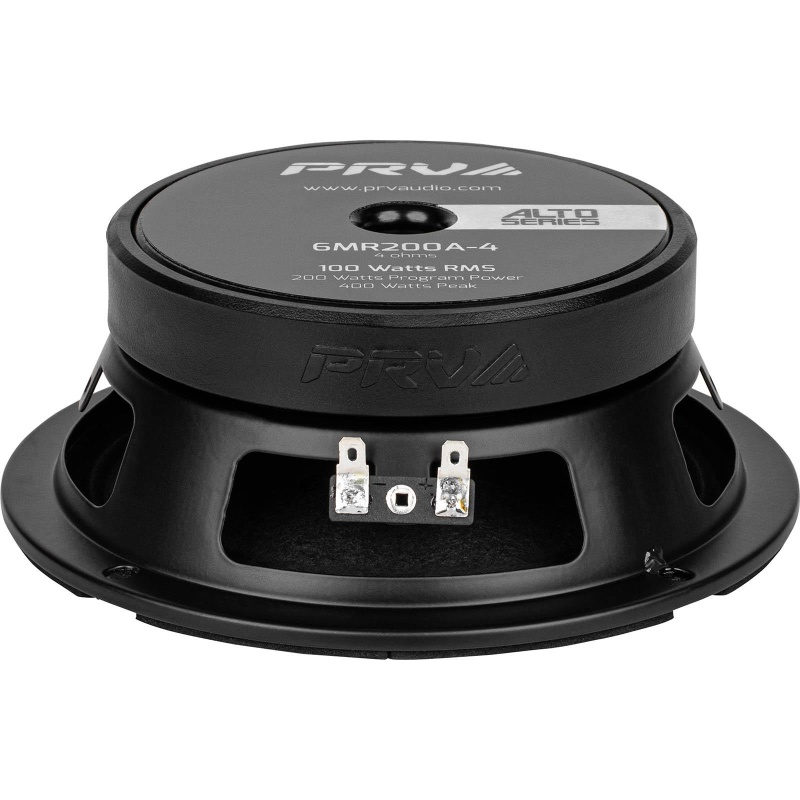

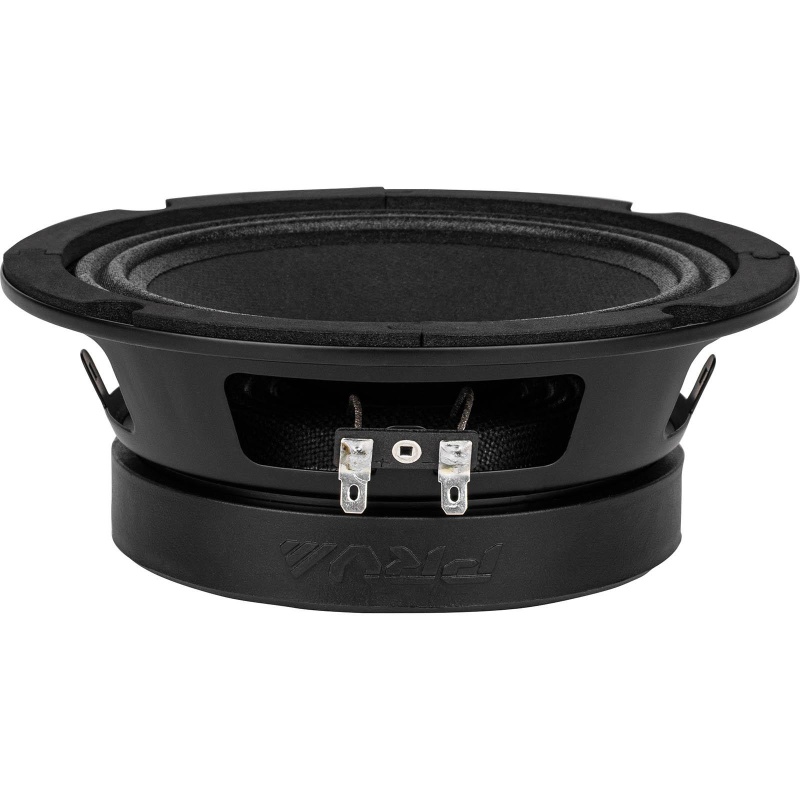

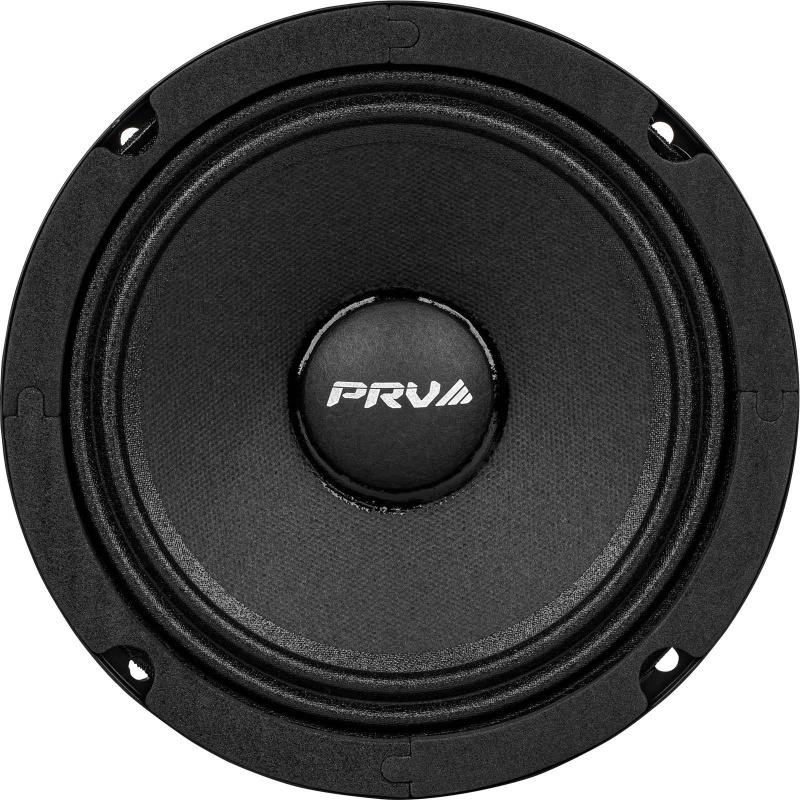

PRV Audio 6MR200A Alto Series 6.5" Midrange Driver 8 OhmPRV Audio’s is thoughtfully designed and voiced to deliver natural, smooth sound with dynamic character. A special composite cone is used to achieve superior fidelity by smoothing the frequency response and maintaining a low moving mass, which boosts efficiency.
6.5″ car audio Midrange driver designed for low frequency reproduction with a shallow profile200 watts RMS program power allows for high acoustic output using a small amplifierGreat choice for high-output car audio systemsConsistent response across the mid-bass and vocal range even at the highest volumes
For maximum signal fidelity, a cloth-sealed surround is paired with a precisely engineered Kevlar-reinforced paper cone. A vented pole piece also helps dissipate heat, minimizing power compression
The 6MR200A midrange speaker is the next step up from the 6MR250A, engineered to deliver maximum output from a compact frame without compromising performance, featuring just a 2.24″ mounting depth.
This professional midrange is specifically designed to handle frequencies from 100 Hz to 6,000 Hz in three-way systems, but it also excels as a midrange in bass guitar cabinets, a woofer in two-way satellite designs, or a high-output car audio door speaker.
General Specifications
Nominal Diameter: 6.5″ (165 mm)Nominal impedance: 8 OhmsRated AES Power Handling (RMS): 100 WattsProgram Power: 200 WattsMax Peak Power: 400 WattsSensitivity 2.83V at 1m: 94 dBRecommended Hi Pass Crossover:* 150 Hz** *For Full Power Handling **12db Per Octave CrossoverFrequency Response: at -10dB 155 – 11,000 HzVoice Coil Diameter: 1.5″ (38 mm)Voice Coil Wire: CopperVoice Coil Winding Depth: 8.0 mmFormer Material: KaptonMagnetic Gap Depth: 5.5 mmFrame Material: Stamped SteelOverall Diameter: 6.59″ (167.5 mm)Front Mount Baffle Cutout: 5.69″ (144.5 mm)Mounting Depth: 2.24″ (57 mm)Overall Depth: 2.5″ (63.5 mm)Net Weight: 3.52 Lbs (1.60 kg) *Nominal power handling is defined as the maximum RMS power that the speaker can handle in a 2-hour test with a pink noise with 6dB of crest factor and a bandpass filter with 12db/oct tuned in its usable frequency range. **Continuous Program Power (RMS) is the maximum power that the speaker can handle considering a regular musical program using our recommended filters, this power can be used to define the optimum amplifier power to provide a clean signal without clipping or saturation. ***Max Peak Power is the maximum power operation for the speaker, this power is allowed just for a few fractions of a second, usually found just on the peaks of the music. Keeping this power for a little longer timer will damage the speaker.
