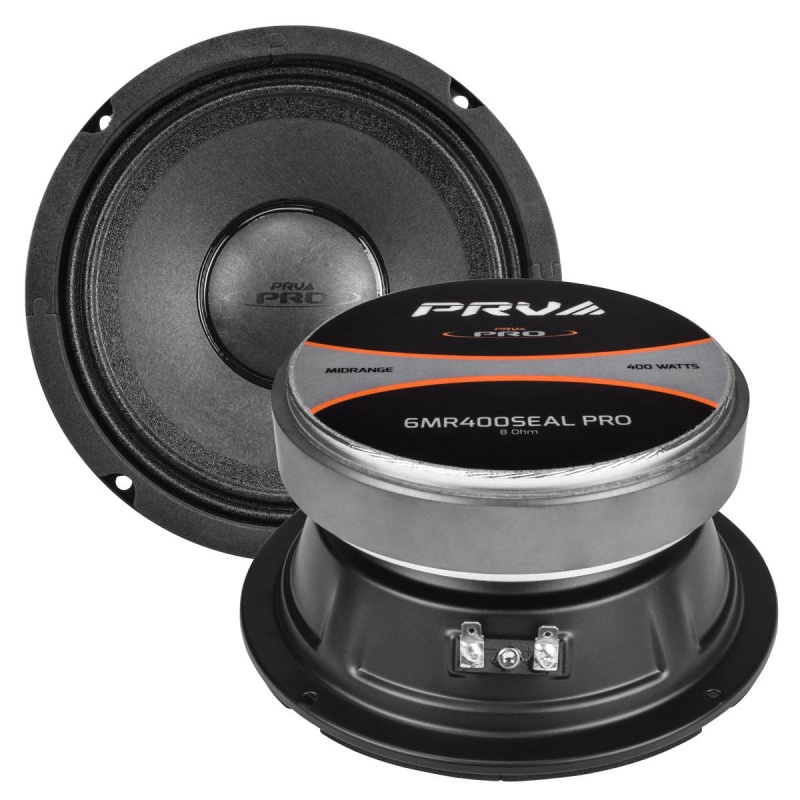

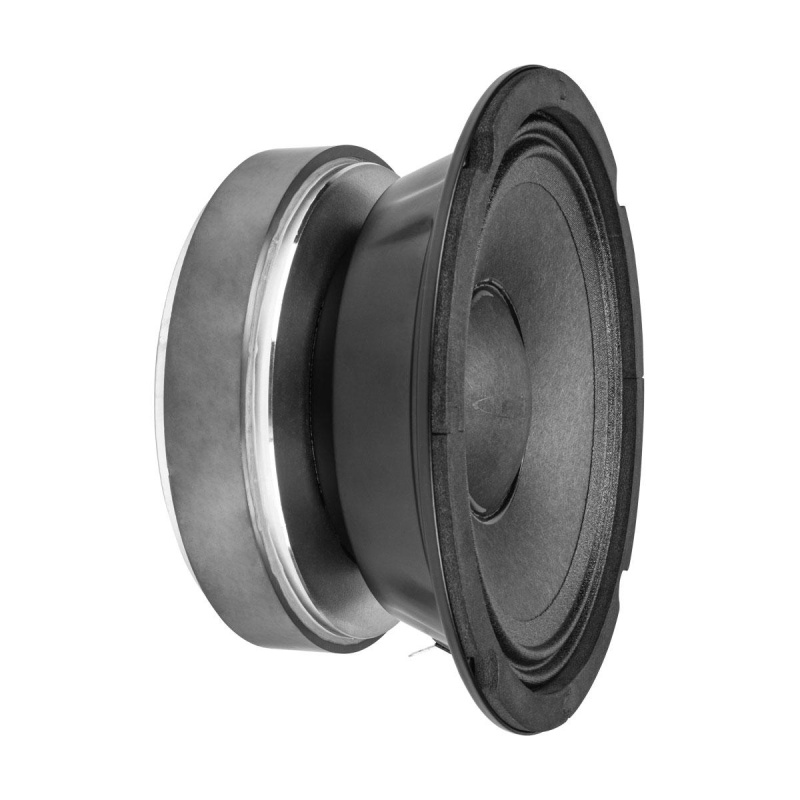

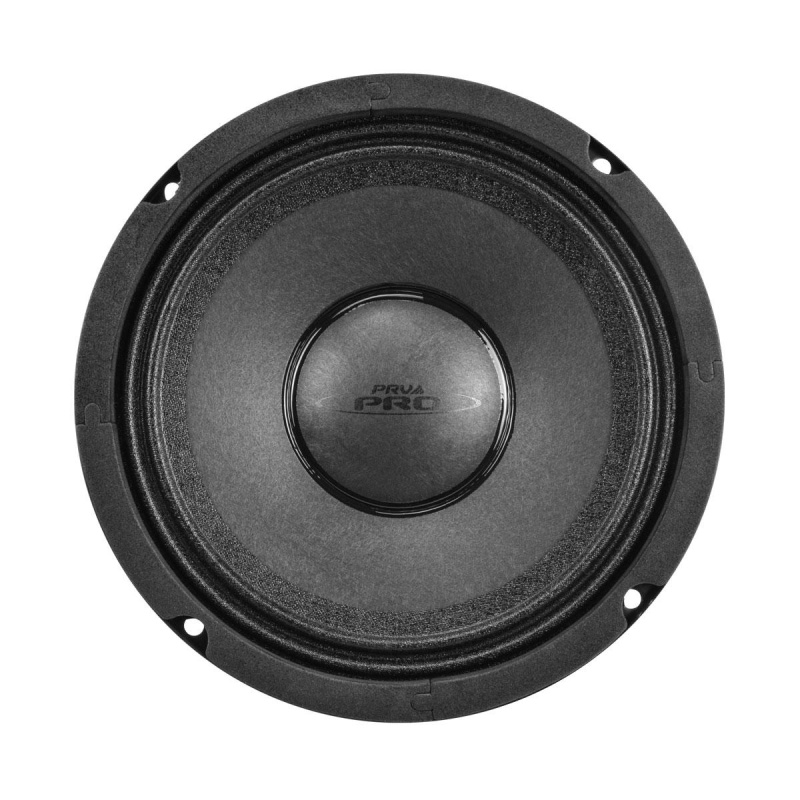

PRV Audio 6MR400SEAL PRO Pro Series 6.5" Sealed Basket Midrange Speaker 8 OhmThe PRV Audio 6MR400SEAL PRO is engineered to deliver a smooth midrange response extending up to 9,000 Hz. It is designed to provide clear definition and high output in midrange frequencies, making it an excellent choice for high-output 3-way audio systems.
The sealed-back basket design simplifies cabinet construction by eliminating the need for a separate enclosure for other speakers. With a power handling capacity of 400 Watts RMS, this midrange driver can match the output of the most powerful drivers, making it suitable for use in 3-way cabinet systems (Midbass + Sealed Basket + High-Frequency Driver or Tweeter).Optimized to deliver detailed reproduction of midrange frequencies from 300Hz to 9,000Hz. A significant output peak at 400Hz achieves 100dB sensitivity at 1W/1m.
A lightweight paper cone pairs with a 1.5″ voice coil to deliver strong power handling up to 400 watts. A rugged spider suspension, fabric surround, and sealed back pressed steel basket work together to provide long-lasting durability.
Speaker cabinet designers often choose this driver when they need a robust sealed basket midrange capable of matching high-output low frequency drivers.
A closed basket design in a speaker such as the 6MR400SEAL PRO brings multiple benefits. It blocks interference from a woofer or midbass in a shared enclosure, leading to clearer and more precise midrange output.
This design also helps deliver a tight, impactful midbass and midrange, improving the speaker's overall sound quality.
General Specifications
Nominal Diameter: 6″ (152 mm) Nominal impedance: 8 Ohm Nominal Power Handling: 200 Watts Continuous Program Power (RMS): 400 Watts Max Peak Power: 800 Watts Sensitivity: 2.83V at 1m 96 dB Recommended Hi Pass Crossover: 400 Hz ** **For Full Power Handling **12db Per Octave CrossoverFrequency Response: at -10DB 400 – 9,000 Hz Voice Coil Diameter: 1.5″ (38 mm) Voice Coil Wire: Copper Voice Coil Winding Depth: 10.0 mm Former Material: Kapton Magnetic Gap Depth: 6.0 mm Frame Material: Stamped SteelOverall Diameter: 6.57” ( 167mm) Front Mount Baffle Cutout: 5.79″ (147 mm) Mounting Depth: 2.97” (75.5 mm) Overall Depth: 3.27” (83.2 mm) Net Weight: 5.80 Lbs (2.60 kg) *Nominal power handling is defined as the maximum RMS power that the speaker can handle in a 2-hour test with a pink noise with 6dB of crest factor and a bandpass filter with 12db/oct tuned in its usable frequency range. **Continuous Program Power (RMS) is the maximum power that the speaker can handle considering a regular musical program using our recommended filters, this power can be used to define the optimum amplifier power to provide a clean signal without clipping or saturation. ***Max Peak Power is the maximum power operation for the speaker, this power is allowed just for a few fractions of a second, usually found just on the peaks of the music. Keeping this power for a little longer timer will damage the speaker.
