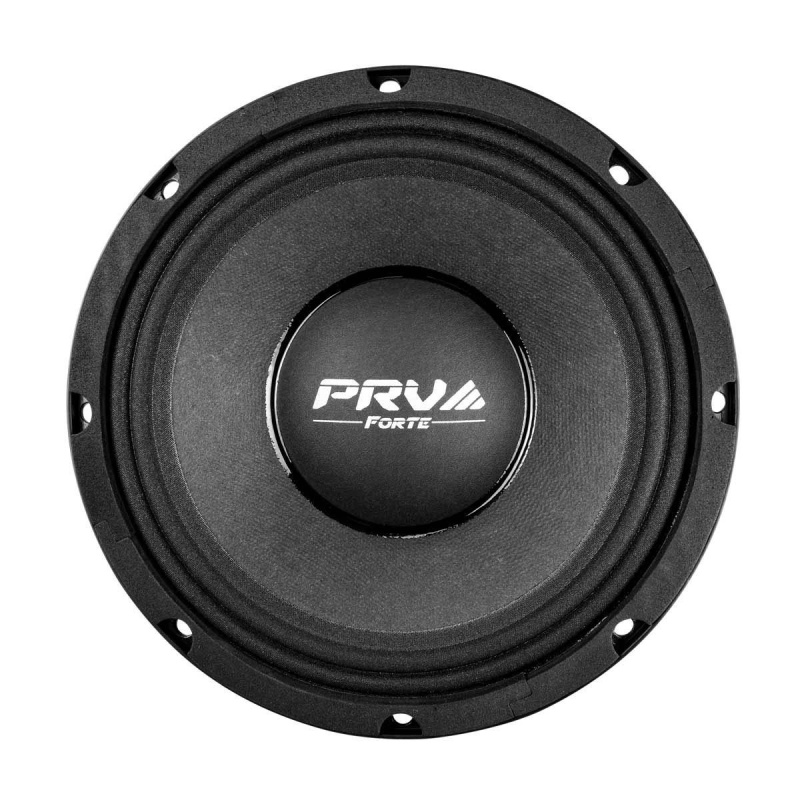

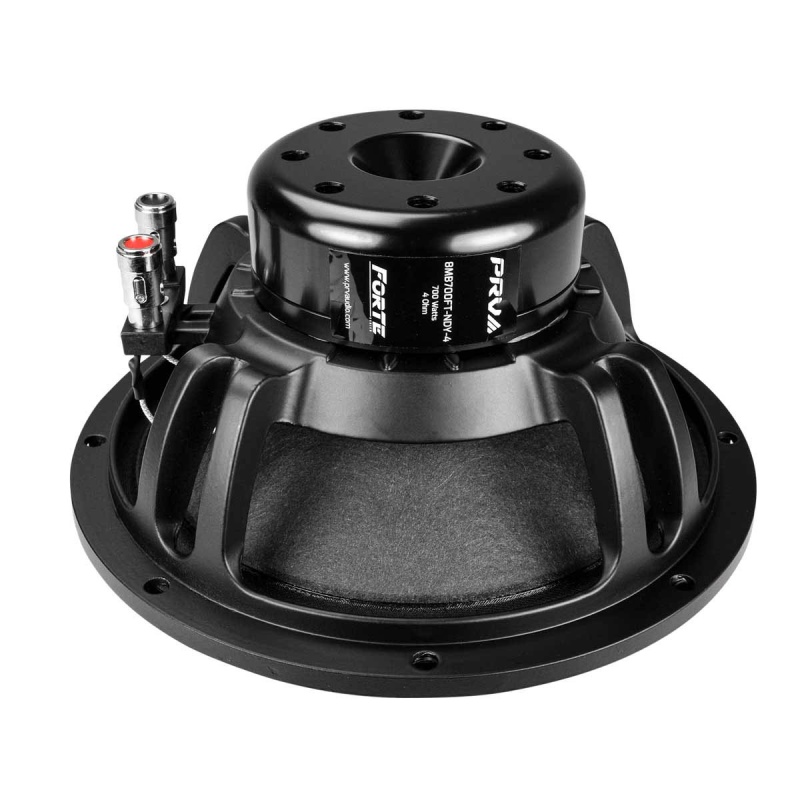

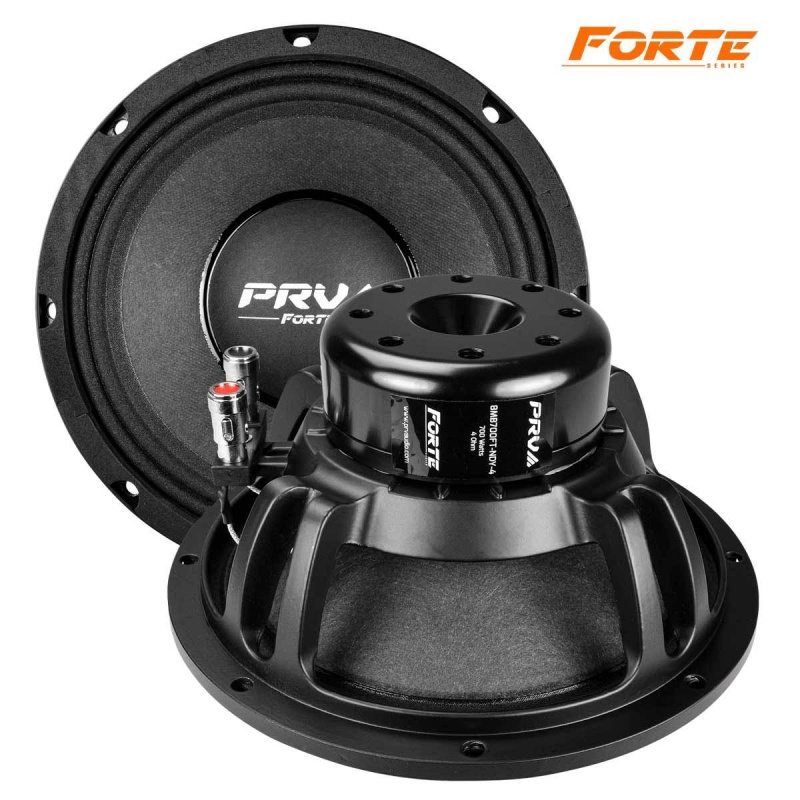

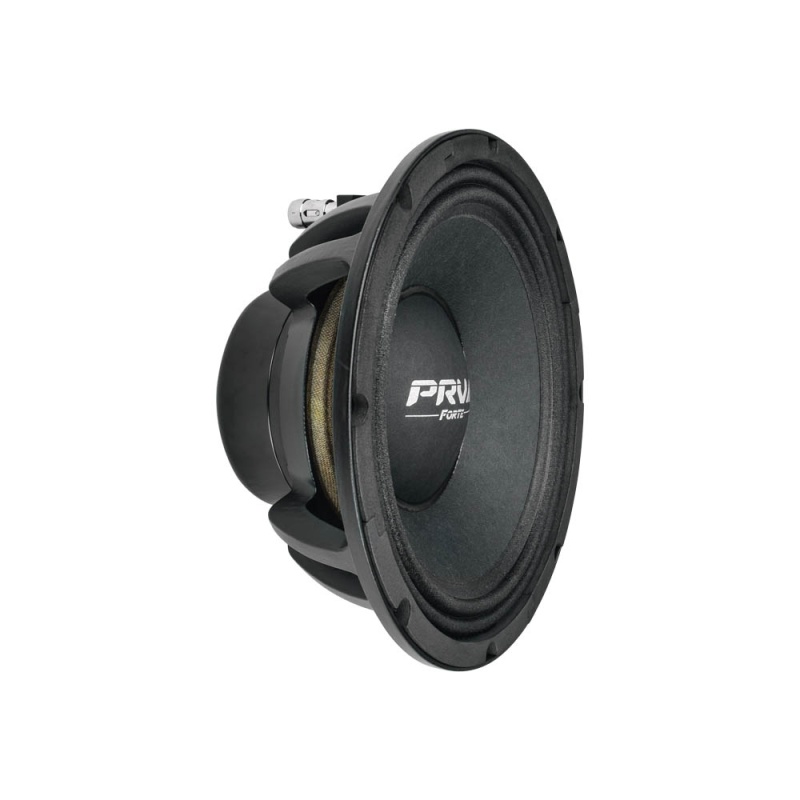

PRV Audio 8MB700FT-NDY-4 Forte Series 8" Neodymium Midbass Speaker 4 OhmPRV Audio’s 8MB700FT-NDY Forte Series is purpose-built for greater power handling and reduced distortion. Its larger voice coil offers excellent heat dissipation and the strong Bl force needed to maintain high sensitivity under high power with minimal distortion.
The low Qts enables tighter, more accurate midbass response. Superior fidelity comes from the ideal combination of a non-pressed cone for smooth frequency output and a well-ventilated magnet motor designed for high displacement without added distortion.

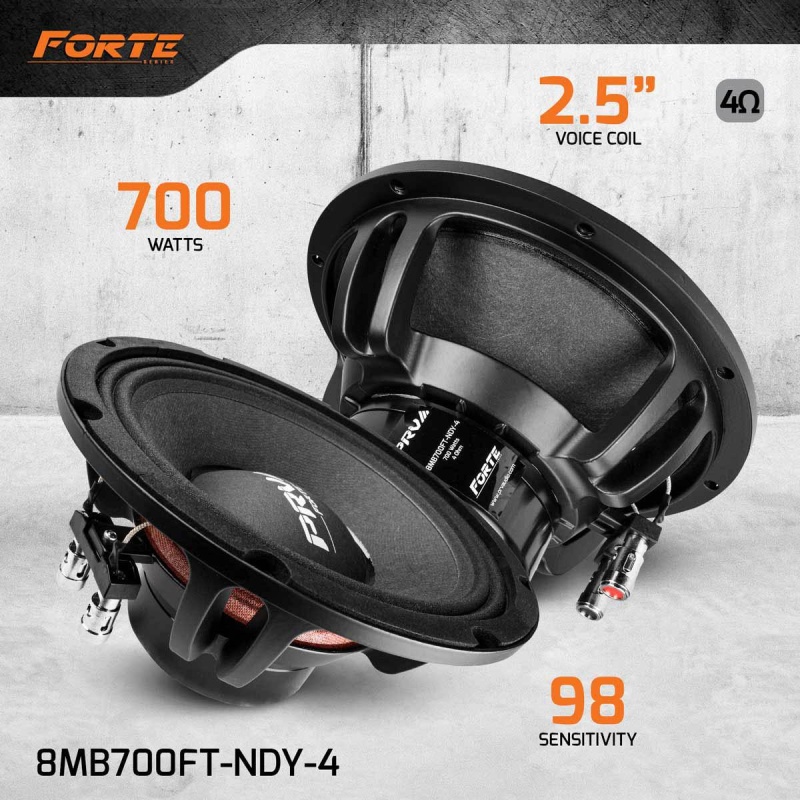

2.5″ voice coil offers increased power handling and reduced distortion in mid to low midbass ranges Powerful optimized neodymium motor is vented for superior cooling 8″ car audio midbass speaker built for low frequencies at high power – 4 Ohm 700 watts RMS program power delivers high acoustic output
To achieve superior fidelity, a special composite cone made from non-pressed paper is used to minimize break-up, resulting in a smooth frequency response and low moving mass, which improves speaker efficiency.
This 8″ driver is an excellent midbass choice for high SPL car audio systems, custom door builds, and fiberglass enclosures where extremely high output is needed.
This midbass is built to withstand years of intense professional use! Its specially composed spider minimizes distortion at high excursion, while the double roll surround maintains linear cone travel under demanding conditions.
The 8MB700FT-Ndy-4 is a highly efficient 8″ midbass from PRV Audio. With a broad frequency range and 98 dB sensitivity, it pairs perfectly with compression drivers in 3-way systems when used with the recommended HPF settings via :
95 Hz at 12 dB per octave filter Crossover / BT12 85 Hz at 18 dB per octave filter Crossover / BT18
The large 2.5″ voice coil enables high 700-watt power handling and supports the advanced cooling system integrated into the motor.
With 11 mm of winding depth, this inside/outside coil construction ensures exceptional thermal and mechanical durability.
Specifications

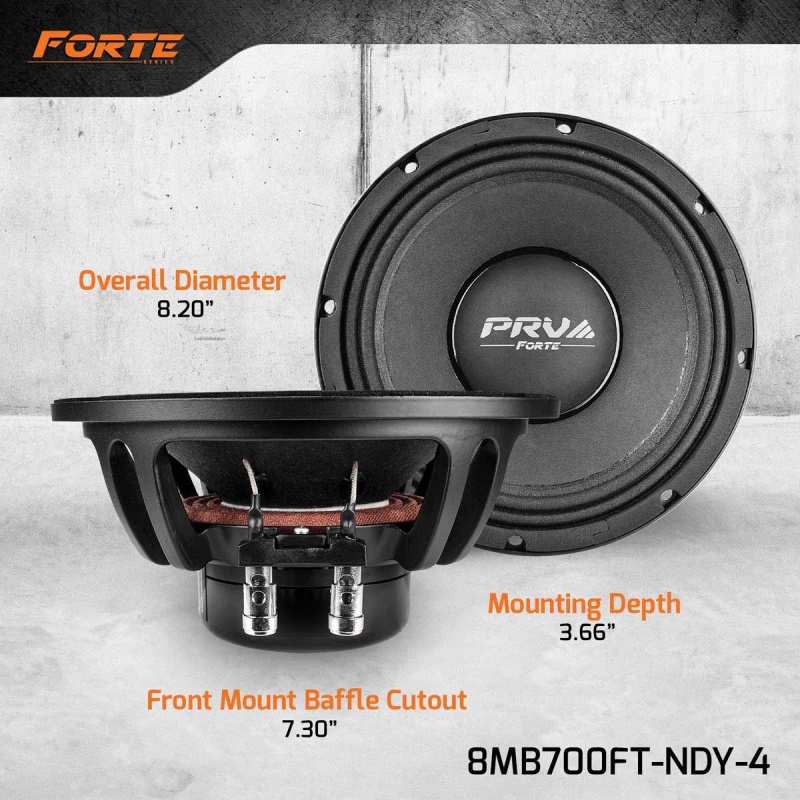

Nominal Diameter: 8″ (203 mm)Nominal impedance: 4 OhmNominal Power Handling:* 350 WattsContinuous Program Power (RMS):** 700 WattsMax Peak Power:*** 1400 WattsSensitivity 2.83V at 1m: 98 dBRecommended Hi Pass Crossover: 95 Hz For Full Power Handling — 12db Per Octave CrossoverFrequency Response: 70 – 5,600 HzVoice Coil Diameter: 2.5″ (51 mm)Voice Coil Wire: CCAWVoice Coil Winding Depth: 11.5 mmFormer Material: FiberglassMagnetic Gap Depth: 8.0 mmFrame Material: Die Cast AluminumOverall Diameter: 8.20” (208.5 mm)Front Mount Baffle Cutout: 7.30” (185.5 mm)Mounting Depth: 3.66” (93 mm)Overall Depth: 4.00” (101.5 mm)Net Weight: 4.32 Lbs (1.96 kg) *Nominal power handling is defined as the maximum RMS power that the speaker can handle in a 2-hour test with a pink noise with 6dB of crest factor and a bandpass filter with 12db/oct tuned in its usable frequency range. **Continuous Program Power (RMS) is the maximum power that the speaker can handle considering a regular musical program using our recommended filters, this power can be used to define the optimum amplifier power to provide a clean signal without clipping or saturation. ***Max Peak Power is the maximum power operation for the speaker, this power is allowed just for a few fractions of a second, usually found just on the peaks of the music. Keeping this power for a little longer timer will damage the speaker.
