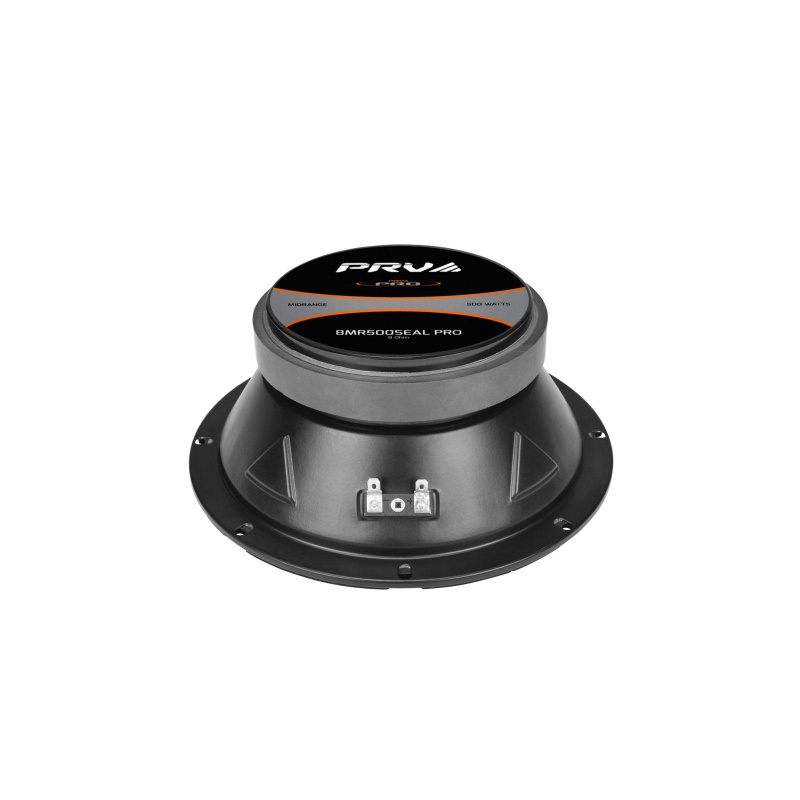

PRV Audio 8MR500SEAL PRO Pro Series 8" Sealed Basket Midrange Speaker 8 OhmThe PRV Audio 8MR500SEAL PRO is engineered to deliver a smooth midrange response extending up to 9,000 Hz. It is designed to provide clear definition and high output in midrange frequencies, making it an excellent choice for high-output 3-way audio systems.
A sealed back basket streamlines cabinet construction by removing the need for a separate chamber for other speakers. This midrange handles 500 Watts RMS and delivers the output needed to match high-powered drivers, making it ideal for 3-way cabinet systems (Midbass + Sealed Basket + High Frequency Driver or Tweeter). Its paper cone features natural damping and a waterproof coating, maintaining performance even in wet or humid environments. Engineered for detailed midrange reproduction, it covers frequencies from 300Hz to 9,000Hz.With a powerful output peak at 400Hz, it achieves 104dB sensitivity at 1w/1m.
A lightweight paper cone is paired with a large 2″ voice coil to deliver strong 500-watt power handling. A robust spider suspension, woven cloth surround, and sealed back pressed steel basket are built for lasting durability through extended use.
This driver is a popular choice among cabinet builders seeking a sealed basket midrange capable of matching the output of high-sensitivity low frequency drivers.
A closed basket design in a speaker such as the 8MR500SEAL PRO provides multiple benefits. It blocks interference from a woofer or midbass when used in a shared cabinet, producing a cleaner and more precise midrange.
This design also enhances the speaker’s performance by delivering a tight, impactful midbass and midrange, improving the overall sound quality.
General Specifications
Nominal Diameter: 8″ (203 mm) Nominal impedance: 8 Ohm Nominal Power Handling: 250 Watts Continuous Program Power (RMS): 500 Watts Max Peak Power: 1000 Watts Sensitivity 2.83V at 1m: 97 dB Recommended Hi Pass Crossover: 400 Hz ** **For Full Power Handling **12db Per Octave CrossoverFrequency Response: at -10DB 400 – 9,000 Hz Voice Coil Diameter: 2″ (50 mm) Voice Coil Wire: Copper Voice Coil Winding Depth: 12.0 mm Former Material: Kapton Magnetic Gap Depth: 8.0 mm Frame Material: Stamped SteelOverall Diameter: 8.26″ (209.7 mm) Front Mount Baffle Cutout: 7.20″ (183 mm) Mounting Depth: 3.09″ (78.5 mm) Overall Depth: 3.40″ (86.5 mm) Net Weight: 6.40 Lbs (2.90 kg) *Nominal power handling is defined as the maximum RMS power that the speaker can handle in a 2-hour test with a pink noise with 6dB of crest factor and a bandpass filter with 12db/oct tuned in its usable frequency range. **Continuous Program Power (RMS) is the maximum power that the speaker can handle considering a regular musical program using our recommended filters, this power can be used to define the optimum amplifier power to provide a clean signal without clipping or saturation. ***Max Peak Power is the maximum power operation for the speaker, this power is allowed just for a few fractions of a second, usually found just on the peaks of the music. Keeping this power for a little longer timer will damage the speaker.
This product is sold brand new. A manufacturer warranty applies only when the manufacturer provides one for this item.
Return requests must be submitted within 14 days of delivery and approved by our RMA department before the item is shipped back. Non-defective returns may be subject to a minimum 25% restocking fee and return shipping charges. Unauthorized returns are not eligible for credit or refund. Read the full return policy.
Explore the PRV PRO Series8MR500SEAL PRO 8" Sealed Basket Midrange Speaker 8 Ohm8MR500SEAL PRO 8" Sealed Basket Midrange Speaker 8 Ohm10MR800 PRO 10" Midrange Speaker 8 Ohm
10MR1000 PRO 10" Midrange Speaker 8 Ohm
12MR1000 PRO 12" Midrange Speaker 8 Ohm
