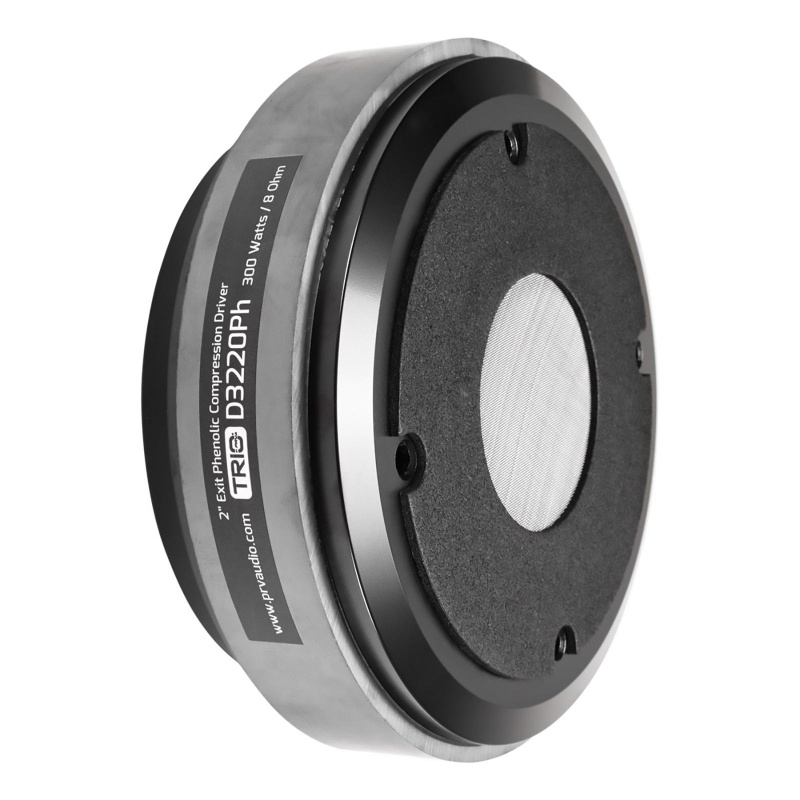

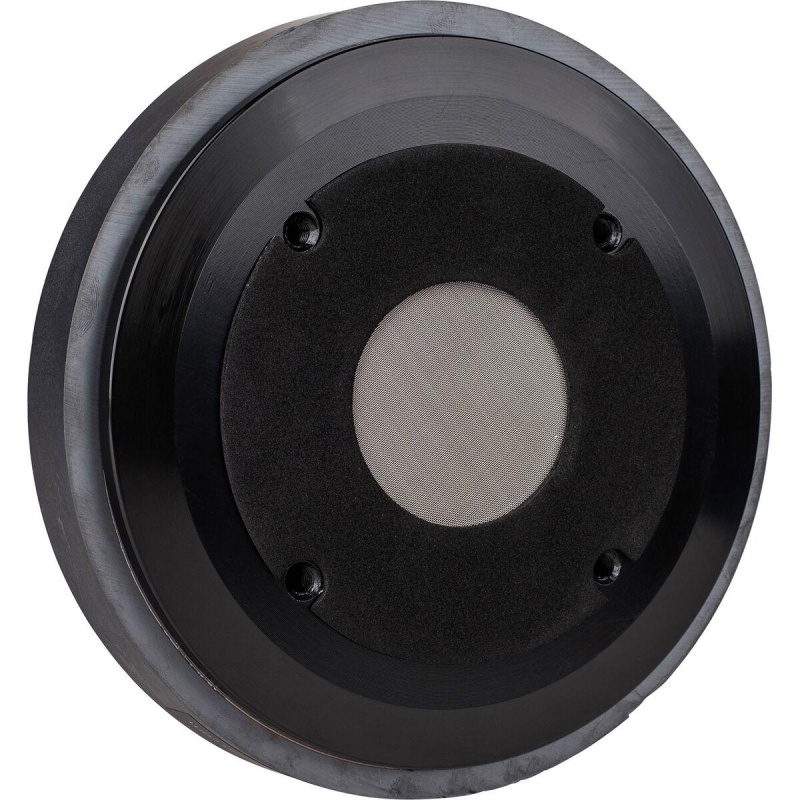

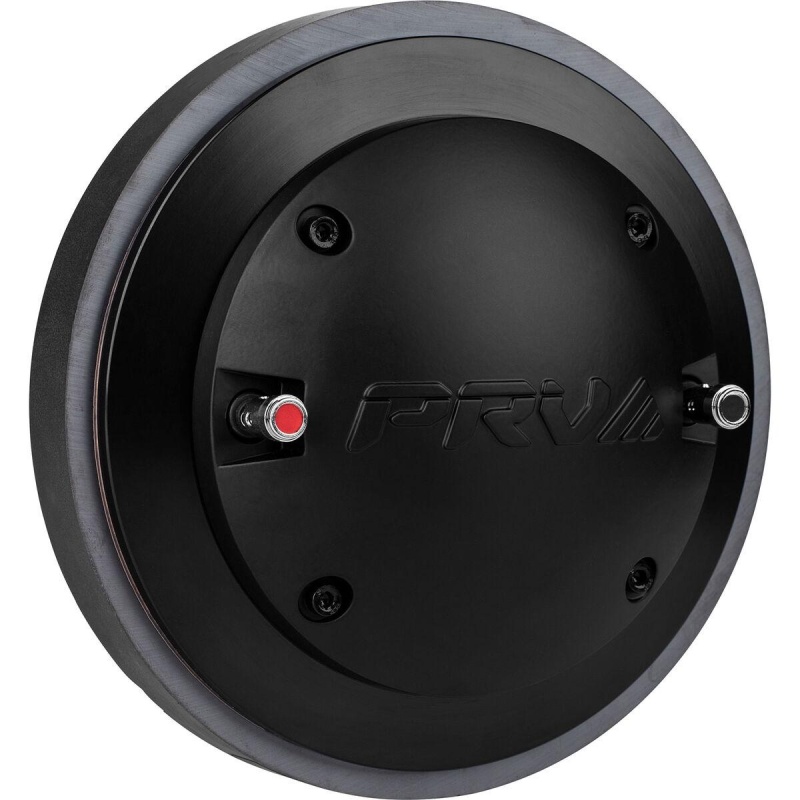

PRV D3220Ph 2″ Midrange Driver 300 Watts 8 Ohm – TRIO Phenolic DiaphragmThe new high-strength compact motor for 3-inch compression drivers brings cutting-edge technology to the forefront, enabling the use of a large voice coil without compromising performance. Featuring a smaller, more efficient design while maintaining impressive power, this 2″ exit midrange driver is revolutionizing the car audio industry.The updated D3220Ph retains the diaphragm design of its predecessor, delivering the signature PRV Audio low midrange response with precision. Covering frequencies from 650 to 7,500 Hz, it emphasizes vocal mid frequencies for unmatched clarity and accuracy.
With a nearly indestructible phenolic diaphragm and a 3-inch voice coil, this Brazilian-engineered driver delivers natural vocal midrange response with an impressive 108 dB sensitivity. It pairs seamlessly with any shallow horn from the WGP14-50X Series, making it a perfect choice for car audio compression drivers, with mounting hardware included for easy installation. This 2-inch exit horn driver is designed specifically for vocal reinforcement in 3-way car audio systems, offering a usable frequency response from 650 to 7,500 Hz. Engineered as a pro audio midrange driver, it handles 300 watts of continuous program power (RMS), providing extreme output capability for high-performance audio systems.
The D3220Ph ferrite phenolic compression horn driver offers exceptional performance at an affordable price and features a compact magnet motor for versatile applications. This innovative design makes it ideal for use in custom doors and stunt wall systems, providing outstanding vocal reinforcement while addressing critical spacing and weight concerns in large audio setups.
With a special compact diameter, the D3220Ph supports front mounting for hassle-free installation, eliminating the need to detach the driver from any . Measuring only 5.71 inches in diameter, it fits effortlessly within the 5.75-inch baffle cut required for 2-inch exit horns in the WGP14-50 Series, making it a powerful yet space-efficient choice for demanding audio systems.
The TRIO by PRV features cutting-edge Brazilian phenolic technology, specifically designed for precise and dynamic vocal reproduction. Its phenolic diaphragm is paired with a 3-inch diameter copper-clad aluminum voice coil and a Kapton® former, enabling an impressive 300 watts RMS musical power handling when used with the recommended high-pass filters via the .
For optimal performance, it is recommended to use an 800 Hz crossover at 12 dB per octave (BT12) or a 700 Hz crossover at 18 dB per octave (BT18). Combining its compact size with high power handling, the TRIO delivers exceptional output capabilities, making it one of the smallest yet most powerful 2-inch exit vocal drivers on the market today.
Specifications
Exit Throat Diameter: 2” (50 mm) Nominal impedance: 8 OhmNominal Power Handling:* 150 WattsContinuous Program Power (RMS):** 300 Watts Peak Power:*** 600 Watts Sensitivity (2.83V at 1m): 108 dB Recommended Hi Pass CrossoverFor Full Power Handling: 800 Hz, 12db/oct CrossoverFrequency Response at -10dB: 650 – 7,500 Hz Voice Coil Diameter: 3” (76 mm) Voice Coil Wire: CCAW Voice Coil: Former Material: Kapton Diaphragm Material: Phenolic Flux Density: 1.77 T Magnet Material: Ferrite
Extra Info
Overall Diameter 5.71″ (145 mm) Overall Depth 3.0″ (76 mm) Mounting Bolt Circle M6 x 4″ (102 mm) Net Weight 8.9 lbs (4.0 kg) Shipping Weight 9.35 lbs (4.25 kg) Carton Dimensions W x L x H 6.89″ x 6.3″ x 4.0″ (175 x 160 x 102 mm)
*Nominal power handling is defined as the maximum RMS power that the speaker can handle in a 2-hour test with a pink noise with 6dB of crest factor and a bandpass filter with 12db/oct tuned in its usable frequency range.
**Continuous Program Power (RMS) is the maximum power that the speaker can handle considering a regular musical program using our recommended filters, this power can be used to define the optimum amplifier power to provide a clean signal without clipping or saturation.
***Max Peak Power is the maximum power operation for the speaker, this power is allowed just for a few fractions of a second, usually found just on the peaks of the music. Keeping this power for a little longer timer will damage the speaker.
