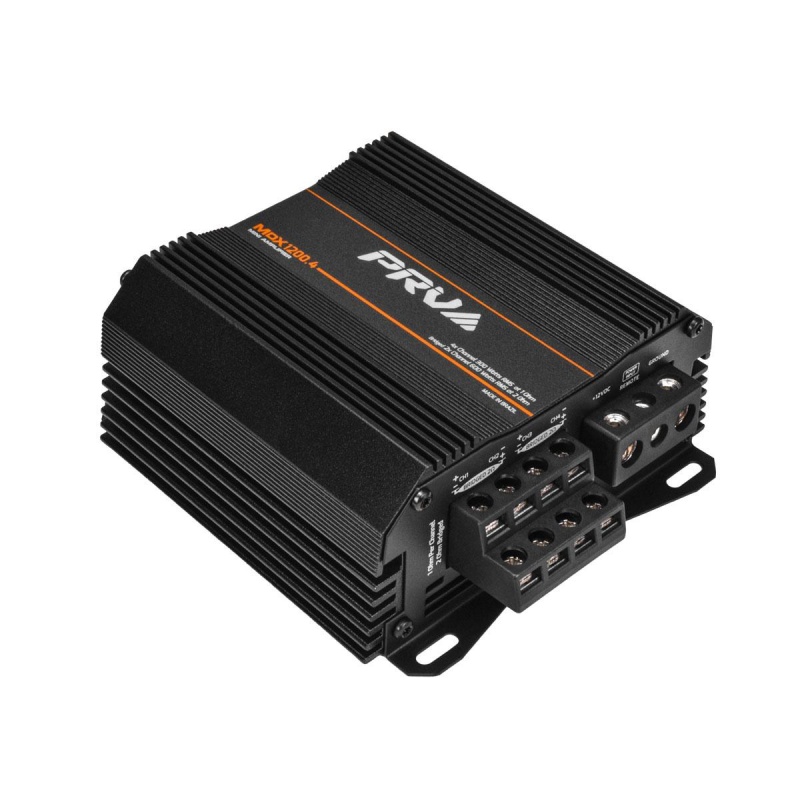

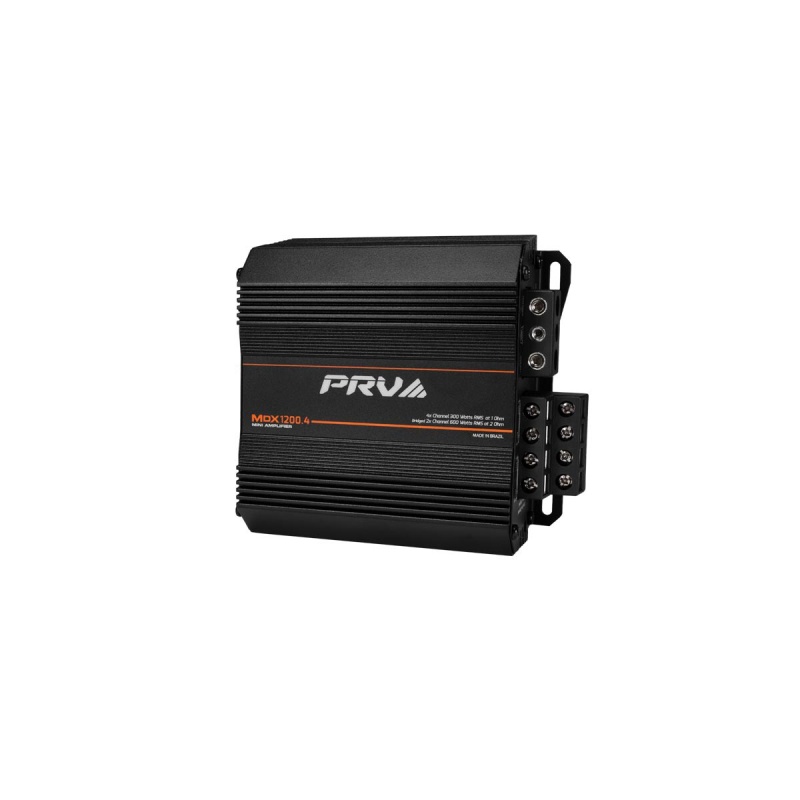

The mini MDX1200.4 1 Ohm delivers 1200 Watts RMS across four channels in a compact, modern amplifier.
Built for high performance systems where space is limited, the MDX Series incorporates exclusive and patented technologies that provide high definition sound quality in the most compact and dependable design.
Optimized for efficiency, this amplifier delivers substantial power while reducing the load on your electrical system, allowing you to enjoy high output performance without excessive battery drain.
This compact micro amplifier features a small footprint heavy-duty heatsink that makes installation simple in vehicles, motorcycles, or 4-wheelers. Measuring only 6.75″ wide, 5.90″ long, and 2.60″ high, it is designed to fit into tight spaces. Delivering 4 x 300 watts at 1 Ohm TRUE RMS certified full range output, this Digital Class D Brazilian technology amp provides the flexibility to wire multiple speakers while distributing power across each channel. For added versatility, the amplifier supports 2-channel bridging, doubling the power with 2 x 600 Watts RMS at a minimum impedance of 2 Ohms per bridged channel. Built with the latest surface mount technology, it ensures superior performance against vibration and outstanding sound quality, giving enthusiasts and competitors the ability to design the ultimate system.
This amplifier’s high power output combined with multichannel technology removes the need for multiple separate amps, since it can operate in 4, 3, or 2 channel configurations.
The MDX Series was designed for motorsport applications, making it a perfect fit for custom motorcycles, ATVs, and Slingshots.
It delivers 300 watts at 1 Ohm per channel or 600 watts at 2 Ohms per bridged channel, giving you the flexibility to configure your system for maximum performance.
Compact yet powerful, this amplifier delivers high output while maintaining a small footprint.
A mini heavy-duty heatsink paired with a built-in cooling fan keeps it running cool even during the most demanding playlists.
Weighing only 2.75 lbs, it enables any custom system to reach the highest performance-to-weight ratio possible.
Popular Installation configurations with this amplifier:4 Channel Configuration for 4 Ohm ComponentsIts high power output channels allow you to install 4x 4 Ohm speakers, drivers or tweeters in parallel per channel, giving up to 75 watts per component.
2 Channel Configuration for 4 Ohm ComponentsIts high power output channels allow you to install 2x 4 Ohm speakers or drivers in parallel per channel, giving up to 300 watts per component.
2 Channel Configuration (Bridged) for 8 Ohm componentsIts high power output channels allow you to install 4x 8 Ohm speakers or drivers in parallel per channel, giving up to 150 watts per component.
Before InstallingYou must follow the instructions for the product’s installation to guarantee optimal performance. If you have any questions, get in touch with us. Before using the amplifier, always follow these guidelines:
Make sure the amplifier is switched off before adding or removing any connections. This prevents possible damage to equipment.Keep all cables as far away as possible from the ignition cables, electronic injection modules and starter switch since they may cause noise interference; Minimum recommended installation distance between amplifier is 1.25”.Always use OFC 4 AWG Copper wire for power and ground and minimum of 12 AWG speaker wire and good quality connectors. Copper-clad aluminum wire (CCAW) must not be used. This guarantees reliability and performance.To avoid damaging the cables, make sure that they do not touch sharp metal edges. Important: For this amp use a 60A fuse 12 inches away from the battery as a safety precaution.
The power rating data is based on equipment from the PRV Audio Group laboratory. Rated power tested with 60Hz to 1KHz sinusoidal signal and THD
Specifications
Impedance: 1 Ohm per Channel Channels: 4 Channel Rated RMS Power at 14.0 V at 1 Ohm: 4x 300 Watts RMS Rated RMS Power at 14.0 V at 2 Ohm: 4x 200 Watts RMS Bridged Rated RMS Power at 14.0 V at 2 Ohm: 2x 600 Watts RMS Average Efficiency: 82% Operating Voltage: 9 to 16 Volts Musical Current Draw: 60 A Minimal Power Wire Input: (OFC) 4 Gauge wires Built-in Crossover: Fixed HPF & LPF at 80 Hz Minimal Speaker Wire Output: 12 Gauge Frequency Response(-3dB): 10 – 20,000 Hz Min. Input Sensitivity for Max. Output: 0.2 to 4v Signal Input: RCA Cables Signal to Noise: >90 dB Protection System: High Temperature / Short circuit on Output Heat Sink Type: Mini Heavy Duty Cast Aluminum Dimensions ( Width x Depth x Height ): 6.75″ x 5.90″ x 2.60″ Weight: 2.75 Lbs.
