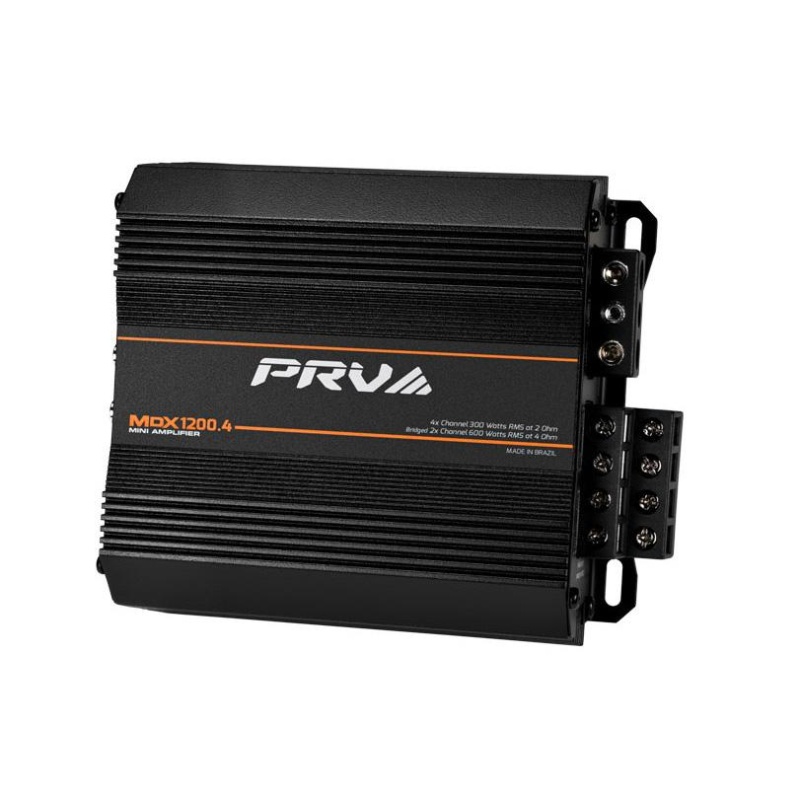

Compact and easy to install, this micro amplifier features a heavy-duty heatsink with a small footprint measuring 6.75″ W x 5.90″ L x 2.6″ H, ideal for vehicles, motorcycles, and 4-wheelersDelivers 4 x 300 watts at 2 Ohm TRUE RMS, utilizing full-range Class D Brazilian technology to power multiple speakers with precisionOffers 2-channel bridged mode, doubling power output to 2 x 600 watts RMS at 4 Ohms for a more robust sound systemBuilt with advanced surface-mount technology for superior vibration resistance and top-notch sound qualityDesigned for audio enthusiasts and competitors seeking a high-performance system in a compact and reliable package.
This amplifier’s high-power output and multichannel technology eliminate the need for multiple units, allowing flexible configurations in 4, 3, or 2 channels.
The MDX Series is perfect for motorsport applications like custom motorcycles, ATVs, and Slingshots, delivering robust performance.
Provides 300 watts at 2 Ohm per channel for powerful performance. Delivers a robust 600 watts at 4 Ohms in bridged mode for even greater output.
High output performance in a compact, space-saving design!
Equipped with a mini heavy-duty heatsink and built-in cooling fan to stay cool during intense playlists.
Features a built-in speaker wire converter and HIGH LEVEL INPUT for seamless integration with factory radios.
Weighing just 2.85 pounds, it offers an exceptional performance-to-weight ratio for custom systems.
Popular Installation configurations with this amplifier:4 Channel Configuration for 8 Ohm ComponentsIts high-power output channels enable the installation of up to 4x 8 Ohm drivers or tweeters wired in parallel per channel, providing up to 75 watts of power to each component.
4 Channel Configuration for 4 Ohm componentsIts high-power output channels enable the installation of up to 4x 4 Ohm drivers or tweeters wired in parallel per channel, providing up to 150 watts of power to each component.
This product is sold brand new. A manufacturer warranty applies only when the manufacturer provides one for this item.
Return requests must be submitted within 14 days of delivery and approved by our RMA department before the item is shipped back. Non-defective returns may be subject to a minimum 25% restocking fee and return shipping charges. Unauthorized returns are not eligible for credit or refund. Read the full return policy.
2 Channel Configuration (Bridged) for 8 Ohm componentsIts high-power output channels enable the installation of up to 2x 8 Ohm drivers or tweeters wired in parallel per channel, providing up to 300 watts of power to each component.
Before InstallingYou must follow the instructions for the product’s installation to guarantee optimal performance. If you have any questions, get in touch with us. Before using the amplifier, always follow these guidelines:
Make sure the amplifier is switched off before adding or removing any connections. This prevents possible damage to equipment.Keep all cables as far away as possible from the ignition cables, electronic injection modules and starter switch since they may cause noise interference; Minimum recommended installation distance between amplifier is 1.25”.Always use OFC 4 AWG Copper wire for power and ground and minimum of 14 AWG speaker wire and good quality connectors. Copper-clad aluminum wire (CCAW) must not be used. This guarantees reliability and performance.To avoid damaging the cables, make sure that they do not touch sharp metal edges. Important: For this amp use a 60A fuse 12 inches away from the battery as a safety precaution.
The power rating data is based on equipment from the PRV Audio Group laboratory. Rated power tested with 60Hz to 1KHz sinusoidal signal and THD
Specifications
Impedance: 2 Ohm per ChannelChannels:4 ChannelRated RMS Power at 14.0 V at 2 Ohm: 4x 300 Watts RMSRated RMS Power at 14.0 V at 4 Ohm: 4x 200 Watts RMSBridged Rated RMS Power at 14.0 V at 2 Ohm: 2x 600 Watts RMSAverage Efficiency: 82%Operating Voltage: 8 to 16 VoltsMusical Current Draw: 60 AMinimal Power Wire Input: (OFC) 4 Gauge wiresBuilt-in Crossover: Fixed HPF & LPF at 80 HzMinimal Speaker Wire Output: 12 GaugeFrequency Response(-3dB): 10 – 20,000 HzMin. Input Sensitivity for Max. Output: 0.2 to 4vSignal Input: RCA CablesSignal to Noise: >90 dBProtection System: High Temperature / Short circuit on OutputHeat Sink Type: Mini Heavy Duty Cast AluminumDimensions ( Width x Depth x Height ): 6.75″ x 5.90″ x 2.60″Weight 2.75 lbs.
