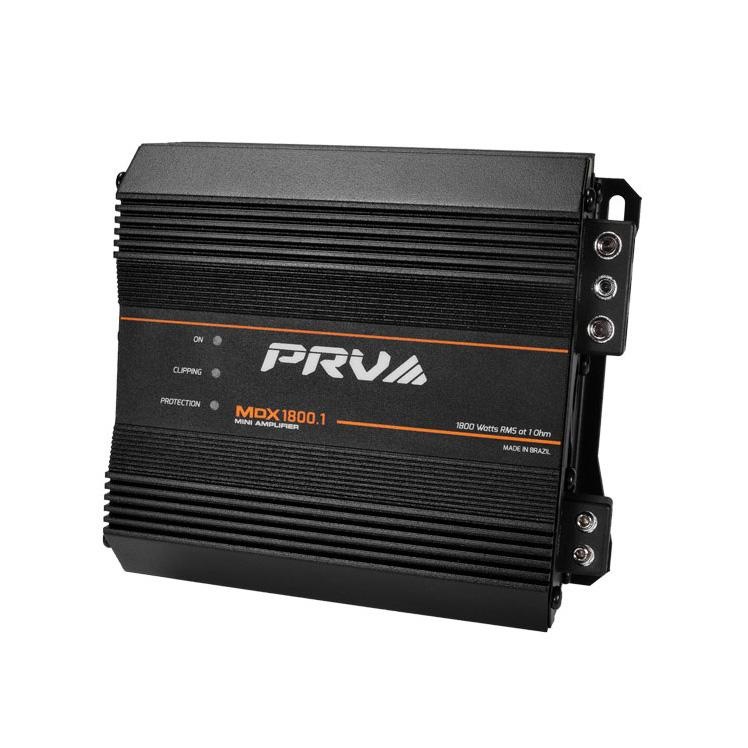

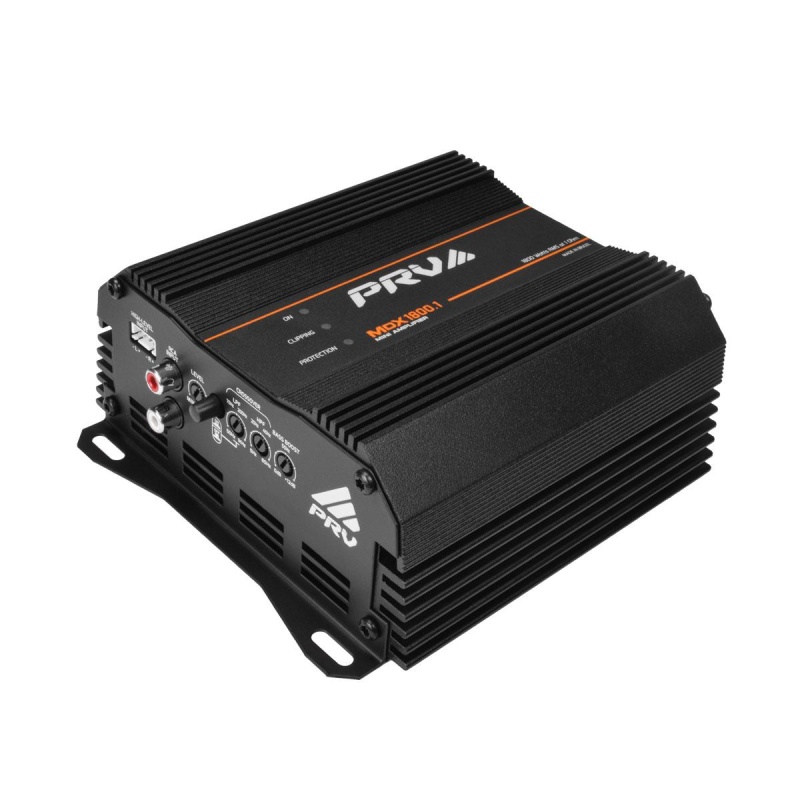

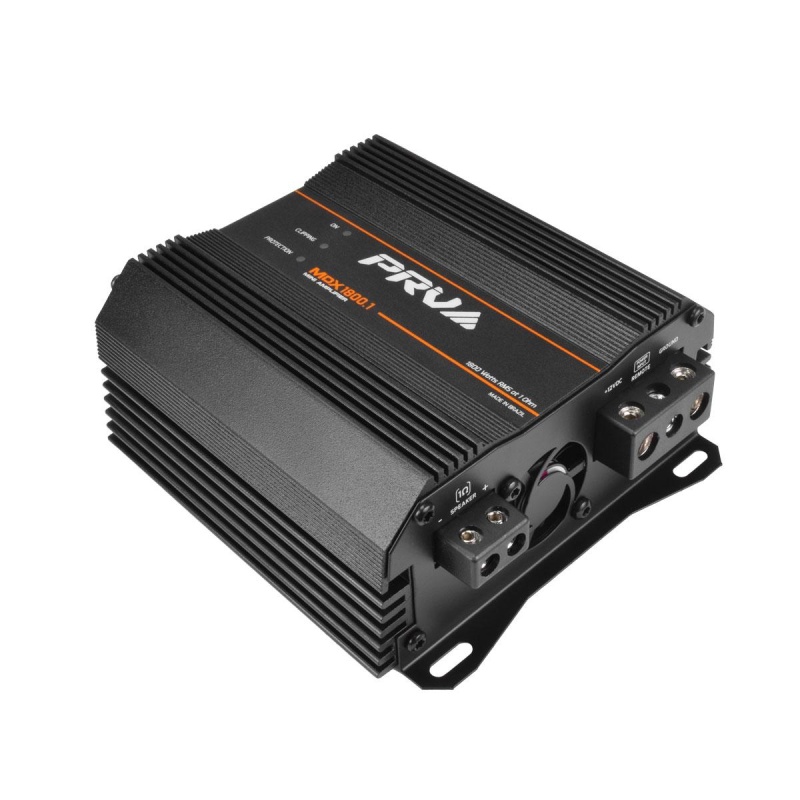

This compact micro amplifier, with a small footprint and heavy-duty heatsink, is easy to install in vehicles, motorcycles, and 4-wheelers, measuring just 6.60″ W x 5.90″ L x 2.60″ H. Designed for maximum efficiency, it delivers powerful output while reducing strain on your electrical system, ensuring high performance without rapid battery depletion. Featuring monoblock 1-channel design, it delivers 1800 watts at 1 Ohm TRUE RMS, certified for full-range output using advanced Digital Class D Brazilian Technology. This allows you to wire multiple speakers and distribute power per channel effortlessly. Equipped with 4-way protection circuitry, it safeguards against high voltage, low voltage, shortages, and overcurrent. Convenient built-in Power/Protection/Clip LED indicators on the top panel provide real-time system monitoring.
The latest surface-mount technology ensures optimal performance against vibration and delivers superior sound quality, making it a perfect choice for audio enthusiasts and competitors looking to create their dream system.
With a wide frequency response from 10 Hz to 25,000 Hz, this versatile amplifier is suitable for various applications, including subwoofers, midbass, midrange, full-range speakers, phenolic drivers, titanium drivers, and super tweeters.
Delivering 1800 Watts at 1 Ohm in a monoblock full-range configuration, the MDX Series is the ultimate solution for motorsport audio systems in custom motorcycles, ATVs, and Slingshots.
High output performance in a compact, space-saving design!

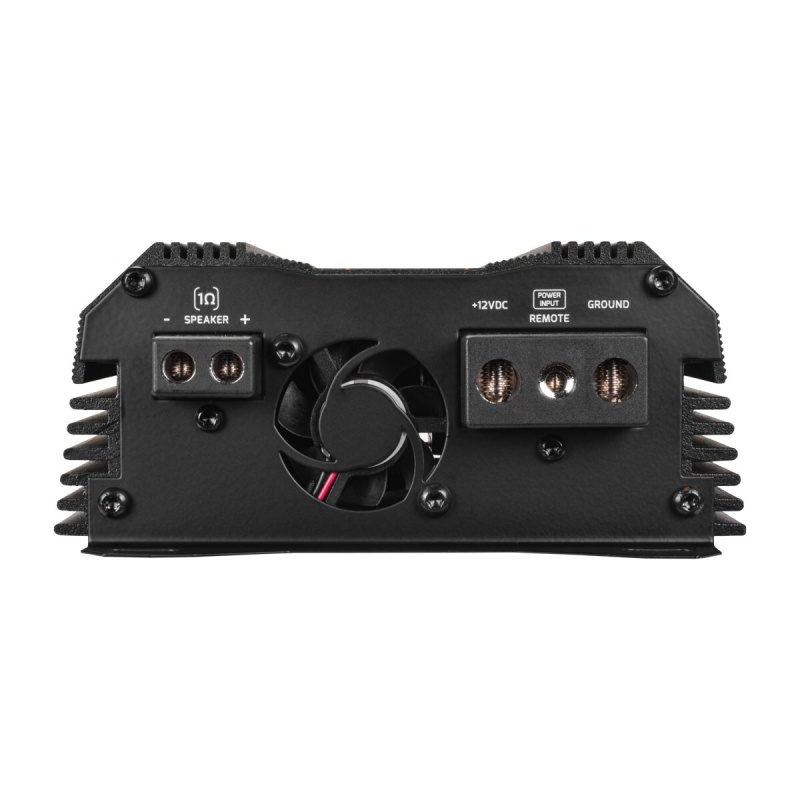

Equipped with a mini heavy-duty heatsink and built-in cooling fan to stay cool during intense playlists.
Weighing just 2.85 pounds, it offers an exceptional performance-to-weight ratio for custom systems.
Popular Installation configurations with this amplifier: 1 Channel Configuration for 8 Ohm Components Its high-power output channels enable the installation of up to 8x 8 Ohm drivers or tweeters wired in parallel at 1 ohm, providing up to 225 watts of power to each component.
1 Channel Configuration for 4 Ohm components Its high-power output channels enable the installation of up to 4x 4 Ohm drivers or tweeters wired in parallel at 1 ohm, providing up to 450 watts of power to each component.
Before Installing You must follow the instructions for the product’s installation to guarantee optimal performance. If you have any questions, get in touch with us. Before using the amplifier, always follow these guidelines:
Make sure the amplifier is switched off before adding or removing any connections. This prevents possible damage to equipment. Keep all cables as far away as possible from the ignition cables, electronic injection modules and starter switch since they may cause noise interference; Minimum recommended installation distance between amplifier is 1.25”. Always use OFC 4 AWG Copper wire for power and ground and minimum of 12 AWG speaker wire and good quality connectors. Copper-clad aluminum wire (CCAW) must not be used. This guarantees reliability and performance. To avoid damaging the cables, make sure that they do not touch sharp metal edges. Important: For this amp use a 100A fuse 12 inches away from the battery as a safety precaution.
The power rating data is based on equipment from the PRV Audio Group laboratory. Rated power tested with 60Hz to 1KHz sinusoidal signal and THD
Specifications

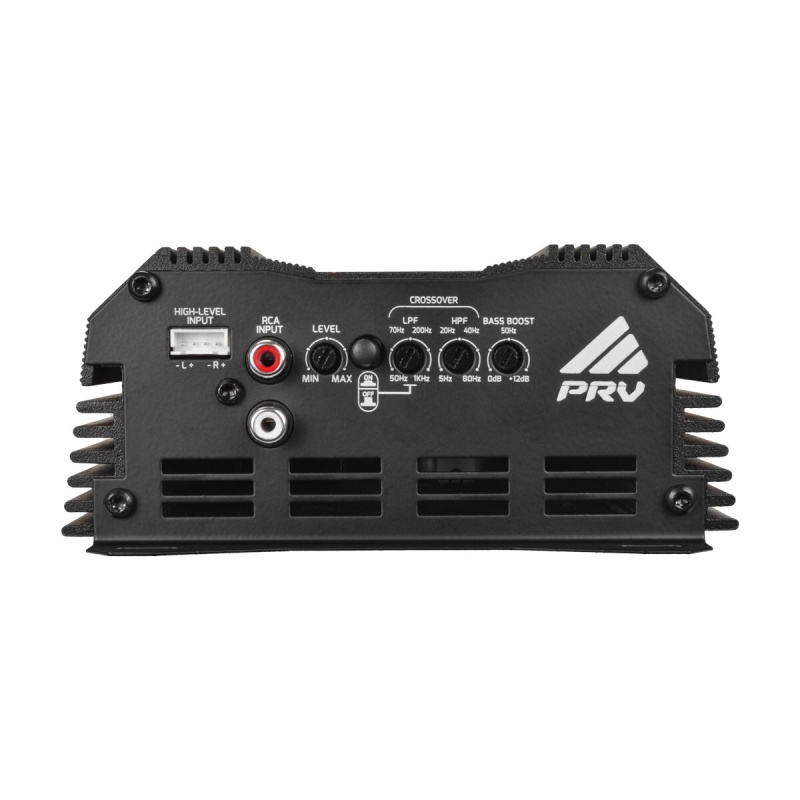

Impedance: 1 Ohm Channels: 1 Channel Rated RMS Power at 14.0 V at 1 Ohm: 1x 1800 Watts RMS Rated RMS Power at 14.0 V at 2 Ohm: 1x 1100 Watts RMS Average Efficiency: 86% Operating Voltage: 9 to 16 Volts Musical Current Draw: 75 A Minimal Power Wire Input: (OFC) 4 Gauge wires Built-in Crossover: Variable HPF 5 Hz - 80Hz & LPF 50Hz - 1kHz Minimal Speaker Wire Output: 14 Gauge Frequency Response(-3dB): 10 – 25,000 Hz Min. Input Sensitivity for Max. Output: 0.2 to 2v Signal Input: RCA Cables Signal to Noise: >90 dB Protection System: Low & High Supply Voltage / Shortage on Output / Low Impedance on Output Heat Sink Type: Mini Heavy Duty Cast Aluminum Dimensions ( Width x Depth x Height ): 6.6″ x 5.90″ x 2.60″ Weight 2.85 lbs.
