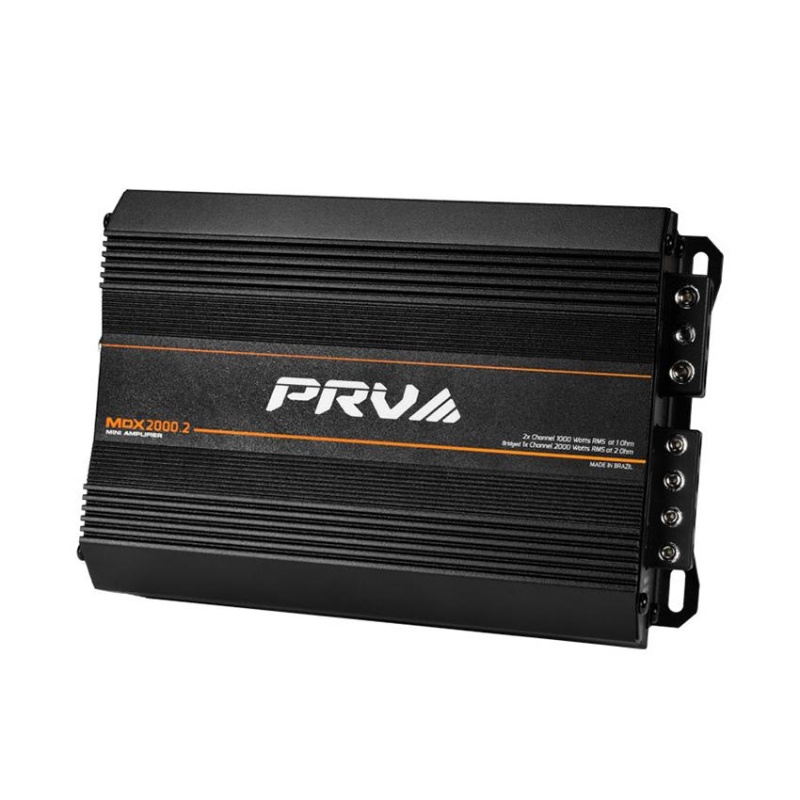

The Mini MDX2000.2 2 Ohm delivers 2000 Watts RMS through a two full-range channels in a compact and modern form factor.
Built for high-performance systems where space is limited, the uses patented technology to achieve high-definition sound with a reliable, space-saving design.
A small footprint heavy-duty heatsink makes this micro amplifier easy to install in motorcycles, vehicles, and 4-wheelers, measuring just 8.50″ wide, 5.90″ long, and 2.60″ high2 x 1000 watts at 2 Ohm TRUE RMS certified full range output, Digital Class D Brazilian technology allows wiring multiple speakers and sharing power per channel 1 Channel Bridged, combine two channels for doubled output delivering 1 x 2000 watts RMS at a minimum 4 Ohm load on the bridged channel Advanced surface mount component technology provides top performance against vibration and excellent sound quality, giving enthusiasts and competitors the tools to build their ideal system
One of this amp’s standout features is the option to switch between 2 or 1 channel configurations!
In 2 channel mode, the high power output lets you connect 4x 8 Ohm speakers in parallel.
For even greater stereo power, you can run 2x 4 Ohm speakers in parallel for 500 watts per speaker. Or bridge the channels to use it as a single channel amplifier.
1000 Watts at 2 Ohm per Channel 2000 Watts at 4 Ohm on Bridged Channel
The MDX Series is perfect for motorsport use, including custom motorcycles, ATVs, and Slingshots!
Big power in a small package!
Equipped with a compact, heavy-duty heatsink and integrated cooling fan, this amplifier stays cool even during intense use.
Weighing just 3.95 lbs., it helps your custom build reach maximum output without adding unnecessary weight.
Popular Installation configurations with this amplifier:
This product is sold brand new. A manufacturer warranty applies only when the manufacturer provides one for this item.
Return requests must be submitted within 14 days of delivery and approved by our RMA department before the item is shipped back. Non-defective returns may be subject to a minimum 25% restocking fee and return shipping charges. Unauthorized returns are not eligible for credit or refund. Read the full return policy.
2 Channel Configuration for 8 Ohm Components Its high power output channels allow you to install 4x 8 Ohm speakers, drivers or tweeters in parallel per channel, giving up to 250 watts per component.
2 Channel Configuration for 4 Ohm components Its high power output channels allow you to install 2x 4 Ohm speakers in parallel per channel, giving up to 500 watts per component.
1 Channel Configuration (Bridged) for 8 Ohm components Its high power output channels allow you to install 2x 8 Ohm speakers in parallel per channel, giving up to 1000 watts per component.
Before InstallingYou must follow the instructions for the product’s installation to guarantee optimal performance. If you have any questions, get in touch with us. Before using the amplifier, always follow these guidelines:
Make sure the amplifier is switched off before adding or removing any connections. This prevents possible damage to equipment. Keep all cables as far away as possible from the ignition cables, electronic injection modules and starter switch since they may cause noise interference; Minimum recommended installation distance between amplifier is 1.25”. Always use OFC 4 AWG Copper wire for power and ground and minimum of 12 AWG speaker wire and good quality connectors. Copper-clad aluminum wire (CCAW) must not be used. This guarantees reliability and performance. To avoid damaging the cables, make sure that they do not touch sharp metal edges. Important: For this amp use a 100A fuse 12 inches away from the battery as a safety precaution.
The power rating data is based on equipment from the PRV Audio Group laboratory. Rated power tested with 60Hz to 1KHz sinusoidal signal and THD
Specifications
Impedance: 2 Ohm per ChannelChannels: 2 Channel Rated RMS Power at 14.0 V at 2 Ohm: 2x 1000 Watts RMS Rated RMS Power at 14.0 V at 4 Ohm: 2x 660 Watts RMSBridged Rated RMS Power at 14.0 V at 4 Ohm: 1x 2000 Watts RMS Average Efficiency: 90%Operating Voltage: 9 to 16 Volts Musical Current Draw: 89 A Minimal Power Wire Input: (OFC) 4 Gauge wires Built-in Crossover: Fixed HPF & LPF at 80 HzMinimal Speaker Wire Output: 12 GaugeFrequency Response(-3dB): 10 – 22,000 Hz Min. Input Sensitivity for Max. Output: 0.2 to 2v Signal Input: RCA Cables Signal to Noise: >90 dB Protection System: High Temperature / Short circuit on Output Heat Sink Type: Mini Heavy Duty Cast Aluminum Dimensions ( Width x Depth x Height ): 8.50″ x 5.90″ x 2.60″Weight 3.95 lbs.
