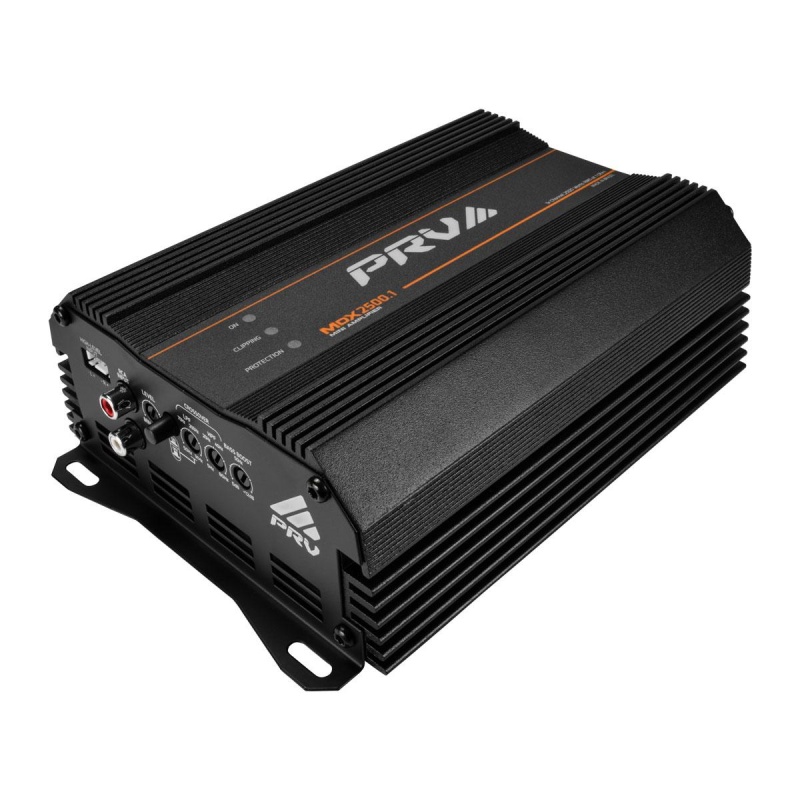

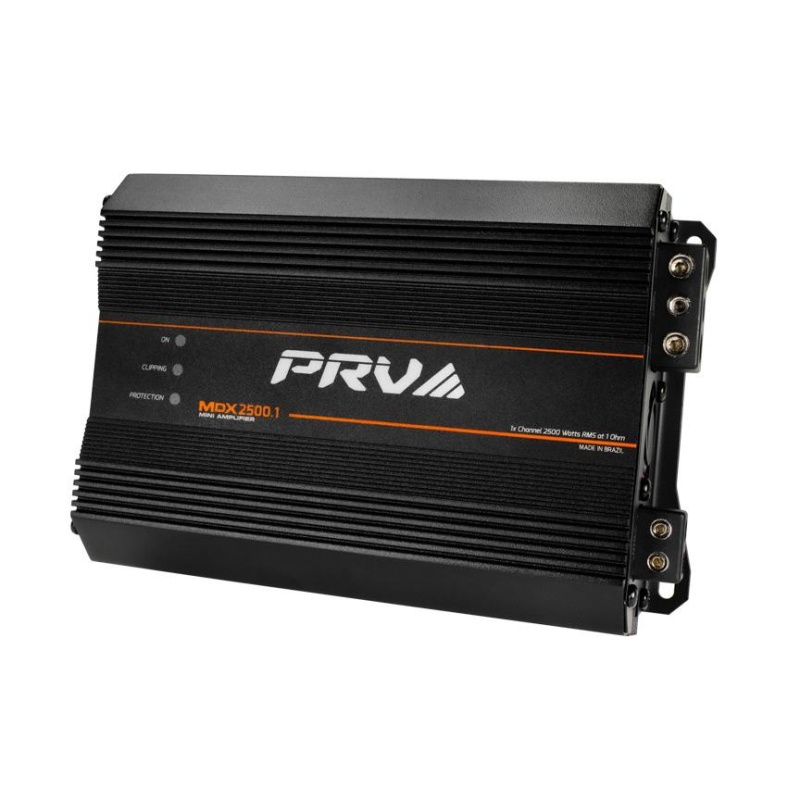

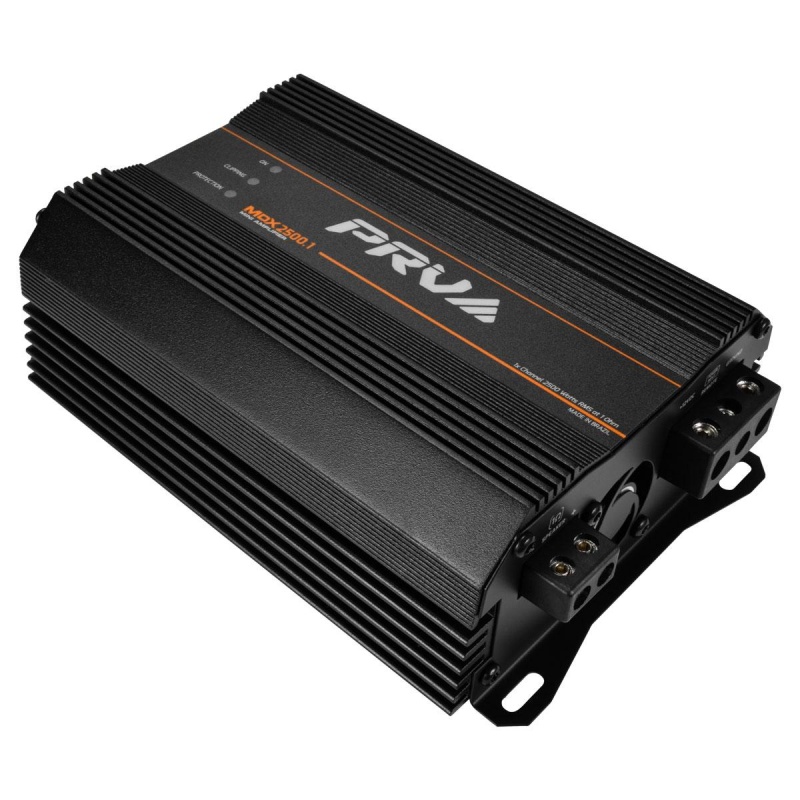

This compact micro amplifier features a durable heavy-duty heatsink and a small footprint, making it easy to install in vehicles, motorcycles, and 4-wheelers. Measuring 8.50″ W x 5.90″ L x 2.60″ H, it fits seamlessly into tight spaces. Engineered for maximum efficiency, it delivers powerful output while reducing strain on your electrical system, ensuring high-performance audio without rapidly draining your battery. The monoblock design provides 2600 watts at 1 Ohm TRUE RMS, utilizing full-range Digital Class D Brazilian Technology for wiring multiple speakers and evenly distributing power per channel. Equipped with 4-way protection circuitry, it safeguards against high voltage, low voltage, shortages, and current issues, while built-in Power/Protection/Clip LED indicators on the top panel offer convenient monitoring.
The latest surface-mount component technology ensures exceptional vibration resistance and superior sound quality, making it a top choice for audio enthusiasts and competitors building their dream systems.
With a wide frequency response from 10 Hz to 25,000 Hz, this 2600-watt 1 Ohm monoblock amplifier is versatile, suitable for applications including subwoofers, midbass, midrange, full-range speakers, phenolic drivers, titanium drivers, and super tweeters.
The MDX Series is specifically designed for motorsport applications, making it ideal for custom motorcycles, ATVs, and Slingshots.
High output performance in a compact, space-saving design!
Equipped with a mini heavy-duty heatsink and built-in cooling fan to stay cool during intense playlists.
Weighing just 4.05 pounds, it offers an exceptional performance-to-weight ratio for custom systems.
Before InstallingYou must follow the instructions for the product’s installation to guarantee optimal performance. If you have any questions, get in touch with us. Before using the amplifier, always follow these guidelines:
Make sure the amplifier is switched off before adding or removing any connections. This prevents possible damage to equipment.Keep all cables as far away as possible from the ignition cables, electronic injection modules and starter switch since they may cause noise interference; Minimum recommended installation distance between amplifier is 1.25”.Always use OFC 4 AWG Copper wire for power and ground and minimum of 12 AWG speaker wire and good quality connectors. Copper-clad aluminum wire (CCAW) must not be used. This guarantees reliability and performance.To avoid damaging the cables, make sure that they do not touch sharp metal edges. Important: For this amp use a 150A fuse 12 inches away from the battery as a safety precaution.
The power rating data is based on equipment from the PRV Audio Group laboratory. Rated power tested with 60Hz to 1KHz sinusoidal signal and THD
Specifications

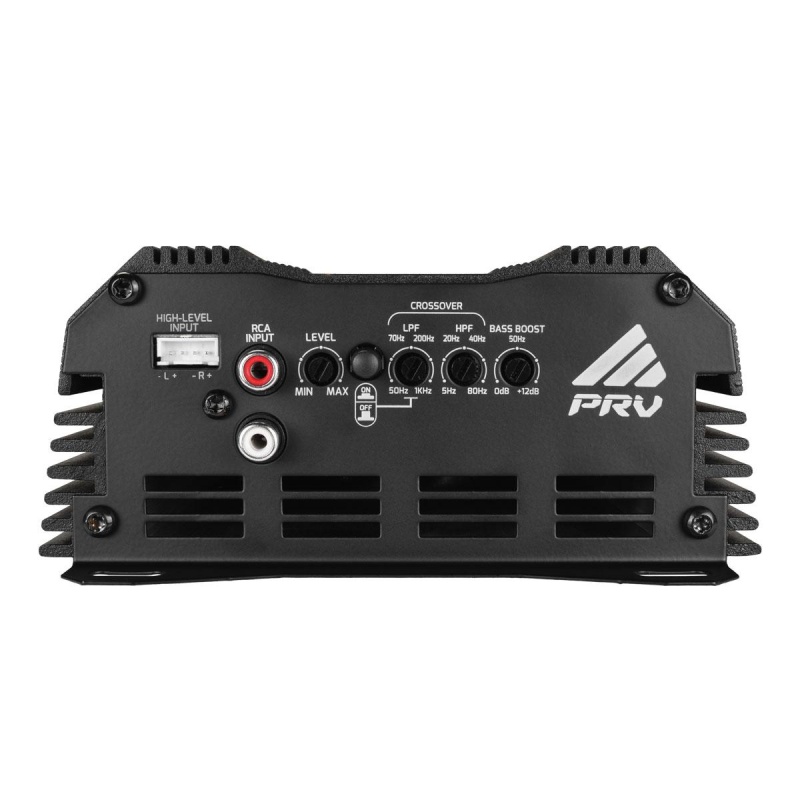

Impedance: 1 OhmChannels: 1 ChannelRated RMS Power at 14.0 V at 1 Ohm: 1x 2600 Watts RMSRated RMS Power at 14.0 V at 2 Ohm: 1x 1850 Watts RMSAverage Efficiency: 84%Operating Voltage: 8 to 16 VoltsMusical Current Draw: 149 AMinimal Power Wire Input: (OFC) 4 Gauge wiresBuilt-in Crossover: Variable HPF 5Hz – 80Hz & LPF 50Hz – 1kHzVariable Gain Bass Boost at 50Hz: 0 to +12dBMinimal Speaker Wire Output: 12 GaugeFrequency Response(-3dB): 10 – 25,000 HzMin. Input Sensitivity for Max. Output: 0.2 to 2vSignal Input: RCA CablesSignal to Noise: >90 dBProtection System: Low & High Supply Voltage / Shortage on Output / Low Impedance on OutputHeat Sink Type: Mini Heavy Duty Cast AluminumDimensions ( Width x Depth x Height ): 8.50" x 5.90" x 2.60"Weight 4.05 lbs.
