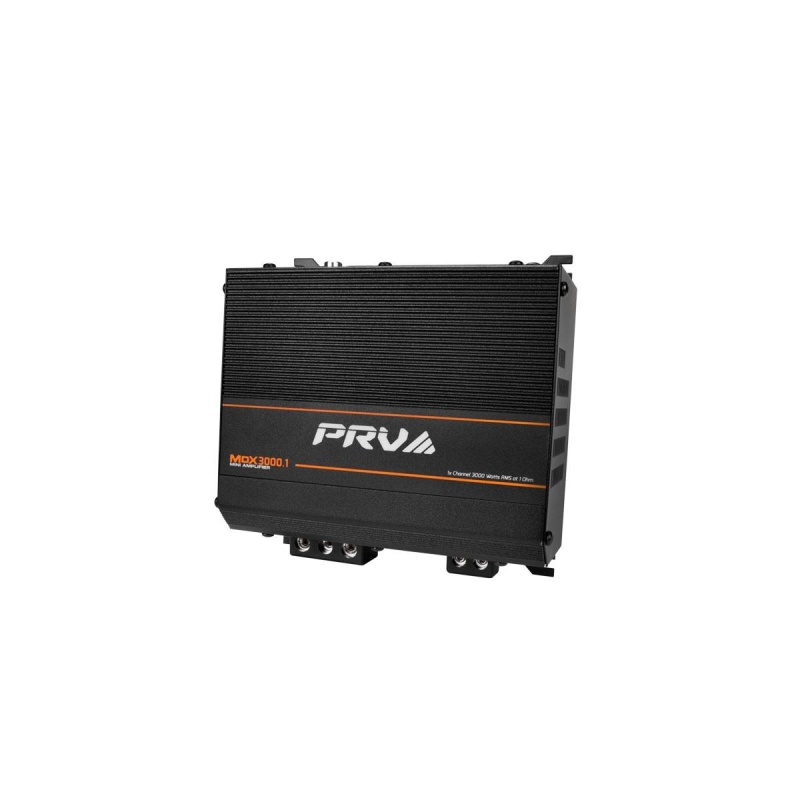

The mini MDX3000.1 1 Ohm delivers 3000 Watts RMS power to its full range 1 channel in a compact, modern amplifier.
Designed for high performance systems that require high power output but have very little space to spare, the features exclusive and patented technologies that ensure a high definition sound quality in the most compact and reliable design.

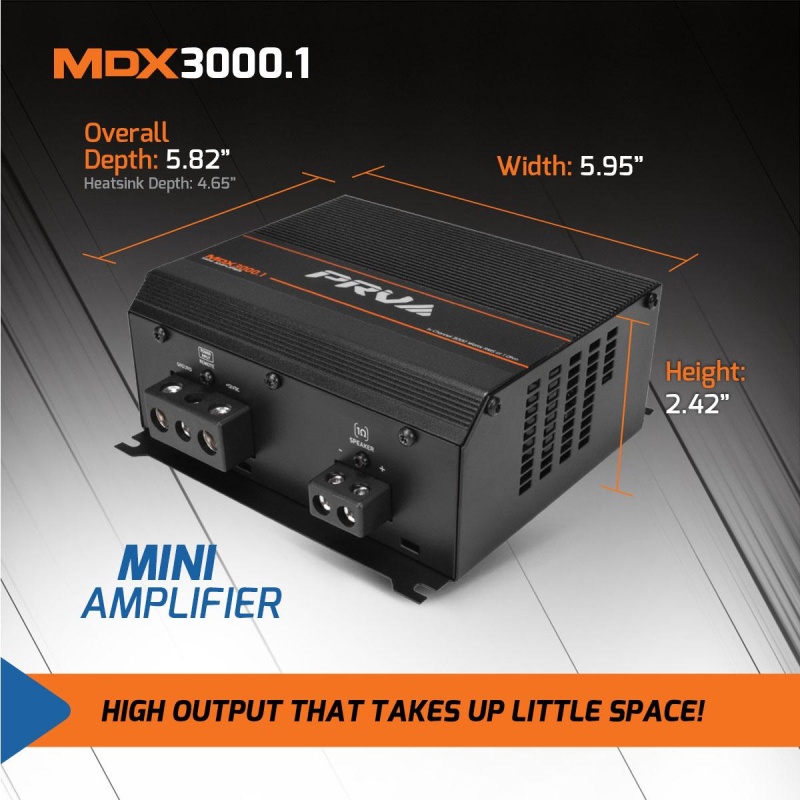

MINI AMPLIFIER DESIGN – Featuring a small footprint and heavy duty heat sink, this micro amplifier can be easily installed in vehicles, motorcycles, and four-wheelers. Overall size 5.95″ Width by 5.82″ Depth and only 2.42″ Height.
UNMATCHED PERFORMANCE – Engineered to be the most efficient amplifier able to deliver impressive power output while minimizing the strain on your electrical system. This means you can enjoy the benefits of high power performance without draining your battery quickly.
MORE POWER On COMPACT SIZE – 1 Channel 3000 watts at 1 Ohm TRUE RMS certified. Full Range Digital Class D Technology, gives you the benefit of wiring 8 speakers and dividing the power, 375 Watts RMS per 8 Ohm Speaker.
TECHNOLOGY – 4-way protection circuitry features high voltage, low voltage, shortage, and current protection. Built-in Power/Protection/Clip LED indicators on the top panel.

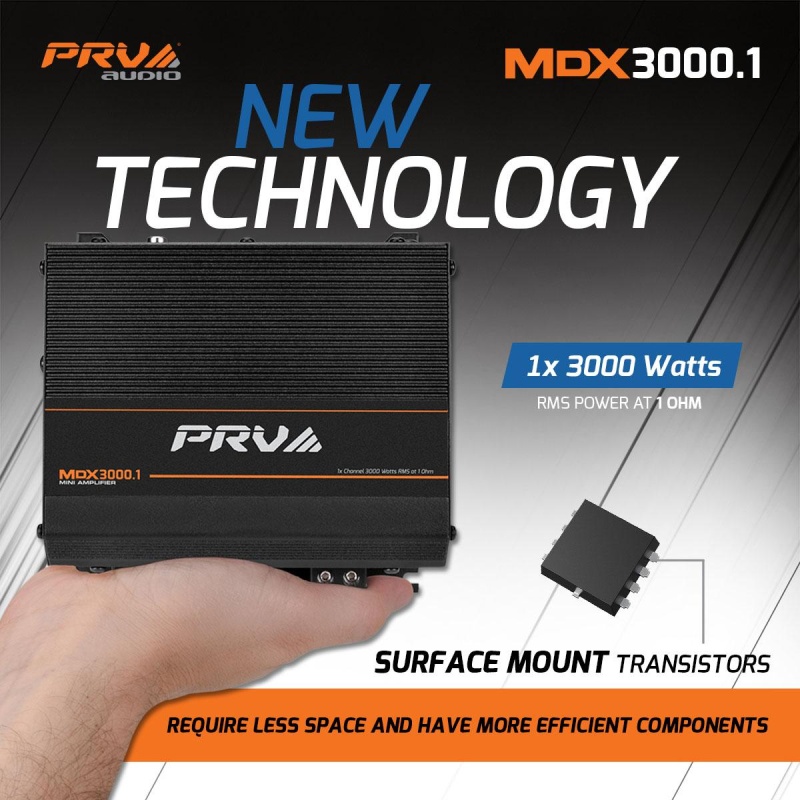

The latest technology on surface mount components ensures best performance against vibration and superior sound quality, allowing enthusiasts and competitors to build the system of their dreams.
Its wide frequency response allows you to use it in many different applications, such as subwoofers, midbass, midrange, full range speakers, phenolic drivers, titanium drivers, and super tweeters, among others.

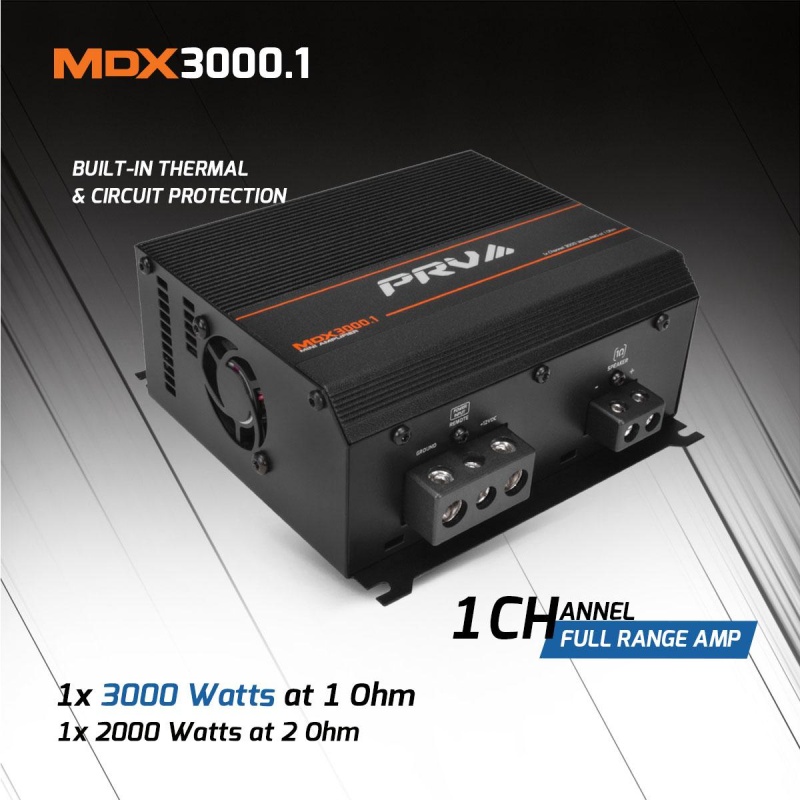

Full Range Monoblock 10 to 20,000 Hz Rated Power at 1 Ohm 1x 3000 Watts RMS Rated Power at 2 Ohm 1x 2000 Watts RMS The MDX Series is ideal for motorsport applications such as custom motorcycles, ATVs and Slingshots!
High Output that takes up little space!

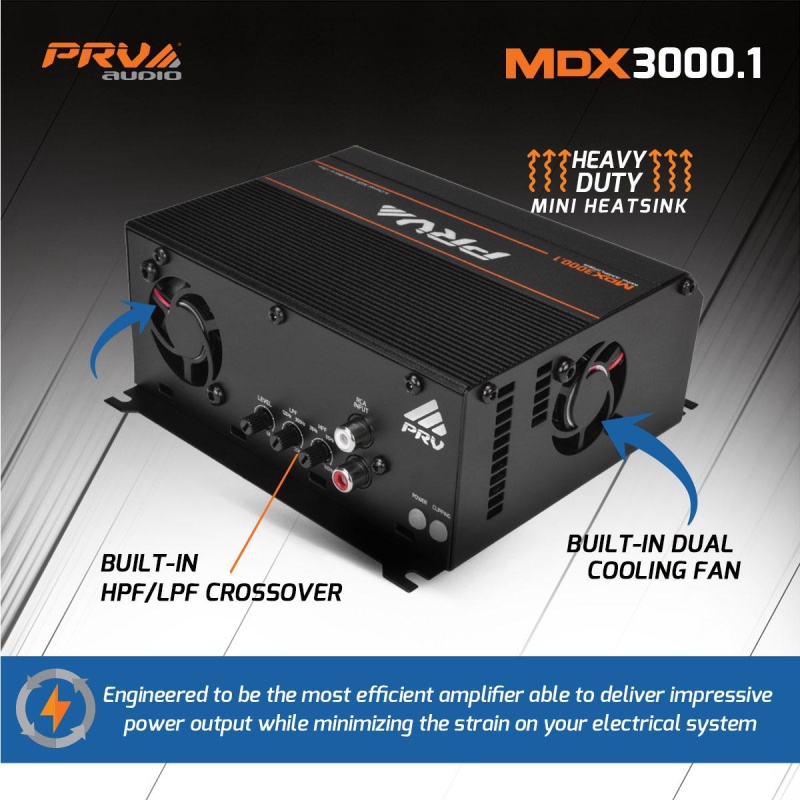

Featuring a mini heavy-duty heatsink, as well as a built-in cooling fans, this amplifier runs cool under even the most demanding playlists.
At only 3 lbs, it allows any custom system to achieve the highest performance and weight ratio possible.
Popular Installation configurations with this amplifier:1 Channel Configuration for 8 Ohm Components Its high power output channel allows you to install 8x 8 Ohm Speakers, drivers or tweeters in parallel at 1 Ohm, giving up to 375 watts per component.
1 Channel Configuration for 4 Ohm Components Its high power output channel allows you to install 4x 4 Ohm Speakers in parallel at 1 Ohm, giving up to 750 watts per component.
Before Installing:You must follow the instructions for the product’s installation to guarantee optimal performance. If you have any questions, get in touch with us. Before using the amplifier, always follow these guidelines:

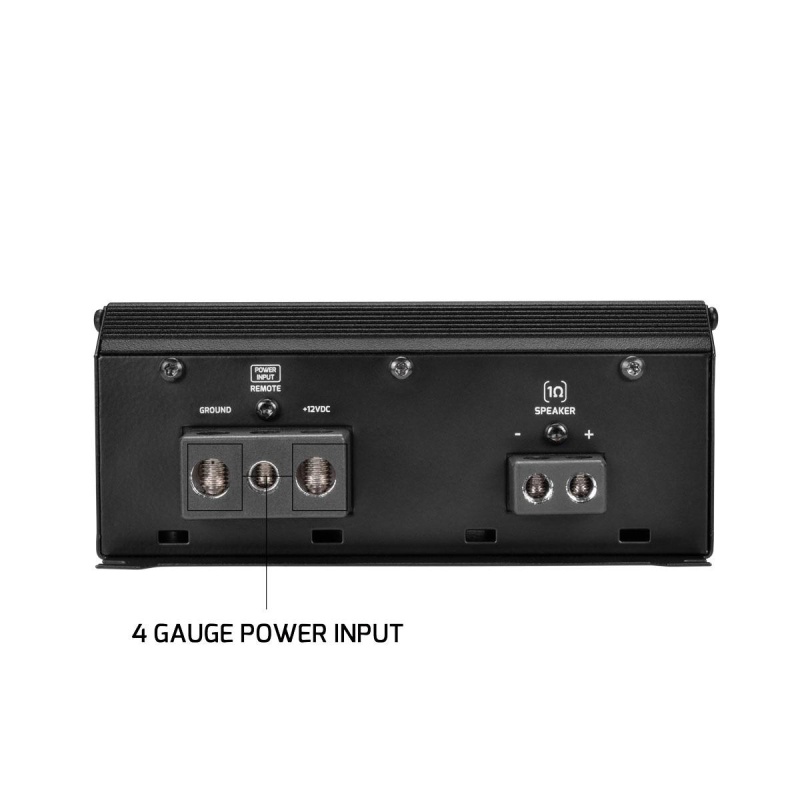

Make sure the amplifier is switched off before adding or removing any connections. This prevents possible damage to equipment.Keep all cables as far away as possible from the ignition cables, electronic injection modules and starter switch since they may cause noise interference; Minimum recommended installation distance between amplifier is 2.75”.ONLY use OFC 4 AWG Copper wire for power and ground and minimum of 12 AWG speaker wire and good quality connectors. Copper-clad aluminum wire (CCAW) must not be used. This guarantees reliability and performance.To avoid damaging the cables, make sure that they do not touch sharp metal edges. Important: For this amp use a 150A fuse 12 inches away from the battery as a safety precaution. The power rating data is based on equipment from the PRV Audio Group laboratory. Rated power tested with 60Hz to 1KHz sinusoidal signal and THD SpecificationsImpedance: 1 Ohm Channels: 1 Channel Rated RMS Power at 14.0 V at 1 Ohm: 1x 3000 Watts RMS Rated RMS Power at 14.0 V at 2 Ohm: 1x 2000 Watts RMS Average Efficiency: 86% Operating Voltage: 9 - 16 volts Musical Current Draw: 155A Minimal Power Wire Input: OFC 4 AWG Copper wire Protection Fuse or Circuit Breaker: 150A Built-in Crossover: Variable HPF 10Hz- 160Hz & LPF 80Hz- 20kHz Minimal Speaker Wire Output: 14 AWG Frequency Response(-3dB): 10 - 20,000 Hz RCA Min/Max Voltage Input: 0.2 to 2v Speaker Wire Min/Max Voltage: Input 1.5 to 15v Signal Input: RCA Cables Signal to Noise: >90dBProtection System High: voltage, low voltage, shortage, and current protectionHeat Sink Type: Mini heavy-duty heatsink, as well as a built-in cooling fans Dimensions (Width x Depth x Height): 5.95″ x 5.82″ x 2.42″ Weight: 3 Lbs
