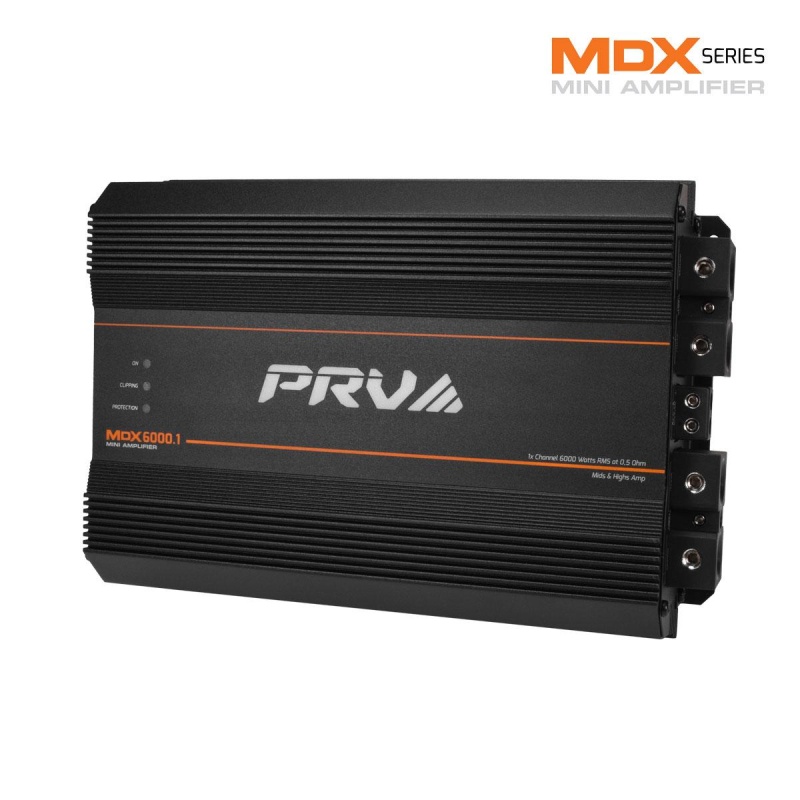

The MDX6000.1 0.5 Ohm expands what a full-range 1-channel amplifier can do, making it possible to connect up to 16 8 Ohm drivers, tweeters, or speakers to a single amplifier.
Designed for high-performance systems that need strong power output while offering very limited installation space, the incorporates exclusive patented technologies that deliver high-definition sound quality in an exceptionally compact and dependable design.
Compact Mini Design – A compact footprint and heavy-duty heatsink allow this amplifier to deliver substantial power and dependable performance in an extremely low-profile design. Overall dimensions are 11.75″ wide by 8.00″ long and only 2.85″ high.
Unmatched Performance – Designed for maximum efficiency, this amplifier produces impressive output while reducing demand on your vehicle’s electrical system. That means you can enjoy high-power performance without putting excessive drain on your battery.
More Power in a Compact Size – Single-channel output rated at 6000 watts at 0.5 Ohm, TRUE RMS certified. Full-range Digital Class D technology allows you to wire up to 16 speakers and distribute the power, providing 375 Watts RMS to each 8 Ohm speaker.
Technology – Four-way protection circuitry includes high-voltage, low-voltage, short-circuit, and current protection. Built-in Power, Protection, and Clip LED indicators are located on the top panel.
The latest surface-mount component technology ensures excellent resistance to vibration along with superior sound quality, giving enthusiasts and competitors the ability to build the system they have always envisioned.
Its wide frequency response makes it suitable for many different applications, including midbass, midrange, full-range speakers, phenolic drivers, titanium drivers, and super tweeters, among others.
This product is sold brand new. A manufacturer warranty applies only when the manufacturer provides one for this item.
Return requests must be submitted within 14 days of delivery and approved by our RMA department before the item is shipped back. Non-defective returns may be subject to a minimum 25% restocking fee and return shipping charges. Unauthorized returns are not eligible for credit or refund. Read the full return policy.
Featuring an ultra-fast microchip processor to ensure the highest level of sound fidelity.
Delivers 6000 watts at 0.5 Ohm in a 1-channel full-range design with a frequency response of 10 to 15,000 Hz.
Featuring a mini heavy-duty heatsink along with a built-in cooling fan, this amplifier stays cool even under the most demanding playlists.
Built for serious performance, this amplifier weighs 8.90 lbs and uses a heavy-duty power supply with additional copper to handle the high current demands of a 0.5 Ohm amplifier.
Popular Installation configurations with this amplifier:
1 channel configuration for 8 Ohm components, its high power output channel allow you to install 16x 8 Ohm Speakers, drivers or tweeters in parallel at 0.5 Ohm, giving up to 375 watts per component.
1 channel configuration for 4 Ohm components, its high power output channel allow you to install 8x 4 Ohm Speakers in parallel at 1 Ohm, giving up to 750 watts per component.
Before Installing: You must follow the instructions for the product’s installation to guarantee optimal performance. If you have any questions, get in touch with us. Before using the amplifier, always follow these guidelines:

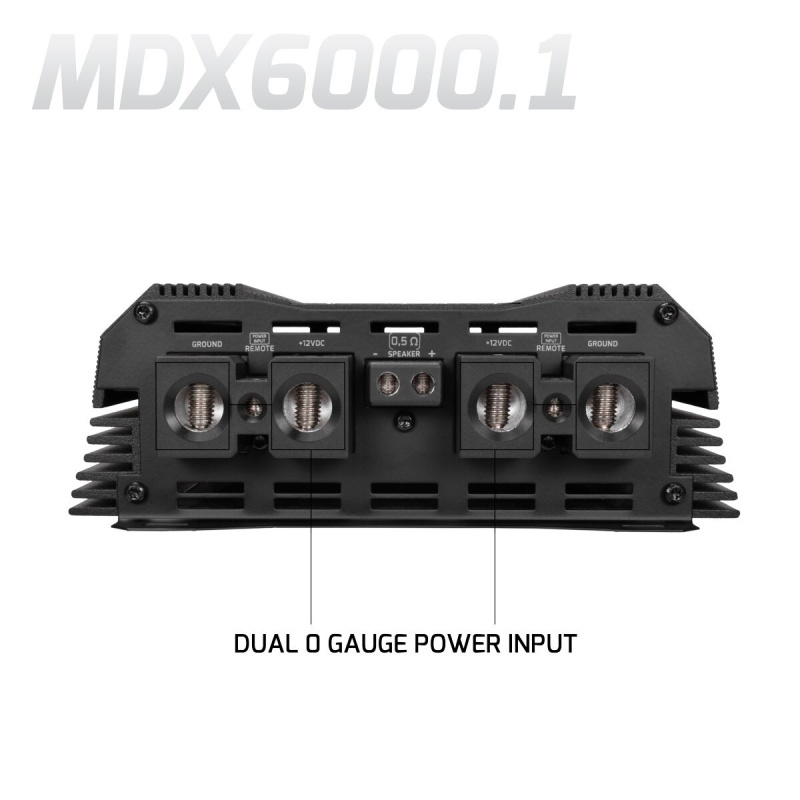

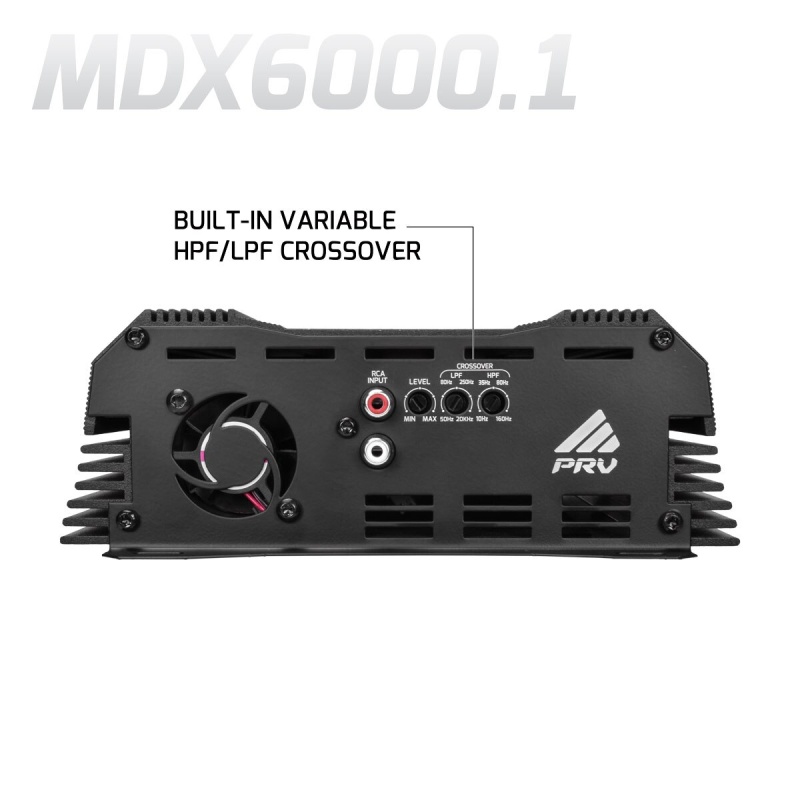

Make sure the amplifier is switched off before adding or removing any connections. This prevents possible damage to equipment. Keep all cables as far away as possible from the ignition cables, electronic injection modules and starter switch since they may cause noise interference; Minimum recommended installation distance between amplifier is 1.25”.Always use OFC 0 AWG Copper wire for power and ground and minimum of 12 AWG speaker wire and good quality connectors. Copper-clad aluminum wire (CCAW) must not be used. This guarantees reliability and performance.To avoid damaging the cables, make sure that they do not touch sharp metal edges. Important: For this amp use a 300A fuse 12 inches away from the battery as a safety precaution.The power rating data is based on equipment from the PRV Audio Group laboratory. Rated power tested with 60Hz to 1KHz sinusoidal signal and THD Impedance: 0.5 Ohm Channels: 1 Channel Rated RMS Power at 14.0 V at 0.5 Ohm: 1x 6000 Watts RMS Rated RMS Power at 14.0 V at 1 Ohm: 1x 4000 Watts RMS Average Efficiency: 84% Operating Voltage: 9 to 16 Volts Musical Current Draw: 300A Minimal Power Wire Input: (OFC) Double 0 Gauge wires Built-in Crossover: Variable HPF 10Hz – 160Hz & LPF 50Hz – 15kHzMinimal Speaker Wire Output: 10 Gauge Frequency Response(-3dB): 10 - 15,000 Hz RCA Min/Max Voltage Input: 0.2 to 2v Speaker Wire Min/Max Voltage Input: 1.5 to 15v Signal Input: RCA CablesSignal to Noise: >90 dB Protection System: Low & High Supply Voltage / Shortage on Output / Low Impedance on Output Heat Sink Type: Mini Heavy Duty Cast Aluminum Dimensions ( Width x Depth x Height ): 11.75″ x 8″ x 2.85″Weight: 8.9 Lbs
