The QS Series amplifiers are built specifically for mids and highs, making them ideal for powering high-output stuntwalls, custom door panels, or any large-scale system demanding louder and more articulate sound reproduction for PRO Audio loudspeakers.
QS Series amplifiers focus on efficient engineering, delivering full-range frequency response performance at an affordable price.
The QS800.4 is equipped with a regulated power supply that consistently delivers stable power output. Its design achieves an exceptional efficiency rate of 84%, minimizing energy loss. All of this performance is housed within a compact aluminum heatsink for effective thermal management.

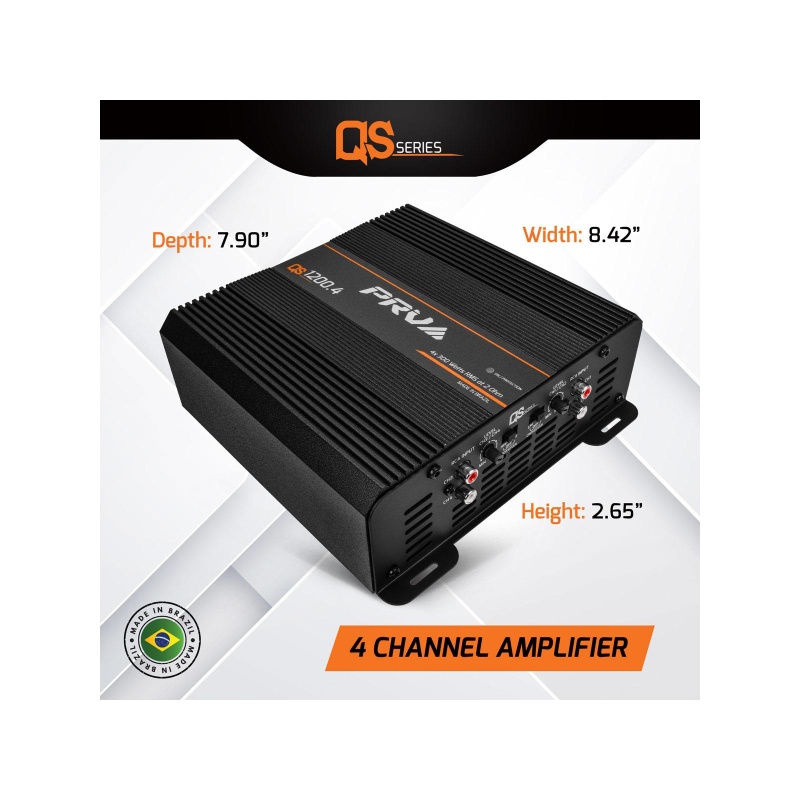

4 x 310 watts true RMS at full range output using Digital Class D Brazilian Technology 4-channel car amplifier stable at 2 ohms for flexible multi-speaker setups High-efficiency full-range design to maximize output from your vehicle's electrical system Compact chassis with 8.42″ x 7.90″ x 2.65″ dimensions for easy installation in tight spacesBridgeable to 2 channels for 2 x 600 watts RMS at 4 ohms minimum per bridged channel
Channels4 Channel Rated RMS Power at 14.0 V at 2 Ohm 4x 310 Watts Rated RMS Power at 14.0 V at 4 Ohm 4x 160 Watts Bridged Rated RMS Power at 14.0 V at 4 Ohm 2x 600 Watts The QS Series is our latest lineup of full bridge, high-power amplifiers engineered for outstanding performance and value. Models like the and expand the series with even more power options to suit a wide range of needs.
With broad frequency response, these amplifiers are compatible with everything from subwoofers and midbass drivers to full-range speakers and super tweeters, making them a highly adaptable solution for everyday car audio systems.
Its compact heatsink design delivers high-fidelity sound with tight midbass and crisp, detailed highs. Ideal for users seeking powerful audio performance without breaking the bank, this amplifier combines sound quality with value.
The proprietary heat dissipation system keeps temperatures low, even during intense listening sessions.
Before InstallingYou must follow the instructions for the product’s installation to guarantee optimal performance. If you have any questions, get in touch with us. Before using the amplifier, always follow these guidelines:
Make sure the amplifier is switched off before adding or removing any connections. This prevents possible damage to equipment. Keep all cables as far away as possible from the ignition cables, electronic injection modules and starter switch since they may cause noise interference; Always use 100% Copper wire and good quality connectors. This guarantees reliability and performance. To avoid damaging the cables, make sure that they do not touch sharp metal edges. Important: For this amp use a 25A fuse 12 inches away from the battery as a safety precaution.
The power rating data is based on equipment from the PRV Audio Group laboratory. Rated power tested with 100Hz to 1KHz sinusoidal signal and THD
Specifications
Impedance: 2 Ohm Channels: 4 Channel Rated RMS Power at 14.0 V at 2 Ohm: 4x 310 Watts RMS Rated RMS Power at 14.0 V at 4 Ohm: 4x 160 Watts RMS Bridged Rated RMS Power at 14.0 V at 4 Ohm: 2x 600 Watts RMS Average Efficiency: 84% Operating Voltage: 9 to 15 Volts Musical Current Draw: 55 A Minimal Power Wire Input: (OFC) 4 Gauge wires Built-in Crossover: Fixed HPF & LPF at 90 Hz
Minimal Speaker Wire Output: 14 Gauge Frequency Response(-3dB): 20 – 24,000 Hz Min. Input Sensitivity for Max. Output: 200 mV Signal Input: 2 Pair RCA Signal to Noise: >90 dB Protection System: High Temperature / Short circuit on Output Heat Sink Type: Heavy Duty Cast Aluminum Dimensions ( Width x Depth x Height ): 7.90″ x 8.42″ x 2.65″Weight: 4.50 Lbs
The power rated data are based on equipment from the PRV Audio Group laboratory. Frequency reference of 100Hz to 1kHz with THD+N to ≤1 % in impedances referring to the indicated in each measurement. The electronic components and the manufacturing process can present manufacturing variations, thus leading to a variation in the measurements made. This amplifier is designed to perform on music applications (with speakers), any load test (resistant load) is not recommended.
