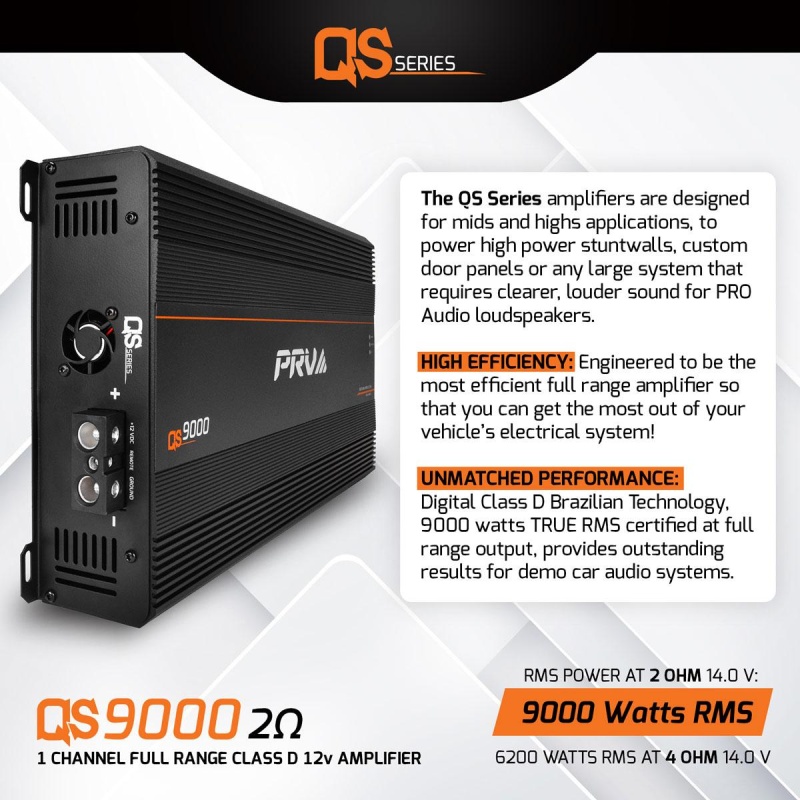

The QS Series amplifiers are built specifically for mids and highs, making them ideal for powering high-output stuntwalls, custom door panels, or any large-scale system demanding louder and more articulate sound reproduction for PRO Audio loudspeakers.

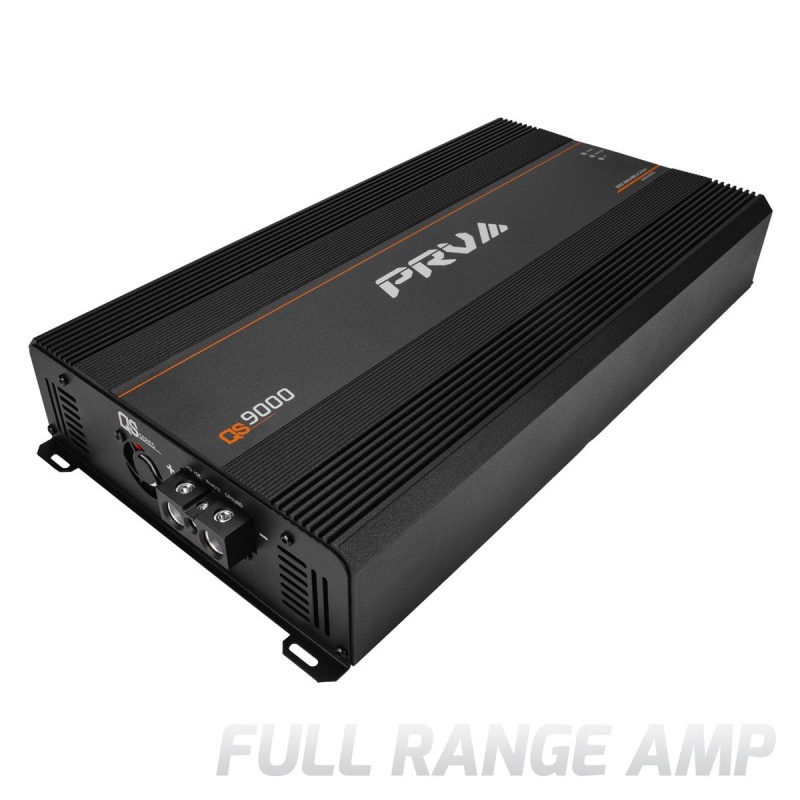

QS Series amplifiers focus on efficient engineering, delivering full-range frequency response performance at an affordable price.

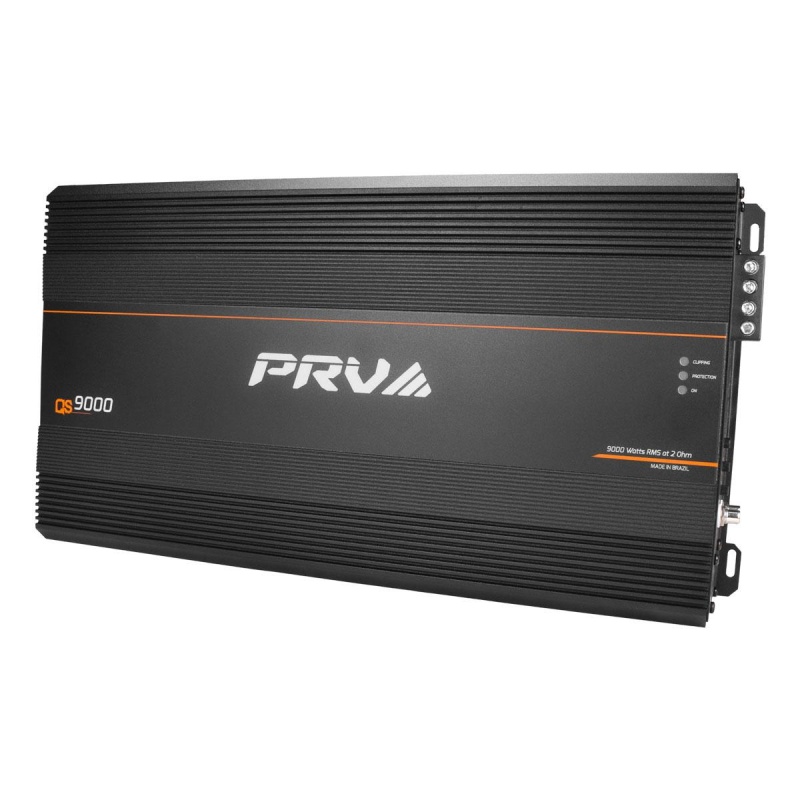

The QS9000 is equipped with a regulated power supply that consistently delivers stable power output. Its design achieves an exceptional efficiency rate of 79%, minimizing energy loss. All of this performance is housed within a compact aluminum heatsink for effective thermal management.

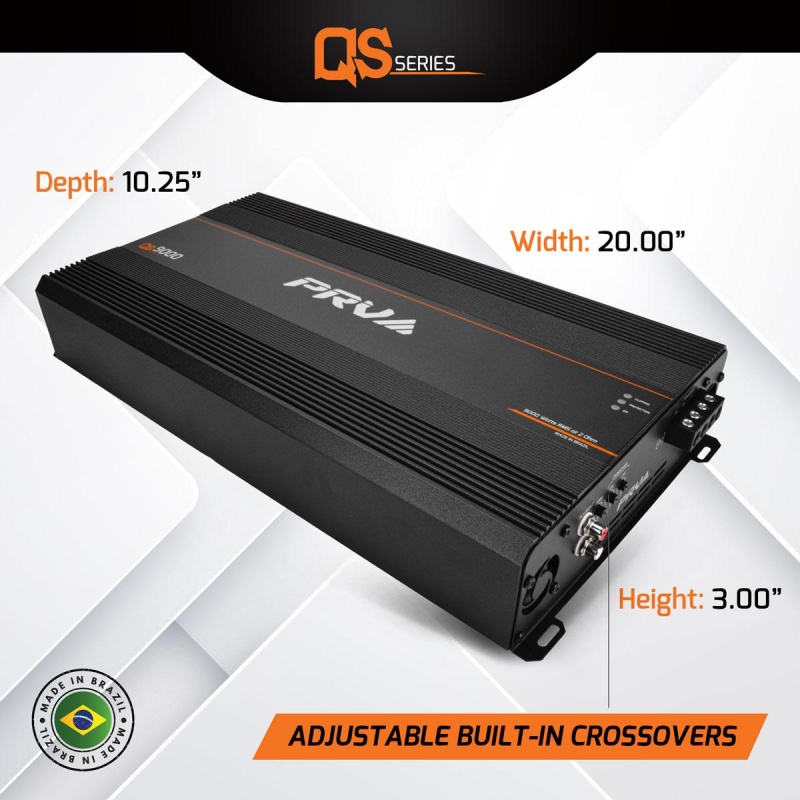

9000 watts true RMS at full range output using Digital Class D Brazilian Technology1-channel car amplifier stable at 2 ohm for flexible multi-speaker setupsHigh-efficiency full-range design to maximize output from your vehicle's electrical systemCompact chassis with 20″ x 10.25″ x 3″ dimensions for easy installation in tight spaces4-way protection circuitry includes high/low voltage, short, and current protection with top-mounted LED indicators
Channels1 Channel Rated RMS Power at 14.0 V at 2 Ohm 9000 Watts Rated RMS Power at 14.0 V at 4 Ohm 6400 Watts High Power Amplifier designed for custom car audio systems, the QS series delivers premium Full Range HD Sound for clearer, louder output with PRO Audio loudspeakers. Ideal for 4x 12” loudspeakers, the QS9000 is stable at 2 Ohm, with a also available for added flexibility.
Its broad frequency response makes it suitable for a wide range of applications—including subwoofers, midbass, midrange, full-range speakers, phenolic and titanium drivers, and super tweeters. This all-purpose amplifier is an ideal fit for daily car audio systems that demand both power and versatility.
Built-in high and low pass filters give users the ability to fine-tune the frequency range for their setup—from deep bass to crisp highs.
This product is sold brand new. A manufacturer warranty applies only when the manufacturer provides one for this item.
Return requests must be submitted within 14 days of delivery and approved by our RMA department before the item is shipped back. Non-defective returns may be subject to a minimum 25% restocking fee and return shipping charges. Unauthorized returns are not eligible for credit or refund. Read the full return policy.

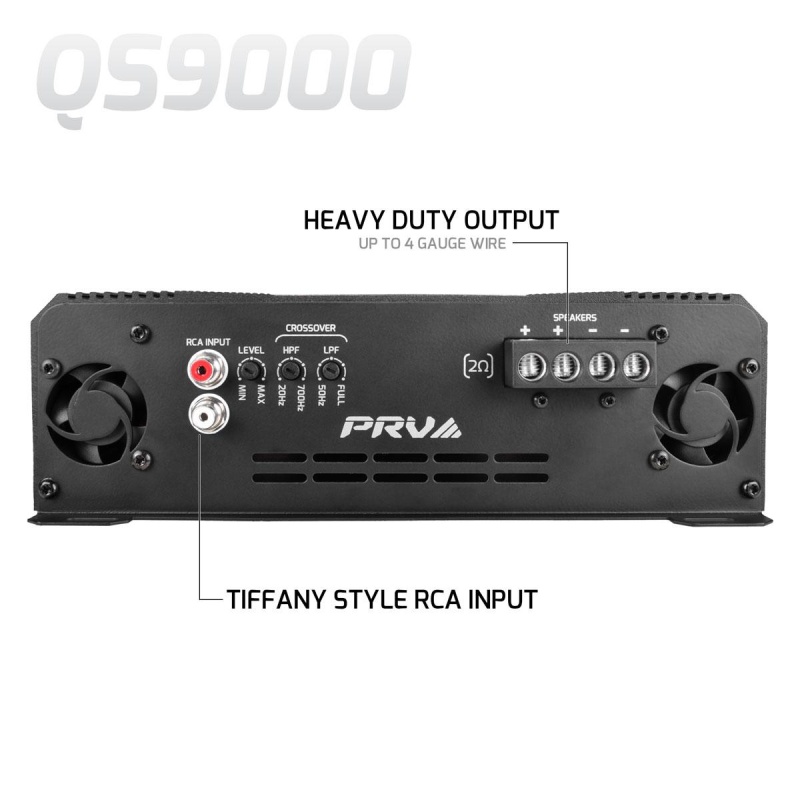

Premium Tiffany-style RCA inputs provide a secure, tight connection that minimizes issues from vibrations.

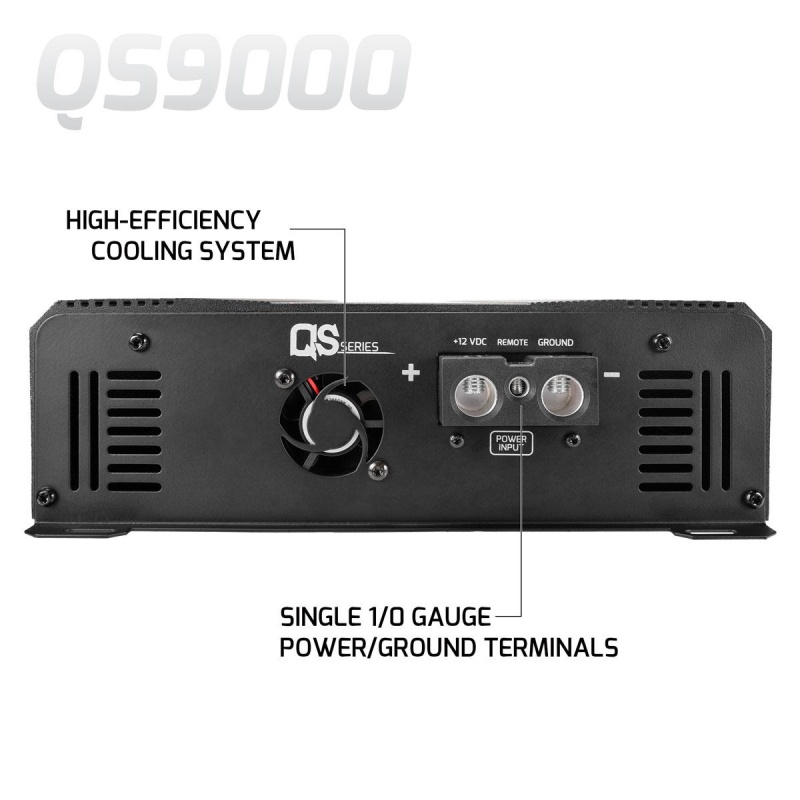

This proprietary heat dissipation design ensures high airflow, with cooling fans regulating temperature to keep the system running cool even during the most demanding playlists.
The LED indicator is a convenient built-in feature that lets you monitor your amplifier’s operating status in real time.
The clipping indicator flashes when the amplifier reaches its maximum clean power output, helping you maintain distortion-free performance. All functions are safeguarded by a four-stage intelligent protection circuit for reliable, long-term use.
Popular installation configurations with this amplifier:1 Channel Configuration for 8 Ohm Components Its high power output channel allows you to install 4x 8 Ohm Speakers in parallel at 2 Ohm, giving up to 2250 watts per component.
Before InstallingYou must follow the instructions for the product’s installation to guarantee optimal performance. If you have any questions, get in touch with us. Before using the amplifier, always follow these guidelines:
The gauge of the power supply wiring is extremely important to reach the desired amplifier output and for the amplifier’s safety. Not using the recommended wire gauge will result in power loss and overheating of cables. It is important that the power supply cables are the shortest possible length. Always use 100% Copper cables and good quality connectors. This guarantees the sound’s quality and fidelity; To avoid damaging the cables, make sure that they do not touch sharp metal edges. Important: Use a fuse 12 inches away from the battery as a safety precautionKeep all cables as far away as possible from the ignition cables, electronic injection modules and starter switch since they may cause noise interference;In order to avoid interference, the signal cables ( RCA) must be kept away from the original wiring of the vehicle and from any other power supply cable.Amplifier must be installed in a solid and ventilated area. Do not mount amplifier to the back of a subwoofer box; excess vibration may cause damage to the amplifier.
The power rating data is based on equipment from the PRV Audio Group laboratory. Rated power tested with 100Hz to 1KHz sinusoidal signal and THD
Specifications
Impedance: 2 OhmChannels: 1 ChannelRated RMS Power at 14.0 V at 2 Ohm: 9000 Watts RMSRated RMS Power at 14.0 V at 4 Ohm: 6400 Watts RMSAverage Efficiency: 79%Operating Voltage: 9 to 16 VoltsMusical Current Draw: 475 AMinimal Power Wire Input: (OFC) 0 Gauge wiresProtection Fuse or Circuit Breaker: 500 Amps Minimal Speaker Wire Output: Dual 12 Gauge
Frequency Response(-3dB): 20 – 15,000 HzMin. Input Sensitivity for Max. Output: 200 mVSignal Input: 1 Pair RCASignal to Noise: >90 dBProtection System: Low & High Supply Voltage / Shortage on Output / Low Impedance on OutputHeat Sink Type: Heavy Duty Cast AluminumDimensions ( Width x Depth x Height ): 20″ x 10.25″ x 3″Weight: 16.50 Lbs
The power rated data are based on equipment from the PRV Audio Group laboratory. Frequency reference of 60Hz to 1kHz with THD+N to ≤1 % in impedances referring to the indicated in each measurement. The electronic components and the manufacturing process can present manufacturing variations, thus leading to a variation in the measurements made. This amplifier is designed to perform on music applications (with speakers), any load test (resistant load) is not recommended.
