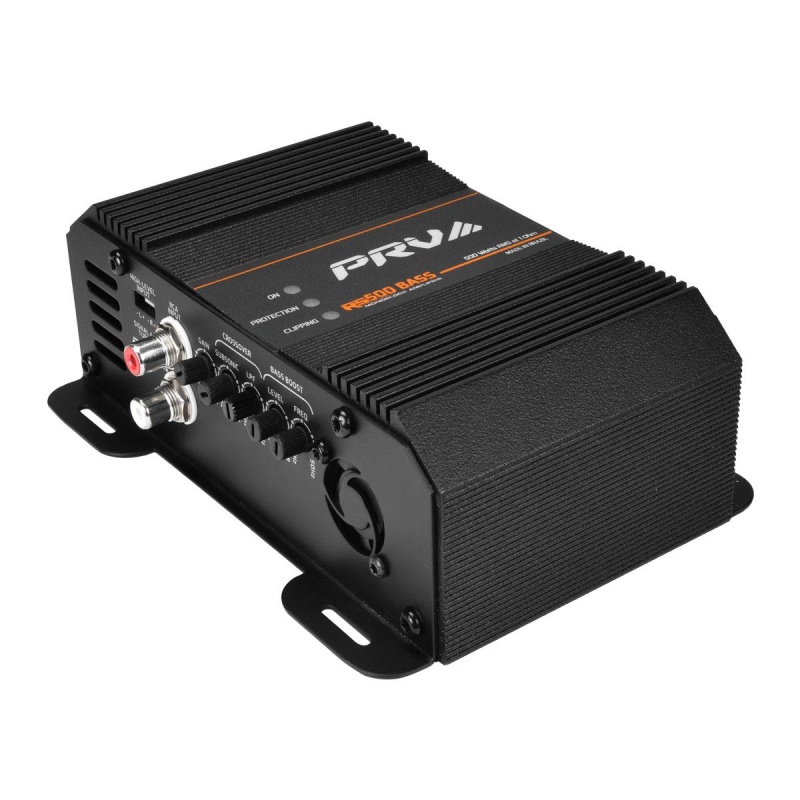

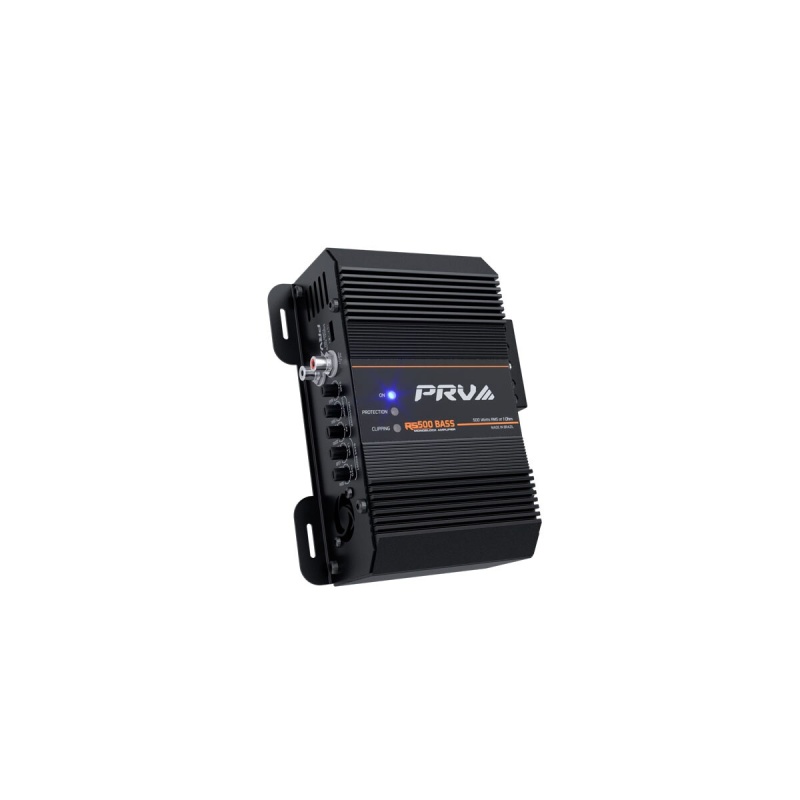

PRV Audio RS500 BASS 1 OHM RS Series 1-Channel Monoblock Amplifier 500WThe was created for SPL competitors and anyone who wants more impact from their daily system. This Class-D monoblock amplifier uses an oversized power supply with true copper for powerful bass response.
Engineered specifically for deep bass, these amplifiers deliver a response unlike full range models. With a reinforced power supply on a heavy-duty PCB board, this amplifier provides steady power and next-level performance.

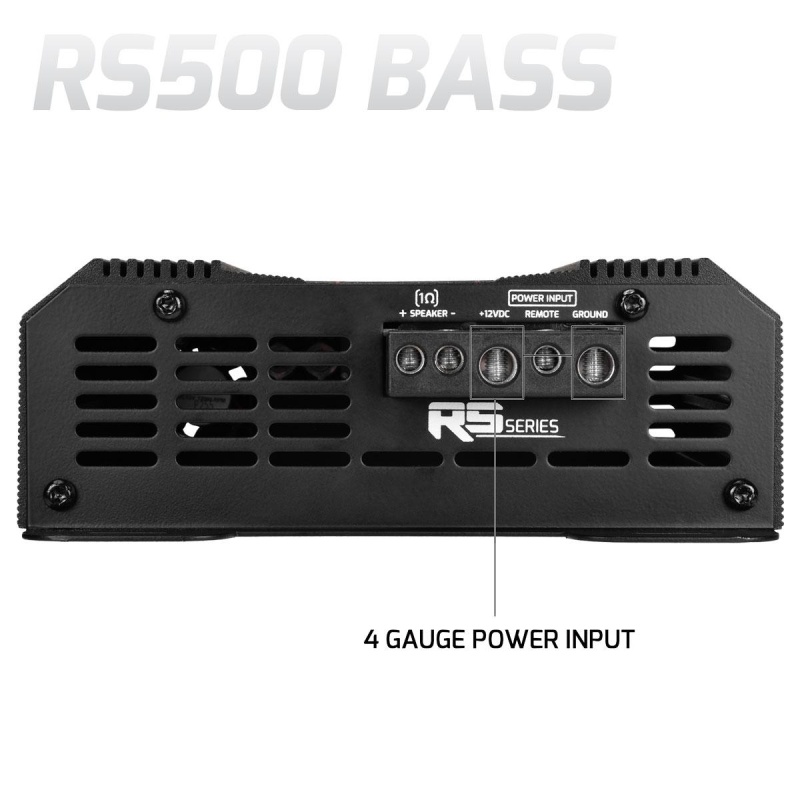

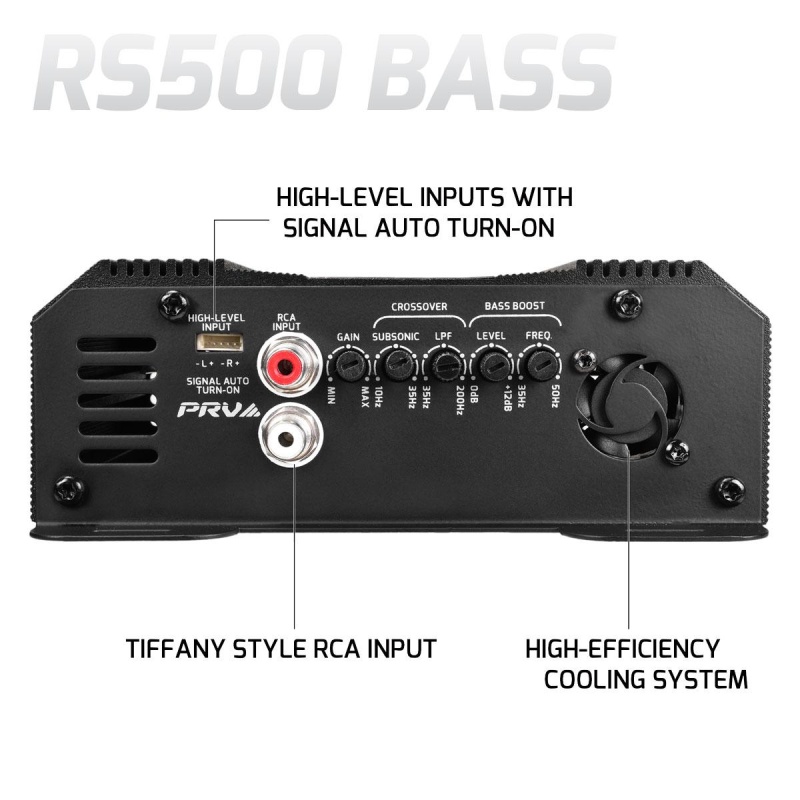

Designed for maximum efficiency, this amplifier delivers strong power while reducing strain on your electrical system, letting you enjoy high output performance without quickly draining your batterySmart Bass Amplifier, monoblock 1 channel rated at 500 watts at 1 Ohm TRUE RMS certified, with intelligent 4-way protection including high voltage, low voltage, shortage, and current protection, plus Clip LED indicators on the top panelBuilt with premium components such as vibration-resistant Tiffany RCA inputs for clean audio connections, along with heavy duty 4 gauge power inputs and 10 gauge speaker outputs for high current flowHigh Capacitance Reserve, featuring a large capacitor bank that stores additional energy for steady bass, capable of delivering over 900 watts of power, with an operating voltage range of 9 to 16 volts
Adding amplifiers to your factory system is simple with this high-level input converter. It connects directly to the speaker wires using a speaker-level input for the amplifier, and with signal auto turn-on, there’s no need to run a separate remote wire.
Designed mainly for subwoofer applications, the RS500 includes a built-in BASS BOOST control adjustable from 0 to +12 dB, along with a variable frequency knob from 35 to 50 Hz to fine-tune the lowest tones in your system.
It delivers 500 watts RMS at 1 Ohm, optimized for bass frequencies between 10 and 200 Hz, with flexible control using the built-in SUBSONIC and LPF filters.
Built for bass, this amplifier delivers deeper, louder, and more powerful low-end than ever.
Equipped with a compact heavy-duty heatsink and a built-in cooling fan, it stays cool even during the most demanding playlists.
Its small footprint and rugged heatsink make it simple to install anywhere in a vehicle. Measuring just 4.75″ wide, 6.25″ long, and 2.25″ tall, and weighing only 2 lbs., it provides excellent performance with an outstanding weight-to-power ratio.
Popular Installation configurations with this amplifier:
Configuration for DUAL 4 Ohm subwoofer, its high power output channel allow you to install 2x subs in parallel at 1 Ohm, giving up to 250 watts per sub.
Before Installing:
You must follow the instructions for the product’s installation to guarantee optimal performance. If you have any questions, get in touch with us. Before using the amplifier, always follow these guidelines:
Make sure the amplifier is switched off before adding or removing any connections. This prevents possible damage to equipmentKeep all cables as far away as possible from the ignition cables, electronic injection modules and starter switch since they may cause noise interference; Minimum recommended installation distance between amplifier is 1.25”Always use OFC 4 AWG Copper wire for power and ground and minimum of 12 AWG speaker wire and good quality connectors. Copper-clad aluminum wire (CCAW) must not be used. This guarantees reliability and performanceTo avoid damaging the cables, make sure that they do not touch sharp metal edges. Important: For this amp use a 35A fuse 12 inches away from the battery as a safety precaution
The power rated data are based on equipment from the PRV Audio Group laboratory.
Frequency reference of 40Hz with THD+N to ≤1 % in impedances referring to the indicated in each measurement. The electronic components and the manufacturing process can present manufacturing variations, thus leading to a variation in the measurements made. This amplifier is designed to perform on music applications ( with speakers ), any load test ( resistant load ) is not recommended.
Specifications
Impedance: 1 OhmChannels: 1 ChannelRated RMS Power at 14.0 V at 1 Ohm: 500 WattsRated RMS Power at 14.0 V at 2 Ohm: 310 WattsAverage Efficiency: 77%Operating Voltage: 9 to 16 VoltsMusical Current Draw: 24 AMinimum Power Wire Input (OFC): 8 Gauge wiresProtection Fuse or Circuit Breaker: 35 Amps
Minimum Speaker Wire Output: 16 GaugeFrequency Response(-3dB): 10 – 200 HzMin. Input Sensitivity for Max. Output: 200 mVSignal Input: 1 Pair RCASignal to Noise: >90 dBProtection System: Shortage on OutputHeat Sink Type: Heavy Duty Cast AluminumDimensions ( W x D x H ): 4.75” x 6.25” x 2.25”Weight: 2 lbs.
