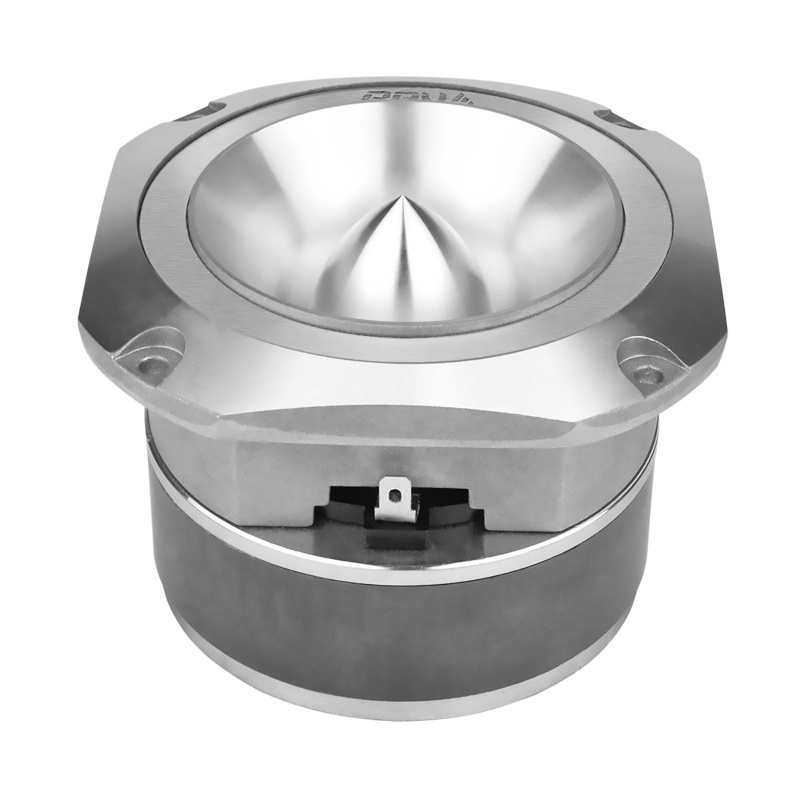

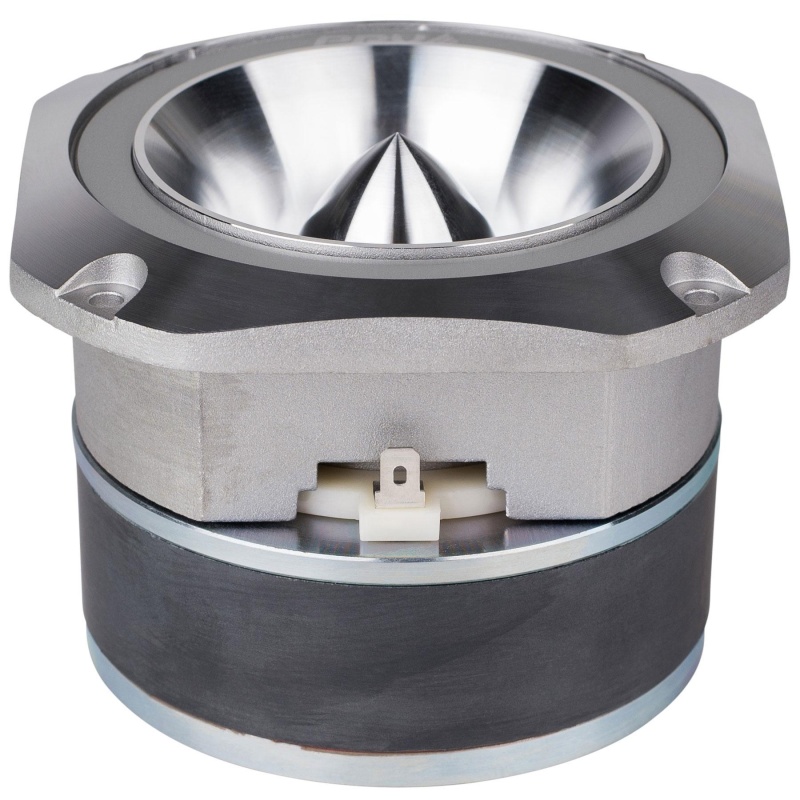

PRV Audio TW700Ti-CR Pro Audio Super TweeterAdd precision and clarity to any speaker with PRV Audio’s TW700Ti-CR titanium bullet super tweeter. Offering high-frequency response up to 20,000 Hz and a sensitivity of 107 dB at 1W/1m, the TW700Ti-CR Pro Audio Super Tweeter is built to handle even the most demanding audio setups. The square faceplate simplifies installation and is crafted from a durable aluminum horn, providing smooth response and exceptional efficiency. This design enables this super tweeter to deliver a wide frequency range with consistent, smooth performance.

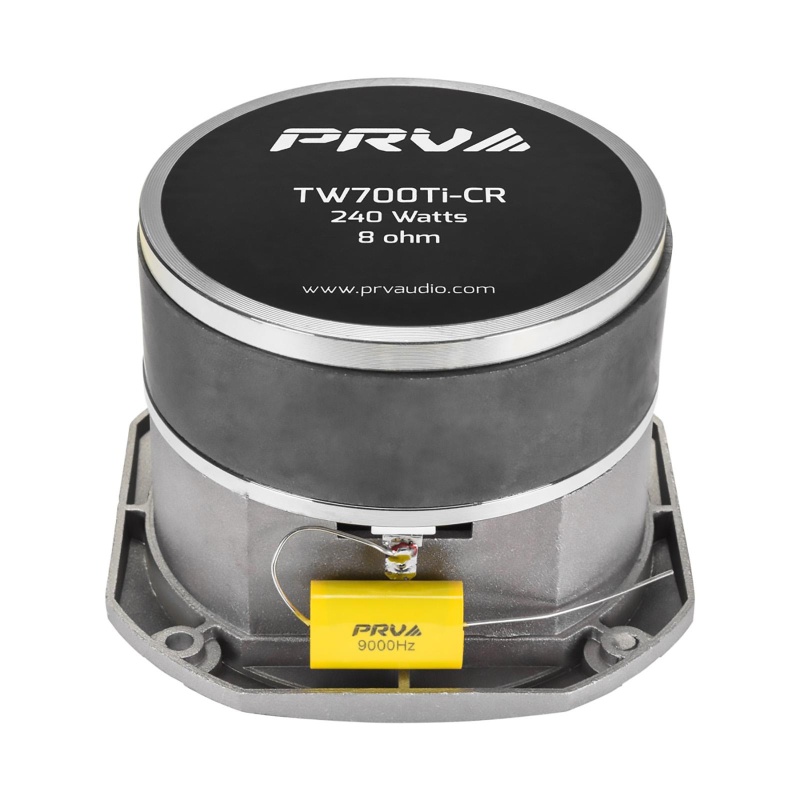

4″ square PRO audio super tweeter designed to deliver high output and exceptional high-frequency response for large, high-output systems. Features a high-temperature 1.5″ diameter voice coil capable of handling up to 240 watts of musical program power and RMS amplifier power. Engineered for high-frequency reproduction at high SPL levels with minimal distortion, thanks to its robust motor structure. Includes a built-in capacitor that functions as a crossover, attenuating low frequencies for a smooth and balanced frequency response. Mounting hardware is included for easy installation.

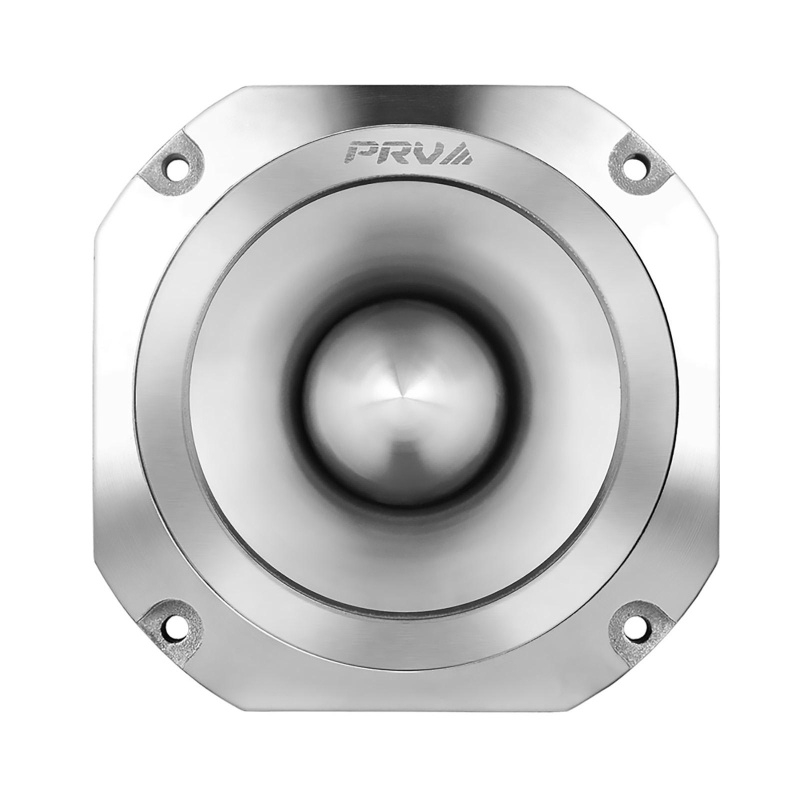

The flat sides of the tweeter enable effortless side-by-side mounting, maximizing space efficiency in your setup.
An oversized magnet system enhances the magnetic field within the gap, increasing sensitivity and reducing distortion to deliver superior sound quality.
This PRO audio bullet tweeter not only delivers exceptional sound but also handles high power with its 1.5″ diameter copper voice coil. With a capacity of up to 240 watts of musical program power, it is designed to meet the demands of professional audio, high-output home audio, and high SPL car audio systems.
Recommended Settings with DSP / CrossoverPRV strongly recommends ALWAYS using a high pass filter (HPF) on the amplifier channel that will be running the tweeters.
If you have just a high output crossover such as PRV's EX3.5 STEREO or EX4.6 PRO – Use the HIGH OUT channel to feed the amplifier input with a HPF set to: -At 5000Hz – if you are running just a speaker and tweeter setup -At 8000Hz – If you are running a 3-Way system (speaker, phenolic driver and tweeter)
If you are taking your system to the next level and tuning it with a digital signal processor such as PRV's or – Set on the channel to feed the amplifier input with a HPF set to: -At 5000Hz at LR18 – if you are running just a speaker and tweeter setup -At 7000Hz at LR24 – If you are running a 3-Way system ( speaker, phenolic driver and tweeter )
Specifications
Nominal impedance: 8 Ohm Nominal Power Handling: 120 Watts Continuous Program Power (RMS): 240 Watts Max Peak Power: 480 Watts Sensitivity 2.83V at 1m: 107 dB Recommended Hi Pass Crossover**: 5000 Hz** **For Full Power Handling **12db Per Octave Crossover Frequency Response: at -10dB 3,500 – 20,000 Hz Voice Coil Diameter: 1.5”(38 mm) Voice Coil Wire: CCAW Voice Coil Former Material: Kapton Diaphragm Material: Titanium Flux Density: 1.60 T Magnet Material: Ferrite*Nominal power handling is defined as the maximum RMS power that the speaker can handle in a 2-hour test with a pink noise with 6dB of crest factor and a bandpass filter with 12db/oct tuned in its usable frequency range. **Continuous Program Power (RMS) is the maximum power that the speaker can handle considering a regular musical program using our recommended filters, this power can be used to define the optimum amplifier power to provide a clean signal without clipping or saturation. ***Max Peak Power is the maximum power operation for the speaker, this power is allowed just for a few fractions of a second, usually found just on the peaks of the music. Keeping this power for a little longer timer will damage the speaker.
Overall Depth: 2.97” (75.54 mm) Mounting Depth: 2.55” (64.9 mm) Overall Width: 4.05” (103 mm) Overall Height: 4.05” (103 mm) Cutout Diameter: 3.58” (91 mm) Net Weight: 3.58 lbs. (1.58 kg)
