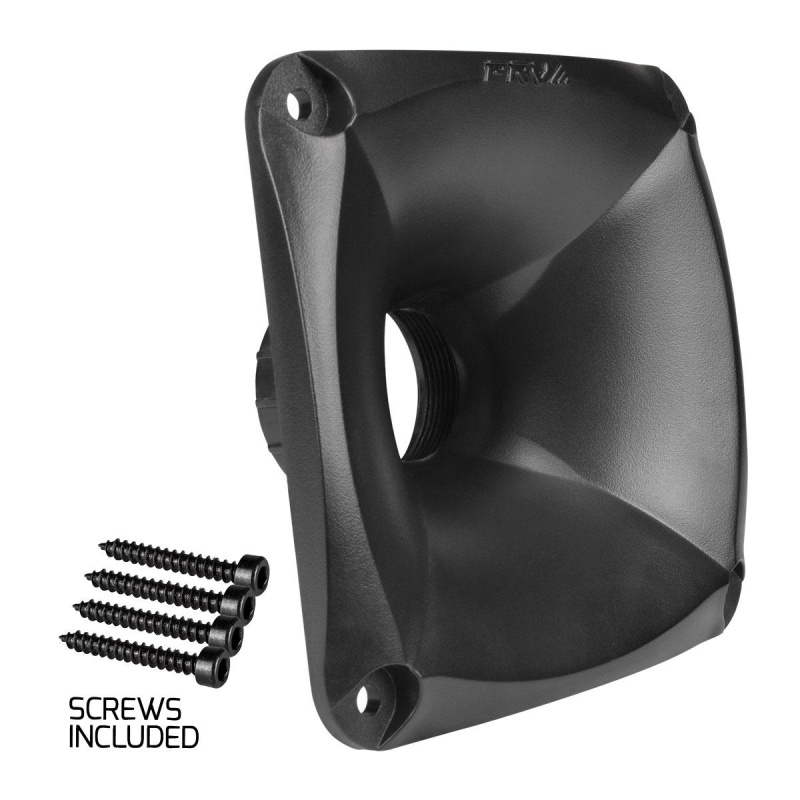

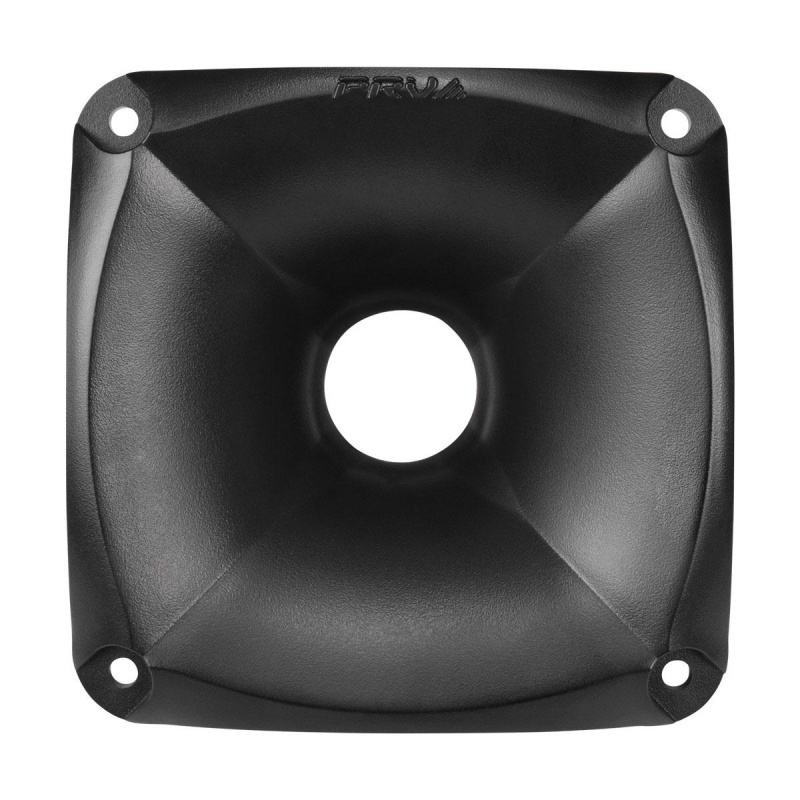

PRV Audio WGP10-25 SLIM 1" WaveguideThe screw-on shallow waveguide WGP10-25 SLIM from PRV Audio is an exponential horn designed for installations where space is limited. With a depth of just 1.75″, it fits easily into tight areas. It uses a standard 1-3/8″-18 TPI screw-on mount, making it compatible with any Built from non-resonant ABS plastic, it is durable and well-suited for both outdoor and automotive applications, while maintaining acoustic loading down to 1400 Hz. As a slim version of the popular WG11-25 horn, it features a faceplate that is 3/8″ smaller overall, making it both shallower and more compact.
The WGP10-25 SLIM waveguide has a mounting depth of just 1.75″ and a compact 4.15″ x 4.15″ faceplate, making it easy to fit a compression driver between speakers. When paired with any , it delivers powerful performance in tight spaces. The baffle cutout range of 3.50″ to 3.75″ allows for straightforward front mounting of drivers such as the or . Its 90° x 90° dispersion pattern makes it a great choice for short-throw applications, while the reinforced, non-resonant plastic construction and unique dispersion design help reduce reflections for more consistent sound. A minimum recommended crossover frequency of 1,400 Hz is suggested, and the horn includes four screws for mounting.
Specifications
Throat Diameter: 1” (25.4mm) Mounting Type: Screw-on Thread dimensions 1-3/8″ Nominal Coverage -Horizontal 75° -Vertical 75° Flare type Exponential Material Plastic (ABS) Finish / Coating BlackDimensions -Height 4.15” (105.5mm) -Width 4.15” (105.5mm) -Depth 2.07” (52.5mm) -Mount Depth 1.75” (44.5mm) Baffle Cutout Diameter 3.75″ (95.5mm) Net weight 0.15lb (0.07kg)
