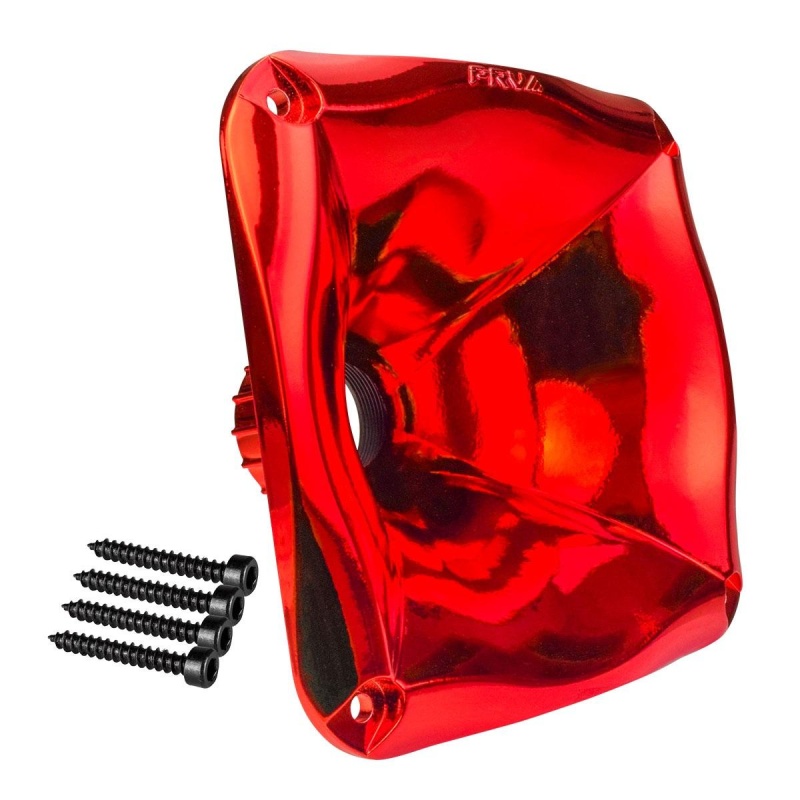

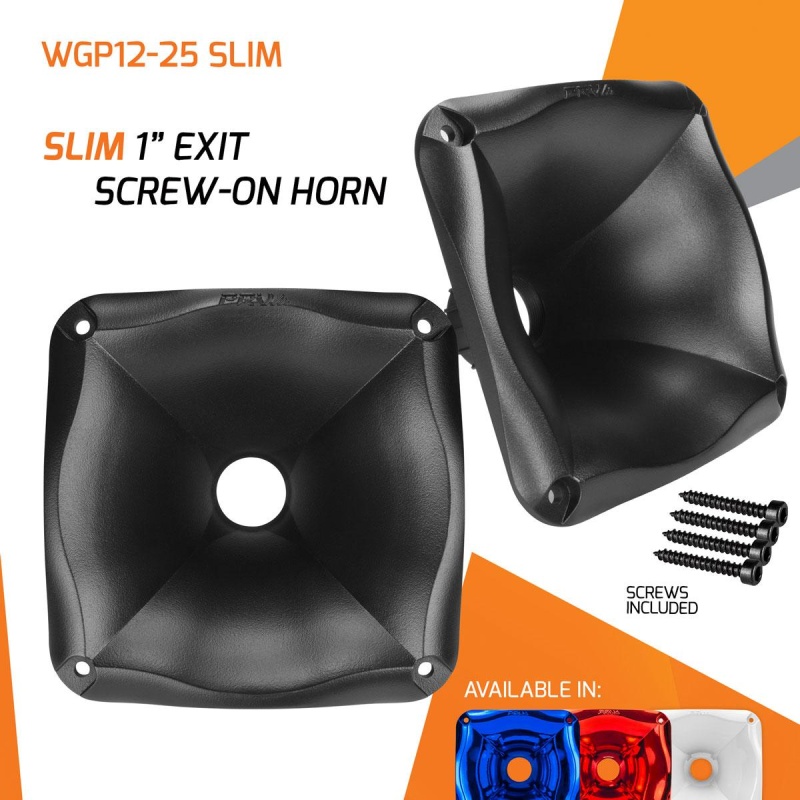

PRV Audio WGP12-25 SLIM 1” Screw-On Slim WaveguideThe PRV Audio WGP12-25 SLIM compact screw-on waveguide is an exponential horn designed for applications where maximum output from a 1″ compression driver is essential. With a shallow 2.95″ depth and a 5.20″ x 5.20″ faceplate, it offers a compact solution for high-output sound systems.
A standard 1-3/8″-18 TPI screw-on mounting thread allows compatibility with all . Constructed from non-resonant ABS plastic, the WGP12-25 SLIM is well suited for outdoor and automotive installations. It maintains effective acoustic loading down to 800 Hz.
With a mounting depth of 3.35″ and a compact 5.20″ x 5.20″ faceplate, it occupies minimal mounting space and allows a compression driver to be installed between speakersDesigned to deliver high output from a very small footprint when paired with any , with a 4.80″ diameter baffle cutout that simplifies front mounting models like the or 60° x 60° dispersion pattern suited for long-throw applications Reinforced, non-resonant plastic construction with a patterned surface to reduce reflections and promote consistent sound coverage Recommended minimum crossover frequency of 800 Hz Includes four mounting screws

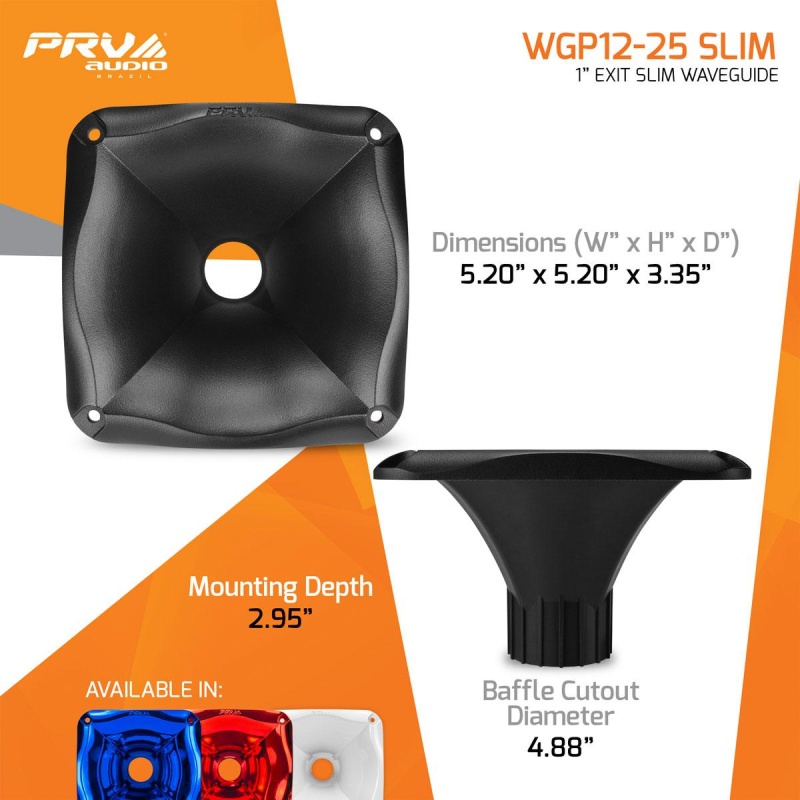

SpecificationsThroat Diameter: 1” (25.4mm) Mounting Type: Screw-on Thread dimensions: 1-3/8" Nominal Coverage: Horizontal 60° Vertical 60° Flare type: Exponential Material: Plastic (ABS) Finish / Coating: Black Dimensions (H x W x D): 5.20” (132mm) x 5.20” (132mm) x 3.35” (85mm)Mount Depth: 2.95” (75mm) Baffle Cutout Diameter: 4.85" (123.2mm) Net Weight: 0.25lb (0.115kg)
