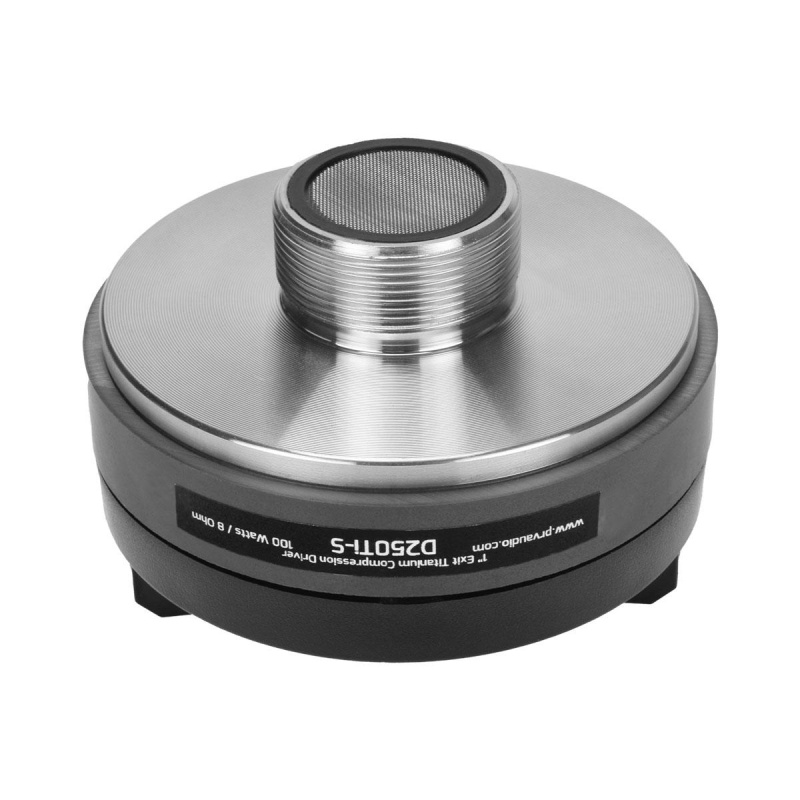

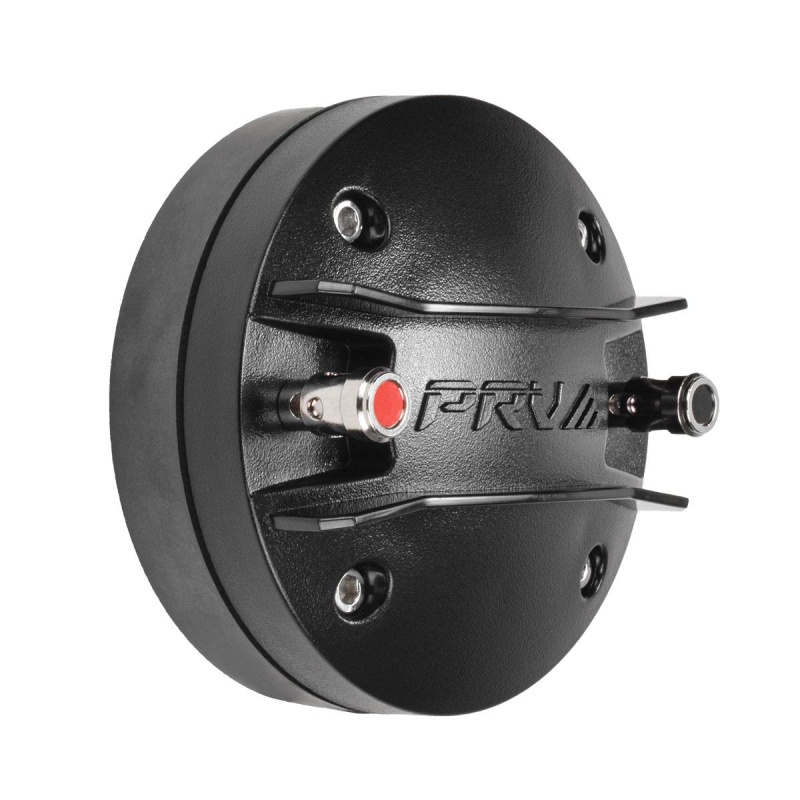

PRV D250Ti-S 1" Titanium Horn Driver 8 Ohm 1-3/8"-18The D250Ti-S compression driver delivers strong performance and dependable reliability, making it a solid replacement or upgrade for DJ speaker cabinets that accept standard screw-on horns.
Its 1-3/8″-18 TPI threading provides direct compatibility with many Pro audio cabinets, which often come with lower-cost parts. Thanks to its high sensitivity, the driver produces cleaner output with less effort, giving your speakers improved clarity.
A lightweight construction makes transport far simpler, an advantage for mobile DJ rigs and touring systems. By reducing overall cabinet weight without compromising capability, it improves handling and portability. This combination of convenience and performance has established it as the leading choice in its class of high frequency drivers.

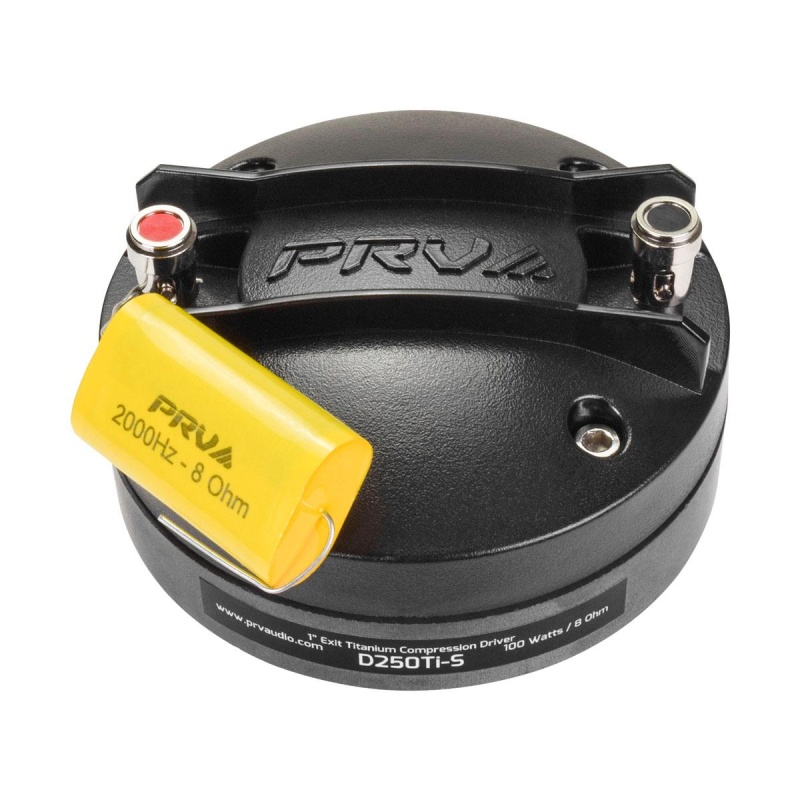

Pure titanium diaphragm with a 1.4″ voice coil delivers minimal moving mass and powerful output, rated at 106 dB sensitivityThis driver provides PRV Audio’s signature clear, high-level performance across 1800 to 20,000 Hz with a smooth frequency responseStraightforward replacement or upgrade for any system using 1” screw-on horns, ideal for 2-way applications, with a premium capacitor includedBuilt to reproduce critical vocals and detailed highs in a compact format, measuring only 3.54” in diameterProfessional high frequency driver capable of handling 100 watts continuous program power (RMS) with music
The single-piece titanium diaphragm minimizes moving mass, improving the driver’s capability to deliver sharp and detailed high frequencies.
This design supports a wider high frequency range, making it well suited for applications requiring precise and accurate sound reproduction. The result is clean and defined audio output, particularly in the upper frequency range.
Recommended Crossover Settings: The titanium diaphragm is attached to a 1.4″ diameter copper-clad aluminum wire with Kapton® former for a 100 Watts RMS musical power handling, when used with recommended HPF using
2000 Hz at 12 dB per octave filter Crossover / BT12 1800 Hz at 18 dB per octave filter Crossover / BT18
Specifications
Exit Throat Diameter 1” (25.4mm) Nominal impedance 8 Ohm Nominal Power Handling* 50 Watts Continuous Program Power(RMS)** 100 Watts Max Peak Power*** 200 Watts Sensitivity 2.00V at 1m 106 dB Recommended Hi Pass Crossover (For Full Power Handling) 2000 Hz (12db/oct Crossover) Frequency Response at -10dB 1,800 – 20,000 Hz Voice Coil Diameter 1.4” (35.5mm) Voice Coil Wire CCAW Voice Coil Former Material Kapton Diaphragm Material TitaniumFlux Density 1.65 T Magnet Material FerriteOverall Depth 3.54″ (90 mm) Mounting Depth 2.69” (68.3 mm)Mounting Thread 1 3/8” 18TPI Net Weight 2.05 lbs. (0.93 kg) *Nominal power handling is defined as the maximum RMS power that the speaker can handle in a 2-hour test with a pink noise with 6dB of crest factor and a bandpass filter with 12db/oct tuned in its usable frequency range. **Continuous Program Power (RMS) is the maximum power that the speaker can handle considering a regular musical program using our recommended filters, this power can be used to define the optimum amplifier power to provide a clean signal without clipping or saturation. ***Max Peak Power is the maximum power operation for the speaker, this power is allowed just for a few fractions of a second, usually found just on the peaks of the music. Keeping this power for a little longer timer will damage the speaker.
