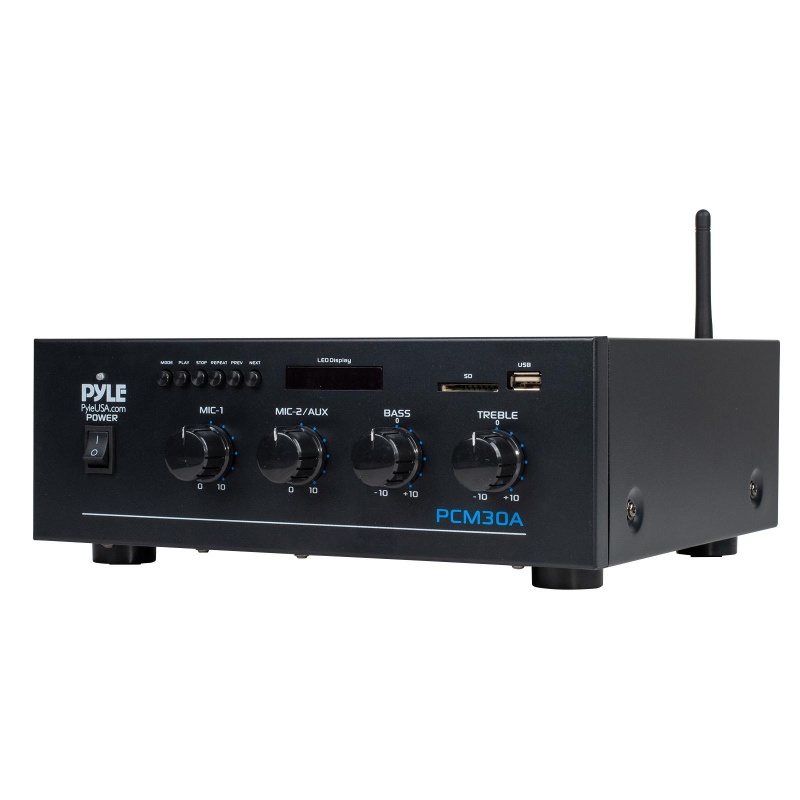

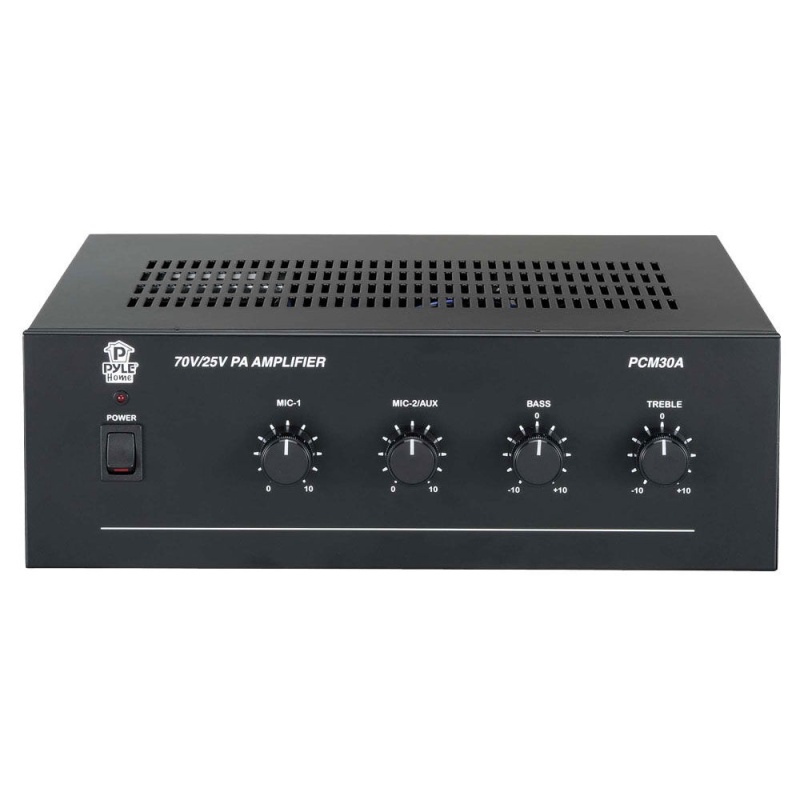

Pyle's PCM30A 30 watt power amplifier provides the juice you need for your 25V or 70V PA speaker system. Connect up two mics using the rear terminals, plus an auxiliary RCA input. Each input has an independent gain control, and you can also adjust the tone of the sound using the rotary treble and bass faders.

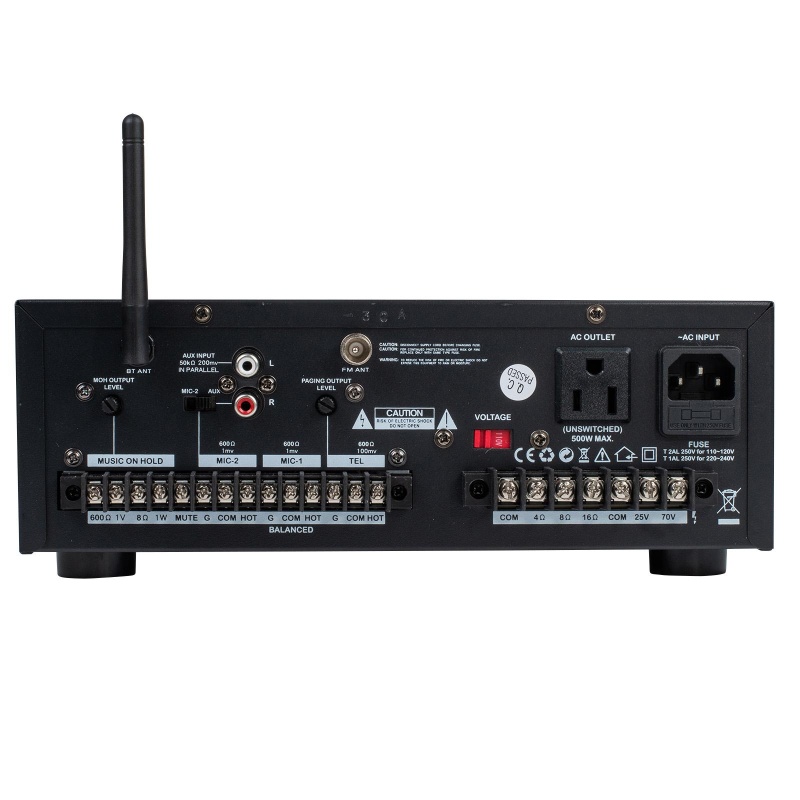

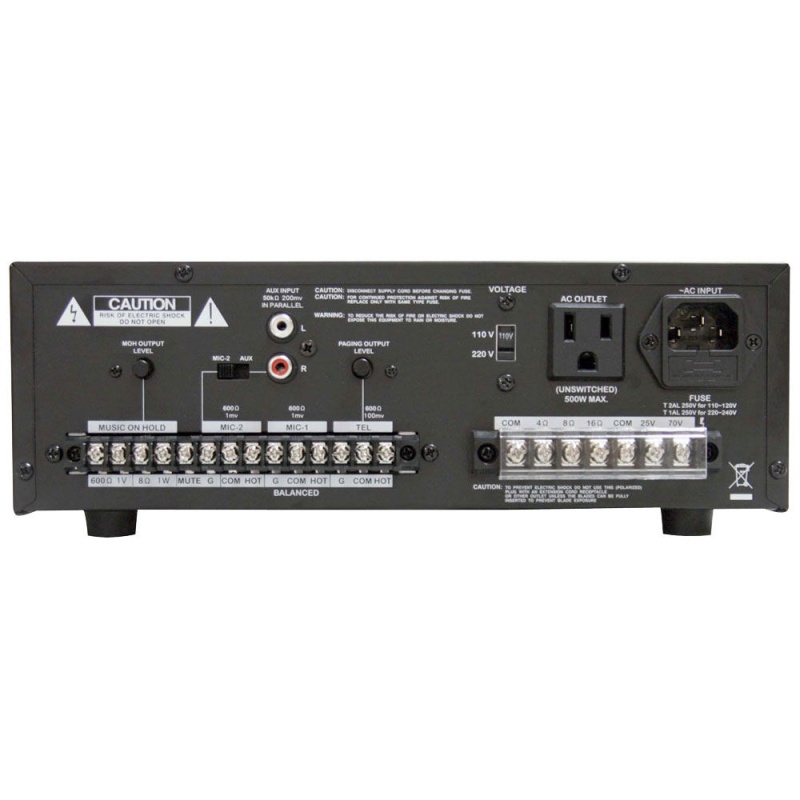

The rear barrier strip offers a wide array of speaker output options. This unit is also equipped with an unswitched 500W max grounded power outlet on the back. Rounding out the capabilities of this amp is the Music-On-Hold function, replaceable fuse, and detachable AC power input. Runs on 110 or 220 V.
The wide range of paging and talkover functions make this amplifier perfect for meeting halls, auditoriums, small restaurants, and schools. If you're looking for great sound with the ability to deliver messages when needed, this is the amp for you.
Specifications:
• Output power: 30 watts x 1 RMS, 60 watts max • Frequency response (±3 dB): 50 Hz to 15 kHz • THD (at rated output power): 1% or less at 1 kHz • Signal to Noise Ratio (A-weighted): Mic: 55 dB Aux: 70 dB Tel: 60 dB • Input impedance: Aux: 200 mV, 50kΩ, unbalanced Mic 1/Mic 2: 1 mV, 600Ω, balanced Tel/Page: 100 mV, 600Ω, balanced • Speaker outputs: 4Ω, 8Ω, 16Ω; 25V and 70V line • Monitor (MOH) output: 600Ω 1V and 8Ω 1W • Mute level (Aux/Mic 2): 40 dB • Tone controls (±10 dB): Bass: 100 Hz Treble: 10 kHz • Power requirement: 120/230 VAC, 60/50 Hz • Dimensions: 10.7" W x 3.46" H x 8.86" D (272 x 88 x 225 mm) • Net weight: 9.79 lbs.
Constant Voltage (70-Volt) Audio SystemsAudio distribution systems, especially those commonly used in department stores, warehouses, restaurants, etc., require that many loudspeakers be driven from a single audio amplifier over long runs of speaker wire. The "constant voltage" or "high impedance distribution" audio systems can be complex to understand at first, however, provides many advantages. Learn how to design your own 70-volt or 25-volt loudspeaker system.
