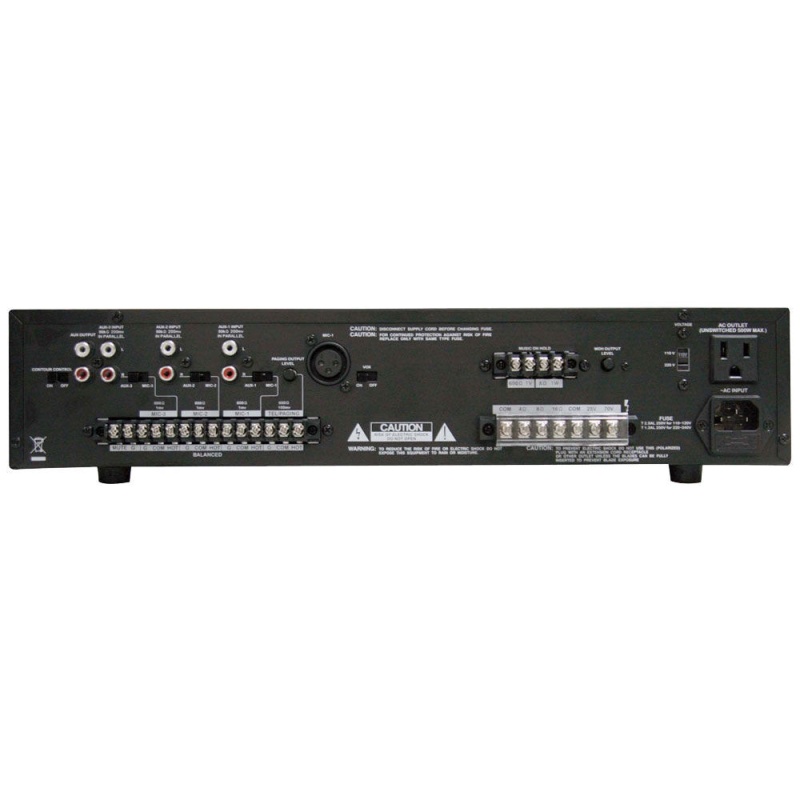

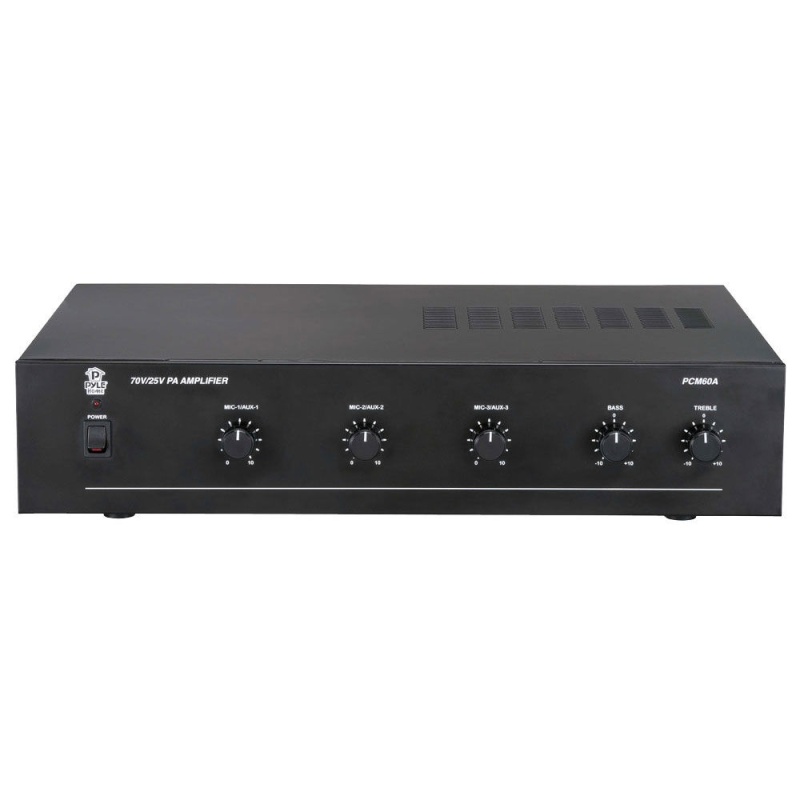

Connect up two mics/aux inputs using the rear terminals, XLR input, and RCA jacks. Mic-1 has an auto talkover so you can easily cancel the other inputs. Each input has an independent gain control, and you can also adjust the tone of the sound using the rotary treble and bass faders. Connect your speakers using the rear terminals. This unit is also equipped with an unswitched 500 watt max grounded power outlet on the back. Also capable of music-on-hold. Includes a replaceable fuse and detachable AC power input. Runs on 110 or 220V.
Specifications: • Max output power: 100 watts x 1 • THD: ≤1% @ 1 kHz • Frequency response (±3 dB): 50 Hz to 15 kHz • Speaker output: 4 ohm, 8 ohm, and 16 ohm; 25V and 70V line outputs • Aux output: 600 ohm 1V • Power requirement: 120 VAC, 60 Hz; 230 VAC, 50 Hz • Dimensions: 16.93" W x 3.46" H x 10.51" D (430 x 88 x 267 mm) • Weight: 14.88 lbs. (6.75 kg).
Constant Voltage (70-Volt) Audio SystemsAudio distribution systems, especially those commonly used in department stores, warehouses, restaurants, etc., require that many loudspeakers be driven from a single audio amplifier over long runs of speaker wire. The "constant voltage" or "high impedance distribution" audio systems can be complex to understand at first, however, provides many advantages. Learn how to design your own 70-volt or 25-volt loudspeaker system.
